3NA3812 Siemens LV HRC Fuse Element Original Brand New
€ 26.40
- 3NA3812
- Current Rating:32 A
- Series:3NA Series
- UPC Code:754554152479
Availability: 160 in stock
Siemens LV HRC Fuse Element – 3NA3812
Overview
LV HRC fuses are used for installation systems in non-residential, commercial and industrial buildings as well as in systems of power supply companies. They therefore protect essential building parts and plants.
LV HRC fuses are fuse systems designed for operation by experts. There are no constructional requirements for non-interchangeability of rated current and touch protection.
The components and auxiliary equipment are designed in such a way as to ensure the safe replacement of LV HRC fuse systems or isolation of systems.
LV HRC fuse links are available in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a.
LV HRC fuse links are available in the following operational classes:
- gG for cable and line protection
- aM for short-circuit protection of switching devices in motor circuits
- gR or aR for protection of power semiconductors
- gS: The new gS operational class combines cable and line protection with semiconductor protection.
LV HRC fuse links of size 000 can also be used in LV HRC fuse bases, LV HRC fuse switch disconnectors, LV HRC fuse strips as well as in LV HRC in-line fuse switch disconnectors of size 00.
The siemens fuse links 300 A, 355 A and 425 A comply with the standard but do not have the VDE mark.
LV HRC components
Benefits
Picture left: Tripped,
Picture right: Not tripped
- LV HRC fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white. This enables fast identification and replacement of the tripped fuse links. This increases plant availability
- The insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement. The mark shown below indicates that the grip lugs are insulated.
Picture left: Tripped,
Picture right: Not tripped
- In the standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
- Siemens HRC fuse links are always equipped with silver-plated contact pins. This means that they are non-corroding and have less contact resistance. This ensures the long-term operational safety of the plant.
3NA3812

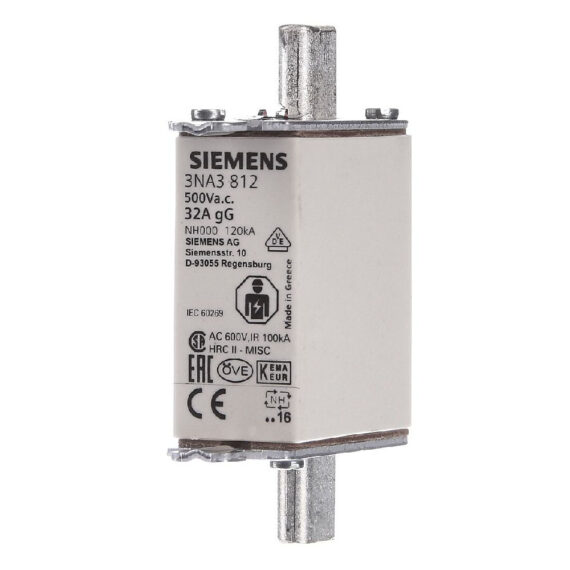

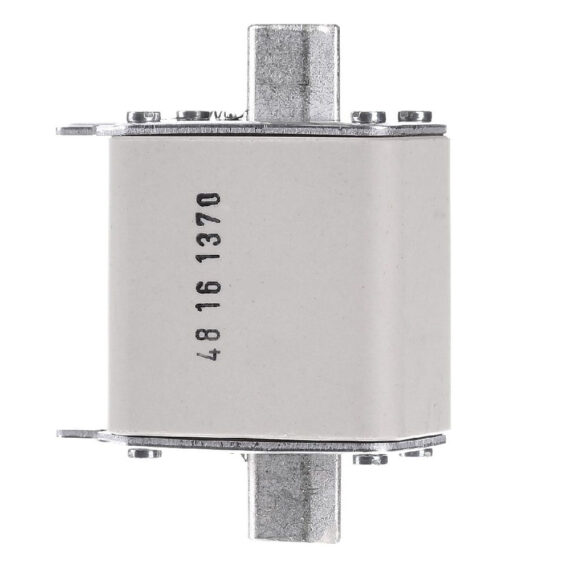

Siemens 3NA3812 ,LV HRC fuse element, NH000, In: 32 A, gG, Un AC: 500 V, Un DC: 250 V, Front indicator, live grip lugs
| Model | ||||||||||||||||||||||||||
| product brand name | SENTRON | |||||||||||||||||||||||||
| product designation | LV HRC fuse link | |||||||||||||||||||||||||
| design of the product | With blade contacts | |||||||||||||||||||||||||
| design of an identification indicator | Front indicators | |||||||||||||||||||||||||
| design of the switching contact | Non-corroding, silver-plated | |||||||||||||||||||||||||
| design of the fuse link | LV HRC fuse link | |||||||||||||||||||||||||
| General technical data | ||||||||||||||||||||||||||
| size of fuse system / acc. to DIN EN 60269-1 | NH000 | |||||||||||||||||||||||||
| operating class of the fuse link | gG | |||||||||||||||||||||||||
| mounting type | non-insulated grip lugs | |||||||||||||||||||||||||
| type of voltage / of the operating voltage | AC/DC | |||||||||||||||||||||||||
| supply voltage | ||||||||||||||||||||||||||
| ● at AC / rated value | 500 V | |||||||||||||||||||||||||
| ● at DC | 250 V | |||||||||||||||||||||||||
| Protection class | ||||||||||||||||||||||||||
| protection class IP | IP20, with connected conductors | |||||||||||||||||||||||||
| Switching capacity | ||||||||||||||||||||||||||
| switching capacity current | ||||||||||||||||||||||||||
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA | |||||||||||||||||||||||||
| ● acc. to IEC 60947-2 / rated value | 120 kA | |||||||||||||||||||||||||
| Dissipation | ||||||||||||||||||||||||||
| power loss [W] | 2.6 W | |||||||||||||||||||||||||
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.6 W | |||||||||||||||||||||||||
| Current | ||||||||||||||||||||||||||
| operational current | ||||||||||||||||||||||||||
| ● at 30 °C / rated value | 31.36 A | |||||||||||||||||||||||||
| ● at 40 °C / rated value | 30.4 A | |||||||||||||||||||||||||
| ● at 45 °C / rated value | 29.44 A | |||||||||||||||||||||||||
| ● at 50 °C / rated value | 28.8 A | |||||||||||||||||||||||||
| ● at 55 °C / rated value | 28.16 A | |||||||||||||||||||||||||
| ● at 60 °C / rated value | 27.52 A | |||||||||||||||||||||||||
| ● at AC / rated value | 32 A | |||||||||||||||||||||||||
| Mechanical Design | ||||||||||||||||||||||||||
| width / of the enclosure | 21 mm | |||||||||||||||||||||||||
| mounting position | Any, preferably vertical | |||||||||||||||||||||||||
| net weight | 130 g | |||||||||||||||||||||||||
| Environmental conditions | ||||||||||||||||||||||||||
| ambient temperature / during operation | ||||||||||||||||||||||||||
| ● minimum | -5 °C | |||||||||||||||||||||||||
| ● maximum | 40 °C | |||||||||||||||||||||||||
| environmental category | -20 to +50 at 95% relative humidity | |||||||||||||||||||||||||
| environmental category / during storage | 90% at 20°C | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| Further information | ||||||||||||||||||||||||||
|
Information- and Downloadcenter (Catalogs, Brochures,…)
|
||||||||||||||||||||||||||
|
Industry Mall (Online ordering system)
|
||||||||||||||||||||||||||
|
Service&Support (Manuals, Certificates, Characteristics, FAQs,…)
|
||||||||||||||||||||||||||
|
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, …)
|
||||||||||||||||||||||||||
|
CAx-Online-Generator
|
||||||||||||||||||||||||||
|
Tender specifications
|
||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| Date 10/26/2021 |
||||||||||||||||||||||||||
Download
| Weight | 0.130 kg |
|---|---|
| Dimensions | 65.00 × 84.00 × 62.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | NH000 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA |
| ● acc. to IEC 60947-2 / rated value | 120 kA |
| power loss [W] | 2.6 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.6 W |
| operational current | – |
| ● at 30 °C / rated value | 31.36 A |
| ● at 40 °C / rated value | 30.4 A |
| ● at 45 °C / rated value | 29.44 A |
| ● at 50 °C / rated value | 28.8 A |
| ● at 55 °C / rated value | 28.16 A |
| ● at 60 °C / rated value | 27.52 A |
| ● at AC / rated value | 32 A |
| width / of the enclosure | 21 mm |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -5 °C |
| ● maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category / during storage | 90% at 20°C |
| Test Certificates | other Marine / Shipping |
