3NA3830-7 Siemens LV HRC Fuse Element Original Brand New

 27.20

  • 3NA3830-7
  • Class:Class gG
  • Current Rating:100 A
  • Primary Type:Fuse Links
  • Series:3NA Series
  • Size:NH00
  • UPC Code:754554947860
  • Voltage Rating:690 VAC ; 440 VDC

Available on backorder

Siemens LV HRC Fuse Element 3NA3830-7

Overview

LV HRC fuses are used for installation systems in non-residential, commercial and industrial buildings as well as in systems of power supply companies. They therefore protect essential building parts and plants.

LV HRC fuses are fuse systems designed for operation by experts. There are no constructional requirements for non-interchangeability of rated current and touch protection.

The components and auxiliary equipment are designed in such a way as to ensure the safe replacement of LV HRC fuse systems or isolation of systems.

LV HRC fuse links are available in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a.

LV HRC fuse links are available in the following operational classes:

  • gG for cable and line protection
  • aM for short-circuit protection of switching devices in motor circuits
  • gR or aR for protection of power semiconductors
  • gS: The new gS operational class combines cable and line protection with semiconductor protection.

LV HRC fuse links of size 000 can also be used in LV HRC fuse bases, LV HRC fuse switch disconnectors, LV HRC fuse strips as well as in LV HRC in-line fuse switch disconnectors of size 00.

The siemens fuse links 300 A, 355 A and 425 A comply with the standard but do not have the VDE mark.

LV HRC components

Benefits

Picture left: Tripped,
Picture right: Not tripped

  • LV HRC fuse links with combination alarm signal the tripping of a fuse by a clear color change from red to white. This enables fast identification and replacement of the tripped fuse links. This increases plant availability
  • The insulated grip lugs made of metal are integrated in the top and bottom covers of the fuse link in molded plastic and provide greater safety during replacement. The mark shown below indicates that the grip lugs are insulated.

Picture left: Tripped,
Picture right: Not tripped

  • In the standard series with front indicator, the front-mounted red indicator signals the tripping of a fuse
  • Siemens HRC fuse links are always equipped with silver-plated contact pins. This means that they are non-corroding and have less contact resistance. This ensures the long-term operational safety of the plant.

3NA38307

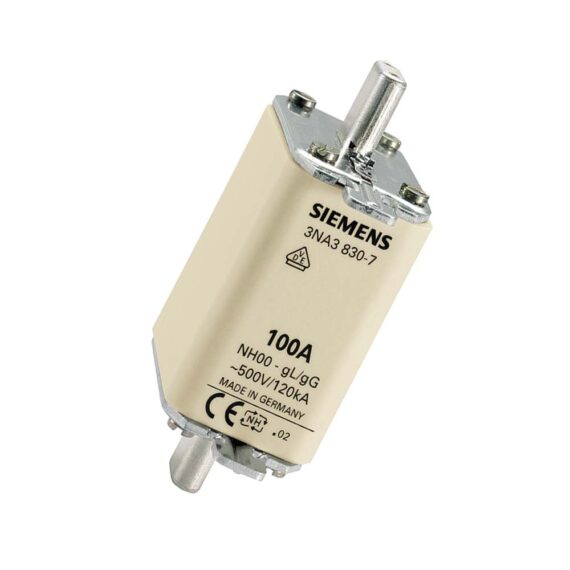

Siemens 3NA3830-7, LV HRC fuse element, NH00, In: 100 A, gG, Un AC: 500 V, Un DC: 250 V, Front indicator, live grip lugs

Download

DataSheet in PDF

Weight 0.201 kg
Dimensions 83.00 × 95.00 × 67.00 mm
Brand

SIEMENS

product brand name

SENTRON

product designation

LV HRC fuse link

design of the product

With blade contacts

design of an identification indicator

Front indicators

design of the switching contact

Non-corroding, silver-plated

size of fuse system / acc. to DIN EN 60269-1

NH000

mounting type

non-insulated grip lugs

type of voltage / of the operating voltage

AC/DC

supply voltage

● at DC

250 V

protection class IP

IP20, with connected conductors

switching capacity current

● at DC / acc. to IEC 60947-2 / rated value

25 kA

● acc. to IEC 60947-2 / rated value

120 kA

power loss [W]

6.95 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole

6.95 W

operational current

● at 30 °C / rated value

98 A

● at 40 °C / rated value

95 A

● at 45 °C / rated value

92 A

● at 50 °C / rated value

90 A

● at 55 °C / rated value

88 A

● at 60 °C / rated value

86 A

● at AC / rated value

100 A

width / of the enclosure

21 mm

mounting position

Any, preferably vertical

ambient temperature / during operation

● minimum

-5 °C

● maximum

40 °C

environmental category

-20 to +50 at 95% relative humidity

environmental category / during storage

90% at 20°C

Test Certificates

other Marine / Shipping
