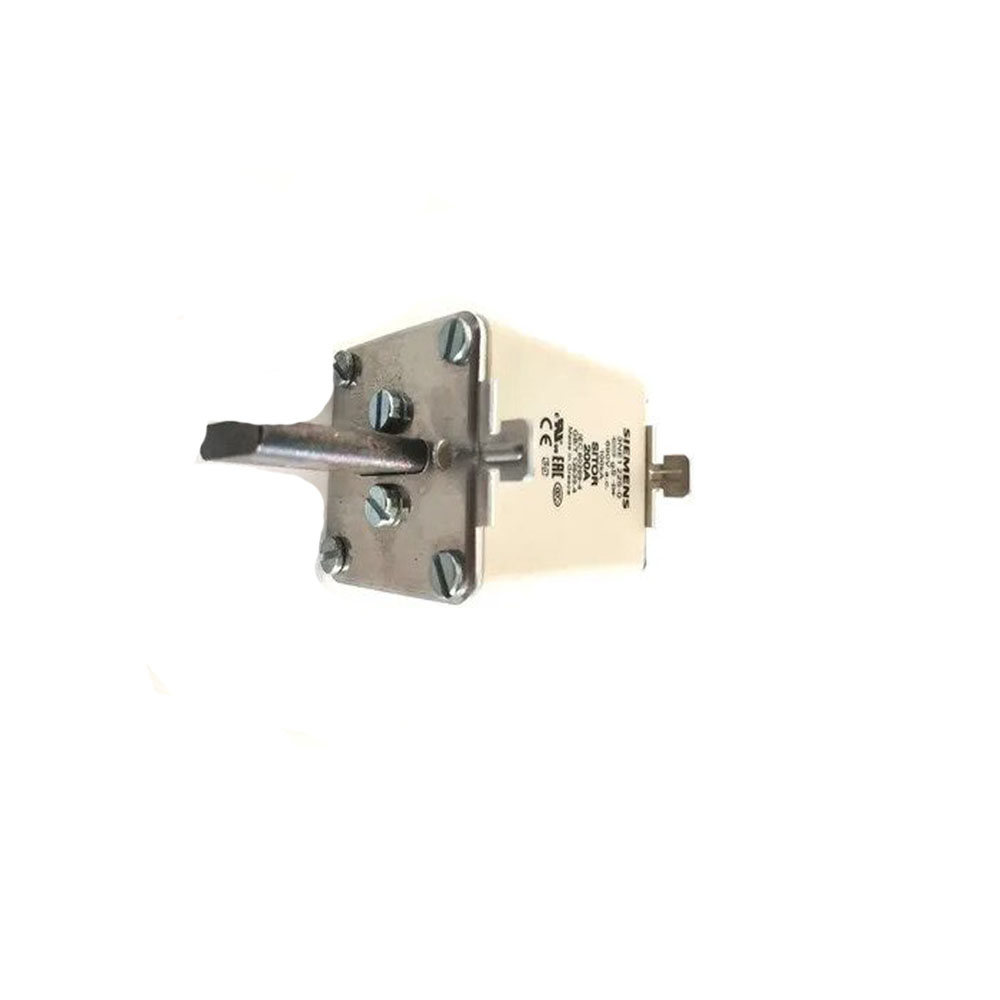

3NE1225-0 Siemens SITOR Fuse Link Original Brand New

 187.20

  • 3NE1225-0
  • Alternate Mfr Part Number:3NE1225-0
  • Current Rating:200 A
  • Series:3NE Series
  • UPC Code:662643084207
  • Voltage Rating:690 VAC

Available on backorder

Siemens SITOR Fuse Link 3NE1225-0

Overview

SITOR semiconductor fuses protect power semiconductors from the effects of short circuits because the super quick-response disconnect characteristic is far quicker than with conventional LV HRC fuses. They protect expensive devices and system components, such as converters with fuses in the input and the DC link, UPS systems and soft starters for motors.

Panel mounting requirements have given rise to various connection versions and designs.

The fuses with blade contacts comply with IEC 60269-2 and are suitable for installation in LV HRC fuse bases, in LV HRC fuse switch disconnectors and switch disconnectors with fuses. They also include fuses with slotted blade contacts for screw fixing with 110 mm mounting dimension, whose sizes are according to IEC 60269-4.

Fuses with slotted blade contacts for screw fixing with 80 mm or 110 mm mounting dimension are often screwed directly onto busbars for optimum heat dissipation. Even better heat transmission is provided by the compact fuses with M10 or M12 female thread, which are also mounted directly onto busbars.

Bolt-on links with 80 mm mounting dimension are another panel-mounting version for direct busbar mounting.

The fuses for SITOR thyristor sets, railway rectifiers or electrolysis systems were developed specially for these applications.

To find out which LV HRC fuse bases and safety switching devices can be used with the SITOR fuses, please refer to: Protection devices → Fuse systems → 3NA, 3ND LV HRC fuse systems → LV HRC fuse bases and accessories

Fuse characteristics, configuration notes and the assignments of Siemens SITOR fuses to the fuse bases and 3NP and 3KL safety switching devices can be found in the Configuration Manual, “Fuse Systems” at:.

The new size 3 type ranges have a round ceramic body instead of a square one. These series are characterized by small I²t values with low power dissipation and high capability under alternating load. The dimensions and functional dimensions correspond to the current standards IEC 60269-4/ DIN EN 60269-4 (VDE 0636-4).

Note:
The ordering data of the siemens fuse link is listed in ascending order of the rated voltage in the selection tables.

Benefits

  • SITOR semiconductor fuses have a high varying load factor, which ensures a high level of operational safety and plant availability – even when subject to constant load change.
  • The use of Siemens fuses in LV HRC bases or Siemens switch disconnectors has been tested with regard to heat dissipation and maximum current loading. This makes planning and dimensioning easier and prevents consequential damage.
  • Our high standard of quality ensures good compliance with the characteristic curve and accuracy. This ensures long-term protection of devices.
Operational classes

Fuses are categorized according to function and operational classes. SITOR semiconductor fuses, in LV HRC design, are available in the following operational classes:

  • aR: for the short-circuit protection of power semiconductors
    (partial range protection)
  • gR: for the protection of power semiconductors
    (full range protection)
  • gS: The gS operational class combines cable and line protection with semiconductor protection
    (full range protection).
Parallel-connected fuses

Parallel-connected fuses offer maximum current and energy limiting that is clearly better than in the case of comparable single fuses. They also fulfill the special requirements for UL-certified fuses according to which fuses must be connected in parallel at the factory. Here is the original wording of the NEC document: “240.8 Fuses and circuit breakers shall be permitted to be connected in parallel where they are factory assembled in parallel and listed as a unit. Individual fuses, circuit breakers, or combinations thereof shall not otherwise be connected in parallel.”

3NE12250

Siemens 3NE1225-0, SITOR fuse link, with blade contacts, NH1, In: 200 A, gS, Un AC: 690 V, Un DC: 250 V, front indicator

Model
product brand name SENTRON
product designation SITOR fuse link
design of the product With blade contacts
design of an identification indicator front indicator
design of the switching contact With blade contacts, silver-plated
design of the fuse link SITOR, LV HRC design
General technical data
size of fuse system / acc. to DIN EN 60269-1 NH1
operating class of the fuse link gS
varying load factor (WL) 1
type of voltage / of the operating voltage AC/DC
Supply voltage
supply voltage
● at AC / rated value 690 V
● at DC 250 V
Switching capacity
switching capacity current
● acc. to IEC 60947-2 / rated value 100 kA
Dissipation
power loss [W] 27 W
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole 27 W
● maximum 27 W
Current
operational current
● at 30 °C / rated value 200 A
● at 40 °C / rated value 200 A
● at 45 °C / rated value 200 A
● at 50 °C / rated value 198 A
● at 55 °C / rated value 196 A
● at 60 °C / rated value 194 A
● at AC / rated value 200 A
Product details
product description Not non-interchangeable
Mechanical Design
mounting position Any, preferably vertical
net weight 582 g
Environmental conditions
ambient temperature / during operation
● minimum -20 °C
● maximum 50 °C
environmental category -20 to +50 at 95% relative humidity
General Product Approval Declaration of Conformity Test Certificates
other
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,…)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, …)
CAx-Online-Generator
Tender specifications

3NE1225-0

3NE1225-0

3NE1225-0

3NE1225-0
Date
10/26/2021

Download

DataSheet in PDF

Weight 0.582 kg
Dimensions 178.00 × 200.00 × 85.00 mm
Brand

SIEMENS

product brand name

SENTRON

product designation

SITOR fuse link

design of the product

With blade contacts

design of an identification indicator

front indicator

design of the switching contact

With blade contacts, silver-plated

size of fuse system / acc. to DIN EN 60269-1

NH1

varying load factor (WL)

1

type of voltage / of the operating voltage

AC/DC

supply voltage

● at DC

250 V

switching capacity current

● acc. to IEC 60947-2 / rated value

100 kA

power loss [W]

● for rated value of the current / at AC / in hot operating state / per pole

27 W

operational current

● at 30 °C / rated value

200 A

● at 40 °C / rated value

200 A

● at 45 °C / rated value

200 A

● at 50 °C / rated value

198 A

● at 55 °C / rated value

196 A

● at 60 °C / rated value

194 A

● at AC / rated value

200 A

product description

Not non-interchangeable

mounting position

Any, preferably vertical

ambient temperature / during operation

● minimum

-20 °C

● maximum

50 °C

environmental category

-20 to +50 at 95% relative humidity
