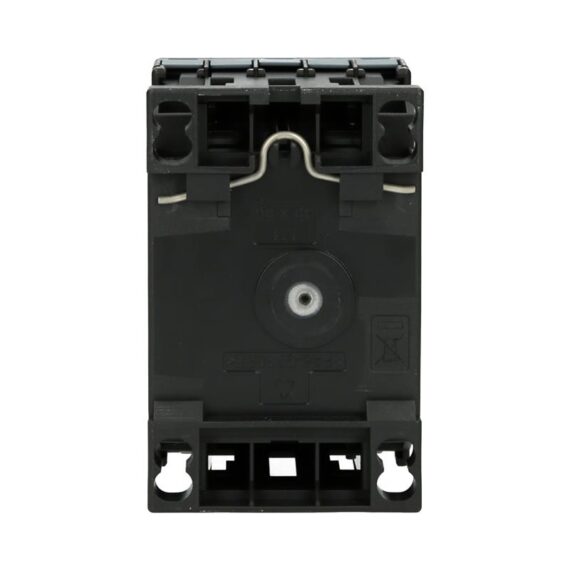

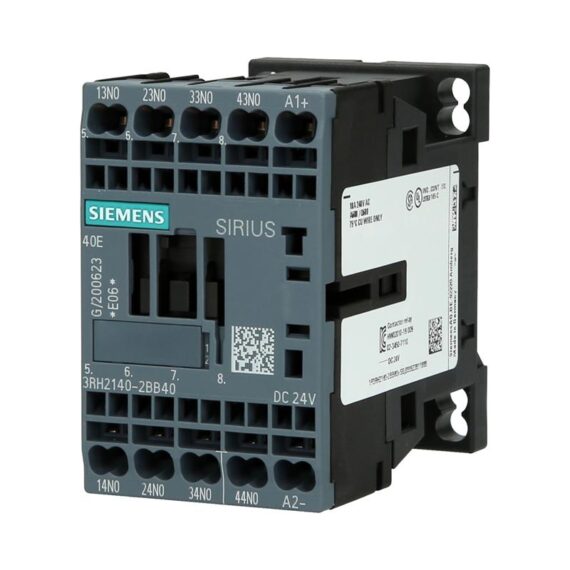

3RH2140-2BB40 Siemens SIRIUS Contactor relay

 31.10

  • 3RH2140-2BB40
  • Contactor relay
  • Construction size S00
  • Auxiliary contacts: 4 x normally open contacts
  • Control voltage: 24 V DC
  • Spring-loaded connection

Contactor relay Siemens SIRIUS 3RH2140-2BB40

Overview

Contactor relays, size S00, with accessories
Standards

IEC/EN 60947‑1, IEC/EN 60947‑4‑1, IEC/EN 60947‑5‑1

The 3RH2 contactor relays are available with screw or spring-loaded terminals. The basic unit contains four contacts with terminal designations according to EN 50011.

The 3RH2 contactor relays are suitable for use in any climate. They are finger-safe according to IEC 60529.

The 3RH21 coupling contactor relays for switching auxiliary circuits are tailored to the special requirements of working with electronic controls.

Contact reliability

High contact stability at low voltages and currents, suitable for solid-state circuits with currents ≥ 1 mA at a voltage of ≥ 17 V.

Surge suppression

RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil. The plug-in direction is determined by a coding device.

Coupling contactor relays have a low power consumption and an extended solenoid coil operating range.

Depending on the version, the solenoid coils of the coupling contactor relays are supplied either without overvoltage damping (versions 3RH21..‑.HB40 or 3RH21..‑.MB40‑0KT0) or with a diode or suppressor diode connected as standard.

Accessories

The accessories for the 3RT2 contactors in size S00 can also be used for the 3RH2 contactor relays, see .

Auxiliary switches

The 3RH21 contactor relays (with the exception of coupling contactor relays) can be expanded by up to four contacts by the addition of mounted auxiliary switches.

The auxiliary switch can easily be snapped onto the front of the contactor relays. The auxiliary switch has a centrally positioned release lever for disassembly.

The conventional front auxiliary contacts fulfill the characteristics of positively driven operation and are therefore suitable for safety applications.

Contactor relays in safety-related applications

Contactor relays are a significant part of safety-related applications. They are generally the actuators that perform the switching operation leading to the safe disconnection of the corresponding application or system.

Contactor relays with positively driven operation according to IEC 60947‑5‑1 are generally required for use in safety-related applications. Most of our contactors meet this requirement; a corresponding note can be found in the technical product data sheet.

Contactor relays with increased tamper protection

Increased tamper protection is ensured either by using our contactor relay versions with permanently mounted auxiliary switches installed in the factory (e.g. 3RH22 contactor relays), or by using the as an accessory.

Article No. scheme

Note:

The Article No. scheme shows an overview of product versions for better understanding of the logic behind the article numbers.

For your order, please use the article numbers specified in the selection and ordering data.

Technical specifications

3RH2140-2BB40

Contactor relay, 4 NO, 24 V DC, Size S00, Spring-type terminal

Download

DataSheet in PDF

Weight 0.288 kg
Dimensions 50.00 × 73.50 × 77.50 mm
