3RH2911-1XA40-0MA0 Siemens Auxiliary Switch Original Brand New
€ 30.97
- 3RH2911-1XA40-0MA0
- Primary Type:Internal Accessories
- Type:Auxiliary Switches
- UPC Code:040892957358
Availability: 139 in stock
Siemens Auxiliary Switch – 3RH2911-1XA40-0MA0
Overview
Auxiliary switch: Terminal designations and identification numbers for auxiliary contacts
Terminal designations
The terminal designations are 2-digit, e.g. 13, 14, 21, 22:
- Tens digit: Sequence digit
- Related terminals have the same sequence digit
- Units digit: Function digit
- 1-2 for normally closed contacts (NC)
- 3-4 for normally open contacts (NO)
Identification numbers
The identification number indicates the number and type of the auxiliary contacts, e.g. 40, 31, 22, 13:
- 1st digit: number of normally open contacts (NO)
- 2nd digit: number of normally closed contacts (NC)
Examples:
- 31 = 3 NO + 1 NC
- 40 = 4 NO
Selection aid for mountable auxiliary switches for power contactors and contactor relays
The auxiliary switch of the 3RH29 series for mounting on the front and side can be used for 3RT2 power contactors as well as for 3RH2 contactor relays.
The possible combinations of basic unit and mounted auxiliary switch can be found in the tables below.
Where the columns and lines intersect (blue and green in the example) you will find the identification number for the combination of basic unit (column) and auxiliary switch (line).
Example 1
Basic unit: 3‑pole 3RT2017 motor contactor with 1 NO
Required: 1 NO + 4 NC (Ident. No. 14)
Result: 3RH2911‑.FA04 auxiliary switch
Example 2
Basic unit: 3‑pole 3RT2023 motor contactor with 1 NO + 1 NC
Required: 1 NO + 4 NC (Ident. No. 14)
Result: 3RH2911‑.HA03 auxiliary switch
1) Assemblies in accordance with EN 50012, EN 50011 or IEC 60947-5-1 are in bold type. All combinations comply with EN 50005.
1) Make-before-break contacts have no mirror contact function.
1) Assemblies in accordance with EN 50011 or IEC 60947-5-1 are in bold type. All combinations comply with EN 50005.
2)
See selection and ordering data
.
1) Assemblies in accordance with EN 50012, EN 50011 or IEC 60947-5-1 are in bold type. All combinations comply with EN 50005.
1) Assemblies in accordance with EN 50012, EN 50011 or IEC 60947-5-1 are in bold type. All combinations comply with EN 50005.
2) Without positively driven operation.
3RH29111XA400MA0

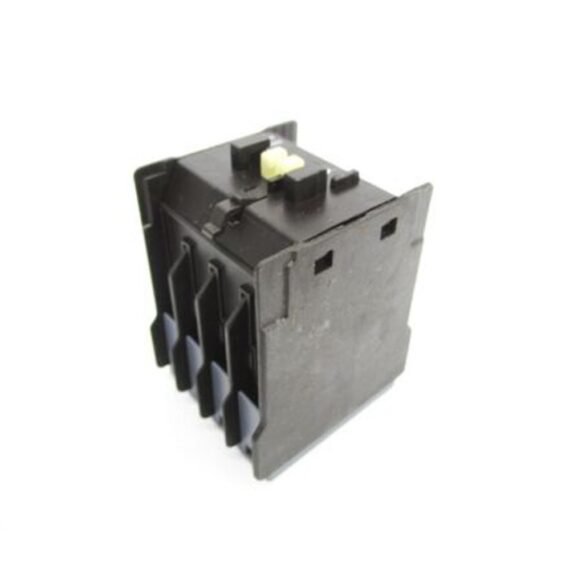

Siemens 3RH2911-1XA40-0MA0 , Auxiliary switch on the front, 4 NO Current path 1 NO, 1 NO, 1 NO, 1 NO for 3RH and 3RT screw terminal 53/54, 63/64, 73/74, 83/84,contactor auxiliary switch
Download
| Weight | 0.0513 kg |
|---|---|
| Dimensions | 45.00 × 50.00 × 60.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| suitability for use | Contactor relay and power contactor |
| protection class IP on the front | IP20 |
| ambient temperature | – |
| ● during storage | -55 … +80 °C |
| ● during operation | -25 … +60 °C |
| mechanical service life (switching cycles) typical | 10 000 000 |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 200 000 |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| number of NC contacts for auxiliary contacts | – |
| ● lagging switching | 0 |
| number of NO contacts for auxiliary contacts | – |
| ● instantaneous contact | 4 |
| ● leading contact | 0 |
| operational current of auxiliary contacts at AC-12 | – |
| ● at 24 V | 10 A |
| ● at 230 V | 10 A |
| ● maximum | 10 A |
| ● of auxiliary contacts | – |
| — at AC-14 | – |
| — at 125 V | 6 A |
| — at 250 V | 6 A |
| — at AC-15 | – |
| — at 230 V | 6 A |
| — at 400 V | 3 A |
| ● at AC-15 at 690 V rated value | 1 A |
| ● of auxiliary contacts at DC-12 | – |
| ● with 2 current paths in series at DC-12 | – |
| ● with 3 current paths in series at DC-12 | – |
| operational current | – |
| ● of auxiliary contacts at DC-13 | – |
| — at 24 V | 6 A |
| — at 60 V | 2 A |
| — at 110 V | 1 A |
| — at 220 V | 0.3 A |
| ● with 2 current paths in series at DC-13 | – |
| ● with 3 current paths in series at DC-13 | – |
| — at 24 V rated value | 10 A |
| — at 60 V rated value | 4.7 A |
| — at 110 V rated value | 3 A |
| — at 220 V rated value | 1.2 A |
| — at 440 V rated value | 0.5 A |
| — at 600 V rated value | 0.26 A |
| fastening method | snap-on mounting |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● for auxiliary contacts | – |
| — finely stranded | – |
| — with core end processing | 2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²) |
| ● at AWG cables for auxiliary contacts | 2x (20 … 16), 2x (18 … 14) |
| product function mirror contact acc. to IEC 60947-4-1 | Yes |
| product function positively driven operation acc. to IEC 60947-5-1 | Yes |
| ● note | with 3RH2 |
| last modified: | 12/21/2020 |
