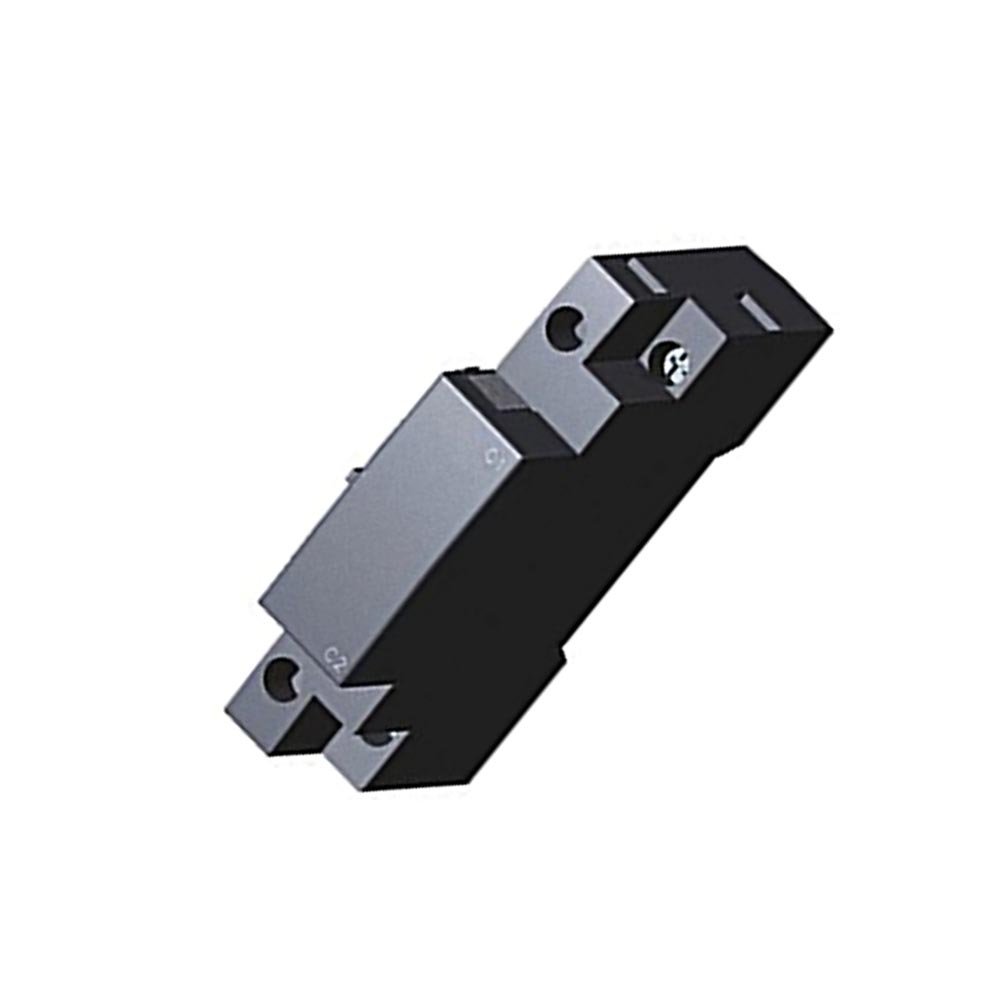

Siemens Shunt Release 90-110 V AC 3RV2902-1DF0 Original Brand New
€ 72.28
- 3RV2902-1DF0
- Series:3RV2 Series
- UPC Code:662643924930
Available on backorder
Siemens Shunt Release 90-110 V AC 3RV2902-1DF0
Overview
Mounting location and function
The Siemens 3RV2 motor starter protectors/circuit breakers have three main contact elements. In order to achieve maximum flexibility, auxiliary switches, signaling switches, auxiliary releases and isolator modules can be supplied separately.
These components are easily fitted to the switches without the use of any tools according to requirements.
Overview graphic, see
For a complete overview of which accessories can be used for the various motor starter protectors/circuit breakers, see .
3RV29021DF0
Siemens 3RV2902-1DF0, Shunt release 90-110 V AC, 50/60 Hz, 100% ON period 70-190 V AC, 50/60 Hz, 5 s ON period 70-190 V AC, 5 s ON period with screw terminal for circuit breaker 3RV2
Download
| Weight | 0.140 kg |
|---|---|
| Dimensions | 42.00 × 88.00 × 101.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | shunt release |
| size of the circuit-breaker | S00, S0, S2, S3 |
| suitability for use | motor circuit breaker |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| design of short-circuit protection | fuse |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| ambient temperature | – |
| ● during storage | -50 … +80 °C |
| ● during operation | -20 … +60 °C |
| reference code acc. to DIN EN 61346-2 | F |
| number of NC contacts for auxiliary contacts instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts leading contact | 0 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| type of voltage of the control supply voltage | AC |
| control supply voltage frequency | – |
| — initial rated value | 50 Hz |
| — final rated value | 60 Hz |
| control supply voltage | – |
| ● 1 | – |
| — at AC | – |
| — at 50 Hz initial rated value | 90 V |
| — at 50 Hz final rated value | 110 V |
| — at 60 Hz final rated value | 110 V |
| — at 60 Hz initial rated value | 90 V |
| fastening method | snap-on mounting |
| certificate of suitability | CE / UL / CSA |
| Test Certificates | Marine / Shipping |
| last modified: | 12/15/2020 |
