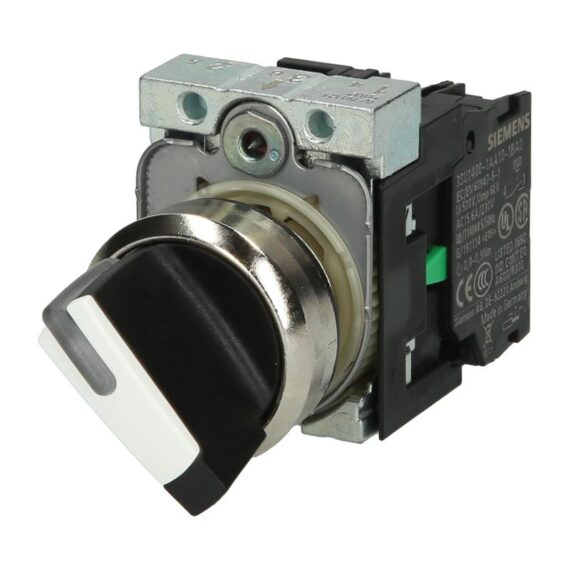

3SU1150-2BF60-1MA0 Siemens SIRIUS ACT Selector switch actuator complete device
€ 18.40
- 3SU1150-2BF60-1MA0
- Illuminated selector switch actuator with thumb-grip (maintained)
- Complete device with two contacts
- 1 x NO/NC
- Colour: White
- 2 positions 0-I (V position 90°)
- Protection rating: IP66/IP67/IP69K
- Mounting diameter: 22.3 mm
- Material: Plastic/Metal shiny
Availability: 160 in stock
Selector switch actuator complete device Siemens SIRIUS ACT 3SU1150-2BF60-1MA0
Benefits
Design
SIRIUS ACT is available in four design lines.
Ruggedness
SIRIUS ACT enclosure
Communication
- Direct connection of the enclosure to AS‑Interface or IO‑Link
- Direct connection in the control cabinet to PROFINET, IO-Link or AS-Interface
- Can be integrated easily via the TIA Portal
Easy handling
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip ISO 8764‑1‑PZD1, flat-head ISO 2380-1 A/B 1×4.5) is sufficient
Mounting dimensions
Versions
SIRIUS ACT is a modular system of pushbuttons and indicator lights with which customized variants can be configured flexibly.
One command point comprises:
- An actuating or signaling element in front of the control panel
- A holder for securing behind the control panel
- Up to six contact modules and/or one LED module (mounted onto the holder), 1-pole contacts can be stacked
- A comprehensive range of accessories for inscription/marking
Actuating and signaling elements
System overview of SIRIUS ACT pushbuttons and indicator lights from the plastic design line, pushbuttons and indicator lights available in four design lines
SIRIUS ACT with PROFINET
SIRIUS ACT with PROFINET connects pushbuttons and indicator lights directly via PROFINET to the controller and HMI devices – including with Safety functions.
With this solution designed for the control panel, up to 21 SIRIUS ACT devices can be connected to the controller via PROFINET. Integration of the EMERGENCY STOP mushroom pushbutton (SIL 3, PL e) is possible via PROFIsafe.
Non-SIRIUS ACT devices, e.g. position switches, can additionally be connected via the open, digital/analog interfaces (DI, DQ, AI).
The system is entirely integrated into TIA Portal and does not require any further addressing apart from the IP address for PROFINET.
Quick and easy installation with flat cables without special tools saves significantly on wiring outlay.
ID key-operated switches
Groups of employees or individuals can be authenticated by means of the ID key-operated switch. The ID key-operated switch is electronic and has four switch positions that are selected by keys with different codes. Using the four ID keys with different codes, it is possible to select 1 to 4 positions.
The ID keys are color-coded (yellow, blue, red, green, white) so that they can be clearly differentiated at a glance and used flexibly thanks to four function levels.
RFID authentication solutions
Groups of employees or individuals can be authenticated by means of the ID key-operated switch. Color-coded keys for easy distinction between users
Different versions of ID key-operated switches are available depending on the following features:
- Front ring material
- Conventional variant: 1 + 4 non-isolated outputs
- Variant with IO-Link: Option of individual coding
Operation:
Insert ID key, turn key to select the position. Standard keys can also be used in conjunction with the electronic module for ID key-operated switches with IO-Link function. The white ID key is supplied without coding.
Ordering information for multi-unit packs
SIRIUS ACT pushbuttons and indicator lights can also be ordered in various practical, environmentally friendly multi-unit packagings.
Multi-unit packaging with order code X90
When ordering products in multi-unit packaging, the Article No. of the product concerned must be supplemented with “–Z” and, in addition, the order code X90 must be specified.
Ordering example:
3SU1000‑0AB20‑0AA0‑Z X90;
100-unit pack (1 pack = 100 units)
Examples of a multi-unit packaging with order code X90
Multi-unit packaging with order code X05
When ordering products in multi-unit packaging, the Article No. of the product concerned must be supplemented with “–Z” and, in addition, the order code X05 must be specified.
Ordering example:
3SU1500‑0AA10‑0AA0‑Z X05;
5-unit packaging (1 pack = 5 units)
Examples of a multi-unit packaging with order code X05
3SU1150-2BF60-1MA0
Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, with holder, 1 NO, 1 NC, screw terminal
Download
| Weight | 0.115 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |

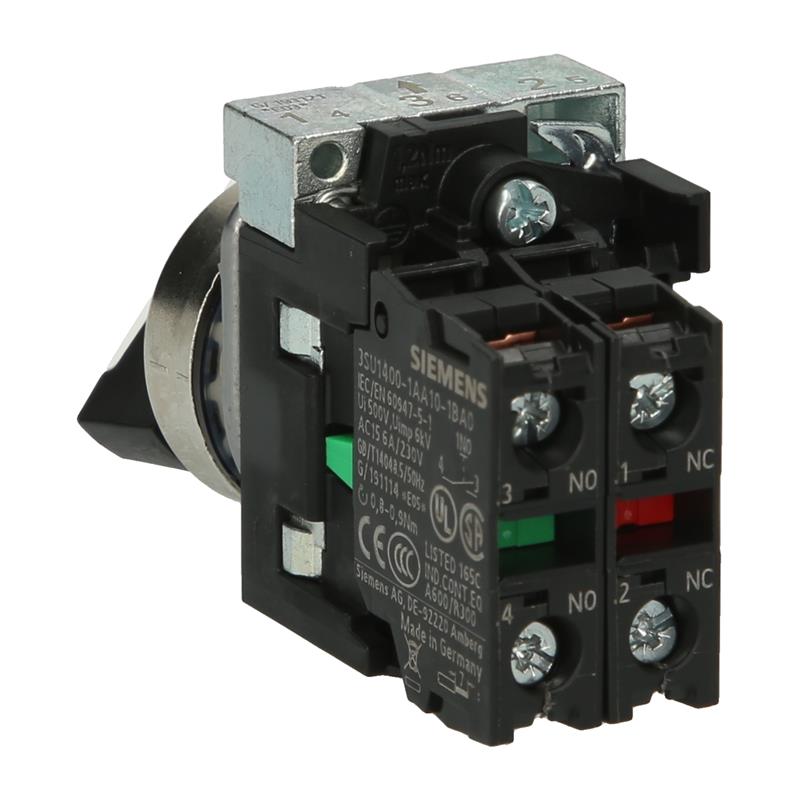

| ● of supplied contact module at position 1 | 3SU1400-1AA10-1BA0 |
| ● of supplied contact module at position 2 | 3SU1400-1AA10-1CA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of the supplied actuator | 3SU1052-2BF60-0AA0 |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional light source | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 32.3 mm |
| number of contact modules | 2 |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| material of the holder | Plastic |
| number of LED modules | 0 |
| product function positive opening | Yes |
| product component light source | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| electrical endurance (switching cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code acc. to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| operating voltage | – |
| ● at AC | – |
| — at 50 Hz rated value | 5 … 500 V |
| — at 60 Hz rated value | 5 … 500 V |
| ● at DC rated value | 5 … 500 V |
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | – |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 49.7 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/1/2021 |
