3SU1250-2PU10-1AA0 Siemens SIRIUS ACT Potentiometer 100k

 42.30

  • 3SU1250-2PU10-1AA0
  • Potentiometer with holder
  • 100k Ohm
  • Infinitely variable
  • Rotation angle 280°
  • Colour: Black
  • Protection rating: IP66/IP67/IP69K
  • Mounting diameter: 22.3 mm
  • Material: Plastic/Metal
  • Connection: Screw terminals

Potentiometer 100k Siemens SIRIUS ACT 3SU1250-2PU10-1AA0

3SU1250-2PU10-1AA0

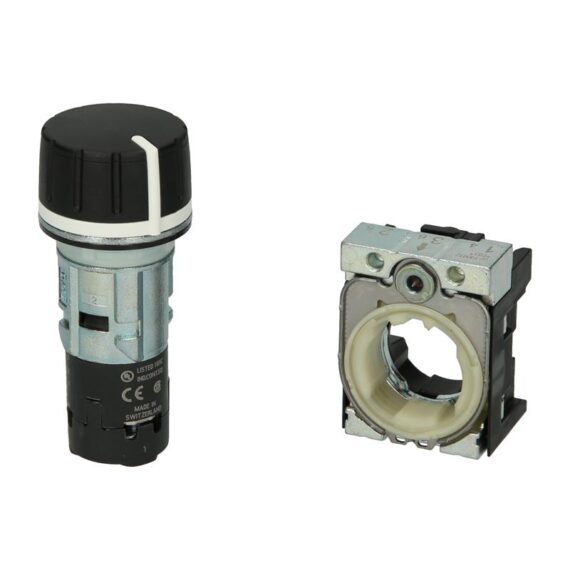

Potentiometer, compact, 22 mm, round, metal, black, 100k ohm, with holder, screw terminal

Download

DataSheet in PDF

Weight 0.106 kg
Dimensions 118.00 × 97.00 × 32.00 mm
Brand

SIEMENS

Product brand name

SIRIUS ACT

Product designation

Potentiometers

Design of the product

Compact unit

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Manufacturer's article number

● of the supplied holder

3SU1550-0AA10-0AA0

Number of command points

1

Design of the operating mechanism

Rotary knob

Manner of function of the actuating element

Infinitely variable adjustment, angle of rotation 280°

Color

● of the actuating element

black

Material of the actuating element

plastic

Shape of the actuating element

round

Outer diameter of the actuating element

30 mm

Marking of the actuating element

Any inscription, symbol compliant with ISO7000 and IEC60417

Maximum deflection angle [°]

280°

Product component front ring

No

Material of the holder

Metal

Insulation voltage

● rated value

500 V

Degree of pollution

3

Protection class IP

IP66, IP67, IP69(IP69K)

● of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance

● acc. to IEC 60068-2-27

Sinusoidal half-wave 50 g / 11 ms

Vibration resistance

● acc. to IEC 60068-2-6

10 … 500 Hz: 5g

Mechanical service life (switching cycles)

● typical

25 000

Reference code acc. to DIN EN 81346-2

S

Reference code acc. to DIN EN 61346-2

S

Type of electrical connection

screw-type terminals

Type of connectable conductor cross-sections

● solid with core end processing

2x (0.5 … 0.75 mm²)

● solid without core end processing

2x (1.0 … 1.5 mm²)

● finely stranded with core end processing

2x (0.5 … 1.5 mm²)

● finely stranded without core end processing

2x (1,0 … 1,5 mm²)

● at AWG conductors

2x (18 … 14)

Tightening torque of the screws in the bracket

1 … 1.2 N·m

Tightening torque

● with screw-type terminals

0.8 … 1 N·m

Ambient temperature

● during operation

-25 … +70 °C

● during storage

-40 … +80 °C

Environmental category during operation acc. to IEC 60721

3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel)

Height

40 mm

Width

30 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

19.4 mm

Installation width

30 mm

Installation depth

46 mm
