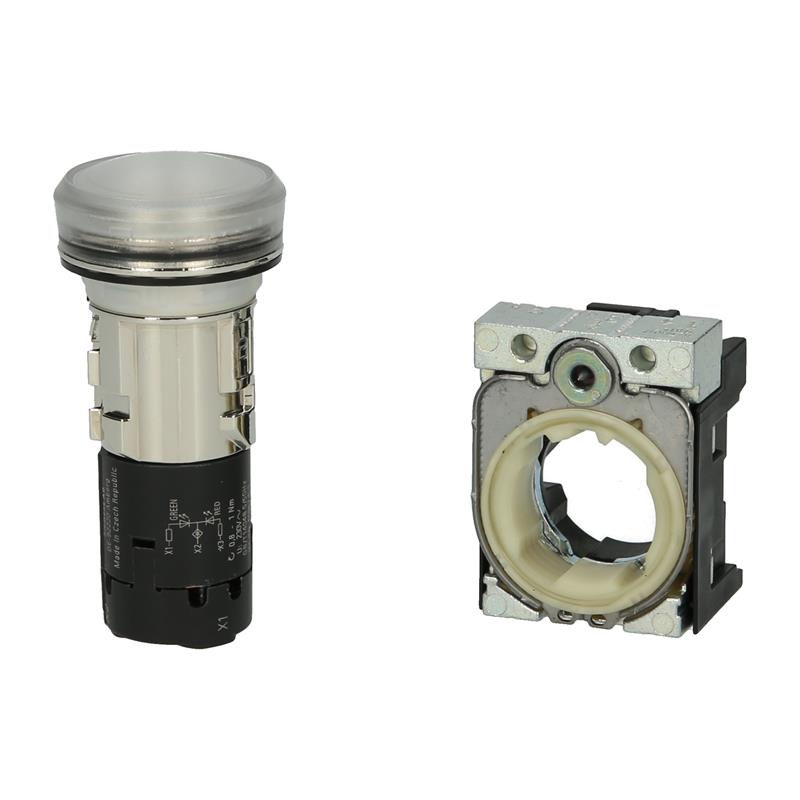

3SU1251-6AF24-1AA0 Siemens SIRIUS ACT Indicator light complete device
€ 19.50
- 3SU1251-6AF24-1AA0
- Indicator light
- Complete device with glow lamp LED (red/green/yellow)
- With smooth lens
- Colour: Transparent
- Operating voltage: 230 V AC
- Protection rating: IP66/IP67/IP69K
- Material: Plastic/Metal
Indicator light complete device Siemens SIRIUS ACT 3SU1251-6AF24-1AA0
3SU1251-6AF24-1AA0
Indicator light with LED lamp, compact, 22 mm, round, metal, clear with red-yellow-green LED, lens, smooth, with holder, operating voltage 230 V AC, screw terminal
Download
| Weight | 0.085 kg |
|---|---|
| Dimensions | 95.00 × 149.00 × 32.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Compact unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 |
| shape of the enclosure front | round |
| design of the actuating element | With "traffic light" LED |
| product extension optional light source | No |
| color | – |
| ● of the actuating element | clear |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| marking of the actuating element | Any inscription, text in lower case |
| product component front ring | No |
| material of the holder | Metal |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 40 mA |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20, clamping screw tightened |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 230 V |
| ● at 60 Hz rated value | 230 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 1 N·m |
| type of light source | LED |
| color of the light source | red/yellow/ green |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 12.9 mm |
| installation width | 29.5 mm |
| installation depth | 49.6 mm |
| last modified: | 10/6/2021 |
