3VA5110-4ED31-0AA0 Siemens Circuit Breaker Original Brand New
€ 538.12
- 3VA5110-4ED31-0AA0
- Current Rating:100 A
- Family Name:3VA Family
- Number of Poles:3 Pole
- Series:3VA Series
- Type:Thermal/Magnetic
- UPC Code:804766301001
- Voltage Rating:480 VAC
Availability: 244 in stock
MCBs from the Siemens SENTRON portfolio meet the enhanced requirements of automated buildings and industrial power supply systems, e.g. in the automotive and semiconductor industry or in data centers. Compared to residential and functional buildings, these are usually more extensive and complex in terms of both network topology and operation. Electricity and production downtimes must be deliberately prevented in these cases using coordinated device combinations if economic losses are to be avoided. Our MCBs protect wires and cables in cases of short circuit and overloads, and also enable backup protection for switching devices and also semiconductor protection. They are therefore a fundamental component in end-to-end protection concepts for industry and infrastructure.
The right combination
The main purpose of Siemens circuit breakers is to permanently monitor and secure cables and wires in electrical systems. They also help protect humans against electric shocks when used in combination with RCCBs or as combined RCBO. Siemens Breakers combining the 5SY MCB with the 5SM6 arc-fault detection unit (AFDD) further expands the range of functions. An overview of all the combinations is provided below.
Strengths of the Breakers siemens in the SENTRON portfolio – your benefits
- Convenient to install and connect
- Uniform additional components
- Consistent design
- Ergonomically formed devices
3VA51104ED310AA0

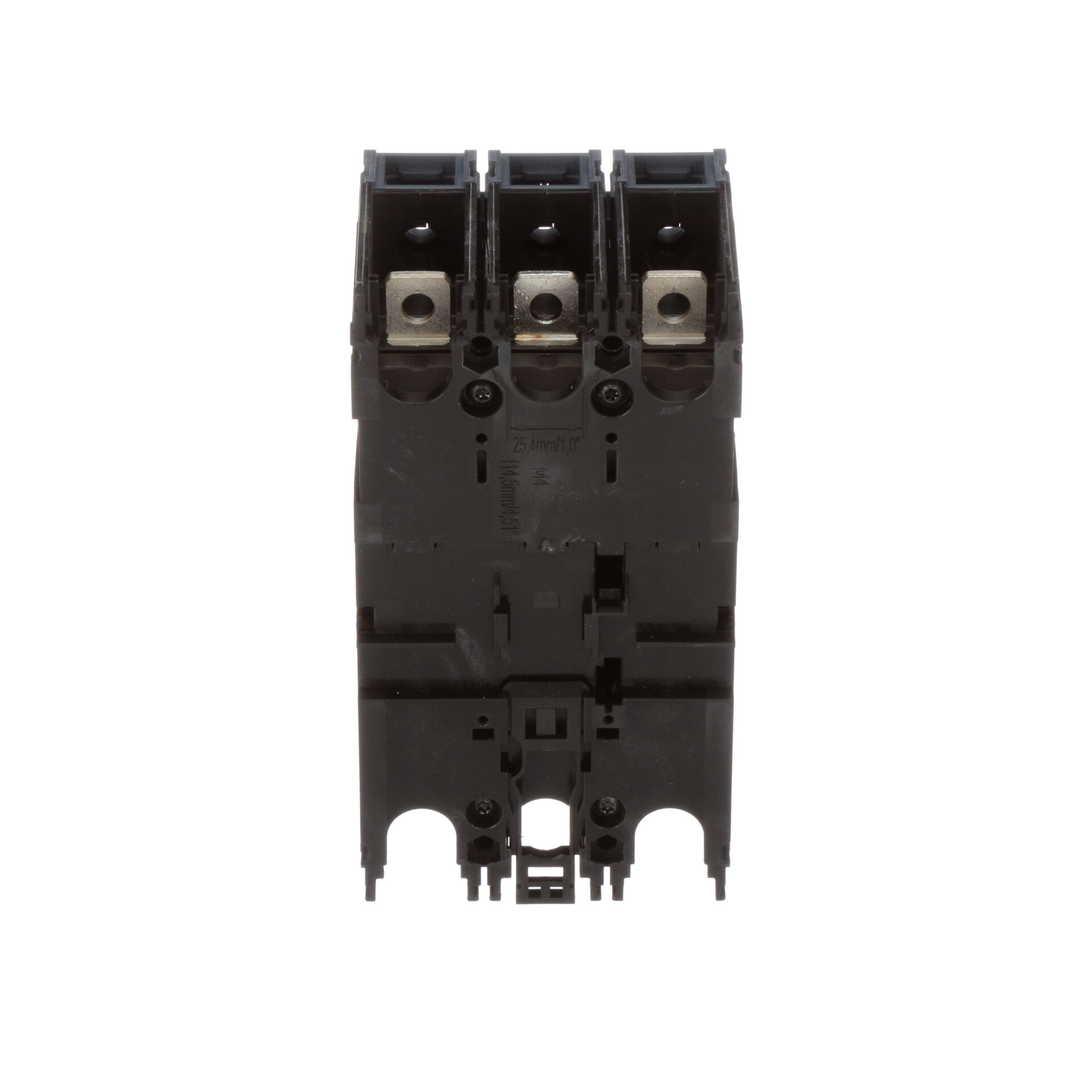

Siemens 3VA5110-4ED31-0AA0, circuit breaker 3VA5 UL frame 125 breaking capacity class S 25kA @ 480V 3-pole, line protection TM210, FTFM, In=100A overload protection Ir=100A fixed short-circuit protection Ii=10 x In without connection
Download
| Weight | 0.990 kg |
|---|---|
| Dimensions | 35125254803-210.100100 × -10 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | SEAS |
| Product version | System protection |
| design of the load switch / acc. to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the load switch / acc. to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | No |
| design of the load switch / acc. to UL 489 / Switching Duty circuit breaker (SWD Type) | No |
| design of the overcurrent release | TM210 |
| protection function of the overcurrent release | LI |
| number of poles | 3 |
| rated insulation voltage Ui | 800 V |
| Max. rated operational voltage Ue with DC | 500 V |
| power loss [W] / maximum | 22.8 W |
| Active power loss / for rated value of the current / at AC / in hot operating state / per pole | 7.6 W |
| mechanical service life (switching cycles) / typical | 20 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 380/415 V 50/60 Hz | 8 000 |
| Electrical endurance (switching cycles) / at AC-1 / at 690 V 50/60 Hz | 4 000 |
| electrical endurance (switching cycles) / at 480 V | 8 000 |
| electrical endurance (switching cycles) / at 600 V | 4 000 |
| Neutral conductors / upgradeable/retrofittable | No |
| product function | – |
| ● communication function | No |
| ● other measurement function | No |
| marking / acc. to UL 489 / 100%-rated breaker | No |
| operational current | – |
| ● at 40 °C | 100 A |
| ● at 45 °C | 98 A |
| ● at 50 °C | 95 A |
| ● at 55 °C | 93 A |
| ● at 60 °C | 91 A |
| ● at 65 °C | 89 A |
| ● at 70 °C | 87 A |
| switching capacity class of the circuit breaker | S |
| breaking capacity maximum short-circuit current (Icu) | – |
| breaking capacity operating short-circuit current (Ics) | – |
| short-circuit current making capacity (Icm) | – |
| ● at 415 V | 75.6 kA |
| ● at 690 V | 7.5 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| breaking capacity current | – |
| ● at 240 V | 65 kA |
| ● at 480 V | 25 kA |
| ● at 600 Y/347 V | 14 kA |
| Adjustable response value current / lg min. | 100 A |
| Ground fault protection / tripping switchable / I2t=ON/OFF | No |
| height [in] | 5.51 in |
| Height | 140 mm |
| width [in] | 3 in |
| Width | 76.2 mm |
| depth [in] | 3.01 in |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| product component | – |
| ● undervoltage release | No |
| ● voltage trigger | No |
| ● trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| product extension / optional / motor drive | Yes |
| protection class IP / on the front | IP40 |
| ambient temperature | – |
| ● during operation / minimum | -25 °C |
| ● during operation / maximum | 70 °C |
| ● during storage / minimum | -40 °C |
| ● during storage / maximum | 80 °C |
| reference code / acc. to IEC 81346-2 | Q |
| certificate of suitability / as approval for NAVAL (no combat vessels) / supplement SB | No |
| last modified: | 10/11/2021 |
