3VA9243-0JB12 Siemens Wire Connector Original Brand New

 60.48

  • 3VA9243-0JB12
  • Current Rating:250 A
  • Family Name:3VA Family
  • Number of Poles:3
  • Primary Type:External Accessories
  • Series:3VA6 Series
  • Type:Lugs
  • UPC Code:804766326486

Available on backorder

Siemens Wire Connector – 3VA9243-0JB12

Overview

Siemens 3VA Family | 3VA5 Series Molded Case Circuit Breakers – New Gen. One System. A Variety of Applications:

Requirements are increasing for cost-effective and energy-efficient operation of the electrical power distribution. Whether in industrial applications or buildings, our new 3VA molded case circuit breaker offers safe, efficient and variable application options for low-voltage and medium-voltage power distribution. The 3VA range of molded case circuit breakers provides UL frame sizes covering 125A to 600A with the 3VA5 and 3VA6 models, as well as IEC frame sizes covering 100A to 630A with the 3VA1 and 3VA2 models.

Siemens 3VA molded case circuit breakers meet both IEC 60947-2 and UL489 standards, and are suitable for global use. The system offers the best preconditions for switchgear manufacturers who export worldwide. You can use all functions of the molded case circuit breaker for plants that are operated in North America and in Europe and be completely confident of full compliance with the standards.

Features:

  • Up to 250 A, TM, 600 V, up to 100 kA
  • Tested in Accordance with UL489 and IEC 60947-2
  • Molded Case Circuit Breaker Portfolio Suitable for Global Use Thanks to UL and
  • Maximum flexibility thanks to the modular design of the internal and external accessories
  • Outstanding selectivity, for example, makes planning very simple
  • State-of-the-art manufacturing techniques
  • All-round product support provided by integrated online support tools
  • For Protecting Cables, Electrical Loads, and Industrial Plants
  • 3VA5 with TMTU in 1- and 3-Pole Versions Up to 250 A
  • 3VA6 with ETU in Four Breaking Capacity Classes, 3- and 4-Pole Versions Up to 600 A
  • ETU 8-Series with Integrated Metering Function, Optimal Communication via Ethernet (Modbus TCP), Modbus RTU, PROFIBUS, or PROFINET
  • Extensive Range of Accessories for Flexible Function Expansions

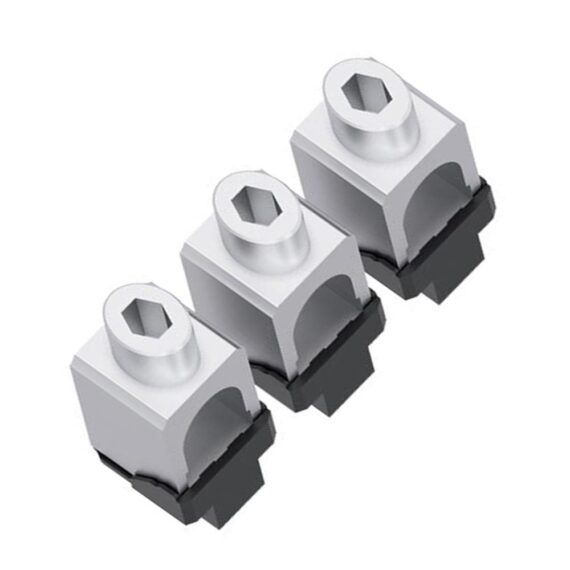

Siemens 3VA9243-0JB12 Wire Connector

Siemens Wire Connector, 1-Wire 3-Poles, 6 AWG to 350 kcmil Conductor, For Use With: 3VA61, 3VA62 at 150/250 A Molded Case Circuit Breaker, 0.87 in Length, 1.14 in Width, 2.41 in Height, Aluminum/Copper

Additional Description: SIEM-3VA9243-0JB12 BREAKER 3VA6 250A 350MCM AL LUG 1 WIRE3P

Catalog Description: BREAKER 3VA WIRE CONNECTOR FOR 3VA61/2 3 POLES SINGLE WIRE CONNECTION ALUMINUM CONNECTION OF CU AL CABLE 3 SINGLE TERMINALS INCLUDED WIRE RANGE (AWG 6 – 350KCMIL)

3VA92430JB12

Siemens 3VA9243-0JB12, wire connector 3 units accessory for: 3VA6 150/250

Download

DataSheet in PDF

Weight 0.130 kg
Dimensions 170.00 × 120.00 × 25.00 mm
Brand

SIEMENS

product brand name

SENTRON

product designation

accessories

Accessories

Wire connector

designation / of the terminal

TA1.4

● for aluminum cable / solid / minimum

16 mm²

● for aluminum cable / solid / maximum

16 mm²

● solid

16 mm²: 15.8 Nm

permissible temperature / of connectable conductor / according to UL 486A-486B

75 °C

stripped length

0.8 in

connectable conductor cross-section

● for copper cable / stranded / minimum

6 AWG

● for copper cable / stranded / maximum

350 kcmil

● for copper cable / finely stranded / minimum

6 AWG

● for copper cable / finely stranded / maximum

350 kcmil

● for aluminum cable / stranded / minimum

6 AWG

● for aluminum cable / stranded / maximum

350 kcmil

tightening torque / when using copper cables

● stranded

6 – 2 AWG: 140 lb-in,
1 AWG – 350 kcmil: 275 lb-in

● finely stranded

6 – 2 AWG: 140 lb-in,
1 AWG – 350 kcmil: 275 lb-in

last modified:

4/6/2021
