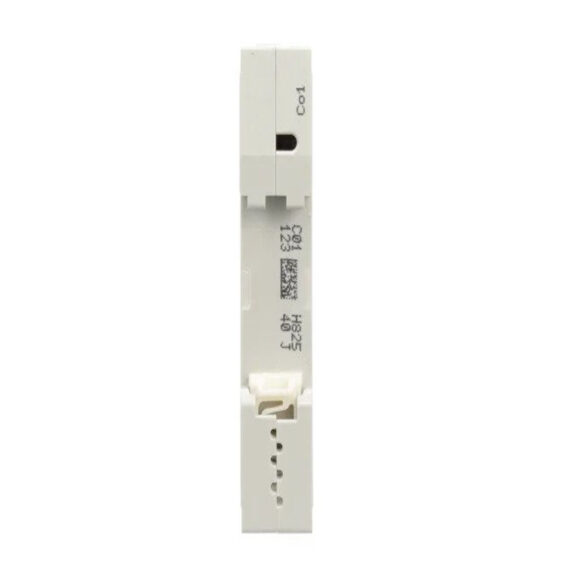

5SJ4101-7HG42 Siemens Circuit Breaker 10kA Original Brand New

 49.29

  • 5SJ4101-7HG42
  • Alternate Mfr Part Number:5SJ4101-7HG42
  • Approvals:UL 489
  • Characteristic:C Curve
  • Current Rating:1 A
  • Number of Poles:1 Pole
  • Series:5SJ4 Series
  • Standards:UL489-277V
  • UPC Code:754554959269
  • Voltage Rating:277 VAC

Availability: 264 in stock

Siemens Circuit Breaker 10kA – 5SJ4101-7HG42

MCBs from the Siemens SENTRON portfolio meet the enhanced requirements of automated buildings and industrial power supply systems, e.g. in the automotive and semiconductor industry or in data centers. Compared to residential and functional buildings, these are usually more extensive and complex in terms of both network topology and operation. Electricity and production downtimes must be deliberately prevented in these cases using coordinated device combinations if economic losses are to be avoided. Our MCBs protect wires and cables in cases of short circuit and overloads, and also enable backup protection for switching devices and also semiconductor protection. They are therefore a fundamental component in end-to-end protection concepts for industry and infrastructure.

The right combination

The main purpose of Siemens circuit breakers is to permanently monitor and secure cables and wires in electrical systems. They also help protect humans against electric shocks when used in combination with RCCBs or as combined RCBO. Siemens Breakers combining the 5SY MCB with the 5SM6 arc-fault detection unit (AFDD) further expands the range of functions. An overview of all the breakers siemens combinations is provided below.

5SJ41017HG42

Siemens 5SJ4101-7HG42, Circuit breaker 10kA, 1-pole, C, 1A according to UL 489-277V

Model
product brand name SENTRON
product designation Miniature circuit breakers
design of the product Miniature circuit-breaker 5SJ4
General technical data
number of poles 1
tripping characteristic class C
mechanical service life (switching cycles) / typical 10 000
installation environment regarding EMC Suitable for environment B (immunity to interference not applicable)
reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 F
overvoltage category 3
degree of pollution 3
Voltage
insulation voltage (Ui) / at AC / rated value 440 V
Supply voltage
supply voltage / at AC / rated value 400 V
operating voltage
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum 277 V
● at DC / rated value / maximum 60 V
● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum 60 V
● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum 125 V
Protection class
protection class IP IP20, with connected conductors, IP 40 in the handle range
Switching capacity
switching capacity current
● acc. to EN 60898 / rated value 10 kA
● acc. to IEC 60947-2 / rated value 15 kA
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole 1.7 W
Current
operational current
● at 30 °C / rated value 1 A
● at 40 °C / rated value 1 A
● at 45 °C / rated value 0.96 A
● at 50 °C / rated value 0.9 A
● at 55 °C / rated value 0.9 A
● at 60 °C / rated value 0.84 A
● at AC / rated value 1 A
Main circuit
type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 480/277
suitability for operation Mechanical engineering / industry
Product details
product component / neutral conductor switching No
product feature / touch protection Yes
product component
● tunnel terminals top No
● tunnel terminals bottom No
● combined terminal top Yes
● combined terminal bottom Yes
product feature
● halogen-free Yes
● sealable Yes
● silicon-free Yes
product extension / installable / supplementary devices Yes
Product function
product function / note Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
Short circuit
breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 10 kA
Connections
connectable conductor cross-section / finely stranded / with core end processing
● minimum 0.75 mm²
● maximum 25 mm²
tightening torque / with screw-type terminals / maximum 3.5 N·m
position / of power supply cord Any
Mechanical Design
height 121 mm
width 18 mm
depth 70 mm
installation depth 70 mm
number of modular width units 1
fastening method on standard mounting rail
mounting position any
net weight 177 g
Environmental conditions
vibration resistance 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
ambient temperature / during operation
● minimum 55 °C
● maximum -25 °C
ambient temperature / during storage
● minimum -40 °C
● maximum 75 °C
Certificates
reference code
● acc. to DIN EN 61346-2 F
● acc. to IEC 81346-2 F
General Product Approval Declaration of Conformity Test Certificates
other
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,…)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, …)
CAx-Online-Generator
Tender specifications

5SJ4101-7HG42

5SJ4101-7HG42

5SJ4101-7HG42

5SJ4101-7HG42

5SJ4101-7HG42
Date
10/26/2021

Download

DataSheet in PDF

Weight 0.177 kg
Dimensions 22.00 × 125.00 × 84.00 mm
Brand

SIEMENS

product brand name

SENTRON

product designation

Miniature circuit breakers

design of the product

Miniature circuit-breaker 5SJ4

number of poles

1

tripping characteristic class

C

mechanical service life (switching cycles) / typical

10 000

installation environment regarding EMC

Suitable for environment B (immunity to interference not applicable)

reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750

F

overvoltage category

3

degree of pollution

3

insulation voltage (Ui) / at AC / rated value

440 V

supply voltage / at AC / rated value

400 V

operating voltage

● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum

277 V

● at DC / rated value / maximum

60 V

● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum

60 V

● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum

125 V

protection class IP

IP20, with connected conductors, IP 40 in the handle range

switching capacity current

● acc. to EN 60898 / rated value

10 kA

● acc. to IEC 60947-2 / rated value

15 kA

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole

1.7 W

operational current

● at 30 °C / rated value

1 A

● at 40 °C / rated value

1 A

● at 45 °C / rated value

0.96 A

● at 50 °C / rated value

0.9 A

● at 55 °C / rated value

0.9 A

● at 60 °C / rated value

0.84 A

● at AC / rated value

1 A

type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02

480/277

suitability for operation

Mechanical engineering / industry

product component / neutral conductor switching

No

product feature / touch protection

Yes

product component

● tunnel terminals top

No

● tunnel terminals bottom

No

● combined terminal top

Yes

● combined terminal bottom

Yes

product feature

● halogen-free

Yes

● sealable

Yes

● silicon-free

Yes

product extension / installable / supplementary devices

Yes

product function / note

Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in

breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235

10 kA

connectable conductor cross-section / finely stranded / with core end processing

tightening torque / with screw-type terminals / maximum

3.5 N·m

position / of power supply cord

Any

installation depth

70 mm

number of modular width units

1

fastening method

on standard mounting rail

mounting position

any

vibration resistance

50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)

ambient temperature / during operation

ambient temperature / during storage

● minimum

-40 °C

● maximum

75 °C

reference code

● acc. to DIN EN 61346-2

F

● acc. to IEC 81346-2

F
