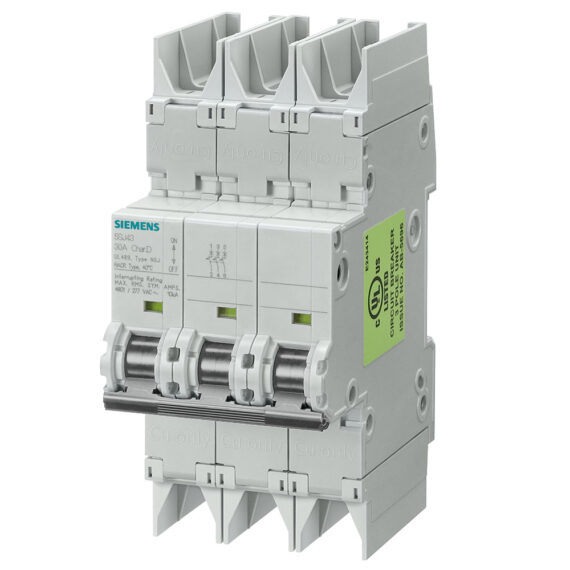

Siemens 5SJ4308-7HG42, Miniature circuit breaker 0 kA, 3-pole, C, 8A according to UL 489-480Y/277V

Model
product brand name		SENTRON
product designation		Miniature circuit breakers
design of the product		Miniature circuit-breaker 5SJ4
General technical data
number of poles		3
tripping characteristic class		C
mechanical service life (switching cycles) / typical		10 000
installation environment regarding EMC		Suitable for environment B (immunity to interference not applicable)
reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750		F
overvoltage category		3
degree of pollution		3
Voltage
type of voltage / of the operating voltage		AC/DC
insulation voltage (Ui) / at AC / rated value		440 V
Supply voltage
supply voltage / at AC / rated value		400 V
operating voltage
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum		277 V
● at DC / rated value / maximum		60 V
● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum		60 V
● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum		125 V
Protection class
protection class IP		IP20, with connected conductors, IP 40 in the handle range
Switching capacity
switching capacity current
● acc. to EN 60898 / rated value		10 kA
● acc. to IEC 60947-2 / rated value		15 kA
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole		2.6 W
Current
operational current
● at 30 °C / rated value		8 A
● at 40 °C / rated value		8 A
● at 45 °C / rated value		7.8 A
● at 50 °C / rated value		7.6 A
● at 55 °C / rated value		7.4 A
● at 60 °C / rated value		7.2 A
● at AC / rated value		8 A
Main circuit
type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02		480/277
suitability for operation		Mechanical engineering / industry
Product details
product component / neutral conductor switching		No
product feature / touch protection		Yes
product component
● tunnel terminals top		No
● tunnel terminals bottom		No
● combined terminal top		Yes
● combined terminal bottom		Yes
product feature
● halogen-free		Yes
● sealable		Yes
● silicon-free		Yes
product extension / installable / supplementary devices		Yes
Product function
product function / note		Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
Short circuit
breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235		10 kA
Connections
connectable conductor cross-section / finely stranded / with core end processing
● minimum		0.75 mm²
● maximum		25 mm²
tightening torque / with screw-type terminals / maximum		3.5 N·m
position / of power supply cord		Any
Mechanical Design
height		121 mm
width		54 mm
depth		70 mm
installation depth		70 mm
number of modular width units		3
fastening method		on standard mounting rail
mounting position		any
net weight		494 g
Environmental conditions
vibration resistance		50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
ambient temperature / during operation
● minimum		55 °C
● maximum		-25 °C
ambient temperature / during storage
● minimum		-40 °C
● maximum		75 °C
Certificates
reference code
● acc. to DIN EN 61346-2		F
● acc. to IEC 81346-2		F
