5SV6016-6KK06 Siemens Arc fault detection devices (AFDD)

 104.80

  • 5SV6016-6KK06
  • AFDD-MCB-Combination
  • Number of poles: 1-pole + N
  • Rated voltage: 230 V AC
  • Rated current: 6 A (B characteristic)
  • Switching capacity: 6 kA

Arc fault detection devices (AFDD) Siemens 5SV6016-6KK06

5SV6016-6KK06

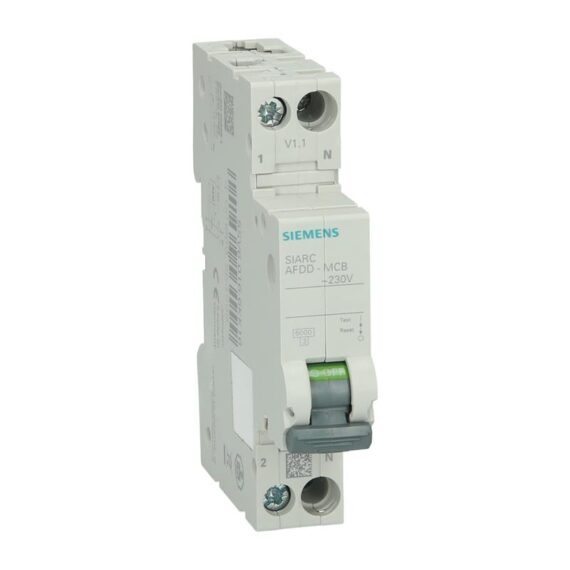

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 6A Compact (1MW)

Download

DataSheet in PDF

Weight 0.134 kg
Dimensions 80.00 × 100.00 × 44.00 mm
Brand

SIEMENS

product brand name

SENTRON

product designation

Arc-fault detection unit MCB

design of the product

Compact unit

number of poles

2

design of pole

1P+N

tripping characteristic class

B

size of installation devices / acc. to DIN 43880

1

touch protection against electrical shock / acc. to EN 50274

finger and back-of-hand safe

mechanical service life (switching cycles) / typical

10 000

switching function / short-term delayed

No

overvoltage category

III

degree of pollution

2

type of voltage / of the operating voltage

AC

supply voltage

● at AC / rated value

230 V

value range / of the supply voltage frequency

50Hz

protection class IP

IP20, with connected protective device and conductors

switching capacity current

● according to EN 60898-1 / rated value

6 000 A

● acc. to IEC 60947-2 / rated value

6 000 A

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole

0.87 W

tripping current

● in the event of electrical arcs in parallel with the load / minimum

50 A

● in the event of electrical arcs in parallel with the load / maximum

500 A

● in the event of electrical arcs in series with the load / minimum

2 A

● in the event of electrical arcs in series with the load / maximum

6 A

operational current / at AC / rated value

6 A

product feature

● halogen-free

Yes

● silicon-free

Yes

product extension / installable / supplementary devices

Yes

connectable conductor cross-section / solid

connectable conductor cross-section / stranded

connectable conductor cross-section / finely stranded / with core end processing

tightening torque / with screw-type terminals

position / of power supply cord

any

installation depth

70 mm

number of modular width units

1

fastening method

DIN rail (REG)

mounting position

any

ambient temperature / during operation

ambient temperature / during storage

● minimum

-40 °C

● maximum

75 °C

ambient temperature / with relative humidity 95%

55 °C

number of test cycles / for environmental testing / acc. to IEC 60068-2-30

28
