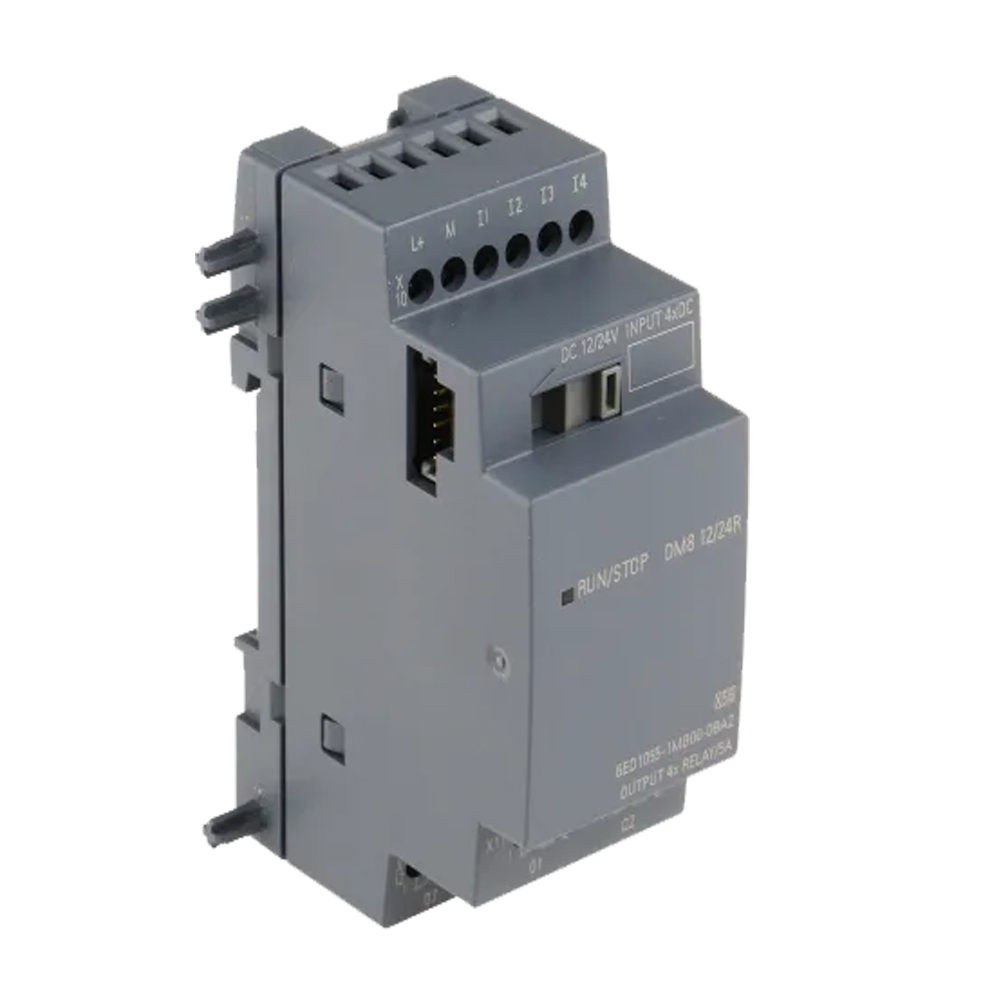

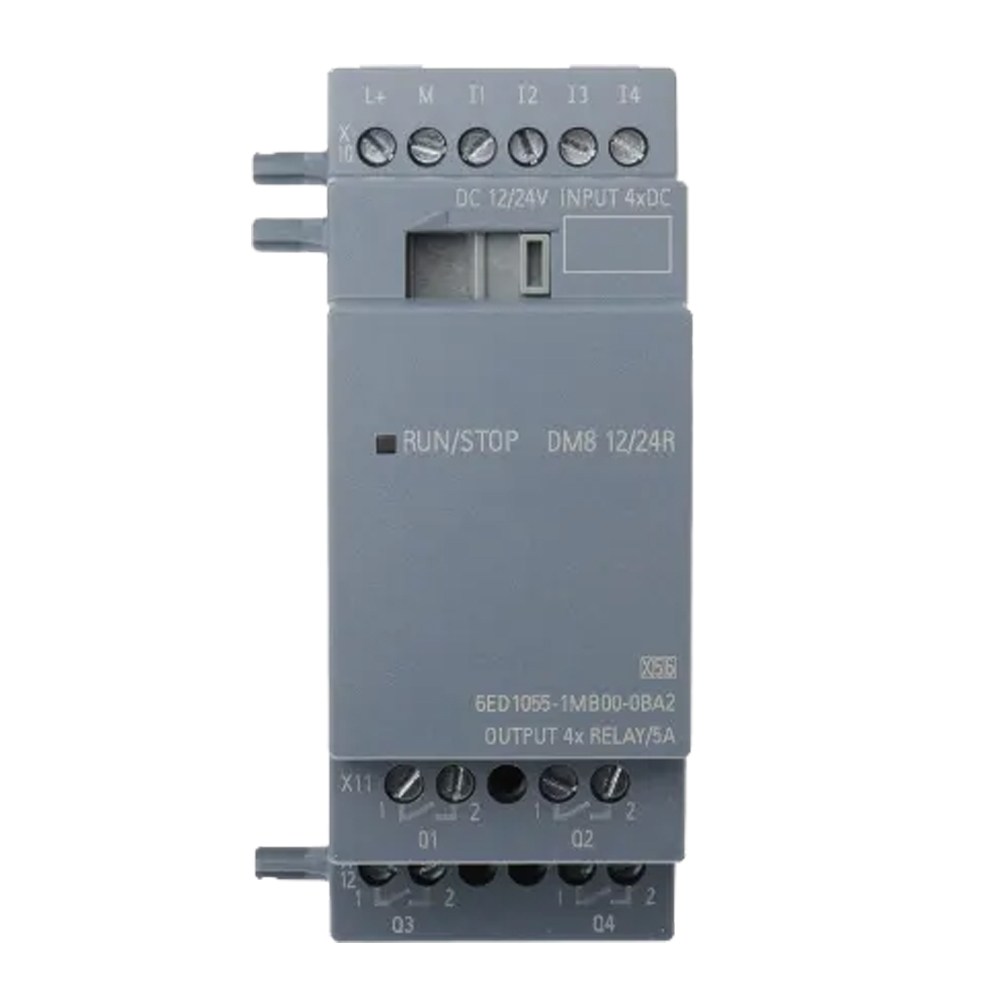

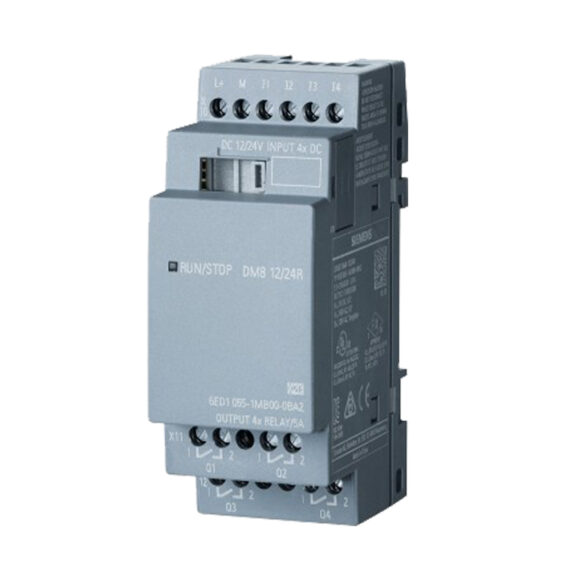

6ED1055-1MB00-0BA2 Siemens LOGO! 8 DM8 12/24R Original Brand New

€ 67.00

6ED1055-1MB00-0BA2
LOGO! DM8 12/24R expansion module
Voltage supply inputs: 12/24 V DC
Outputs: relay
4 DI (Digital Inputs)
4 DO (Digital Outputs) for LOGO! 8

Siemens LOGO 8 DM8 12/24R – 6ED1055-1MB00-0BA2

The flexible expansion modularity LOGO!

A wide range of expansion modules allows the user to set up a flexible LOGO! Configuration with a maximum of 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs possible. If you do networking of several LOGO! one configuration can be expanded to overall 88 digital inputs, 80 digital outputs, 40 analog inputs and 24 analog outputs.

LOGO! 8 can also be connected to KNX sytems.

To combine different voltage levels you have to keep the following rule:
The basic module must be a 230 V version followed by 230 V expansion modules. Then an analog module must be used to achieve a galvanic isolation. 6ED1055-1MB00-0BA2 Siemens , right from the analog module further analog modules or 12V / 24 V expansions can be attached.

LOGO! modular expansion modules

Expansion modules for connection to LOGO! Modular
With digital inputs and outputs, analog inputs, or analog outputs

Design

Relay outputs with max. 5 A output current.
Different modules:
- 4 digital inputs, 4 digital outputs or
- 4 digital inputs, 4 relay outputs or
- 2 analog inputs or
- 2 analog outputs.
Interface for connection to LOGO! modular logic modules.

Note on compatibility:
– Expansion modules for Siemens LOGO 8 can only be used on LOGO! 8 basic devices!
– Expansion modules for LOGO! 6 and 7 cannot be used with LOGO! 8 basic devices.
