Siemens LOGO 8 AM 2 AQ – 6ED1055-1MM00-0BA2
LOGO! modular expansion modules Overview
- Expansion modules for connection to LOGO! Modular
- With digital inputs and outputs, analog inputs, or analog outputs
Design
- Relay outputs with max. 5 A output current.
- Different modules:
- 4 digital inputs, 4 digital outputs or
- 4 digital inputs, 4 relay outputs or
- 2 analog inputs or
- 2 analog outputs.
- Interface for connection to LOGO! modular logic modules.
The flexible expansion modularity LOGO!
A wide range of LOGO expansion modules allows the user to set up a flexible configuration with a maximum of 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs possible.
LOGO! 8 can also be connected to KNX sytems.
To combine different voltage levels you have to keep the following rule:
The basic module must be a 230 V version followed by 230 V expansion modules. Then an analog module must be used to achieve a galvanic isolation. Right from the analog module further analog modules or 12V / 24 V expansions can be attached
If you do networking of several Siemens LOGO 8 AM2 one configuration can be expanded to overall 88 digital inputs, 80 digital outputs, 40 analog inputs and 24 analog outputs.
LOGO! AM2 AQ
- Supply voltage: 24 V DC
- Analog Inputs: 2
- Output range
0 … 10 V or
0/4 … 20 mA - Resolution: 10 bit
standardized to 0–1000
Note:
SIPLUS LOGO! 6 versions are not compatible with SIPLUS LOGO AM2 AQ.
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were adopted from the respective standard products. SIPLUS extreme specific information was added.
6ED10551MM000BA2

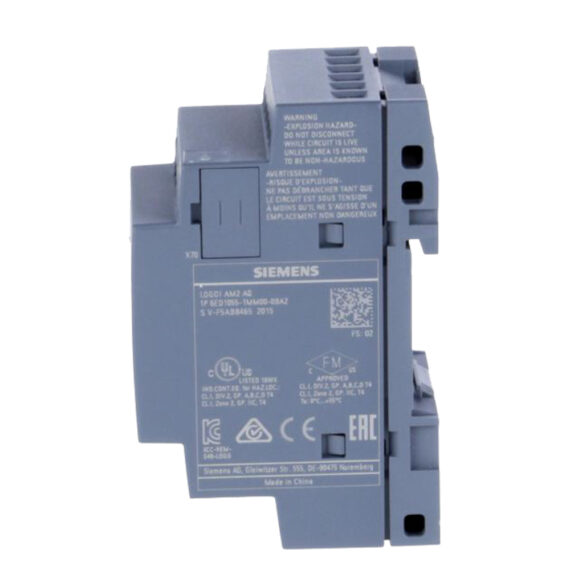

Siemens 6ED1055-1MM00-0BA2, LOGO! AM2 AQ expansion module, PS: 24 V DC, 2 AO, 0-10 V, 0/4-20 mA for LOGO! 8
