6ED1055-1NB10-0BA2 Siemens LOGO! 8 DM16 24R Original Brand New

Siemens LOGO 8 DM16 24R – 6ED1055-1NB10-0BA2

The flexible expansion modularity LOGO! Module

A wide range of LOGO expansion modules allows the user to set up a flexible LOGO! Configuration with a maximum of 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs possible.If you do networking of several LOGO! one configuration can be expanded to overall 88 digital inputs, 80 digital outputs, 40 analog inputs and 24 analog outputs.

LOGO! 8 can also be connected to KNX sytems.

To combine different voltage levels you have to keep the following rule:
The basic module must be a 230 V version followed by 230 V expansion modules. Then an analog module must be used to achieve a galvanic isolation. Right from the analog module further analog modules or 12V / 24 V expansions can be attached.

Overview

• Expansion modules for connection to LOGO! Modular
• With digital inputs and outputs, analog inputs, or analog outputs

Design

Relay outputs with max. 5 A output current.

Different modules:

• 4 digital inputs, 4 digital outputs or
• 4 digital inputs, 4 relay outputs or
• 2 analog inputs or
• 2 analog outputs.

Interface for connection to LOGO! modular logic modules.

Note on compatibility:

Expansion modules for LOGO! 8 can only be used on LOGO! 8 basic devices!

Expansion modules for LOGO! 6 and 7 cannot be used with LOGO! 8 basic devices.

6ED1055-1NB10-0BA2

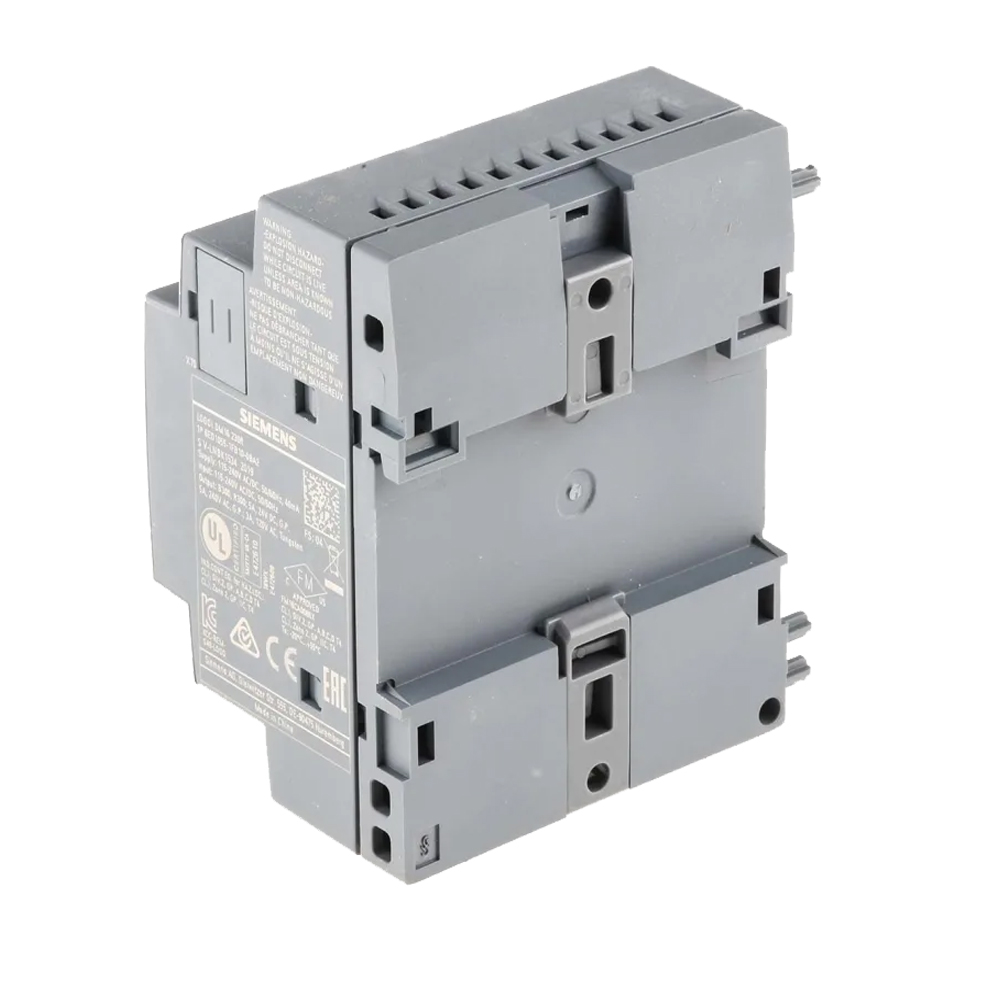

Siemens 6ED10551NB100BA2, LOGO 8 DM16 24R expansion module, PS/I/O: 24 V DC/24 V DC/relay, 8 DI/8 DO, 4 MW for LOGO! 8

Download

DataSheet in PDF
