6EP1334-3BA10 SIEMENS SITOP PSU200M Original Brand New

SIEMENS SITOP PSU200M – 6EP1334-3BA10

Overview

The SITOP modular 3-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines.

The input range enables connection to numerous power networks in the world and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current or latching disconnection.

The high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.

The 1- and 2-phase SITOP PSU200M are technology power supplies for challenging solutions. The ultra-wide-range input allows connection to almost any single-phase power supply system or directly between the line conductors of three-phase networks (2-phase) and ensures a high degree of safety even if there are large voltage fluctuations.

To further increase the 24 V availability, the SITOP power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules.

Product highlights

• 1- and 2-phase, 24 V DC/5 A and 10 A
• Ultra-wide input range, input voltage 85 … 264 V AC, 176 … 550 V 2AC
• Optionally with PCB with protective coating
• Up to 91% efficiency
• cULus, cCSAus, ABS and DNV GL certifications

6EP1334-3BA10

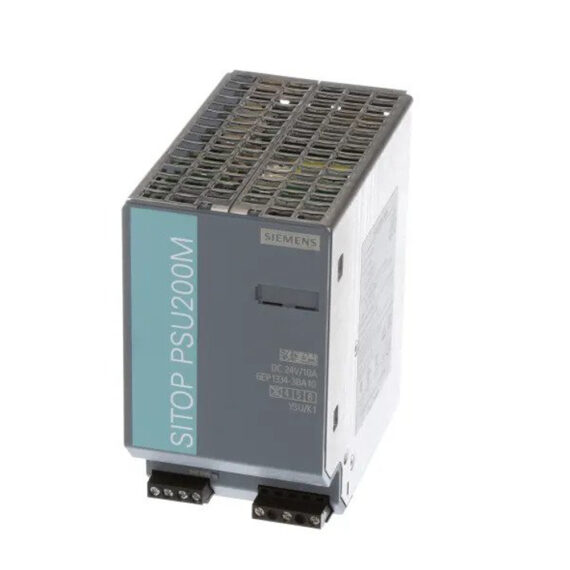

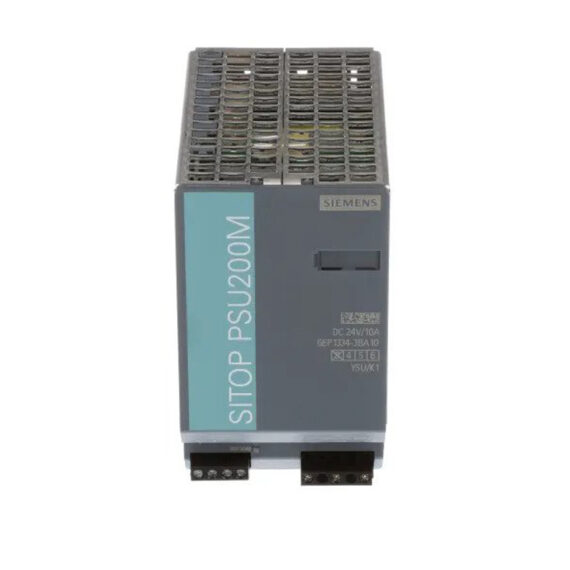

SITOP PSU200M 10 A stabilized power supply input: 120/230-500 V AC output: 24 V DC/ 10 A

Download

Data Sheet In PDF
