6ES7132-4BD00-0AB0 Siemens SIMATIC DP 5 electronic modules for ET 200S Original Brand New

SIEMENS SIMATIC DP 5 ELECTRONIC MODULES FOR ET 200S, 6ES7132-4BD00-0AB0

Overview

Electronic module for ET 200S, 8 DO DC 24V/0.5A, 15mm assembly bay, 1 unit per packaging unit The SIMATIC ET 200S is a modular scalable, distributed I/O system, which is designed especially for installation in small switch boxes close to the machine.

The modules can either be plugged directly into an ET 200S IN THE WITH CPU functionality or connected to a central controller via PROFINET or PROFIBUS. The SIMATIC ET 200S can be expanded with up to 64 I/O modules that can be plugged in any combination.

The system offers a wide range of modules. Many modules are also available in different versions, was this significantly improved in terms of functionality and price. In addition to modules with standard functionality (ST), modules with extended functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is its ease of use, such as the option of changing modules and terminal boxes during operation. The so-called hot swapping significantly increases the availability and productivity of the machine.

Siemens Digital Electron Module

The Siemens digital module is designed to use with SIMATIC ET 200S PLCs. This module has 4 integrated digital outputs.

Features and Benefits

• Connect to terminal modules TM-E with automatic encryption
• Module exchange during operation subject to voltage (hot swapping)
• Input supply voltage rating is 24VDC
• Ambient operating temperature ranges between 0°C and 50°C

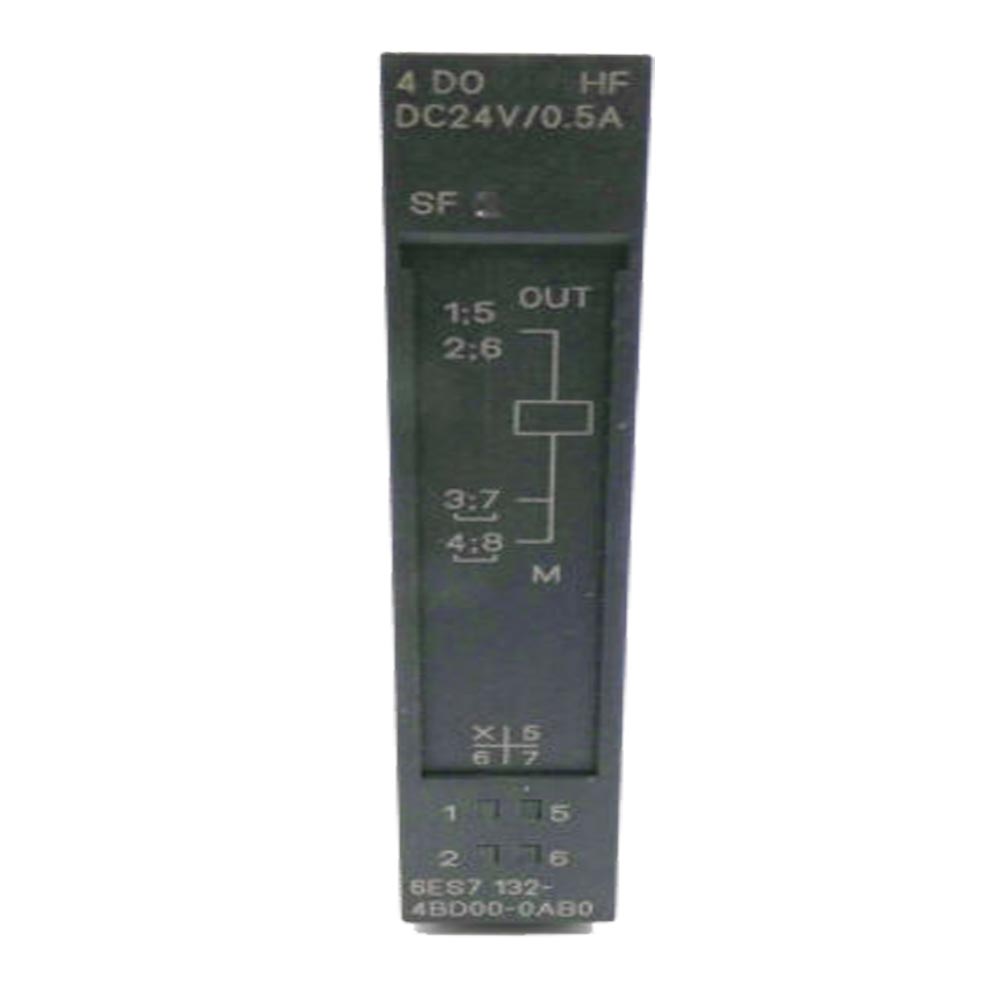

6ES7132-4BD00-0AB0

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO High Feature 24 V DC/0.5 A, 15 mm width, Diagnostics short circuit, SF LED 5 units per packing unit

Download

Data Sheet In PDF
