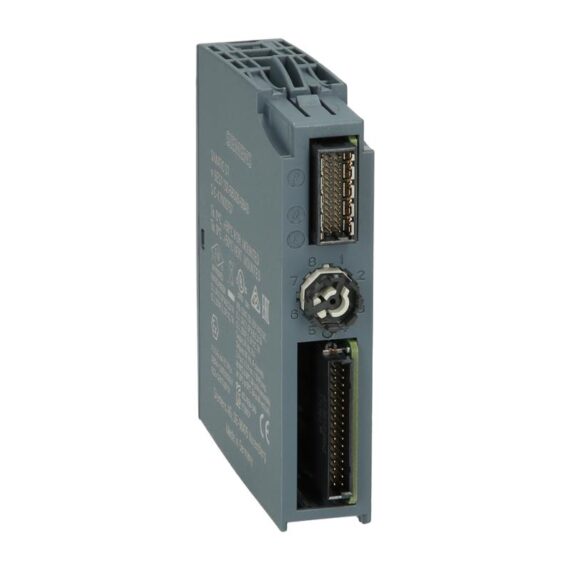

6ES7132-6BD20-0BA0 Siemens SIMATIC ET 200SP DQ 4x 24VDC/2A
€ 128.64 – € 135.42
- 6ES7132-6BD20-0BA0
- SIMATIC ET 200SP
- DQ 4x 24VDC/2A ST
- Digital output module
- 4 digital outputs
- 24 V DC/2 A
- Module diagnostics
- Colour code: CC02
- Suitable for BU type A0
Siemens SIMATIC ET 200SP DQ 4x 24VDC/2A – 6ES7132-6BD20-0BA0
6ES7132-6BD20-0BA0
SIMATIC ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, suitable for BU type A0, Color code CC02, Module diagnostics
Download
| Weight | 0.038 kg |
|---|---|
| Dimensions | 6.50 × 7.70 × 2.30 mm |
| Brand | SIEMENS |
| Product type designation | DQ 4×24 V DC/2 A ST |
| HW functional status | From FS08 |
| Firmware version | V1.1 |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color identification plate | CC02 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V11 SP2 / V13 |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 / – |
| ● PCS 7 configurable/integrated from version | V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision | GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| ● DQ | Yes |
| ● DQ with energy-saving function | No |
| ● PWM | No |
| ● Oversampling | No |
| ● MSO | No |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 60 mA; without load |
| Rated value (DC) | 24 V |
| Power loss, typ. | 1 W |
| ● Address space per module, max. | 1 byte; + 1 byte for QI information |
| Automatic encoding | – |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| ● 1-wire connection | BU type A0 |
| ● 2-wire connection | BU type A0 |
| ● 3-wire connection | BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection | BU type A0 + Potential distributor module |
| Type of digital output | Source output (PNP, current-sourcing) |
| Number of digital outputs | 4 |
| Current-sinking | No |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| ● Response threshold, typ. | 2.8 to 5.2 A |
| Limitation of inductive shutdown voltage to | Typ. L+ (-50 V) |
| Controlling a digital input | Yes |
| ● lower limit | 12 Ω |
| ● upper limit | 3 400 Ω |
| ● for signal "1" rated value | 2 A |
| ● for signal "0" residual current, max. | 0.1 mA |
| ● "0" to "1", typ. | 50 µs |
| ● "0" to "1", max. | 50 µs |
| ● "1" to "0", typ. | 100 µs |
| ● "1" to "0", max. | 100 µs |
| ● for uprating | No |
| ● for redundant control of a load | Yes |
| ● with resistive load, max. | 100 Hz |
| ● with inductive load, max. | 2 Hz |
| ● on lamp load, max. | 10 Hz |
| ● Current per channel, max. | 2 A |
| ● Current per module, max. | 8 A |
| — up to 30 °C, max. | 8 A |
| — up to 40 °C, max. | 6 A |
| — up to 50 °C, max. | 4 A |
| — up to 60 °C, max. | 4 A |
| ● shielded, max. | 1 000 m |
| ● unshielded, max. | 600 m |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| ● Diagnostic alarm | Yes |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes; Module-wise |
| ● Short-circuit | Yes; Module-wise |
| ● Group error | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red DIAG LED |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; see FAQ Entry ID: 39198632 |
| ● Performance level according to ISO 13849-1 | PL d |
| ● SIL acc. to IEC 61508 | SIL 2 |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS08 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS08 |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
| last modified: | 9/27/2021 |
