6ES7132-6GD51-0BA0 SIEMENS SIMATIC ET 200SP Original Best Quality

SIEMENS SIMATIC ET 200SP, 6ES7132-6GD51-0BA0

Overview

SIMATIC ET 200SP

The scalable SIMATIC ET 200SP I/O system is a highly flexible, modular I/O system with IP20 degree of protection. Via an interface module with PROFINET or PROFIBUS interface it can exchange IO data of the connected I/O modules with a higher-level control system. Alternatively, as further head-end stations, various PLC, F-PLC and Open Controllers are available as compact S7-1500 Controllers (Distributed Controller). ET 200SP components are available as SIPLUS version for extreme requirements and a high degree of robustness.

Benefits

• Simple application
• Free selection of the PROFINET connection system and characteristics via bus adapter
• No tools needed for one-handed wiring using push-in terminals
• Improved accessibility of the wiring due to new arrangement of the spring NC contacts alongside the associated conductor aperture
• Maximum clarity due to the use of color and reference code plates, as well as labeling strips
• Diagnostics functions
• Wiring test, diagnostics, naming etc. using the free PRONETA software tool

Application

SIMATIC ET 200SP is a multifunctional distributed I/O system for a wide range of applications. Thanks to its scalable design, you can gear the I/O station exactly to the on-site requirements. SIMATIC ET 200SP is constructed with IP 20 protection and designed for installation in a control cabinet.

Faster and more compact setup

1. Up to 50 % reduced space requirements in the control cabinet, with unchanged cross-section area
2. No tools needed for one-handed wiring thanks to push-in terminals
3. Reduced part variance with increased scope of functions
4. System-integrated self-assembling load group formation without power modules
5. As many as 16 channels per module and 1024 channels per station
6. Flexible PROFINET connection via BusAdapter (RJ45, FastConnect, plastic or glass fiber-optic cables), also as integrated media converter
7. System-integrated shield connection

Increased performance

1. Short response times and isochronous mode for motion applications
2. High-speed data acquisition (digital from 1 µs, analog from 50 µs) and transmission (up to 100 Mbps):
   for digital signals with time-based I/O for precisely timed controlling independent of bus cycles;
   for analog and digital signal oversampling, n-fold acquisition or output of signals within a PN cycle.

6ES7132-6GD51-0BA0

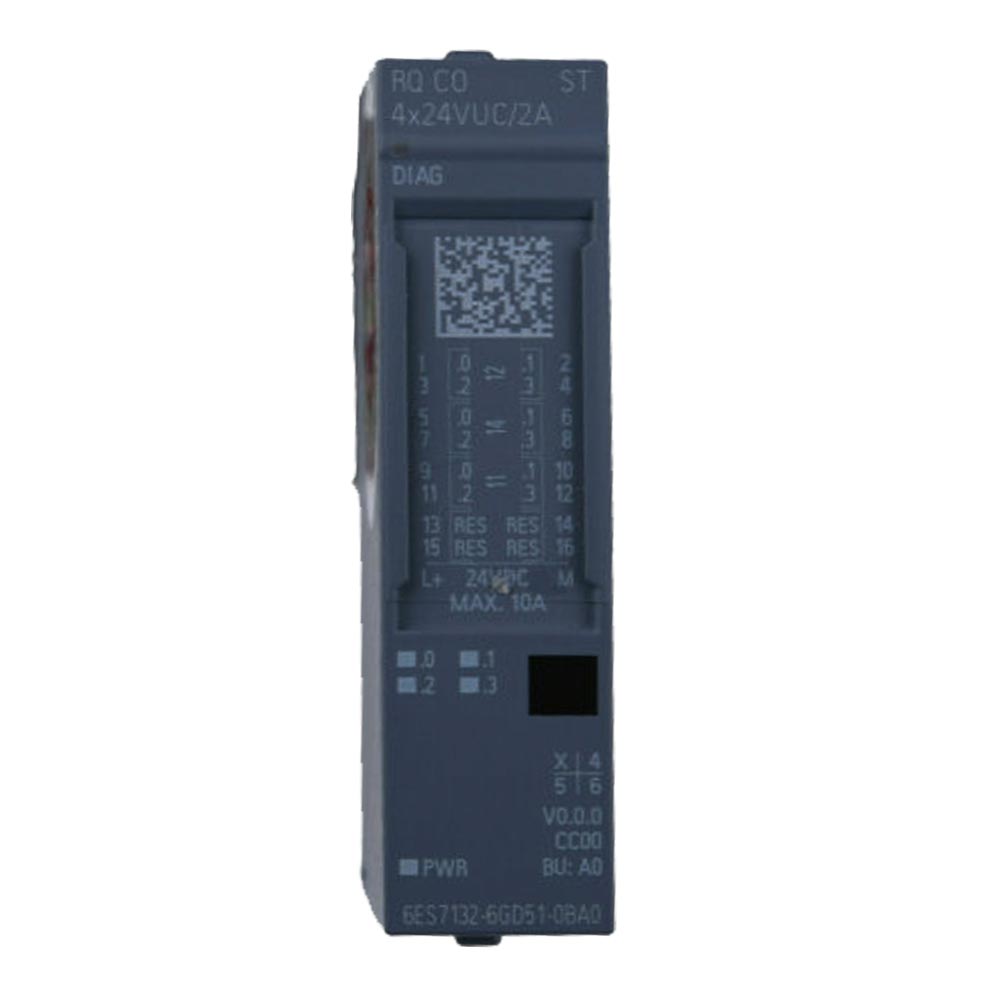

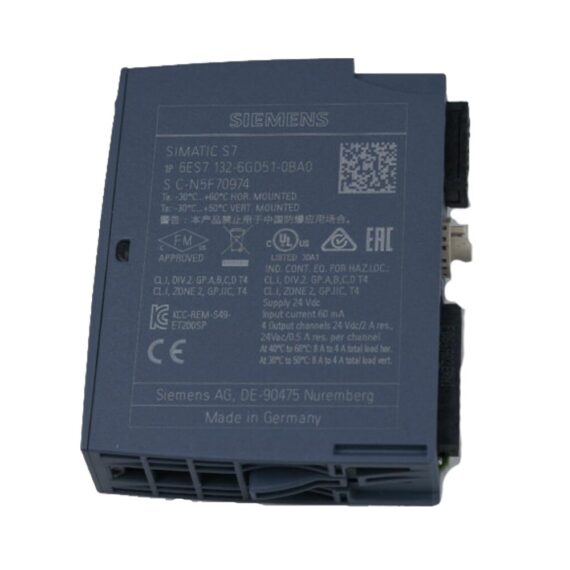

SIMATIC ET 200SP, Signal relay module, RQ CO 4x 24V DC/2A ST, 4 changeover contacts, isolated contacts, packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, module diagnostics for: supply voltage. 6ES7132-6GD51-0BA0

Download

Data Sheet In PDF
