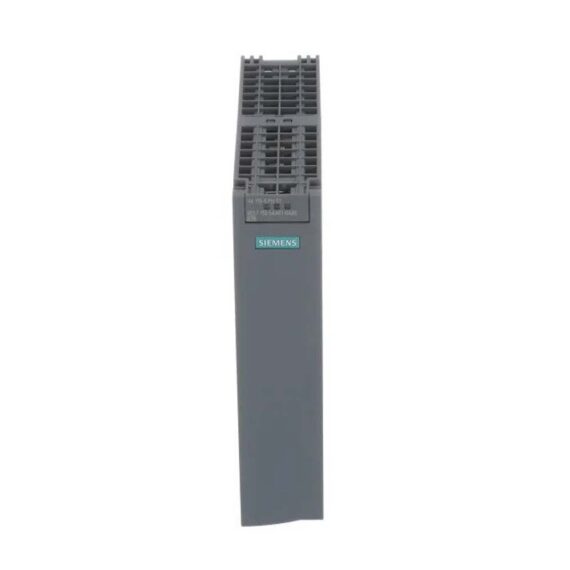

6ES7155-5AA01-0AB0 SIEMENS SIMATIC ET 200MP Original Brand New
€ 868.46 – € 914.17
- 6ES7155-5AA01-0AB0
- SIMATIC ET 200MP
- PROFINET IO-DEVICE INTERFACEMODULE IM 155-5 PN ST FOR ET 200MP ELEKTRONIKMODULES
- UP TO 12 IO-MODULES WITHOUT ADDITIONAL PS
- UP TO 30 IO- MODULES WITH ADDITIONONAL PS SHARED DEVICE; MRP; IRT >=0.25MS; ISOCHRONICITY FW-UPDATE; I&M0…3;
- FSU WITH 500MS
SIEMENS SIMATIC ET 200MP – 6ES7155-5AA01-0AB0
Overview
- Interface modules for connecting ET 200MP to PROFINET
- These handle data exchange with the PROFINET IO Controller in the PLC
- Integrated 2-port switch for line topology
IMÂ 155-5Â PNÂ BA
- Max. 12 I/O modules
- Operation of F-modules and PROFIsafe
- Shortest bus cycle time 1Â ms
- Media redundancy (MRP)
- Shared device on up to 2 IO controllers
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
IMÂ 155-5Â PNÂ ST, IMÂ 155-5Â PNÂ HF
- Max. 30 I/O modules
- Shortest bus cycle 250 µs
- Connecting to the isochronous task of the CPU
- Prioritized fast startup (FSU) with max. 12 I/O modules
- Media Redundancy Protocol (MRP)
- Shared device on up to two IO controllers (when configuring using GSD file; depends on the respective configuration tool)
- Omission of SIMATIC Memory Card (SMC); IM replacement without PG using LLDP
- Operation of F-modules and PROFIsafe
- Submodule-granular shared device with up to two IO controllers
- Configuration control (option handling)
- Module shared input and module shared output (MSI/MSO), i.e. the inputs or outputs of a module can be made available simultaneously to up to two IO controllers
The IM155-5 PN HF interface module has the following additional functions:
- Shared device on up to 4 IO controllers
- Module shared input and module shared output (MSI/MSO) on up to four IO controllers
- Operation on a highly available SIMATIC S7-400H
- Support for the MRPD function (media redundancy with planned duplication)
- S2 redundancy for operation with an S7-1500 R/H
- Operation on the active backplane bus (as of FW V 4.4.1)
Application
The IM 155-5 PN interface module enables the connection of ET 200MP to PROFINET and handles the communication between the modules and the higher-level I/O controller autonomously.
Design
The IM 155-5 PN BAÂ /Â ST / HF interface module is screwed directly onto the S7-1500 rail. It incorporates:
- Diagnostics displays for errors (Error), operation (RUN), maintenance (MAINT), and one link LED per port
- Connection to PROFINET using RJ45 connector
- 24 V DC supply unit for looping through the supply voltage
- Protection of interface module against unauthorized access possible using lock, seal or cable tie
6ES7155-5AA01-0AB0
SIMATIC ET 200MP. PROFINET IO-DEVICE INTERFACEMODULE IM 155-5 PN ST FOR ET 200MP ELEKTRONIKMODULES; UP TO 12 IO-MODULES WITHOUT ADDITIONAL PS; UP TO 30 IO- MODULES WITH ADDITIONONAL PS SHARED DEVICE; MRP; IRT >=0.25MS; ISOCHRONICITY FW-UPDATE; I&M0…3; FSU WITH 500MS
Download
| Weight | 0.291 kg |
|---|---|
| Dimensions | 129 × 35 × 147 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
