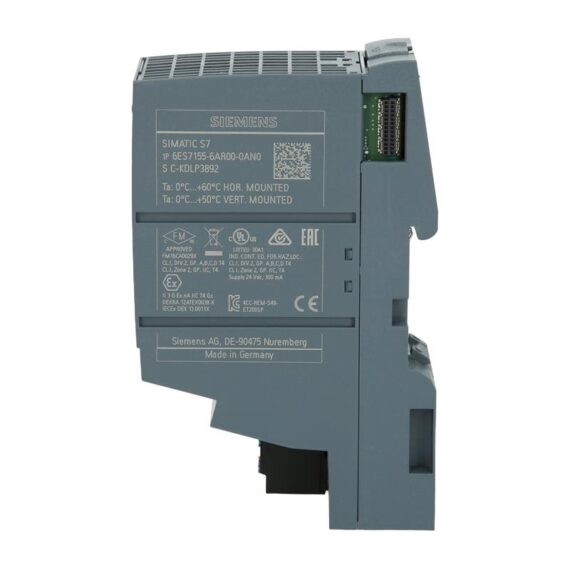

6ES7155-6AR00-0AN0 Siemens SIMATIC ET 200SP IM 1556 PN BA

 789.17 854.17

  • 6ES7155-6AR00-0AN0
  • SIMATIC ET 200SP
  • Basic Interface Module
  • PROFINET
  • Max. 12 Peripheral modules
  • 24 V DC
  • Ports: 2 x RJ45
  • Integrated switch
  • Incl. Server module

Siemens SIMATIC ET 200SP IM 155-6 PN BA – 6ES7155-6AR00-0AN0

Overview

SIMATIC ET 200SP MultiFieldbus video

Thanks to their wide scope of functions, the interface modules of the scalable SIMATIC ET 200SP I/O system, even in their basic versions, cover a wide range of applications. The basic functions of the interface modules include:

  • Short data update times of typically 1 ms
  • Single Hot Swap (withdrawing and insertion of an I/O module during operation without impairing the communication with the remaining modules)
  • Operation with gaps (empty BaseUnits)
  • Complete diagnostic support, extending to channel-by-channel diagnostics
  • Configuration control / option handling (adaptation of the actual configuration via user software)
  • Device replacement without programming device, with automatic re-initialization, with and without topological configuring
  • I&M data 0 to 3 (electronic rating plate with non-volatile storage of plant data)
  • Firmware update
  • Pluggable 24 V DC supply connection
  • Mains/voltage failure buffering time of at least 5 ms or 10 ms
  • Labeling option via optional labeling strips and equipment labeling plates

When using PROFINET interface modules, the following basic functions are also included:

  • Media redundancy (MRP)
  • Integrated 2-port switch
  • Freely selectable connection system (Standard function class and above) and physical connection (High Feature function class and above) by means of SIMATIC BusAdapters, also as system-integrated media converter from fiber-optic to copper cable. Can also be used for interface modules with MultiFieldbus interface.
  • Reset button for simple return to factory settings without the need for programming device
  • Automatic synchronization of the backplane bus to the PROFINET cycle to minimize the response time fluctuations (jitter)

Listed below is a short overview of the interface modules available for the ET 200SP, showing the essential differences. An up-to-date, clear and more precise comparison of functions of the different interface modules is offered by the TIA Selection Tool.

SIMATIC IM155-6DP High Feature with PROFIBUS connection

  • Max. 32 I/O modules, also PROFIsafe modules with complete diagnostic support.
  • Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
  • Max. 244 bytes in each case for input and output data per module and per station
  • Data update time: typ. 5 ms
  • PROFIBUS connection via 9-pin D-sub socket
  • Package includes server module and PROFIBUS connector with programming device socket

SIMATIC IM155-6PN Basic with PROFINET access

  • Max. 12 I/O modules, no PROFIsafe modules, with complete diagnostic support
  • Max. 32 bytes in each case for input and output data per module and per station
  • Data update time: typ.1 ms
  • PROFINET connection via 2 integrated RJ45 sockets (integrated 2-port switch)
  • Package includes server module

SIMATIC IM 155-6PN Standard with a PROFINET interface for SIMATIC BusAdapters

  • Two types of delivery:
    • As package with IM155-6PN ST, with pre-assembled BA 2xRJ45 BusAdapter, including server module
    • As package with IM155-6PN ST, without BusAdapter, including server module
  • Max. 32 I/O modules, also PROFIsafe modules, with complete diagnostic support
  • Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
  • Max. 256 bytes in each case for input and output data per module and max. 512 bytes per station (depending on configuration)
  • Data update time: typ.1 ms
  • Selection of the type of connection of the PROFINET by means of SIMATIC BusAdapter (BusAdapter for copper cables only)

SIMATIC IM155-6PN/2 High Feature, 2-port IM with one slot for SIMATIC BusAdapter

  • Max. 64 I/O modules, also PROFIsafe modules, with complete diagnostic support
  • Expansion option with max. 16 modules from the ET 200AL series using the BU-Send BaseUnit and the BA-Send BusAdapter
  • Max. 288 bytes in each case for input and output data per module and max. 1440 bytes per station (depending on configuration)
  • Fast data refresh time from 250 µs, also in isochronous mode
  • S2 system redundancy
  • Choice of connection type and physical connection of the PROFINET by means of SIMATIC BusAdapter. All BusAdapters with a connection for copper and/or fiber-optic cables can be used; BusAdapter must be ordered separately
  • Package includes server module

SIMATIC IM155-6MF High Feature, MultiFieldbus IM with two slots for SIMATIC BusAdapters

Differences compared to the 2-port IM155-6PN High Feature:

  • Multi-protocol capability
    Operation on Ethernet controllers via the PROFINET, EtherNet/IP and Modbus protocols
  • Compatible with IM155-6MF High Feature (as of 6ES7155-6AU01-0CN0);
    Exception: Isochronous mode and prioritized startup

SIMATIC IM155-6PN/3 High Feature, 3-port IM with two slots for SIMATIC BusAdapter

Additional functions compared to 2-port High Feature IM:

  • Second slot for SIMATIC BusAdapter, max. 3 ports can be used
  • Local IO data coupling between up to 4 controllers

SIMATIC IM 155-6PN High Speed with a PROFINET interface for SIMATIC BusAdapters

  • Max. 30 I/O modules, also PROFIsafe modules, with complete diagnostic support
  • Max. 32 bytes in each case for input and output data per module and max. 968 bytes per station (depending on configuration)
  • Fast data refresh time from isochronous mode from 125 µs
  • Performance upgrade for PROFINET
  • Choice of connection type and physical connection of the PROFINET by means of SIMATIC BusAdapter. All BusAdapters with a connection for copper and/or fiber-optic cables can be used; BusAdapter must be ordered separately
  • Package includes server module

Application

IM 155-6MF High Feature MultiFieldbus interface module

Due to support of the PROFINET, EtherNet/IP and Modbus protocols, the IM155-6MF High Feature is designed for use on a wide range of Ethernet controllers. It supports applications with a high, flexible demand for functions, as well as a large station expansion of up to 64 modules (max. 1 024 IO signals). In addition, the station can be expanded by as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.

IM 155-6PN Basic PROFINET interface module

The IM 155-6PN BA is designed mainly for simple PROFINET applications with moderate station expansion of up to 12 modules (max. 192 IO signals) and 32 bytes each for input data and output data. All I/O modules apart from PROFIsafe can be used. It is therefore the economical solution for simple machine and retrofit tasks.

IM 155-6PN Standard PROFINET interface module

The IM 155-6PN Standard is designed mainly for standard PROFINET applications with average station expansion of up to 32 modules (max. 512 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send. All Simatic BusAdapters with Cu interface can be used.

IM 155-6PN High Feature PROFINET interface module

The IM 155-6PN High Feature is designed mainly for PROFINET applications with a high, flexible demand for functions, as well as a large station expansion of up to 64 modules (max. 1024 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.

Unlike the other interface modules, the IM 155-6PN/2 HF supports the following additional functions:

  • Use of BusAdapters, also with fiber-optic cable connection
  • Increased data volume of up to 1440 bytes for both input and output data and up to 288 bytes per module
  • Multi Hot Swap (withdrawing and insertion of any number of I/O modules during operation without impairing the communication with the remaining modules)
  • S2 redundancy
  • Isochronous mode from 250 µs
  • Oversampling
  • MSI/MSO
  • Shared device with up to four controllers
  • Up to four subslots per module

With its third port, the 3-port IM155-6PN/3 HF interface module allows the expansion of the PROFINET topology by a spur line. Typical applications are:

  • Connection to a higher-level network
  • Programming device access in the field
  • Cable outlet via festoon cable system

The local IO data coupling allows data to be exchanged between up to 4 controllers quickly, deterministically, and without elaborate configuring.

IM 155-6PN High Speed PROFINET interface module

The IM 155-6PN High Speed is designed mainly for PROFINET applications with very short response times. All I/O modules, including PROFIsafe, can be used.

Compared to the IM 155-6PN HF, the IM 155-6PN HS has the following functional differences:

  • For input and output data with up to 32 bytes per module, max. 30 modules per station
  • Isochronous mode from 125 µs
  • MRPD
  • PROFINET Performance Upgrade (Fast Forwarding, Dynamic Frame Packaging, Fragmentation)

IM 155-6DP High Feature PROFIBUS interface module

The IM 155-DP High Feature is designed mainly for PROFIBUS applications with average station expansion of up to 32 modules (max. 512 IO signals). All I/O modules, including PROFIsafe, can be used. In addition, the station can be expanded with as many as 16 IP67 modules of the SIMATIC ET 200AL series using BA-Send/BU-Send.

Design

The IM 155-6 interface module is snapped directly onto the DIN rail (7.5 x 35 mm or 15 x 35 mm).

  • Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
    • Film strips on a roll with 500 strips, for thermal transfer roll printer
    • Card (180 g/m2), DIN A4 sheets with 100 strips each, for laser printer
  • Optional equipment marking using slide-in equipment labeling plates
  • Different connection types of the fieldbus by means of SIMATIC BusAdapter for PROFINET or MultiFieldbus interface modules in Standard function class or above
    • Under ambient conditions in accordance with SIMATIC standard using BA 2xRJ45 for connection via RJ45 plug
    • In the case of mechanical loading during operation and/or an increased EMC requirements BA 2xFC for direct connection of the PROFINET cable
    • For increased potential differences, BusAdapters with fiber-optic interface can be used. These are also available as hybrid variants with copper interface (integrated media converter). For larger distances, BusAdapters are also available with LC glass fiber-optic connections.
  • Cable
    • The High Feature interface modules can optionally be equipped with the system-integrated strain relief for the PROFINET cables.

Technical specifications

6ES7155-6AR00-0AN0

SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Basic, Max. 12 I/O modules, 2x integrated RJ45 sockets incl. server module

Download

DataSheet in PDF

Weight 0.153 kg
Dimensions 8.30 × 12.20 × 6.30 mm
Brand

SIEMENS

Product type designation

IM 155-6 PN BA

HW functional status

from FS04

Firmware version

● FW update possible

Yes

● I&M data

Yes; I&M0 to I&M3

● Module swapping during operation (hot swapping)

Yes; Single hot swapping

● Isochronous mode

No

● STEP 7 TIA Portal configurable/integrated from version

V13 SP1

● STEP 7 configurable/integrated from version

V5.5 SP4 and higher

● PROFINET from GSD version/GSD revision

V2.3 / –

via dataset

Yes

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

● Mains/voltage failure stored energy time

5 ms

Current consumption, max.

300 mA

I²t

0.09 A²·s

Power loss, typ.

1.8 W

● Address space per module, max.

32 byte; per input / output

● Address space per station, max.

32 byte; per input / output

● Quantity of operable ET 200SP modules, max.

12

● Quantity of operable ET 200AL modules, max.

0

Number of PROFINET interfaces

1; 2 ports (switch)

● RJ 45 (Ethernet)

Yes; 2 integrated RJ45 ports

● Number of ports

2

● integrated switch

Yes

● BusAdapter (PROFINET)

No

● PROFINET IO Device

Yes

● Open IE communication

Yes

● Media redundancy

Yes; PROFINET MRP

● Transmission procedure

PROFINET with 100 Mbit/s full duplex (100BASE-TX)

● 10 Mbps

No

● 100 Mbps

Yes; PROFINET with 100 Mbit/s full duplex (100BASE-TX)

● Autonegotiation

Yes

● Autocrossing

Yes

— IRT

No

— PROFIenergy

No

— Prioritized startup

No

— Shared device

No

● PROFINET system redundancy (S2)

No

— MRP

Yes

— MRPD

No

● TCP/IP

Yes

● SNMP

Yes

● LLDP

Yes

Equidistance

No

Status indicator

Yes

Alarms

Yes

Diagnostics function

Yes

● RUN LED

Yes; green LED

● ERROR LED

Yes; red LED

● MAINT LED

Yes; Yellow LED

● Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

between backplane bus and electronics

No

between PROFINET and all other circuits

Yes

between supply and all other circuits

No

Network loading class

2

● horizontal installation, min.

-30 °C

● horizontal installation, max.

60 °C

● vertical installation, min.

-30 °C

● vertical installation, max.

50 °C

● Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

● via BU/BA Send

No

Width

35 mm

Height

117 mm

Depth

74 mm

Weight, approx.

125 g

last modified:

3/2/2021
