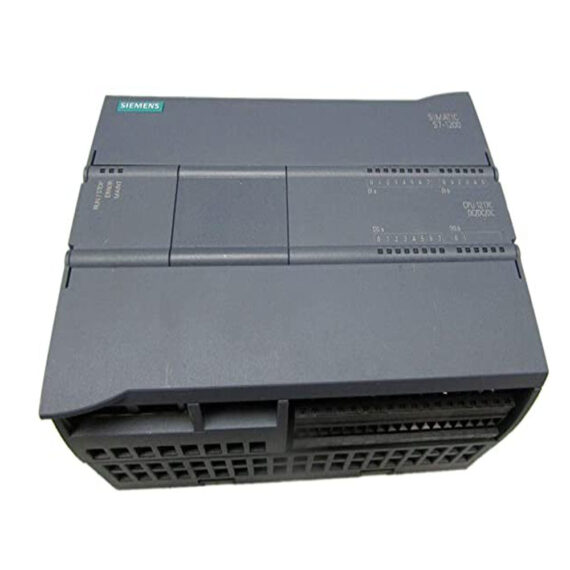

6ES7217-1AG40-0XB0 SIEMENS SIMATIC S7-1200 CPU 1217C Original Brand New

The compact CPU 1217C has:

• Integrated 24 V encoder/load current supply:
  For direct connection of sensors and encoders. With a 400 mA output current, it can also be used as load power supply.
• 14 integrated digital inputs, of which:
  • 10 integrated digital 24 V DC inputs (current sinking/sourcing input (IEC type 1 current sinking)).
  • 4 integrated digital 1.5 V DC differential inputs.
• 10 integrated digital outputs, of which:
  • 6 integrated digital 24 V DC outputs.
  • 4 integrated digital 1.5 V DC differential outputs.
• 2 integrated analog inputs 0 … 10 V.
• 2 integrated analog outputs 0 … 20 mA.
• 4 pulse outputs (PTO) with a frequency of up to 1 MHz.
• Pulse-width modulated outputs (PWM) with a frequency of up to 100 kHz.
• 2 integrated Ethernet interfaces (TCP/IP native, ISO-on-TCP).
• 6 fast counters (max. 1 MHz), with parameterizable enable and reset inputs, can be used simultaneously as up and down counters with 2 separate inputs or for connecting incremental encoders.
• Expansion by additional communication interfaces, e.g. RS485, RS232, PROFIBUS.
• Expansion by analog or digital signals directly on the CPU via signal board (with retention of CPU mounting dimensions).
• Expansion by a wide range of analog and digital input and output signals via signal modules.
• Optional memory expansion (SIMATIC Memory Card).
• Motion Control in accordance with PLCopen for simple movements.
• PID controller with auto-tuning functionality.
• Integral real-time clock.
• Password protection.
• Interrupt inputs:
  For extremely fast response to rising or falling edges of process signals.
• Time interrupts.
• Interrupt inputs.
• Library functionality.
• Online/Offline diagnostics.
• Removable terminals on all modules.
• Simulator (optional):
  For simulating the integrated inputs and for testing the user program.

Function
