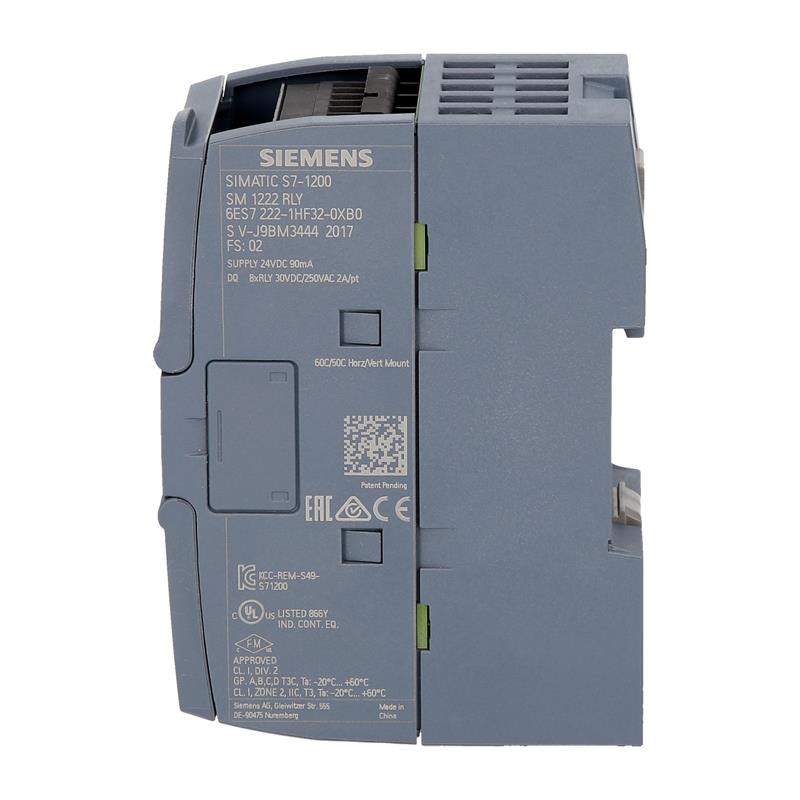

Siemens SM 1222 RLY – 6ES7222-1HF32-0XB0
Overview
- Digital outputs as supplement to the integral I/O of the CPUs
- For flexible adaptation of the controller to the relevant task
- For subsequent expansion of the system with additional outputs
Application
Digital input/output modules permit:
- Connection of the controller to digital signals of the process
- Output of digital signals from the controller to the process
This provides users with the following advantages:
- Optimum adaptation:
With signal modules which can be mixed as desired, users can adapt their controllers exactly to the relevant task. This avoids superfluous investments. Modules with 8, 16, and 32 input/output channels are available. - Flexibility:
If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.
Function
The SM 1222 digital output signal modules convert the internal signal level of the SIMATIC S71200 Controller into the external signal level required for the process.
Technical specifications
6ES72221HF320XB0
Siemens 6es7222 1hf32 0xb0, SIMATIC S7-1200 Digital output Module SM1222 rly can be expanded by 8 digital outputs, relay 2 A, has transistor outputs with an output current of 0.5 A at 24 V DC.
Download
| Weight | 0.190 kg |
|---|---|
| Dimensions | 8.80 × 11.20 × 5.60 mm |
| Brand | SIEMENS |
| Product type designation | SM 1222, DQ 8x relay/2 A |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 120 mA |
| ● from load voltage L+, max. | 11 mA/relay coil |
| Power loss, typ. | 4.5 W |
| Number of digital outputs | 8 |
| ● in groups of | 2 |
| Short-circuit protection | No; to be provided externally |
| ● with resistive load, max. | 2 A |
| ● on lamp load, max. | 30 W with DC, 200 W with AC |
| ● Rated value (DC) | 5 V DC to 30 V DC |
| ● Rated value (AC) | 5 V AC to 250 V AC |
| ● for signal "1" rated value | 2 A |
| ● "0" to "1", max. | 10 ms |
| ● "1" to "0", max. | 10 ms |
| — up to 50 °C, max. | 10 A; Current per mass |
| ● Number of relay outputs | 8 |
| ● Rated supply voltage of relay coil L+ (DC) | 24 V |
| ● Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 |
| — with inductive load, max. | 2 A |
| — on lamp load, max. | 30 W with DC, 200 W with AC |
| — with resistive load, max. | 2 A |
| ● shielded, max. | 500 m |
| ● unshielded, max. | 150 m |
| ● Diagnostic alarm | Yes |
| ● for status of the outputs | Yes |
| ● between the channels | Relays |
| ● between the channels, in groups of | 2 |
| ● between the channels and backplane bus | 1 500 V AC for 1 minute |
| between different circuits | 750 V AC for 1 minute |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Enclosure material (front) | – |
| ● Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 190 g |
| last modified: | 2/26/2021 |
