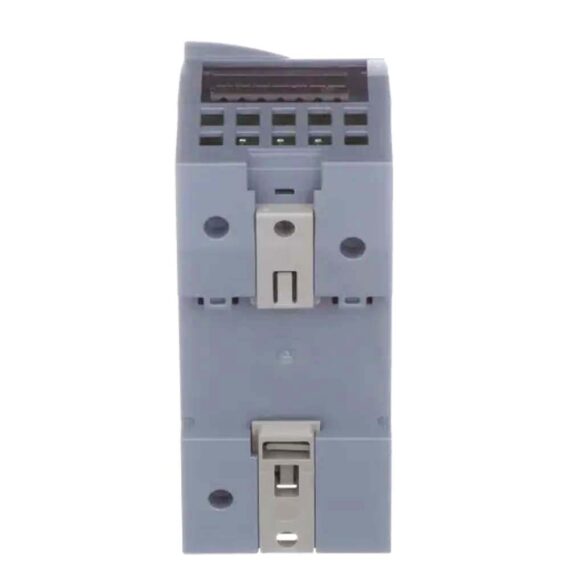

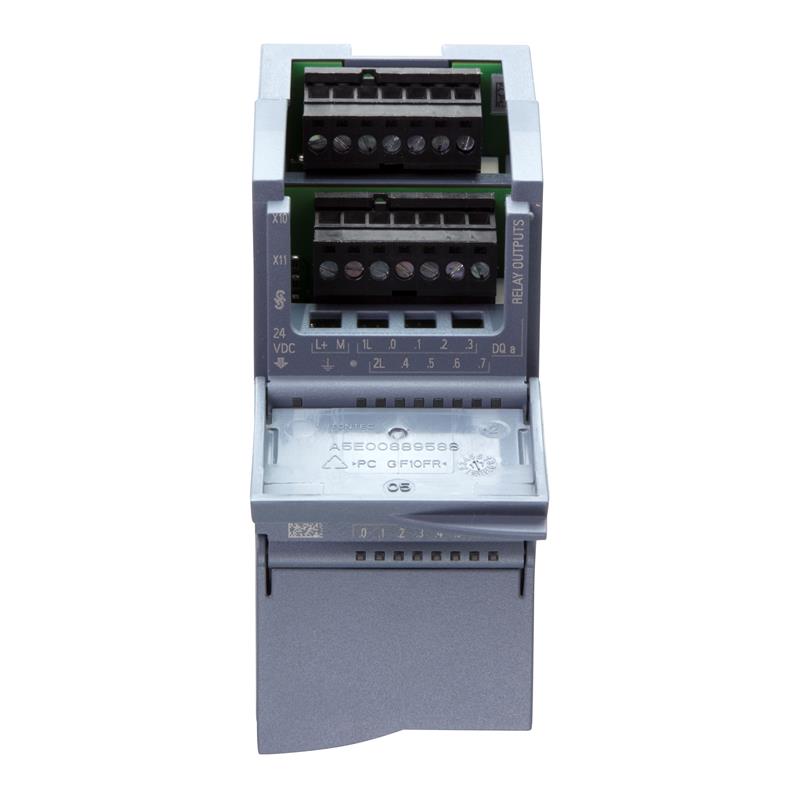

6ES7222-1HH32-0XB0 Siemens SM 1222 Original Brand New


  • 6ES7222-1HH32-0XB0
  • SIMATIC S7-1200
  • Digital Output SM 1222
  • 16 digital outputs
  • 24 V DC
  • relay: 2 A

Availability: 125 in stock

Siemens SM 1222 – 6ES7222-1HH32-0XB0


  • Digital outputs as supplement to the integral I/O of the CPUs
  • For flexible adaptation of the controller to the relevant task
  • For subsequent expansion of the system with additional outputs


Digital output modules permit the output of digital signals from the controller to the process.

This provides users with the following advantages:

  • Optimum adaptation:
    With signal modules which can be mixed as desired, users can adapt their controllers exactly to the relevant task. This avoids superfluous investments. Modules with 8, 16, and 32 input/output channels are available.
  • Flexibility:
    If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.


The SM 1222 digital output signal modules convert the internal signal level of the SIMATIC S71200 Controller into the external signal level required for the process.

SIMATIC S7-1200, siemens digital output module, 16 DO, relay 2 A SIMATIC S7-1200 Basic controller – flexible through a variety of means of communication. With signal modules you can configure your SIMATIC S7-1200 (with the exception of the CPU 1211C) individually according to your needs. There is a series of digital and analogue input, output and mixed modules are available, even in fail-safe variants. By this fine granular structure option you can save space in the cabinet and optimize your hardware costs. Cable length: shielded, max. 500 m, unshielded, max 150m

Technical specifications


Siemens 6ES7222 1HH32 0XB0, SIMATIC S7-1200, Digital output SM 1222, 16 DO, relay 2 A, Output Type Analog


DataSheet in PDF

Weight 0.260 kg
Dimensions 8.80 × 10.60 × 5.80 mm


Product type designation

SM 1222, DQ 16x relay/2 A

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

from backplane bus 5 V DC, max.

135 mA

● from load voltage L+, max.

11 mA/relay coil

Power loss, typ.

8.5 W

Number of digital outputs


● in groups of


Short-circuit protection

No; to be provided externally

● with resistive load, max.

2 A

● on lamp load, max.

30 W with DC, 200 W with AC

● Rated value (DC)

5 V DC to 30 V DC

● Rated value (AC)

5 V AC to 250 V AC

● for signal "1" rated value

2 A

● "0" to "1", max.

10 ms

● "1" to "0", max.

10 ms

— up to 50 °C, max.

10 A; Current per mass

● Number of relay outputs


● Rated supply voltage of relay coil L+ (DC)

24 V

● Number of operating cycles, max.

mechanically 10 million, at rated load voltage 100 000

— with inductive load, max.

2 A

— on lamp load, max.

30 W with DC, 200 W with AC

— with resistive load, max.

2 A

● shielded, max.

500 m

● unshielded, max.

150 m

● Diagnostic alarm


● for status of the outputs


● between the channels


● between the channels, in groups of


● between the channels and backplane bus

1 500 V AC for 1 minute

between different circuits

750 V AC for 1 minute

IP degree of protection


CE mark


CSA approval


UL approval




FM approval


RCM (formerly C-TICK)


KC approval


Marine approval


● Fall height, max.

0.3 m; five times, in product package

● horizontal installation, min.

-20 °C

● horizontal installation, max.

60 °C

● vertical installation, min.

-20 °C

● vertical installation, max.

50 °C

● permissible temperature change

5°C to 55°C, 3°C / minute

● min.

-40 °C

● max.

70 °C

● Storage/transport, min.

660 hPa

● Storage/transport, max.

1 080 hPa

● Operation at 25 ℃ without condensation, max.

95 %

required front connector


Enclosure material (front)

● Plastic



45 mm


100 mm


75 mm

Weight, approx.

260 g
