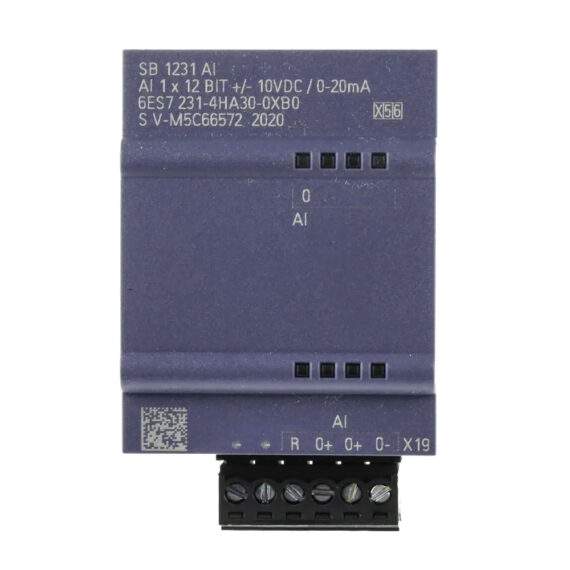

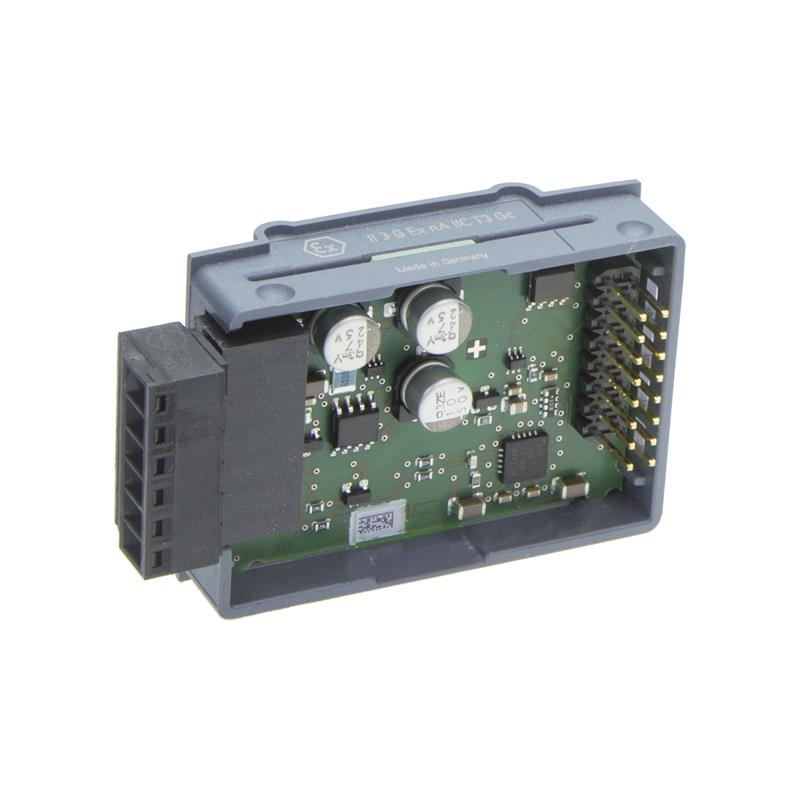

6ES7231-4HA30-0XB0 Siemens SB 1231 AE Original Brand New

 55.83 74.58

  • 6ES7231-4HA30-0XB0
  • SIMATIC S7-1200
  • analogue input
  • Signal Board SB 1231
  • 1 AI
  • +/- 10 V DC (12-bit resolution) or 0-20 mA

Siemens SB 1231 AE – 6ES7231-4HA30-0XB0

Overview

  • Analog input for SIMATIC S7-1200
  • Extremely short conversion times
  • For the connection of analog sensors without additional amplifiers
  • For solving even more complex automation tasks
  • Can be plugged directly into the CPU

Application

The SB 1231 analog input signal board enables the connection of the controller to analog signals of the process.

This provides users with the following advantages:

  • Optimal adaptation:
    With analog signal boards, users can optimally adapt their controllers even to more complex tasks.
  • Direct connection of sensors:
    Up to 11 bit resolution and different input ranges permit the connection of sensors without additional amplifiers.
  • Flexibility:
    If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.
  • Use where space is limited:
    The signal boards are directly plugged into the CPU, enabling the controller to be expanded without taking up any additional space.

Design

The signal boards are plugged straight into the holder on the front of the S71200 CPU.

  • Installation:
    Signal boards are plugged directly into the SIMATIC S7-1200-CPU and are thus connected electrically and mechanically with the CPU.
  • The installation dimensions of the CPU remain unchanged.
  • Replacement of all signal boards is facilitated by removable terminals (“permanent wiring”).

Function

The SB 1231 analog input signal board siemens converts analog signals from the process into digital signals for internal processing by the SIMATIC S7-1200 controller.

Technical specifications

6ES72314HA300XB0

Siemens 6ES7231 4HA30 0XB0, SIMATIC S7-1200, Analog input, siemens signal board, SB 1231, 1 AI, +/-10 V DC (12 bit resol.) or 0-20 mA

Download

DataSheet in PDF

Weight 0.027 kg
Dimensions 5.20 × 8.10 × 3.00 mm
Brand

SIEMENS

Product type designation

SB 1231, AI 1×12 bit

Rated value (DC)

24 V

from backplane bus 5 V DC, typ.

55 mA

Power loss, typ.

0.4 W

Number of analog inputs

1; Current or voltage differential inputs

permissible input voltage for current input (destruction limit), max.

±35 V

permissible input voltage for voltage input (destruction limit), max.

35 V

permissible input current for voltage input (destruction limit), max.

40 mA

permissible input current for current input (destruction limit), max.

40 mA

Cycle time (all channels) max.

156.25 µs; 400 Hz suppression

● Voltage

Yes; ±10V, ±5V, ±2.5V

● Current

Yes; 0 to 20 mA

● Thermocouple

No

● Resistance thermometer

No

● Resistance

No

● -10 V to +10 V

Yes

— Input resistance (-10 V to +10 V)

≥9 MOhm

● -2.5 V to +2.5 V

Yes

— Input resistance (-2.5 V to +2.5 V)

≥9 MOhm

● -5 V to +5 V

Yes

— Input resistance (-5 V to +5 V)

≥9 MOhm

● 0 to 20 mA

Yes

— Input resistance (0 to 20 mA)

≥ 250 Ohm

Number of analog outputs

0

● shielded, max.

100 m; shielded, twisted pair

Measurement principle

integrating

● Resolution with overrange (bit including sign), max.

11 bit; + sign

● Integration time, parameterizable

Yes

● Interference voltage suppression for interference frequency f1 in Hz

40 dB, DC to 60 Hz

● parameterizable

Yes

● Step: None

Yes

● Step: low

Yes

● Step: Medium

Yes

● Step: High

Yes

Temperature error (relative to input range), (+/-)

25 °C ±0.3%, to 55 °C ±0.6% total measurement range

Alarms

Yes

Diagnostics function

Yes

● Diagnostic alarm

Yes

● Wire-break

No

● for status of the inputs

Yes

● for maintenance

Yes

CE mark

Yes

CSA approval

Yes

UL approval

Yes

cULus

Yes

FM approval

Yes

RCM (formerly C-TICK)

Yes

KC approval

Yes

Marine approval

Yes

● Fall height, max.

0.3 m; five times, in product package

● horizontal installation, min.

-20 °C

● horizontal installation, max.

60 °C

● vertical installation, min.

-20 °C

● vertical installation, max.

50 °C

● min.

-40 °C

● max.

70 °C

● Operation, min.

795 hPa

● Operation, max.

1 080 hPa

● Storage/transport, min.

660 hPa

● Storage/transport, max.

1 080 hPa

● Operation at 25 ℃ without condensation, max.

95 %

● SO2 at RH < 60% without condensation

S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free

required front connector

Yes

Enclosure material (front)

● Plastic

Yes

Width

38 mm

Height

62 mm

Depth

21 mm

Weight, approx.

35 g
