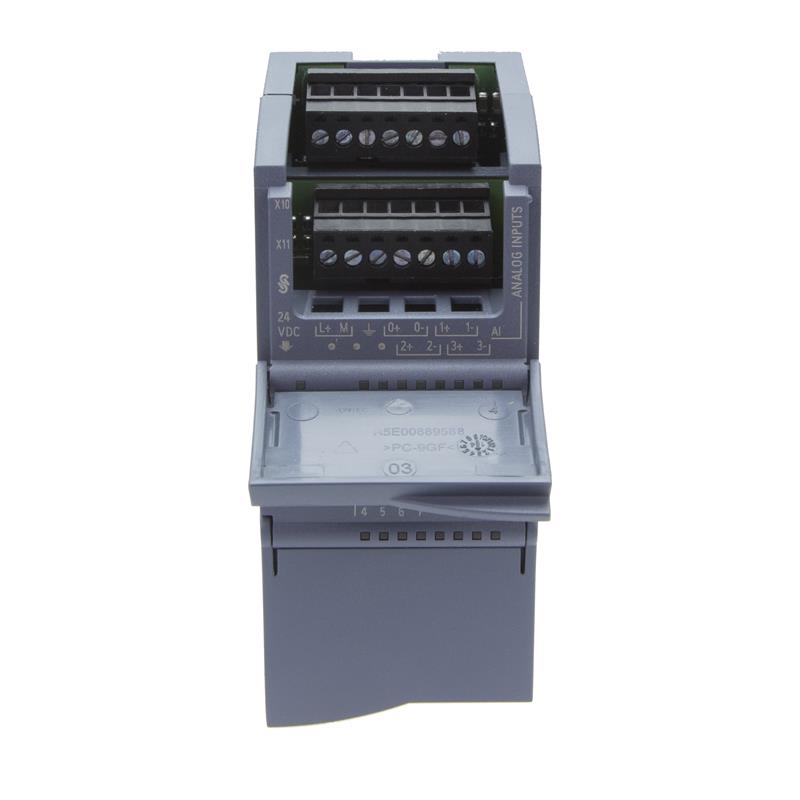

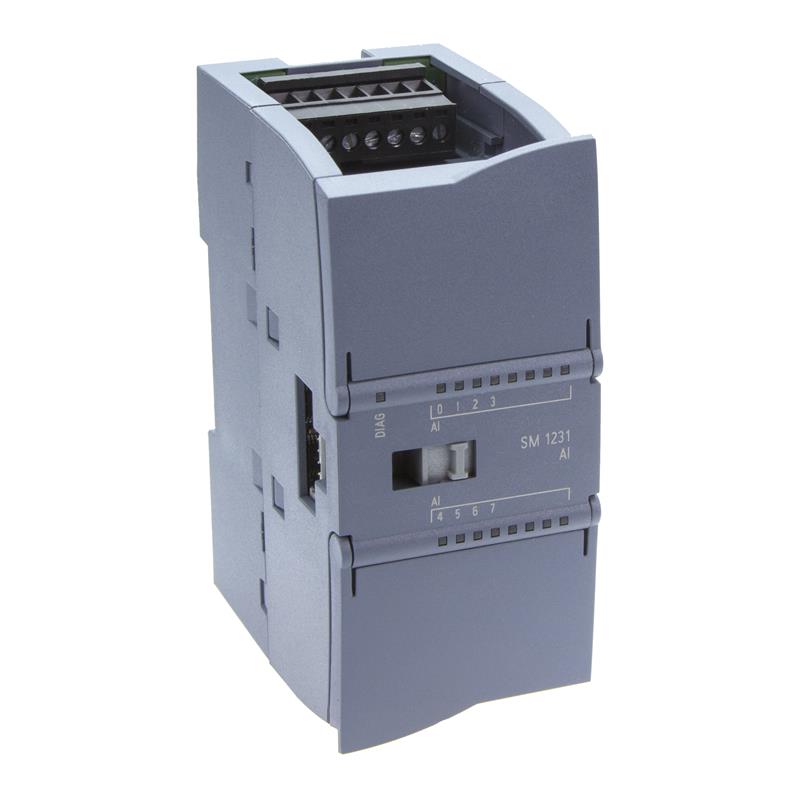

6ES7231-4HF32-0XB0 Siemens SM 1231 AI Original Brand New
€ 233.09 – € 343.75
- 6ES7231-4HF32-0XB0
- SIMATIC S7-1200
- Analogue input
- SM 1231
- 8 analogue inputs
- +/- 10/5/2,5 V; 0-20 mA/4-20 mA
- 12 bits + sign bit (13 bits ADC)
Siemens SM 1231 AI – 6ES7231-4HF32-0XB0
Overview
- Analog inputs for SIMATIC S7-1200
- Extremely short conversion times
- For the connection of analog sensors without additional amplifiers
- For solving even more complex automation tasks
Application
The Siemens SM1231 analog input signal modules allow the connection of the controller to analog signals of the process.
This provides users with the following advantages:
- Optimal adaptation:
With analog signal modules, users can optimally adapt their controllers even to more complex tasks - Direct connection of sensors:
Up to 14 bit resolution and different input ranges permit the connection of sensors without additional amplifier - Flexibility:
If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple
Design
The signal modules have the same design features as the basic devices.
- Installation on DIN rails:
The modules are snapped onto the rail next to the CPU on the right and are electrically and mechanically connected to each other and to the CPU by the integral slide mechanism. - Direct installation:
Horizontal or vertical mounting on DIN rail or direct mounting in the cabinet using integral lugs.
Function
The SM 1231 analog input signal modules convert analog signals from the process into digital signals for internal processing by the Siemens S7 1200 controller.
Technical specifications
6ES72314HF320XB0
SIMATIC S71200, Analog input, SM1231, 8 AI, +/-10 V, +/-5 V, +/-2.5 V, or 0-20 mA/4-20 mA, 12 bit+sign or (13 bit ADC)
Download
| Weight | 0.212 kg |
|---|---|
| Dimensions | 8.80 × 10.30 × 5.80 mm |
| Brand | SIEMENS |
| Product type designation | SM 1231, AI 8×13 bit |
| Rated value (DC) | 24 V |
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 90 mA |
| Power loss, typ. | 1.5 W |
| Number of analog inputs | 8; Current or voltage differential inputs |
| permissible input voltage for voltage input (destruction limit), max. | 35 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 625 µs |
| ● Voltage | Yes; ±10V, ±5V, ±2.5V |
| ● Current | Yes; 4 to 20 mA, 0 to 20 mA |
| ● Thermocouple | No |
| ● Resistance thermometer | No |
| ● Resistance | Yes |
| ● -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | ≥9 MOhm |
| ● -2.5 V to +2.5 V | Yes |
| — Input resistance (-2.5 V to +2.5 V) | ≥9 MOhm |
| ● -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | ≥9 MOhm |
| ● 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | 280 Ω |
| ● 4 mA to 20 mA | Yes |
| — Input resistance (4 mA to 20 mA) | 280 Ω |
| — parameterizable | No |
| ● Resolution with overrange (bit including sign), max. | 12 bit; + sign |
| ● Integration time, parameterizable | Yes |
| ● Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 V for interference frequency 50 / 60 Hz |
| ● parameterizable | Yes |
| ● Step: None | Yes |
| ● Step: low | Yes |
| ● Step: Medium | Yes |
| ● Step: High | Yes |
| Temperature error (relative to input range), (+/-) | 25 °C ±0.1%, to 55 °C ±0.2% total measurement range |
| ● Voltage, relative to input range, (+/-) | 0.1 % |
| ● Current, relative to input range, (+/-) | 0.1 % |
| ● Common mode voltage, max. | 12 V |
| Alarms | Yes |
| Diagnostics function | Yes |
| ● Diagnostic alarm | Yes |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes |
| ● for status of the inputs | Yes |
| ● for maintenance | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Operation, min. | 795 hPa |
| ● Operation, max. | 1 080 hPa |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| required front connector | Yes |
| Enclosure material (front) | – |
| ● Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 180 g |
| last modified: | 2/26/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
