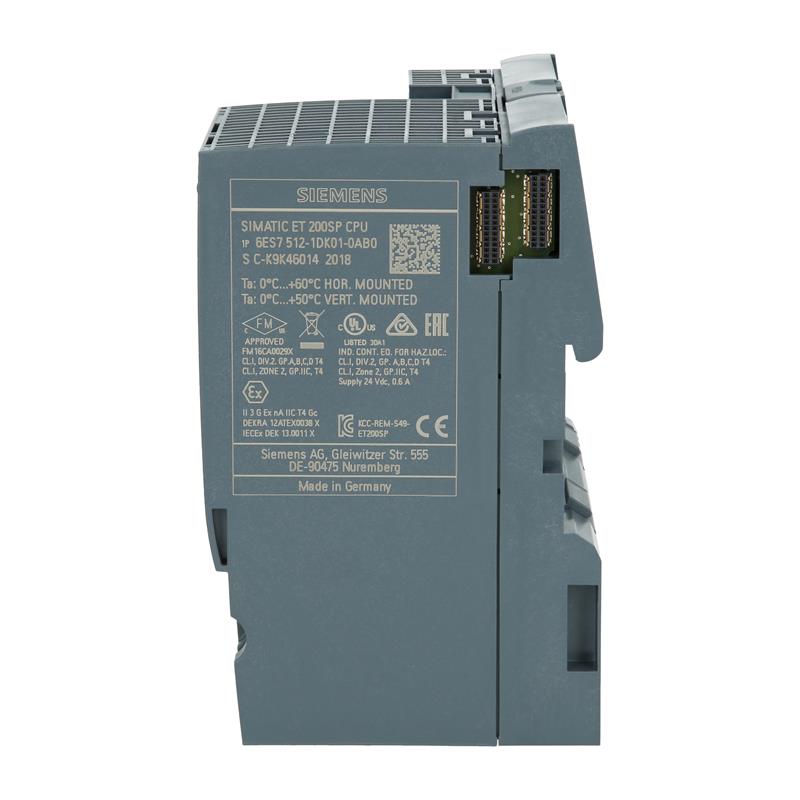

6ES7512-1DK01-0AB0 Siemens SIMATIC DP CPU 1512SP1 PN

  • 6ES7512-1DK01-0AB0
  • SIMATIC DP
  • CPU 1512SP-1 PN for ET 200SP
  • Central processing unit with working memory
  • Interface: PROFINET IRT with 3-port switch
  • 24 V DC
  • Power supply: 19.2-28.8 V DC
  • Working memory: 200 kByte programming; 1 Mbyte data
  • 48 NS bit performance
  • SIMATIC memory card (max 32 GB) and bus adapter for port 1 and 2 necessary

This product is currently out of stock and unavailable.

Siemens SIMATIC DP CPU 1512SP-1 PN – 6ES7512-1DK01-0AB0

Overview

  • CPU 1512SP-1 PN for SIMATIC ET 200SP based on S7-1500 CPU 1513-1 PN
  • For applications with medium requirements in terms of program scope and processing speed, for distributed configurations via PROFINET IO or PROFIBUS DP.
  • Increase in availability of systems and machines
  • PROFINET IO controller for up to 128 IO devices
  • PROFINET I-device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or third-party PROFINET IO controller
  • PROFINET shared I-device for 4 controllers
  • PROFINET IO IRT interface with integrated 3-port switch
  • Isochronous mode on PROFINET
  • With multiple communication options:
    PG/OP communication, PROFINET IO, open IE communication (TCP, ISO-on-TCP and UDP), web server and S7 communication (with loadable FBs)
  • OPC UA server and client (data access) as runtime option for easy connection of the SIMATIC ET 200SP to third-party devices/systems
  • Optional PROFIBUS DP master for 125 PROFIBUS DP slaves (with CM DP module 6ES7545-5DA00-0AB0)
  • Optional PROFIBUS DP slave (with CM DP module 6ES7545-5DA00-0AB0)
  • Configuration control (option handling)
  • Integrated motion control functionalities for controlling speed-controlled and positioning axes, support for external encoders, cams/cam tracks and probes

Note

SIMATIC Memory Card required for operation of the CPU.
BusAdapter is not included in scope of delivery and is to be ordered separately.

Application

The CPU 1512SP-1 PN is the CPU for applications with medium requirements for processing performance and speed of response in discrete production technology. The CPU 1512SP-1 PN can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 3-port switch so that a linear topology can be set up in the system via Port 1 and 2, and so that a programming device/PC or HMI device can also be connected via Port 3.

When used as an I-Device, the CPU 1512SP-1 PN enables distributed preprocessing of process data locally and only delivers the information actually required to the higher-level PLC. This has the following advantages:

  • Reduced load on the central PLC
  • Short response times to critical local signals
  • Less load on the bus system due to smaller data volumes
  • Faster set-up due to pretested units and parallel commissioning
  • Increased availability and flexibility due to autonomous machine units
  • Clear-cut configuration

The CPU 1512SP-1 PN operates completely independently of the central PLC. If it fails, the CPU 1512SP-1 PN simply continues running.

The bit-modular design of the ET 200SP I/O system, together with the CPU 1512SP-1 PN, enables functionally oriented station design.

In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLCopen blocks.

Design

The CPU 1512SP-1 PN CPU is snapped directly onto the standard DIN rail. It has:

  • A powerful processor:
    The CPU achieves command execution times as low as 48 ns per binary instruction.
  • A large work memory:
    200 KB for program, 1 MB for data
  • SIMATIC Memory Cards as load memory;
    permitting additional functions such as firmware update, datalog and archives
  • Bit-modular expandability for maximum flexibility;
    up to 64 I/O modules (I/O, technology, and communication modules) in any combination. Station width up to 1 m.
  • Mixed configuration with ET 200AL;
    It is possible to integrate up to 16 I/O modules of the ET 200AL (IP65/IP67) I/O system in an installation of the scalable I/O system ET 200SP (IP20) via a “BU-Send” BaseUnit and a “BA-Send” BusAdapter.
  • PROFINET IO IRT interface with 3 integrated switch ports:
    • Port 1 and 2 via BusAdapter
      (The CPU 1512SP-1 PN is supplied without a BusAdapter and can also be operated without one.
      A suitable BusAdapter (BA 2xRJ45, BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2xLC, BA LC/RJ45 or BA LC/FC) can be ordered separately if required.
    • Port 3 integrated RJ45 socket
  • Integrated communication functions:
    • PG/OP communication
    • PROFINET IO
    • Open IE communication (TCP, ISO-on-TCP and UDP)
    • OPC UA server/client (data access)
    • Web server
    • S7 communication
    • S7 routing
    • Data record routing
  • Maintenance-free data backup without battery
  • Diagnostics displays for errors (Error), operation (RUN/Stop), maintenance (MT), power supply (PWR) and one link LED per port
  • Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
    • Foil and roll with 500 strips, for thermal transfer roll printer
    • Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
  • The ET 200SP CPU can be equipped with an equipment labeling plate
  • Different PROFINET connection types by means of BusAdapter
    • In standard applications with moderate mechanical and EMC loads, SIMATIC BusAdapters with an RJ45 interface can be used, e.g. BA 2xRJ45 BusAdapter.
    • For machines and systems in which higher mechanical and/or EMC loads act on the devices, a SIMATIC BusAdapter with connection via FastConnect (FC) or fiber-optic cable (SCRJ or LC) is recommended. Likewise, all SIMATIC BusAdapters with a fiber-optic cable connection (SCRJ, LC) can be used with the increased loads.
    • BusAdapters with connections for fiber-optic cables can be used to cover high potential differences between two stations and/or high EMC loads.
  • Dark BaseUnit as first BaseUnit behind the ET 200SP CPU when using an AC I/O module or AI Energy Meter ST as the first I/O module

Scope of delivery:

CPU 1512SP-1 PN including server module, 24 V DC connector and cover for BusAdapter port (BusAdapter must be ordered separately)

Function

  • Performance
    • High-speed command processing
    • Powerful network connection:
      CPU is equipped with a PROFINET IO IRT (3-port switch) as the standard interface
  • Integrated technology
    • Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
    • Support of speed-controlled and positioning axes as well as external encoders
    • Precise position gearing for synchronous operation between axes
    • Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection
    • Comprehensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
  • Isochronous mode
    • Synchronous coupling of distributed signal acquisition, signal transmission, and program execution to the PROFINET cycle with constant bus cycle time
  • Security Integrated
    • Password-based know-how protection against unauthorized read-out and modification of program blocks
    • Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted into the CPU.
    • 4-level authorization concept: Communication to the HMI devices can also be restricted.
    • Manipulation protection: The controller recognizes changed or unauthorized transmissions of the engineering data.
  • Integrated system diagnostics
    • System diagnostics information is displayed consistently and in plain text in the TIA Portal, HMI devices and Web server, even for messages from the drives, and is updated even if the CPU is in STOP mode.
    • Integrated into the firmware of the CPU, no special configuration is required
  • Configuration control (option handling) in central setup
    • Various hardware configurations can be stored in the controller:
      Modification of the configuration in the user program (startup OB100)
      Retrofitting of options at end of configuration
      Use of placeholder modules is possible.
  • SIMATIC Memory Card (required for operation of the CPU)
    • Used as a plug-in load memory or for updating the firmware.
    • Also for storing additional documents or csv files (for recipes and archives)
    • Creation of data blocks for storage/reading of data via SFCs of the user program
  • Datalog (archives) and recipes
    • Storage of csv files for recipes and archives on the SIMATIC Memory Card;
      easy access to plant-relevant operating data using Office tools or via a Web server
    • Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
  • Programming
    • Programming with STEP 7 Professional, V13 update 3 and higher

Technical specifications



6ES7512-1DK01-0AB0

SIMATIC DP, CPU 1512SP-1 PN for ET 200SP, Central processing unit with Work memory 200 KB for program and 1 MB for data, 1st interface: PROFINET IRT with 3-port switch, 48 ns bit performance, SIMATIC Memory Card required, BusAdapter required for Port 1 and 2

Download

DataSheet in PDF

Weight 0.386 kg
Dimensions 10.00 × 12.20 × 6.30 mm
Brand

SIEMENS

Product type designation

CPU 1512SP-1 PN

HW functional status

FS05

Firmware version

V2.9

● I&M data

Yes; I&M0 to I&M3

● Module swapping during operation (hot swapping)

Yes; Multi-hot swapping

● Isochronous mode

Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs

● STEP 7 TIA Portal configurable/integrated from version

V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher

via dataset

Yes

Mode selector switch

1

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

● Mains/voltage failure stored energy time

5 ms

Current consumption (rated value)

0.6 A

Current consumption, max.

0.9 A

Inrush current, max.

4.7 A; Rated value

I²t

0.14 A²·s

Infeed power to the backplane bus

8.75 W

Power loss, typ.

5.6 W

Number of slots for SIMATIC memory card

1

SIMATIC memory card required

Yes

● integrated (for program)

200 kbyte

● integrated (for data)

1 Mbyte

● Plug-in (SIMATIC Memory Card), max.

32 Gbyte

● maintenance-free

Yes

for bit operations, typ.

48 ns

for word operations, typ.

58 ns

for fixed point arithmetic, typ.

77 ns

for floating point arithmetic, typ.

307 ns

Number of elements (total)

4 000; Blocks (OB, FB, FC, DB) and UDTs

● Number range

0 … 65 535

● Number of free cycle OBs

100

● Number of time alarm OBs

20

● Number of delay alarm OBs

20

● Number of cyclic interrupt OBs

20; With minimum OB 3x cycle of 500 µs

● Number of process alarm OBs

50

● Number of DPV1 alarm OBs

3

● Number of isochronous mode OBs

1

● Number of technology synchronous alarm OBs

2

● Number of startup OBs

100

● Number of asynchronous error OBs

4

● Number of synchronous error OBs

2

● Number of diagnostic alarm OBs

1

● per priority class

24

— adjustable

Yes

Retentive data area (incl. timers, counters, flags), max.

128 kbyte; Available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB

● Size, max.

16 kbyte

● Number of clock memories

8; 8 clock memory bit, grouped into one clock memory byte

● Retentivity adjustable

Yes

● Retentivity preset

No

● per priority class, max.

64 kbyte; max. 16 KB per block

Number of IO modules

2 048; max. number of modules / submodules

● Inputs

32 kbyte; All inputs are in the process image

● Outputs

32 kbyte; All outputs are in the process image

— Inputs (volume)

8 kbyte

— Outputs (volume)

8 kbyte

● Number of subprocess images, max.

32

● Address space per module, max.

288 byte; For input and output data respectively

● Address space per station, max.

2 560 byte; for central inputs and outputs; depending on configuration; 2 048 bytes for ET 200SP modules + 512 bytes for ET 200AL modules

Number of distributed IO systems

32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link)

● integrated

1

● Via CM

0

● Modules per rack, max.

80; CPU + 64 modules + server module (mounting width max. 1 m) + 16 ET 200AL modules

● Quantity of operable ET 200SP modules, max.

64

● Quantity of operable ET 200AL modules, max.

16

● Number of lines, max.

1

● Number of PtP CMs

the number of connectable PtP CMs is only limited by the number of available slots

● Type

Hardware clock

● Backup time

6 wk; At 40 °C ambient temperature, typically

● Deviation per day, max.

10 s; Typ.: 2 s

● Number

16

● supported

Yes

● to DP, master

Yes; Via CM DP module

● to DP, slave

Yes; Via CM DP module

● in AS, master

Yes

● in AS, slave

Yes

● on Ethernet via NTP

Yes

Number of PROFINET interfaces

1

Number of PROFIBUS interfaces

1; Via CM DP module

Optical interface

Yes; via BusAdapter

● RJ 45 (Ethernet)

Yes; X1 P3; opt. X1 P1 and X1 P2 via BusAdapter BA 2x RJ45

● integrated switch

Yes

● BusAdapter (PROFINET)

Yes; compatible BusAdapters: BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC,

● IP protocol

Yes; IPv4

● PROFINET IO Controller

Yes

● PROFINET IO Device

Yes

● Open IE communication

Yes; Optionally also encrypted

● Web server

Yes

● Media redundancy

Yes; MRP Automanager according to IEC 62439-2 Edition 2.0

— Direct data exchange

Yes; Requirement: IRT and isochronous mode (MRPD optional)

— Prioritized startup

Yes; Max. 32 PROFINET devices

— Number of connectable IO Devices, max.

128; In total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET

— Of which IO devices with IRT, max.

64

— Number of connectable IO Devices for RT, max.

128

— of which in line, max.

128

— Number of IO Devices that can be simultaneously activated/deactivated, max.

8; in total across all interfaces

— Number of IO Devices per tool, max.

8

— Updating times

The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data

— With IRT and parameterization of "odd" send cycles

Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs … 3 875 µs)

— for send cycle of 250 µs

250 µs to 128 ms

— for send cycle of 500 µs

500 µs to 256 ms

— for send cycle of 1 ms

1 ms to 512 ms

— for send cycle of 2 ms

2 ms to 512 ms

— for send cycle of 4 ms

4 ms to 512 ms

— IRT

Yes

— PROFIenergy

Yes; per user program

— Shared device

Yes

— Number of IO Controllers with shared device, max.

4

— activation/deactivation of I-devices

Yes; per user program

— Asset management record

Yes; per user program

● RS 485

Yes; Via CM DP module

● Number of ports

1

● PROFIBUS DP master

Yes

● PROFIBUS DP slave

Yes

● SIMATIC communication

Yes

● Number of DP slaves, max.

125; In total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET

— PG/OP communication

Yes

— Equidistance

No

— Isochronous mode

No

— Activation/deactivation of DP slaves

Yes

● 100 Mbps

Yes

● Autonegotiation

Yes

● Autocrossing

Yes

● Industrial Ethernet status LED

Yes

● Transmission rate, max.

12 Mbit/s

PROFIsafe

No

● Number of connections, max.

128; via integrated interfaces of the CPU and connected CPs / CMs

● Number of connections reserved for ES/HMI/web

10

● Number of connections via integrated interfaces

88

● Number of connections per CP/CM

32

● Number of S7 routing paths

16

● H-Sync forwarding

Yes

— Media redundancy

Yes; only via BusAdapter

— MRP

Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client

— MRP interconnection, supported

Yes; as MRP ring node according to IEC 62439-2 Edition 3.0

— MRPD

Yes; Requirement: IRT

— Switchover time on line break, typ.

200 ms; For MRP, bumpless for MRPD

— Number of stations in the ring, max.

50

● PG/OP communication

Yes; encryption with TLS V1.3 pre-selected

● S7 routing

Yes

● Data record routing

Yes

● S7 communication, as server

Yes

● S7 communication, as client

Yes

● User data per job, max.

See online help (S7 communication, user data size)

● TCP/IP

Yes

— several passive connections per port, supported

Yes

● ISO-on-TCP (RFC1006)

Yes

● UDP

Yes

— Data length, max.

2 kbyte; 1 472 bytes for UDP broadcast

— UDP multicast

Yes; Max. 5 multicast circuits

● DHCP

Yes

● DNS

Yes

● SNMP

Yes

● DCP

Yes

● LLDP

Yes

● Encryption

Yes; Optional

● HTTP

Yes; Standard and user pages

● HTTPS

Yes; Standard and user pages

● Runtime license required

Yes; "Small" license required

● OPC UA Client

Yes

— Number of connections, max.

4

— Number of nodes of the client interfaces, max.

1 000

— Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max.

300

— Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max.

20

— Number of elements for one call of OPC_UA_MethodGetHandleList, max.

100

— Number of simultaneous calls of the client instructions per connection (except OPC_UA_ReadList,OPC_UA_WriteList,OPC_UA_MethodCall), max.

1

— Number of simultaneous calls of the client instructions OPC_UA_ReadList,OPC_UA_WriteList and OPC_UA_MethodCall, max.

5

— Number of registerable method calls of OPC_UA_MethodCall, max.

100

— Number of inputs/outputs when calling OPC_UA_MethodCall, max.

20

● OPC UA Server

Yes; Data access (read, write, subscribe), method call, custom address space

— Application authentication

Yes

— Security policies

Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256

— User authentication

"anonymous" or by user name & password

— GDS support (certificate management)

Yes

— Number of sessions, max.

32

— Number of accessible variables, max.

50 000

— Number of registerable nodes, max.

10 000

— Number of subscriptions per session, max.

20

— Sampling interval, min.

100 ms

— Publishing interval, min.

500 ms

— Number of server methods, max.

20

— Number of inputs/outputs per server method, max.

20

— Number of monitored items, max.

1 000; for 1 s sampling interval and 1 s send interval

— Number of server interfaces, max.

10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace"

— Number of nodes for user-defined server interfaces, max.

1 000

● Alarms and Conditions

Yes

— Number of program alarms

100

— Number of alarms for system diagnostics

50

● MODBUS

Yes; MODBUS TCP

Program alarms

Yes

Number of configurable program messages, max.

5 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH

Number of loadable program messages in RUN, max.

2 500

Joint commission (Team Engineering)

Yes; Parallel online access possible for up to 5 engineering systems

Status block

Yes; Up to 8 simultaneously (in total across all ES clients)

Single step

No

Number of breakpoints

8

● Status/control variable

Yes

● Variables

Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters

— of which status variables, max.

200; per job

— of which control variables, max.

200; per job

● Forcing

Yes

● Forcing, variables

Peripheral inputs/outputs

● Number of variables, max.

200

● present

Yes

● Number of entries, max.

1 000

— of which powerfail-proof

500

● Number of configurable Traces

4; Up to 512 KB of data per trace are possible

● RUN/STOP LED

Yes

● ERROR LED

Yes

Product Condition

Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good

Reviews

There are no reviews yet.

Be the first to review “6ES7512-1DK01-0AB0 Siemens SIMATIC DP CPU 1512SP1 PN”
Shopping Cart
