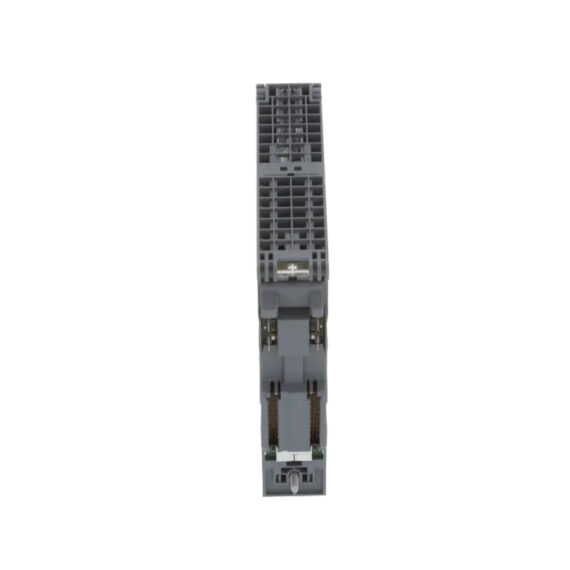

6ES7532-5HD00-0AB0 SIEMENS SIMATIC S7-1500 Original Brand New

 595.33 626.67

  • 6ES7532-5HD00-0AB0
  • SIMATIC S7-1500
  • Analog Output Module
  • 8 Channels Diagnostics

Siemens SIMATIC S7-1500, 6ES7532-5HD00-0AB0

Overview

  • 2, 4 and 8-channel analog output modules
  • Optionally with extremely short conversion times
  • For connecting analog actuators without additional amplifiers
  • Even solves more complex automation tasks

Application

Analog output modules convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.

The following analog output modules are available:

  • AQ 2xU/I ST;
    Analog output module with 2 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
    Module width 25 mm
  • AQ 4xU/I ST;
    Analog output module with 4 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
    Module width 35 mm
  • AQ 8xU/I HS;
    Analog output module with 8 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; high speed with 8 channels in 125 µs; isochronous mode; calibration during runtime.
    Module width 35 mm
  • AQ 4xU/I HF;
    Analog output module with 4 channels; 16-bit resolution; accuracy +/- 0.1%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
    Module width 35 mm

Design

  • Mounting on the S7-1500 mounting rail using one single screw
  • 35 mm modules: Standardized 40-pin front connector using screw terminal or push-in technology (cannot be used for 25 mm modules)
  • 25 mm modules: Standardized 40-pin front connector using push-in technology (cannot be used for 35 mm modules)
  • Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16), regardless of the front connector used
  • Prewiring position of the front connector
  • Front flap with expandable cable compartment, even if fully wired
  • Integrated shielding concept
  • Unambiguous labeling on the front of module:
    • Module type
    • Article number
    • Hardware and firmware version
    • Channel numbers labeling
    • Cabling diagram

Included in the scope of delivery:

  • Power supply element, shield bracket, and shield terminal
  • One labeling strip for manual labeling
  • One U connector
  • Printed front door

Function

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Channel status display (channel activated or deactivated, green LED) or diagnostics display (red LED)
    • Display for monitoring the 24 V DC supply voltage (green LED)
  • Supported functions:
    • Consistently high resolution of 16 bits
    • Identification and maintenance data IM0 to IM3
    • Firmware update
    • Channel-specific parameter assignment
    • Channel-granular diagnostics (depends on measurement type/measuring range)
    • Substitute values can be parameterized for the outputs
    • Calibration during runtime
    • Isochronous mode (dependent on the module)

Download

Data Sheet In PDF

Weight 0.31 kg
Dimensions 129 × 35 × 147 mm
