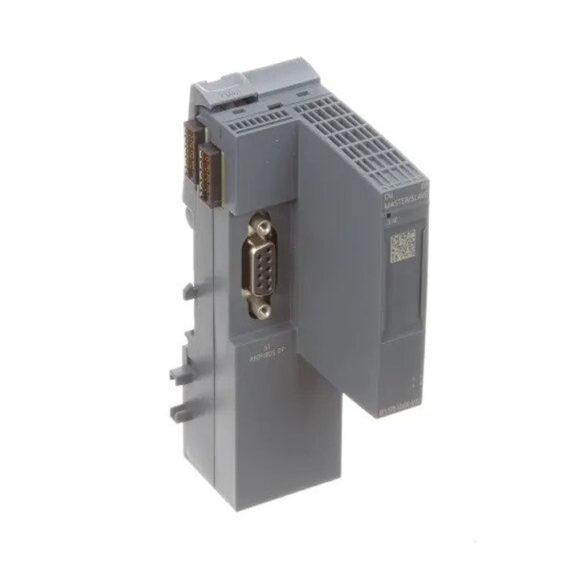

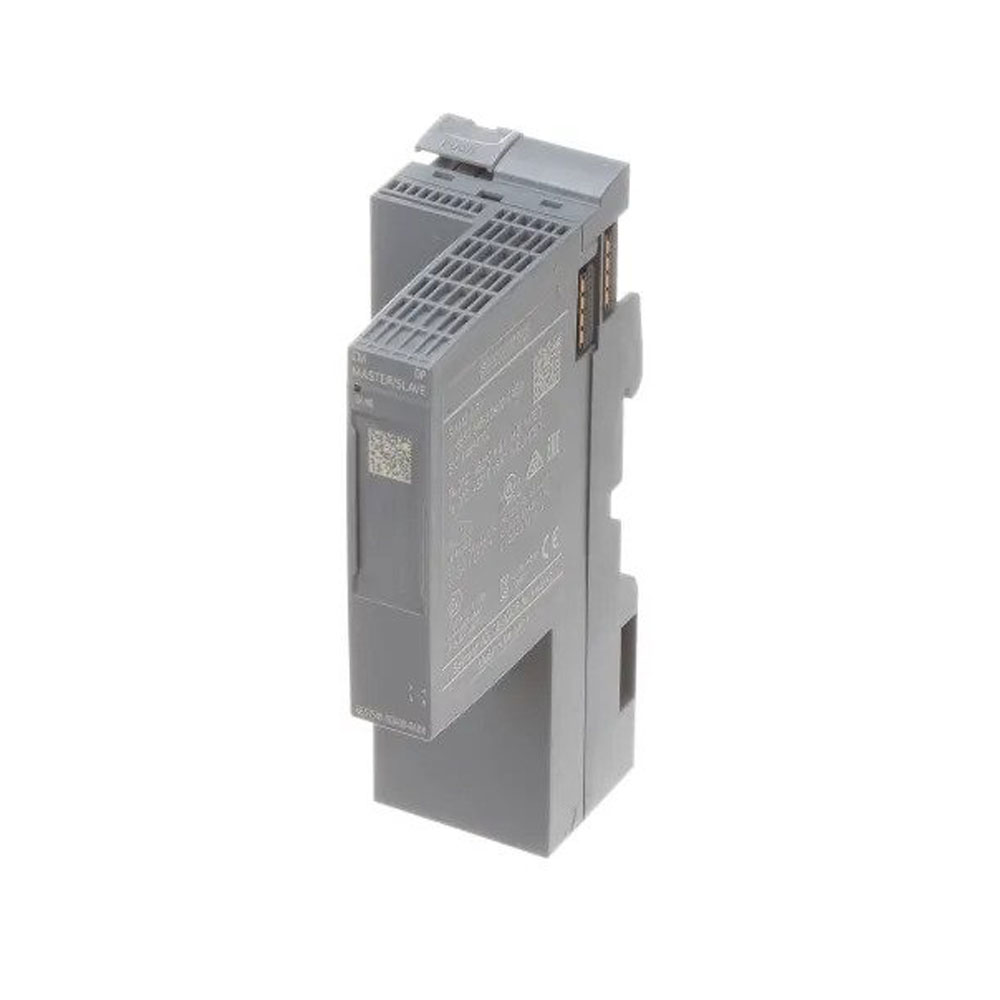

6ES7545-5DA00-0AB0 SIEMENS SIMATIC DP CM PROFIBUS DP for ET 200SP Original Brand New
€ 530.68
- 6ES7545-5DA00-0AB0
- SIMATIC DP
- CM PROFIBUS DP for ET 200SP CPU module with PROFIBUS DP interface (9-pole D-sub socket)
- DP master for 125 DP slaves DP slave
Availability: 100 in stock
SIEMENS SIMATIC DP CM PROFIBUS DP for ET 200SP – 6ES7545-5DA00-0AB0
Overview
- PROFIBUS DP master/slave with electrical interface for connecting the ET 200SP CPUs to PROFIBUS at up to 12 Mbps
- Expands the ET 200SP CPUs 1510SP-1 PN / 1512SP-1 PN by one PROFIBUS connection
- For communication with lower-level PROFIBUS devices at bandwidths of 9.6 Kbps to 12 Mbps
- Communication services:
- PROFIBUS DP
- PG/OP communication
- S7 communication:
This makes it possible to establish communication between the ET 200SP CPU and other devices, for example those from the SIMATIC S7-300/400/1500 range.
- Time synchronization
- Simple programming and configuration over PROFIBUS
- Cross-network PG communication using S7 routing
- Data set routing
Application
The CM DP module extends the CPU 1510SP-1 PN / 1512SP-1 PN to include a PROFIBUS DP interface. Which enables either a lower-level or a higher-level PROFIBUS DP line to be established. This has the following advantages:
- Offloading of the central controller by means of distributed preprocessing
- CPU 1510SP-1 PN or CPU 1512SP-1 PN possible in standalone mode as DP master
Communication options of the ET 200SP-CPU via CM DP module:
- As master for PROFIBUS DP according to IEC 61158/EN 50170 for 125 DP slaves
- As intelligent DP slave for higher-level DP master on PROFIBUS DP
- Communication with programming devices and HMI devices
- Communication with other SIMATIC S7 systems
- Communication with SIMATIC S5 programmable controllers
Function
The CM DP module supports the following communication services:
- PROFIBUS DP Master Class 1
- PROFIBUS DP (according to IEC 61158/61784)
- PROFIBUS DP slave
- PG/OP communication
- S7 communication
- Time synchronization via PROFIBUS
Master for PROFIBUS DP
The CM DP module operates as a DP-V1 master and processes the data transfer completely independently. It also supports the acyclic standard services, including interrupt handling. During normal operation, it is also possible to activate or deactivate DP slaves. Among other things, this allows the step-by-step commissioning of subprocesses. A diagnostic repeater allows the line to be diagnosed during operation, enabling line faults to be detected at an early stage. The CM DP module supports operation with a diagnostic repeater (including activation of topology identification on the diagnostic repeater).
It is possible to connect PROFIBUS slaves, e.g. CM 1242-5 as a DP slave, DP slaves of the ET 200 distributed I/O, etc.
This creates the possibility for the ET 200SP CPU of setting up a further distributed I/O in addition to the network of the integrated PROFINET interface.
DP slave for PROFIBUS DP
The CM DP module operates as a DP slave and processes the data transfer completely independently. It thus connects the ET 200SP CPU as intelligent slave to a higher-level DP master.
This creates the possibility for the ET 200SP CPU being connected to an existing PROFIBUS DP network as intelligent slave in addition to the network of the integrated PROFINET interface.
The CM DP module can be operated as DP slave on the following DP masters:
- SIMATIC S7-1200, S7-300, S7-400, S7-1500
- ET 200 CPUs and CPs with one DP master interface
- Third-party systems with PROFIBUS DP master interface (via a GSD file).
PG/OP communication
PG/OP communication allows all S7 stations connected to the network to be remotely programmed.
- S7 routing: With the aid of routing it is possible to use programming device communication across different networks.
S7 communication
S7 communication is used for the coupling
- between SIMATIC S7 automation systems
- and programming devices (PG/OP communication)
- to PCs, e.g. CP 5711 with SOFTNET-PB S7, CP 5623 etc.
- and HMI devices (OPs).
Time synchronization
Time synchronization is used to set the time of day throughout the plant.
The CM DP module is capable of forwarding the time of day of the ET 200SP CPU to PROFIBUS. Conversely, the CM DP of the CPU can make an existing time on PROFIBUS available.
Data set routing
The CM DP module supports the “data record” routing function. With this option, the CM can be used as a router for data records that need to be sent to field devices (DP slaves). Data records from devices that are not connected directly to PROFIBUS and therefore have no direct access to the DP slaves are forwarded to the DP slaves by the CM.
Diagnostics
- Connection diagnostics
- Support of operation with diagnostic repeater
- “DIAG” LED for indicating the operational and communication status
6ES7545-5DA00-0AB0
SIMATIC DP, CM PROFIBUS DP for ET 200SP CPU module with PROFIBUS DP interface (9-pole D-sub socket) DP master for 125 DP slaves DP slave
Download
| Weight | 0.08 kg |
|---|---|
| Dimensions | 75 × 35 × 117 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
