6SL3255-0VA00-2AA1 Siemens SINAMICS V20 BOP (Basic Operator Panel) Original Brand New

 369.71 389.17

  • 6SL3255-0VA00-2AA1
  • SINAMICS V20
  • BOP Interface

BOP (Basic Operator Panel) Siemens SINAMICS V20 – 6SL3255-0VA00-2AA1

Overview

The SINAMICS V20 is surprisingly versatile, features quick commissioning times, robustness, and energy efficiency. With four frame sizes, it covers a power range extending from 0.16 to 20 HP.

SIEMENS SINAMICS V20 – an overview of its strengths

  1. Easy to install
  • Push-through and wall mounting – side-by-side possible for both
  • USS and MODBUS RTU at terminals
  • Integrated braking chopper from 7.5 kW to 15 kW (10 hp up to 20 hp)
  1. Easy to use
  • Parameter loading without power supply
  • Integrated application and connection macros
  • Keep Running Mode for uninterrupted operation
  • Wide voltage range, advanced cooling design and coated PCBs increase robustness
  1. Easy to save money
  • ECO mode for V/f, V2/f    Hibernation mode    DC coupling

SINAMICS V20 BOP

The SINAMICS V20 supports an external SINAMICS V20 BOP (Basic Operator Panel) for remote control of the converter and is designed for distributed mounting with IP54 and UL Type 1 enclosure rating.

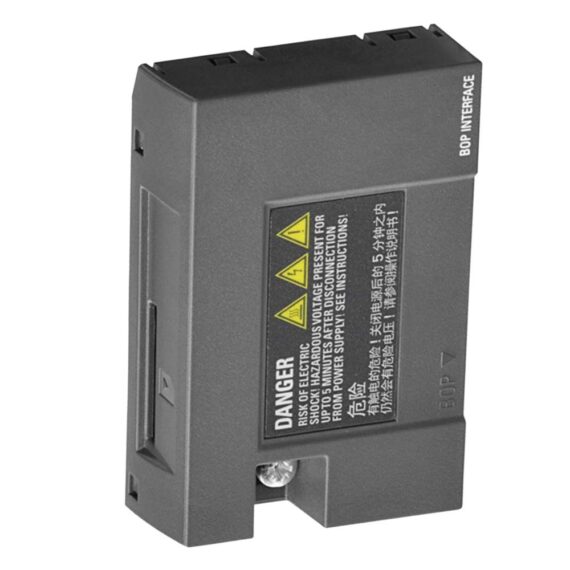

SINAMICS V20 BOP Interface

The SINAMICS V20 BOP Interface is used for connecting the SINAMICS V20 BOP to enable remote control of the converter.

The SINAMICS V20 BOP Interface has an RS232 interface for connecting the SINAMICS V20 BOP to the converter, and a plug connector for connection to the expansion port of the converter.

Integration

The SINAMICS V20 BOP or the SINAMICS CONNECT 300 IoT Gateway for connection to the Cloud MindSphere is connected to the converter via the optional SINAMICS V20 BOP Interface.

Dimensional drawings

SINAMICS V20 BOP

SINAMICS V20 BOP Interface

All dimensions in mm (values in brackets are in inches).

Technical Specification

6SL3255-0VA00-2AA1

SINAMICS V20 BOP interface Size: 49x56x23 (WxHxD)

Download

DataSheet in PDF

Weight 0.050 kg
Dimensions 45.00 × 95.00 × 70.00 mm
Product Condition

Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good
