1FK2204-5AF10-2MA0

Description

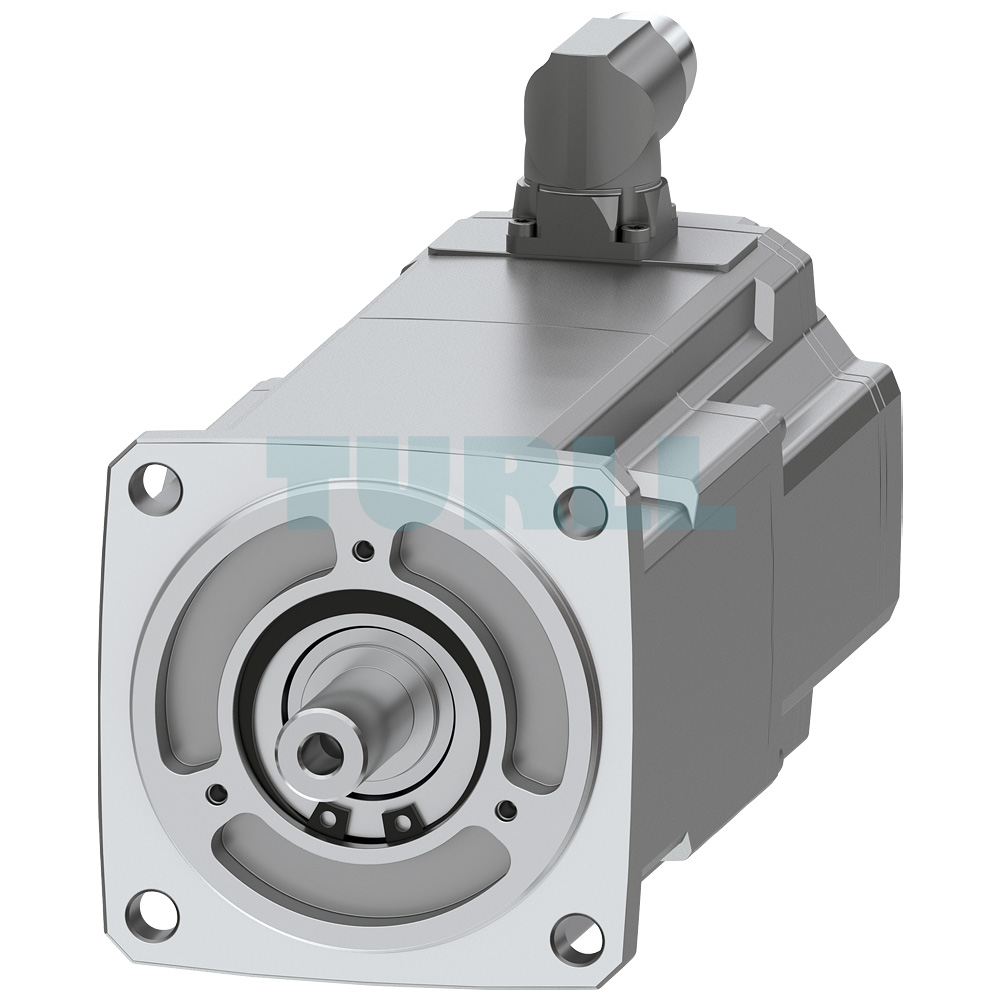

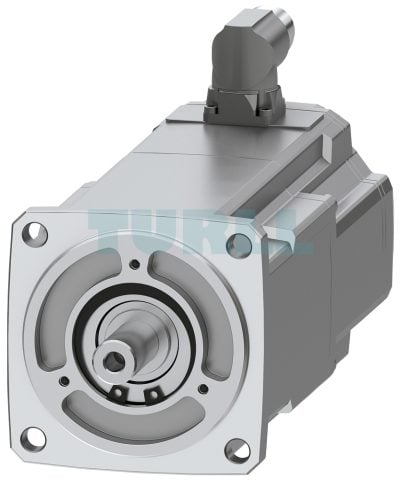

1FK2204-5AF10-2MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

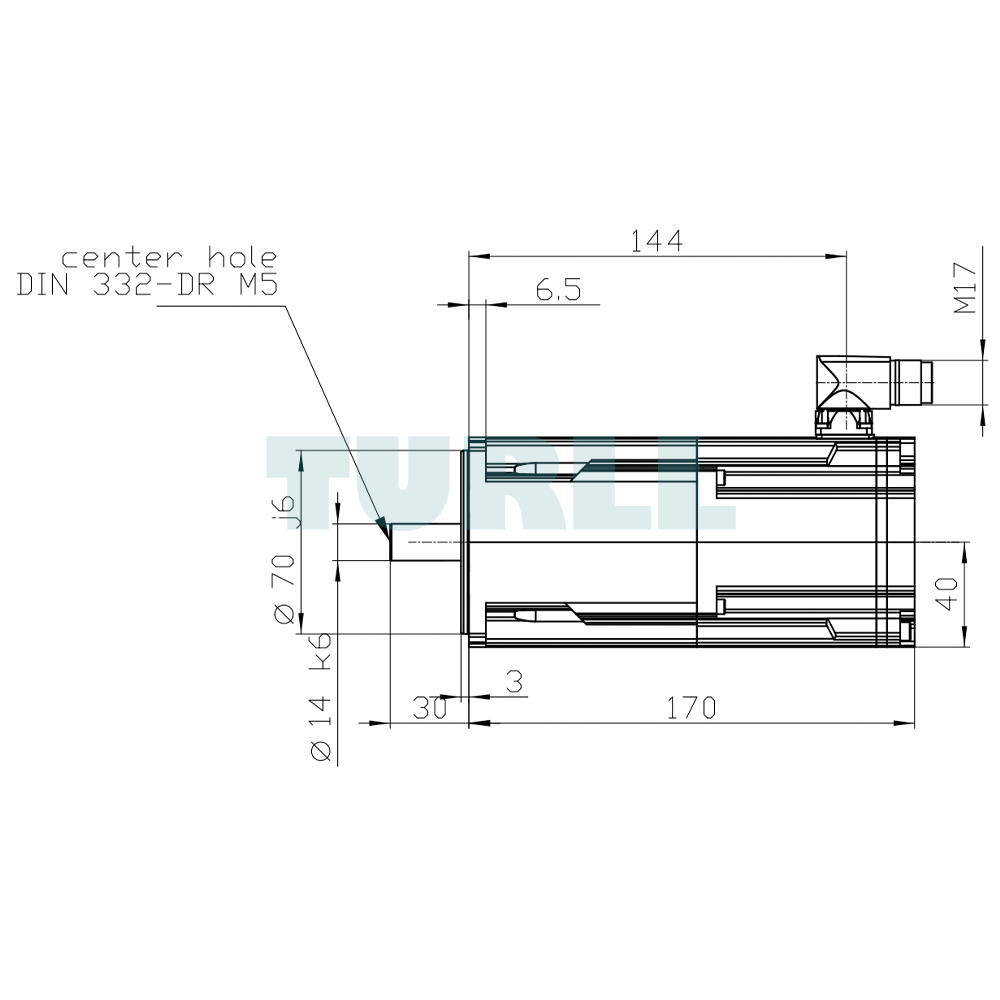

The SIEMENS SIMOTICS S-1FK2 servo motor with product code 1FK2204-5AF10-2MA0 is an advanced synchronous motor engineered for precision, reliability, and flexibility in industrial applications. It delivers a rated torque of 2.4 Nm with power ratings of 0.75 kW at 3000 rpm (380–480 V) and 0.375 kW at 1500 rpm (200–240 V). Built with a holding brake, cylindrical shaft (D14 x 30 mm), and IP64 degree of protection, this exclusive motor ensures robust operation in demanding environments. Equipped with a high-resolution 22-bit absolute encoder plus 12-bit multiturn functionality, it provides exceptional accuracy for positioning and motion control tasks. The OCC interface and rotatable M17 plug connector further enhance ease of integration and flexibility in system configuration.

The SIMOTICS S-1FK2 family is designed to meet the evolving requirements of modern automation. Compact in design yet powerful in performance, these servo motors offer outstanding power density, overload capacity, and reliability. They are the ideal choice for machine builders and operators looking to optimize performance without compromising space or efficiency. With the right combination of torque, speed, and adaptability, the 1FK2 range delivers a streamlined selection process and simplified integration with the SINAMICS S210 drive system.

Overview

SIMOTICS S-1FK2 motors are recognized for their versatility in a wide range of automation tasks. They provide superior control characteristics, high overload capacity, and dependable protection levels. This product line balances compact design with strong performance to ensure consistent results in diverse industrial settings. Additionally, the product family offers clear classification into different variants, making selection and deployment straightforward.

For even greater flexibility, the extended 1FT2 motor portfolio builds upon the foundation of the 1FK2 series by offering additional torque levels, finely graded speeds, and expanded customization options. This makes it possible to solve complex drive technology requirements with precision and adaptability, even under challenging operating conditions.

SIMOTICS S-1FK2 Variants

• High Dynamic motors: Designed with low inertia, delivering exceptional dynamic response for applications involving light moving masses.
• Compact motors: Ideal for medium to high load applications, ensuring stable control and efficient operation through optimized moment of inertia.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF10-2MA0
