1FK7022-5AK71-1UG5 SIEMENS Exclusive SIMOTICS S Synchronous Servo Motor Original Brand New

1FK7022-5AK71-1UG5 SIEMENS Exclusive SIMOTICS S Synchronous Servo Motor Original Brand New

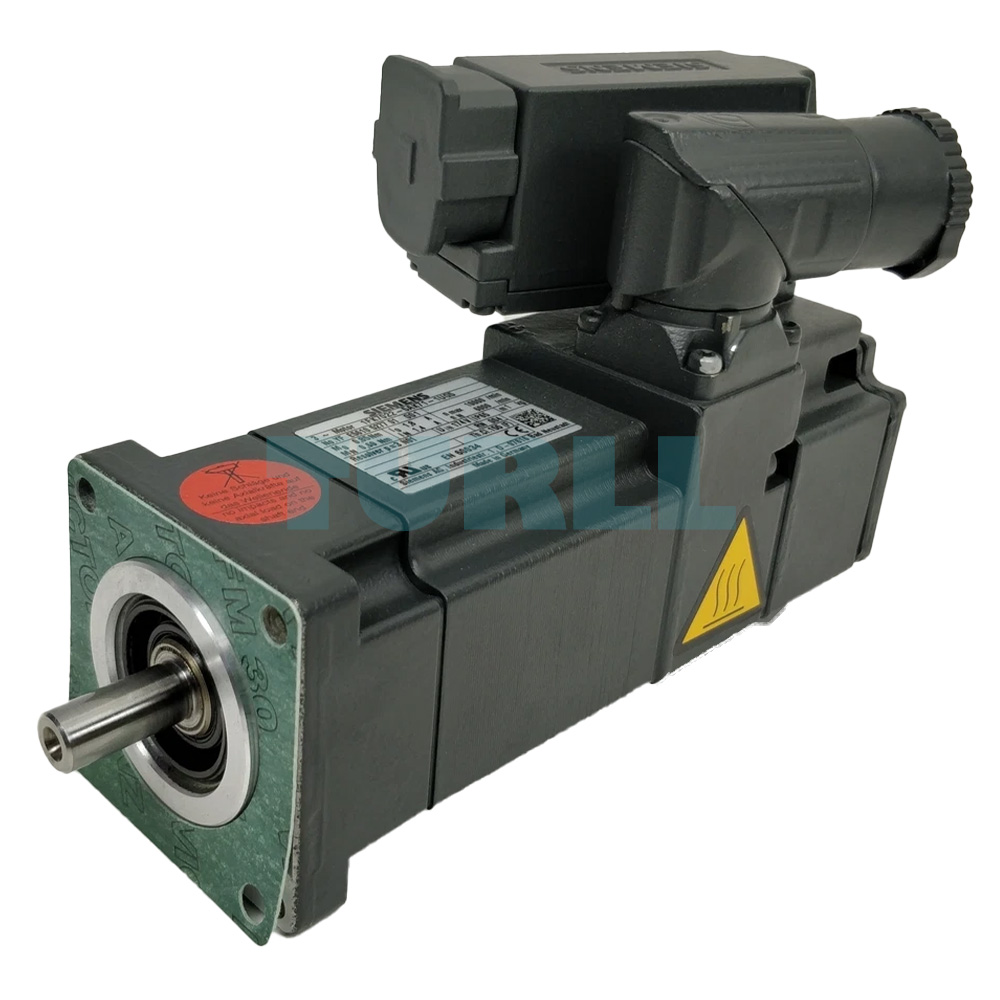

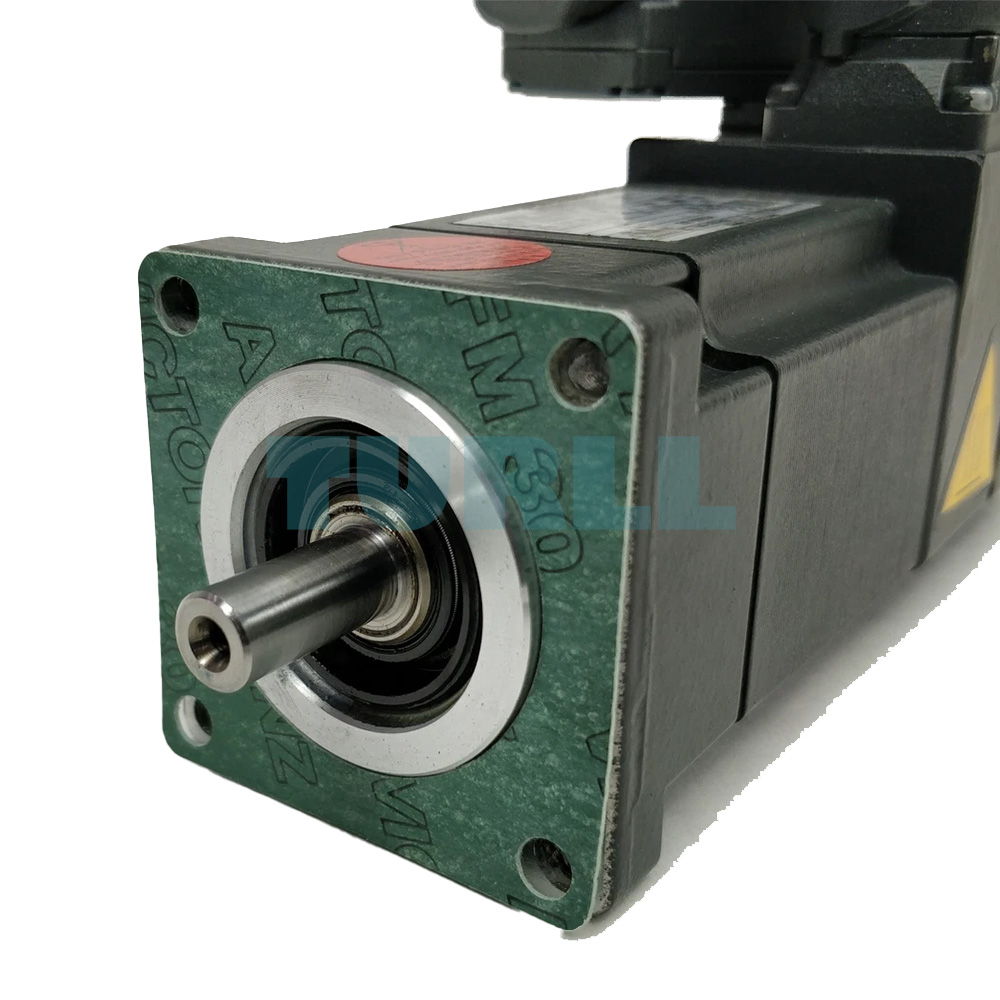

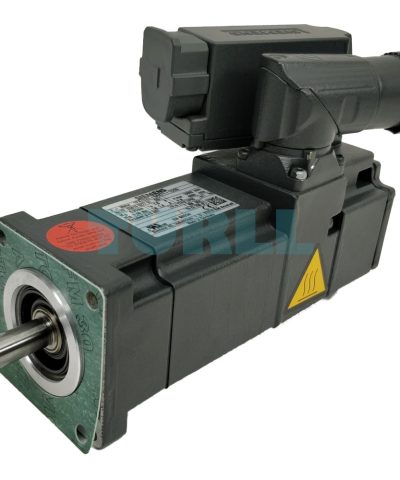

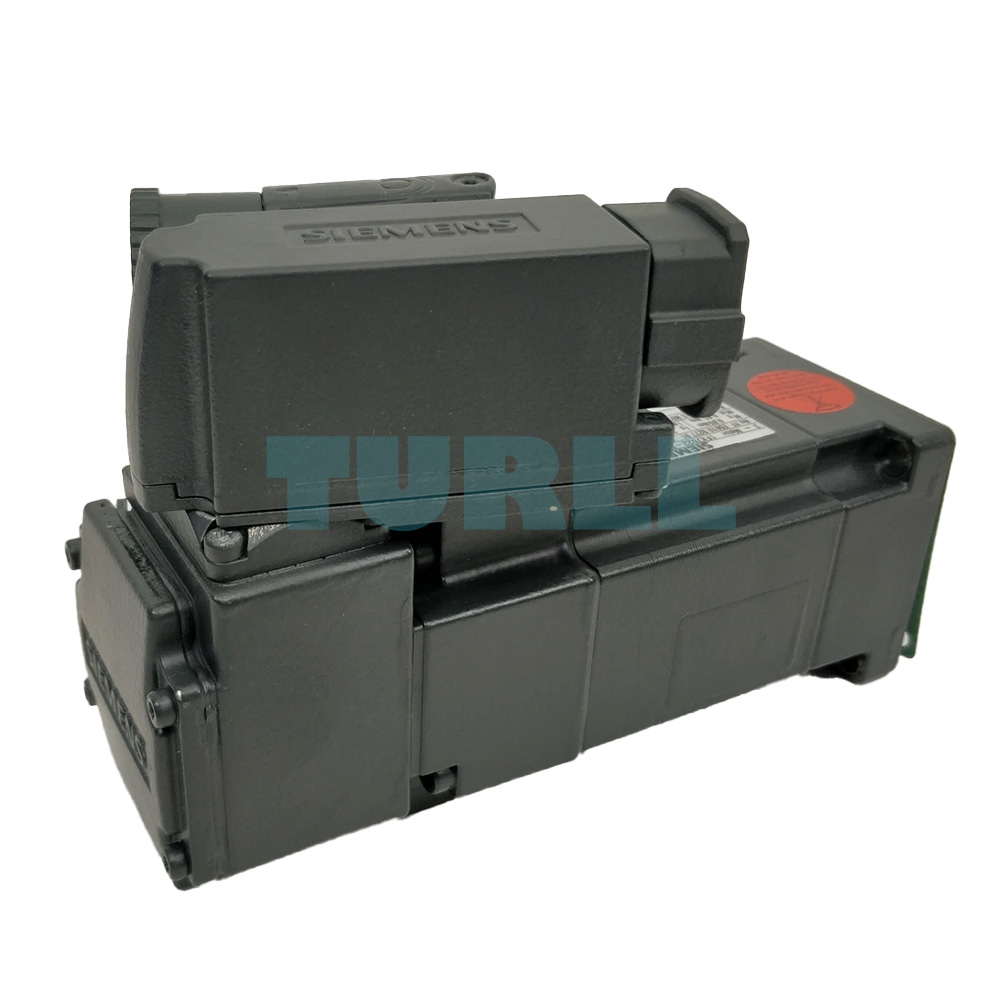

The SIEMENS 1FK7022-5AK71-1UG5 SIMOTICS S synchronous servo motor represents advanced engineering and high reliability for modern automation systems. With a torque rating of 0.85 Nm and a maximum speed of 6000 rpm, this compact motor delivers consistent power output of 0.38 kW. Designed with a naturally cooled system, it eliminates the need for external cooling, while the motor surface ensures efficient heat dissipation during continuous operation. Its robust construction includes a plain shaft with tolerance class N, a multi-pole resolver with DRIVE-CLIQ interface, and degree of protection rated IP65 for the motor housing and IP67 at the flange. This ensures excellent resistance to dust, water, and harsh industrial environments.

The flexibility of the 1FK7 motor series is evident in its adaptable features. Power and signal connectors are positioned to rotate by 270°, simplifying installation in tight spaces. A durable RAL7016 paint finish enhances protection and long service life. Thanks to its compact frame size IMB 5, this motor is suitable for diverse configurations such as IM V1 or IM V3, making it highly versatile across different mechanical setups. The absence of a holding brake reduces maintenance needs while maintaining efficiency for a wide variety of applications.

Overview

The SIMOTICS S-1FK7 motor family is designed as a compact, permanent-magnet synchronous solution that can be combined seamlessly with SINAMICS S120 or S220 drive systems. The integration of encoder systems enables precise speed and position control, ensuring optimized performance for both standard and advanced motion control tasks. High overload capacity, coupled with its modular options, allows the motor to adapt to the ever-increasing demands of new machine generations.

Benefits

• Space-saving installation due to high power density
• Wide selection of models for universal applications
• High Dynamic motors provide rapid response through low rotor inertia
• High Inertia motors ensure stable closed-loop control under variable loads
• Reduced commissioning time with minimal optimization required

Application

• Machine tools and robotic systems
• Handling, packaging, and automation equipment
• Wood, glass, ceramics, and stone processing machinery
• Printing, plastics, and textile production
• Auxiliary and secondary drive axes

Product Code: 1FK7022-5AK71-1UG5
