3RA2923-2BB1

Description

Overview

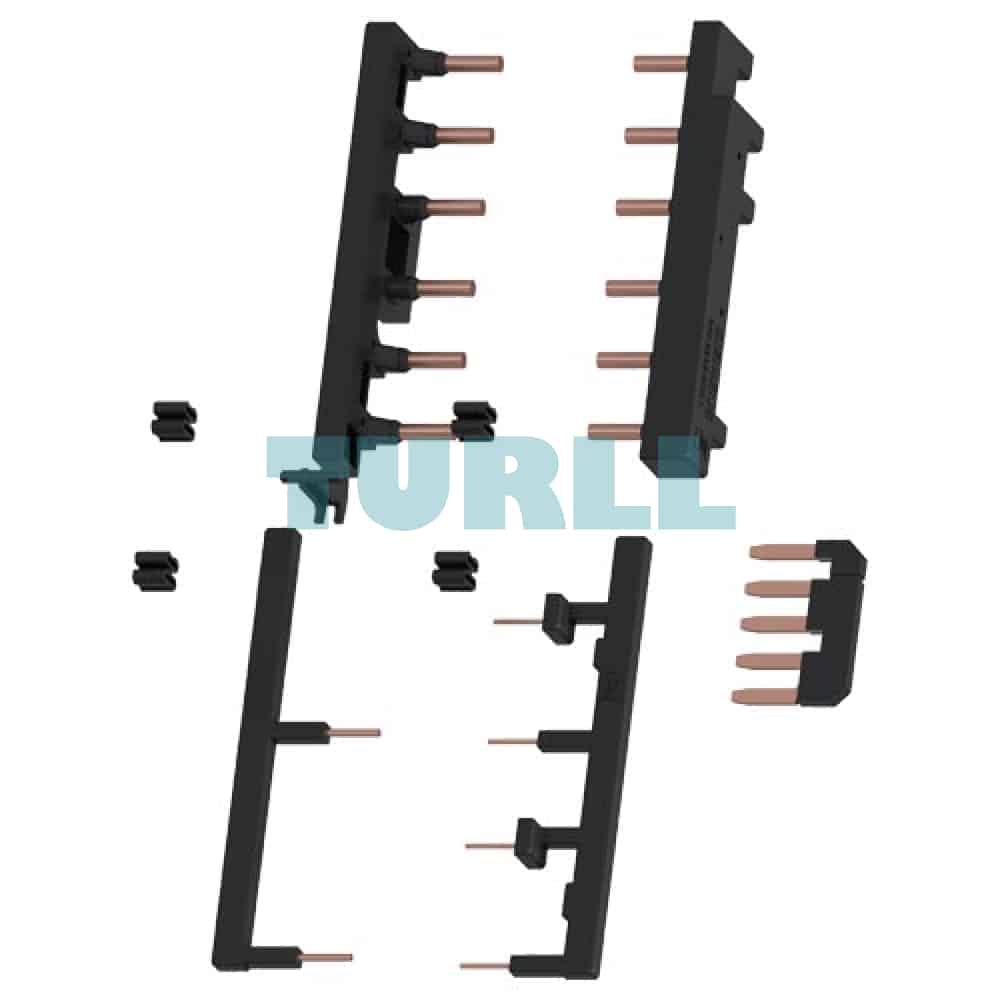

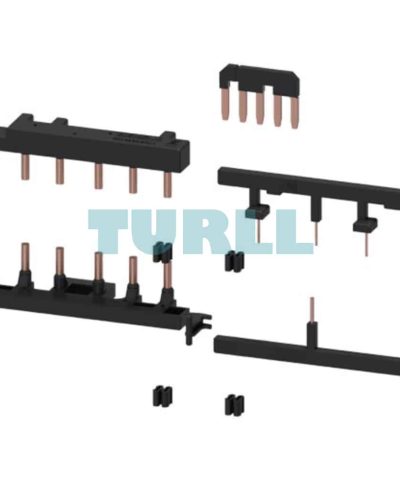

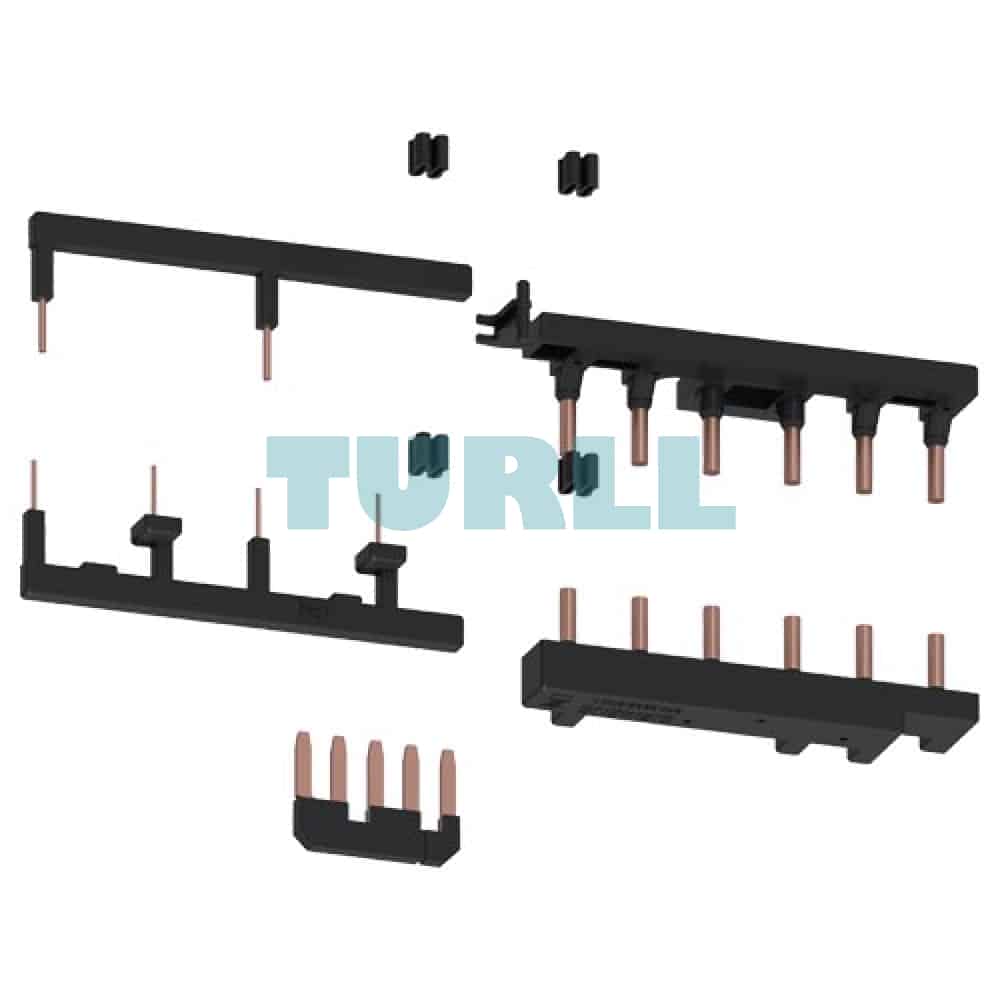

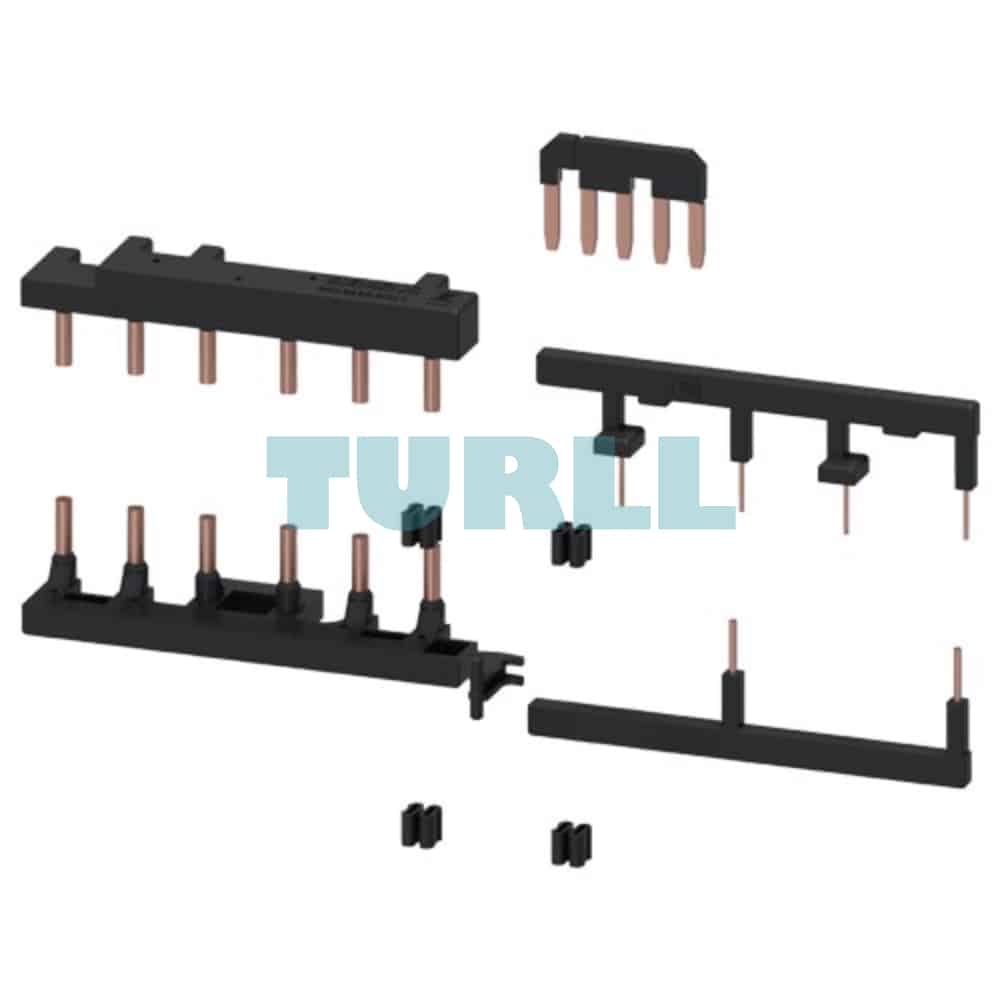

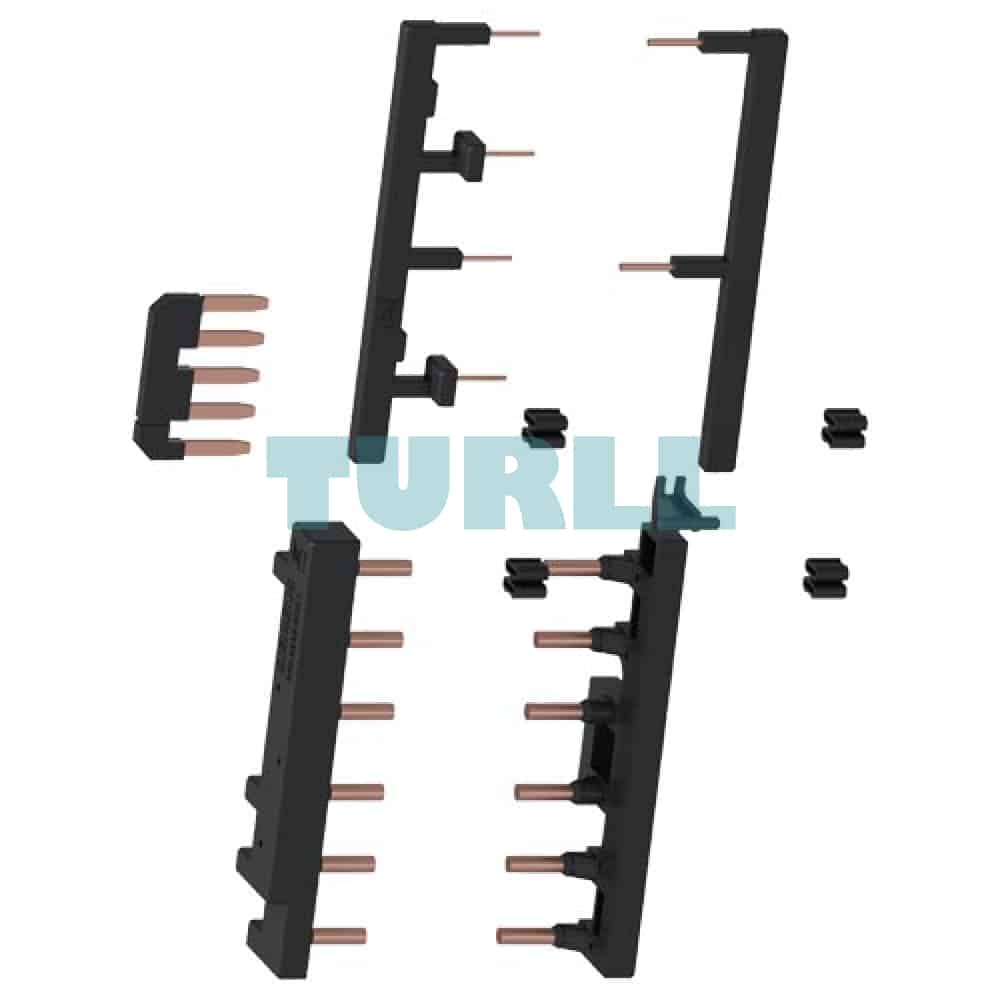

3RA2923-2BB1 Siemens Wiring Kit is an essential accessory for assembling a complete Star-Delta (Wye-Delta) motor starter combination using SIRIUS industrial control components. Specifically designed for contactors of Size S0, this kit simplifies the complex wiring and interconnections required for a Y-D starter. It provides a reliable, standardized solution for both the electrical connections (wiring) and the mechanical interlock, reducing installation time and the potential for wiring errors. This kit is suitable for use with screw terminal contactors.

Key Features & Benefit

• Star-Delta (Y-D) Starter Assembly: Custom-engineered to correctly and efficiently connect the main, star, and delta contactors for a Star-Delta starting circuit.
• Integrated Mechanical Interlocking: Includes a crucial mechanical interlock device, which physically prevents the simultaneous closure of the star and delta contactors, thereby enhancing operational safety and protecting the motor and control gear.
• Quick and Easy Installation: The pre-fabricated wiring and mechanical components significantly streamline the assembly process, leading to reduced labor costs and faster commissioning.
• Standardized Quality: Being a genuine Siemens SIRIUS accessory, it ensures perfect compatibility, high reliability, and adherence to international industrial standards.
• Screw Terminal Compatibility: Designed for use with SIRIUS contactors utilizing reliable screw terminal connections (e.g., SIRIUS 3RT2 contactors Size S0).

Function & Application

The primary function of the 3RA2923-2BB1 kit is to create the necessary electrical and mechanical links between the three contactors (Main, Star, and Delta) required for a Star-Delta starter assembly.

• Electrical Connection: Replaces individual, time-consuming wiring runs with integrated connectors for a clean, professional setup.
• Mechanical Interlock: Provides the critical safety function to prevent a short circuit or equipment damage caused by the simultaneous energization of the Star and Delta paths, a mandatory requirement for safe Y-D starting.

Application

Used in industrial automation and control panels for the controlled, reduced-current starting of three-phase squirrel-cage motors (often used with pumps, fans, and compressors) where the starting current must be limited.
