1FK2106-4AF11-1MB0

Description

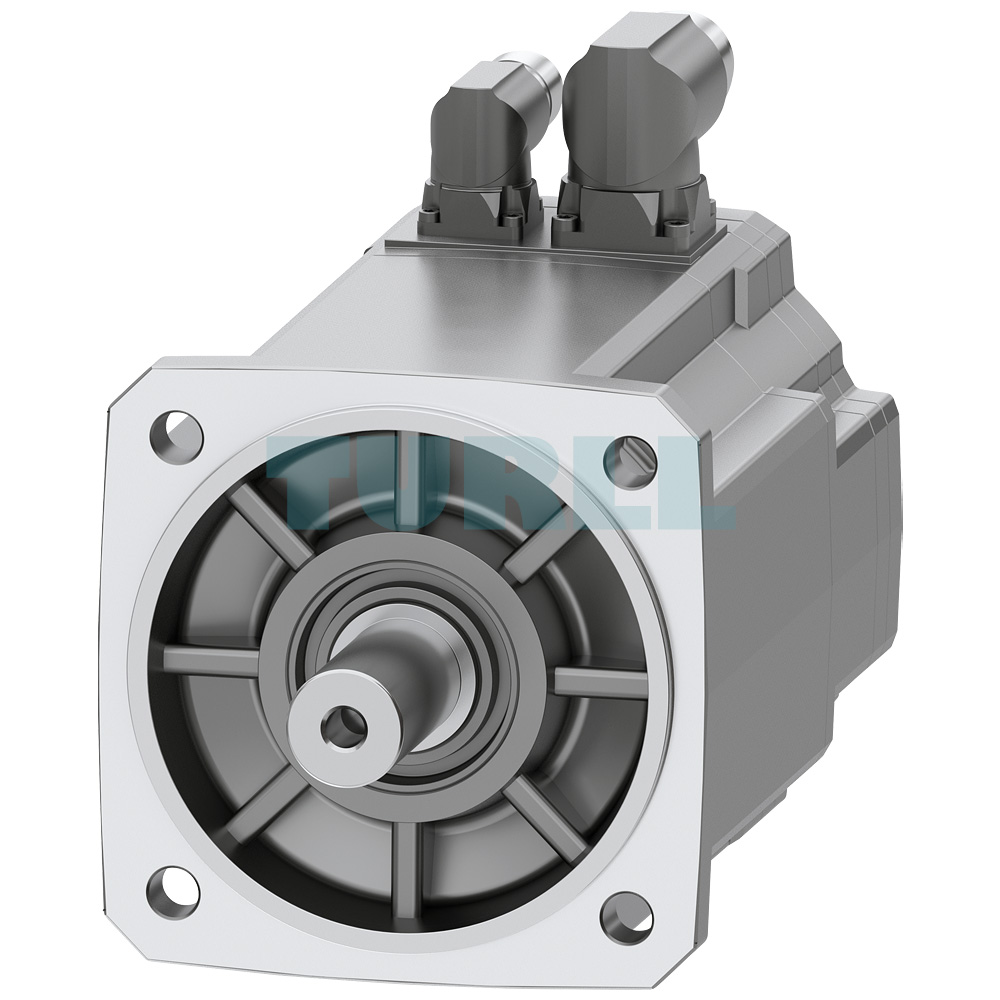

1FK2106-4AF11-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

This is a high-performance synchronous motor engineered for industrial applications that demand precision, reliability, and efficiency. With a rated torque of 12 Nm and a rated power of 2.7 kW at 3000 rpm (380–480 V), this servo motor is designed to deliver powerful performance in challenging environments. At 1500 rpm (200–240 V), it achieves 1.64 kW, making it highly adaptable to different operational requirements. Built with a holding brake and a rugged degree of protection at IP65, it ensures long-term durability in demanding conditions.

The motor is designed with a shaft size of D24x50 mm with feather key, ensuring secure mechanical integration. It features an advanced absolute encoder (22-bit + 12-bit multiturn, AM22DQC) for precise feedback and positioning accuracy. Equipped with DRIVE-CLiQ plug M17 and a power connector size M23, it offers straightforward integration with SIEMENS drive systems. This exclusive servo motor is part of the SIMOTICS S-1FK2 family, a series recognized for compact dimensions, high dynamics, and reliable performance.

Overview

The SIMOTICS S-1FK2 servomotors are designed as compact, highly dynamic synchronous motors for diverse industrial use cases. They deliver high power density and excellent overload capability, making them suitable for automation systems that require accuracy and dynamic control. With a simplified range of variants, users benefit from easy selection and compatibility, particularly with the SINAMICS S210 servo drive system.

The extended 1FT2 series builds on the 1FK2 family, offering additional torque options, finely graded rated speeds, and enhanced flexibility. This expansion ensures that even complex motion control applications in demanding industrial environments can be addressed effectively.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic Motors: Designed for low-inertia applications, enabling outstanding dynamic response with lightweight moved masses.
• Compact Motors: Engineered for medium to high moved masses, offering precise and stable control with optimized moment of inertia.

Product Code: 1FK2106-4AF11-1MB0
