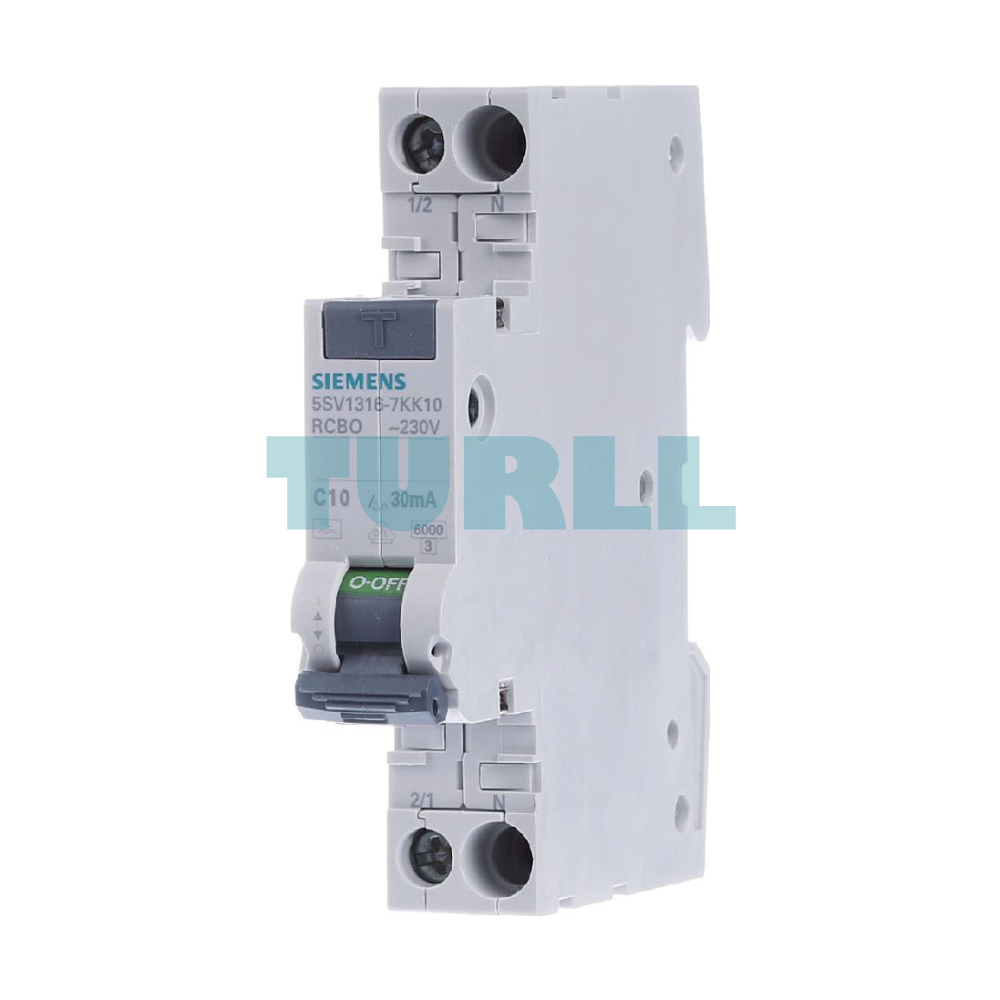

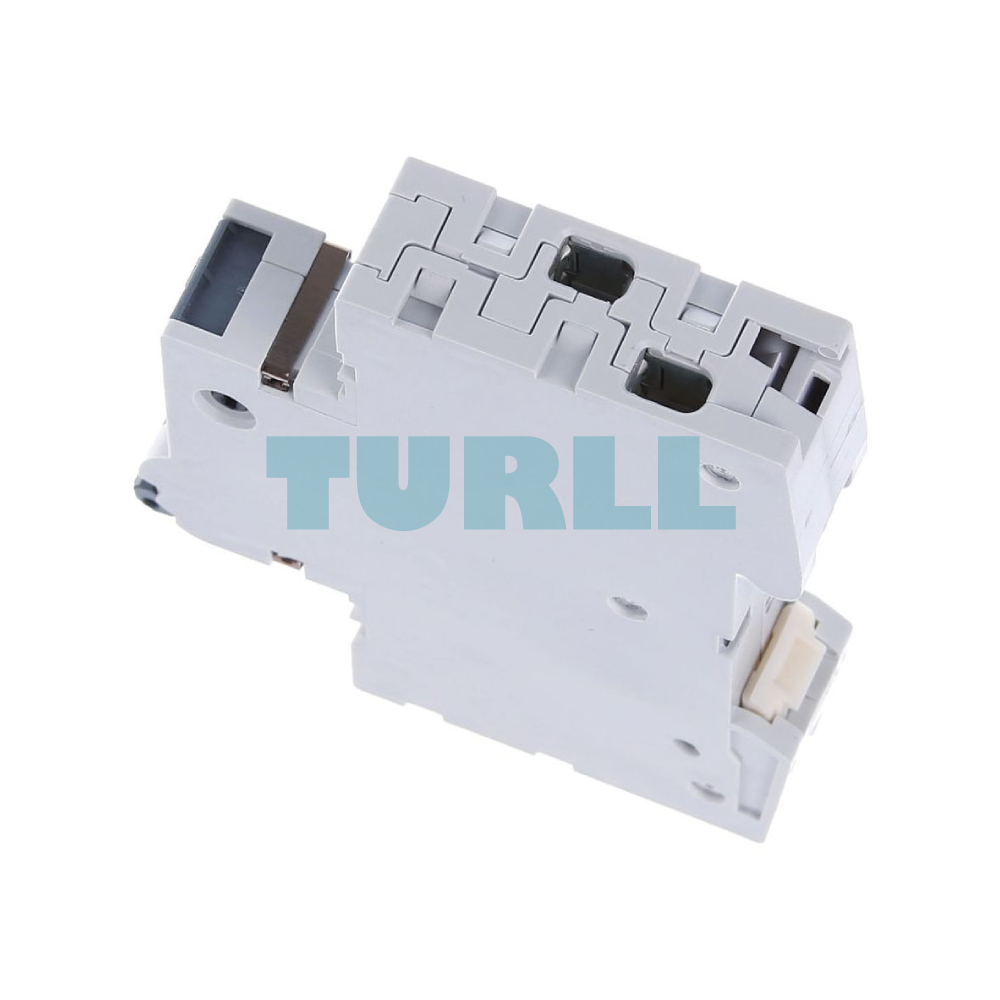

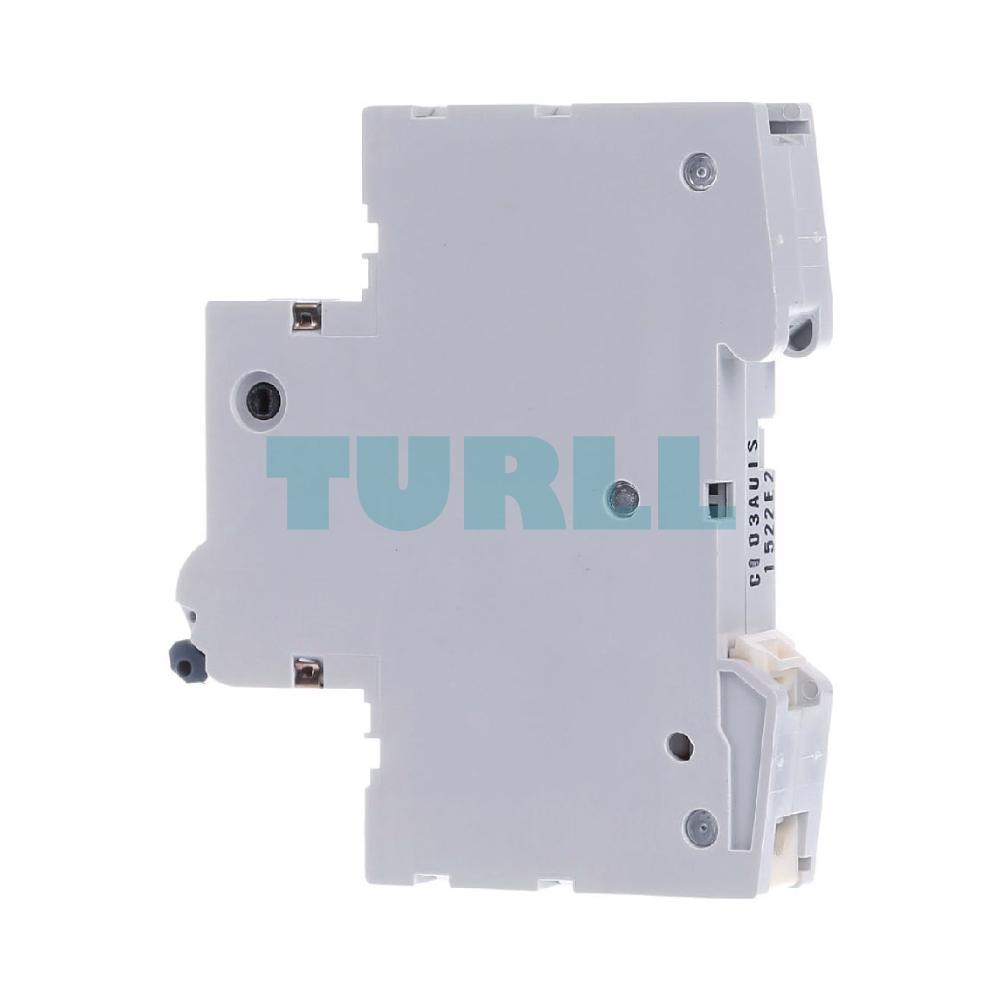

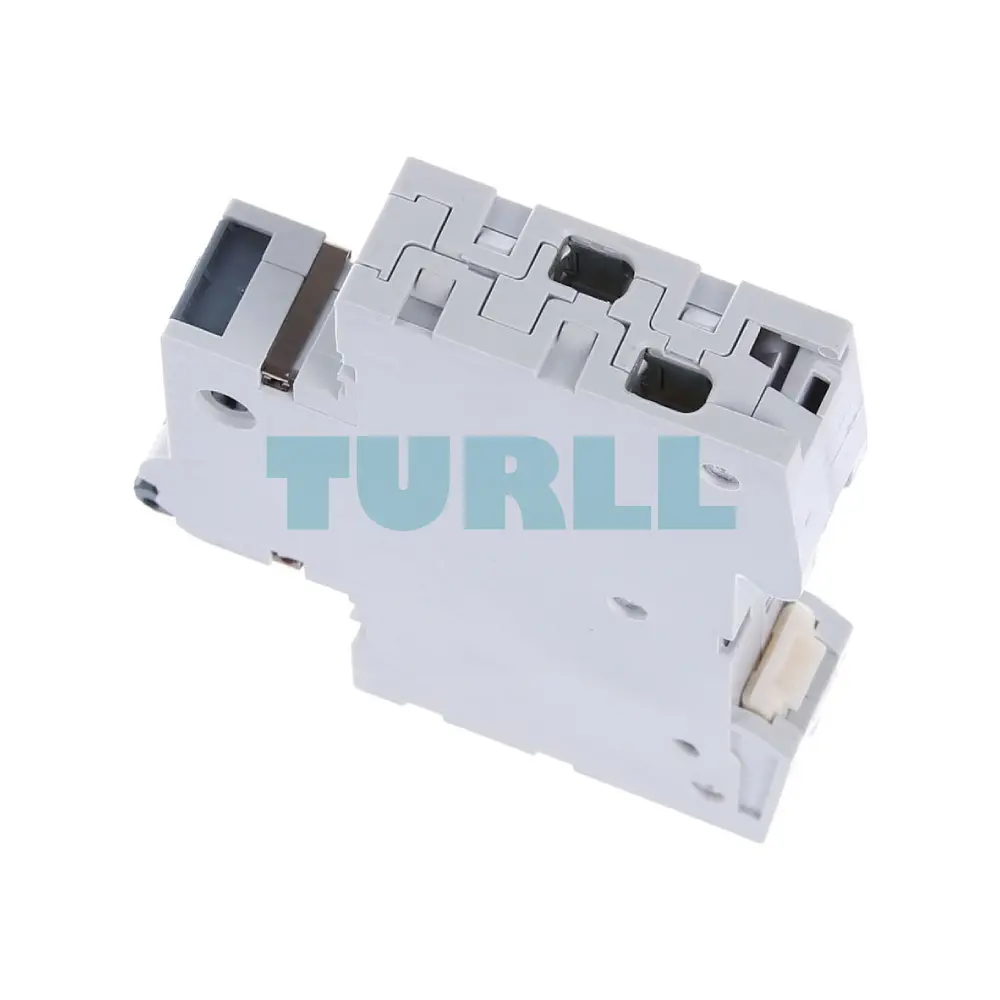

Siemens 5SV1316-7KK10 RCBO Compact, 1-Pole+N, 10A (C10), 30mA Type A, 6kA Original Brand New
$62.70
High-performance Compact 1 MW, 1-pole+N, 6 kA, Type A, 30 mA, C10. Reliable protection for your electrical circuits.
Out of stock
Overview
The Siemens 5SV1316-7KK10 RCBO is a state-of-the-art, space-saving residual current operated circuit breaker with integral overcurrent protection (RCBO). Designed in a highly compact 1-Module Width (1 MW) format, this device saves significant space in your distribution board without compromising on safety or performance. It combines reliable protection against short-circuits, overloads, and dangerous earth-fault currents in one efficient unit, making it ideal for modern, high-density electrical installations.
Key Benefit
-
Extreme Space Savings: The ultra-compact 1-Module Width (1 MW) design allows for more devices in the same enclosure, optimizing cabinet space.
-
Dual Protection in One: Provides comprehensive safety against both overcurrents (short-circuit and overload) and residual currents (earth-faults), simplifying wiring and installation.
-
High Performance: Features a rated switching capacity of 6 kA, suitable for standard commercial and residential applications.
-
Universal Fault Current Detection (Type A): Reliable protection against sinusoidal alternating currents and pulsating DC residual currents.
-
Easy Integration: Clear labeling and standard DIN rail mounting ensure quick and professional installation.
Function
-
Circuit Breaker Function: Safeguards circuits from overload and short-circuits.
-
Residual Current Protection: Detects earth leakage currents and prevents electric shocks.
-
Current Rating: C10 for protection of circuits with up to 10 A nominal current.
-
Pole Configuration: 1 Pole + Neutral for single-phase systems.
-
Tripping Sensitivity: 30 mA for personal protection and safety compliance.
Visit 5SV1316-7KK10 for more detail info
For more our products visit turll
Download
| Weight | 0.130 kg |
|---|---|

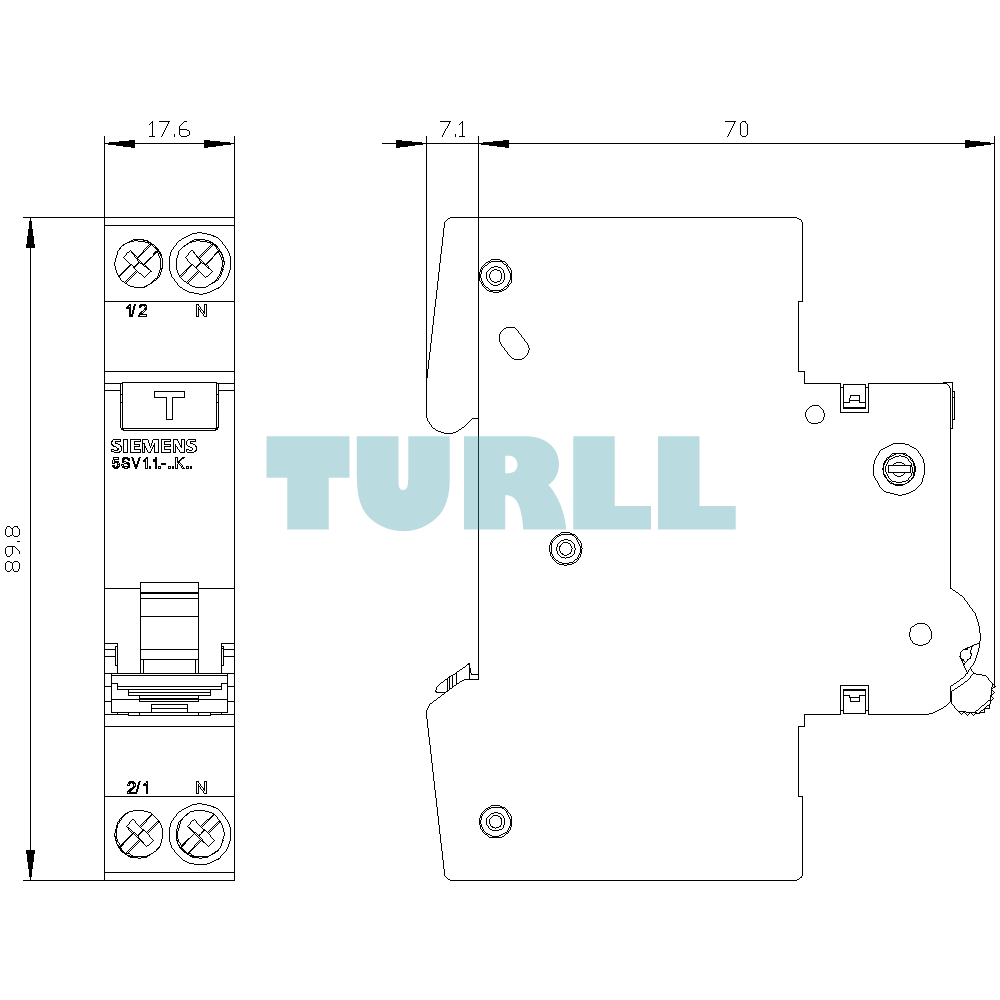

| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCBO |
| design of the product | Instantaneous |
| number of poles | 2 |
| number of poles / with protection | 1 |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) / rated value | 253 V |
| surge voltage resistance / rated value | 4 000 V |
| surge current resistance / at (8/20) µs | 1 kA |
| supply voltage | – |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| breaking capacity short-circuit current (Icn) / according to EN 61009-1 / rated value | 6 kA |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 10 kA |
| rated residual switching capacity (IΔm) / according to IEC 61009-1 | 4.5 kA |
| energy limitation class | 3 |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 0.95 W |
| tripping fault current / rated value | 30 mA |
| operational current | – |
| ● at 30 °C / rated value | 10 A |
| ● at 40 °C / rated value | 9.4 A |
| ● at 45 °C / rated value | 9.1 A |
| ● at 50 °C / rated value | 8.8 A |
| ● at 55 °C / rated value | 8.4 A |
| ● at 60 °C / rated value | 8.1 A |
| ● at 65 °C / rated value | 7.7 A |
| ● at 70 °C / rated value | 7.4 A |
| ● at AC / rated value | 10 A |
| residual current type | A |
| product component / neutral conductor switching | Yes |
| product feature / touch protection | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Either top or bottom |
| installation depth | 70 mm |
| number of modular width units | 1 |
| mounting position | any |
| weight / with packaging | 133 g |
| influence of the surrounding temperature | Max. 95% humidity |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| other | Dangerous Good |
