1FK2204-5AK11-1MA0

Description

1FK2204-5AK11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

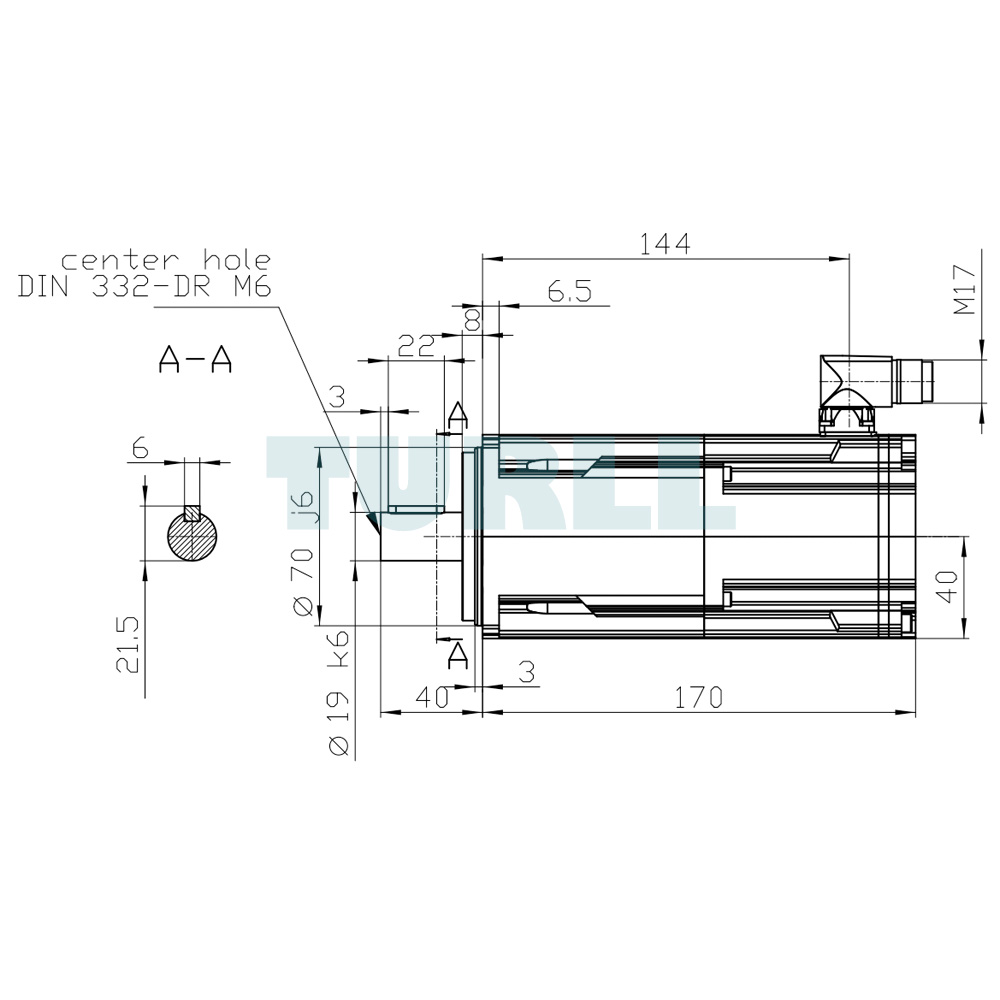

The SIEMENS SIMOTICS S-1FK2 CT servo motor with the product code 1FK2204-5AK11-1MA0 is a precision-engineered synchronous motor designed for industrial applications that demand compact dimensions, high power density, and dynamic performance. This model delivers a rated torque of 2.4 Nm, with a power output of 0.57 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V). Equipped with a holding brake, an IP65 protection rating, and a shaft size of D19x40 mm with feather key, the motor ensures durability and reliable performance even in demanding environments. Its integrated absolute encoder (22-bit + 12-bit multiturn, encoder AM22DQC) and OCC interface further enhance positioning accuracy and operational flexibility.

Thanks to its robust design and optimized features, this servo motor is ideally suited for integration with SINAMICS S210 drive systems. The versatile configuration enables smooth and efficient operation across a wide range of automation tasks, from precision manufacturing to high-speed assembly processes. With its compact construction, this motor fits seamlessly into installations where space is limited but efficiency and performance are critical.

Overview

The SIMOTICS S-1FK2 servo motors are renowned for their dynamic response and overload capability. Compact models provide excellent stability for applications involving medium to high moving masses, while high dynamic variants are optimized for tasks requiring rapid acceleration and responsiveness. The portfolio also includes the extended 1FT2 series, which introduces additional torque ranges, rated speeds, and design options. This makes it possible to tailor solutions to meet unique operational requirements, whether in standard industrial environments or more challenging conditions.

By combining advanced control precision, mechanical strength, and scalable options, the SIMOTICS S-1FK2 family delivers a dependable solution for industrial automation, ensuring long-term reliability and adaptability.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK11-1MA0
