3RA2814-2FW10

Description

Overview

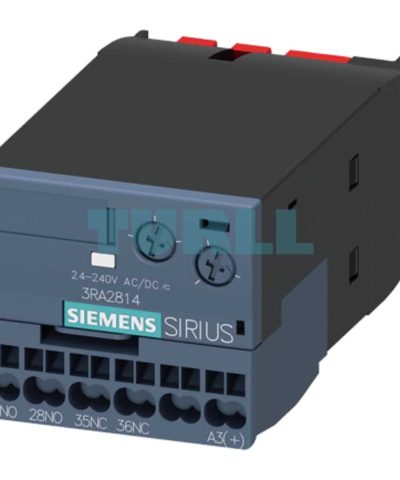

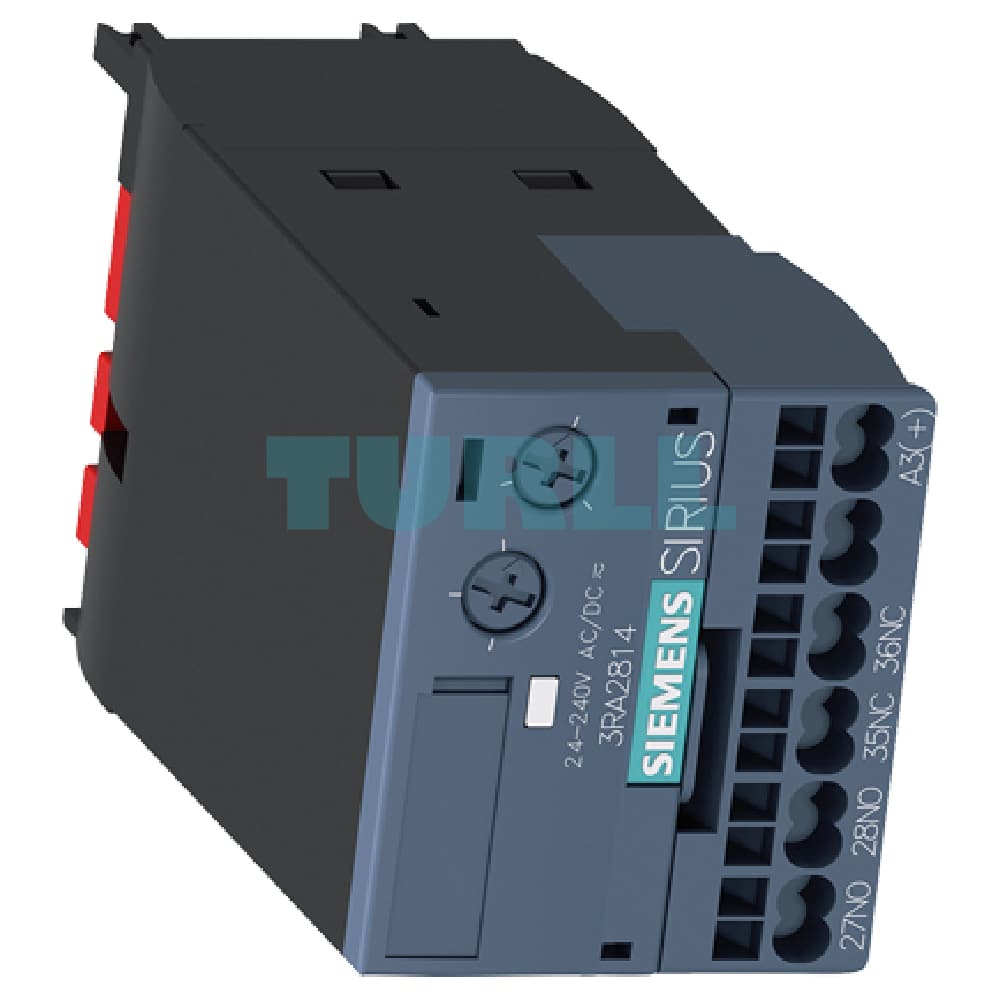

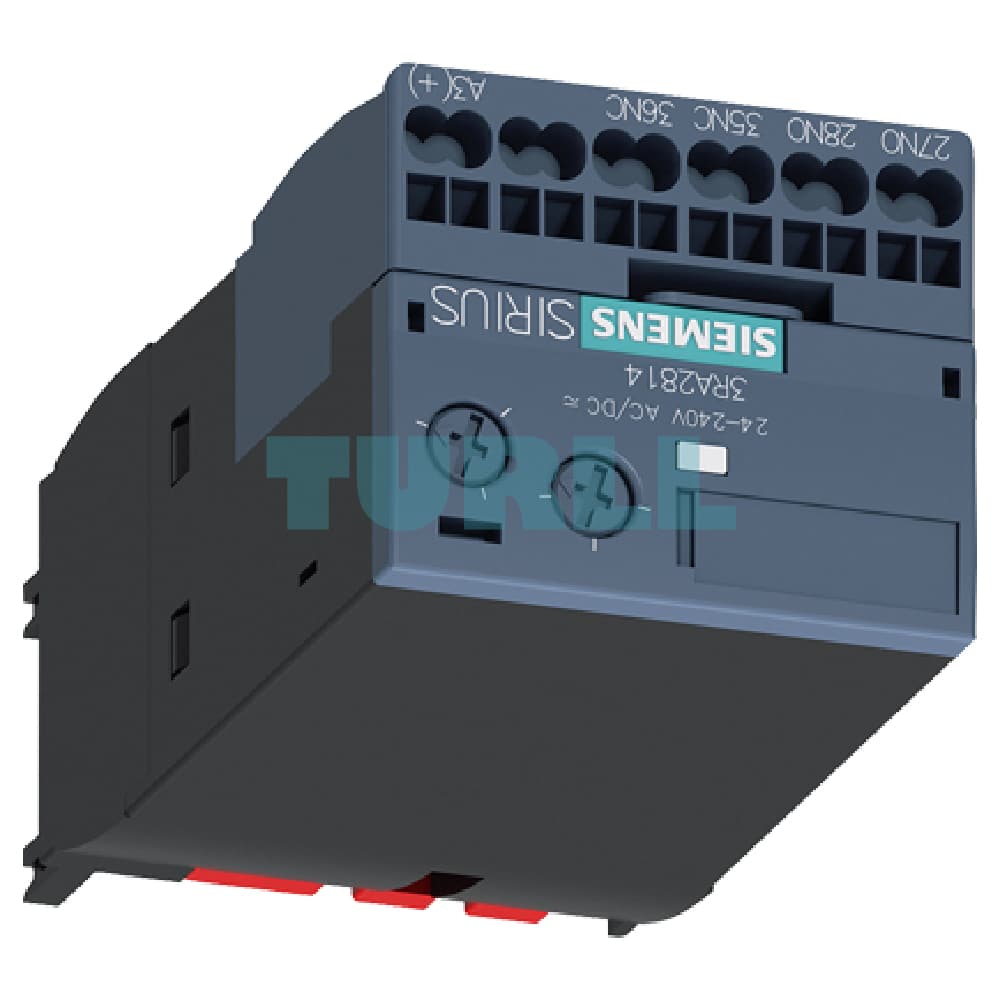

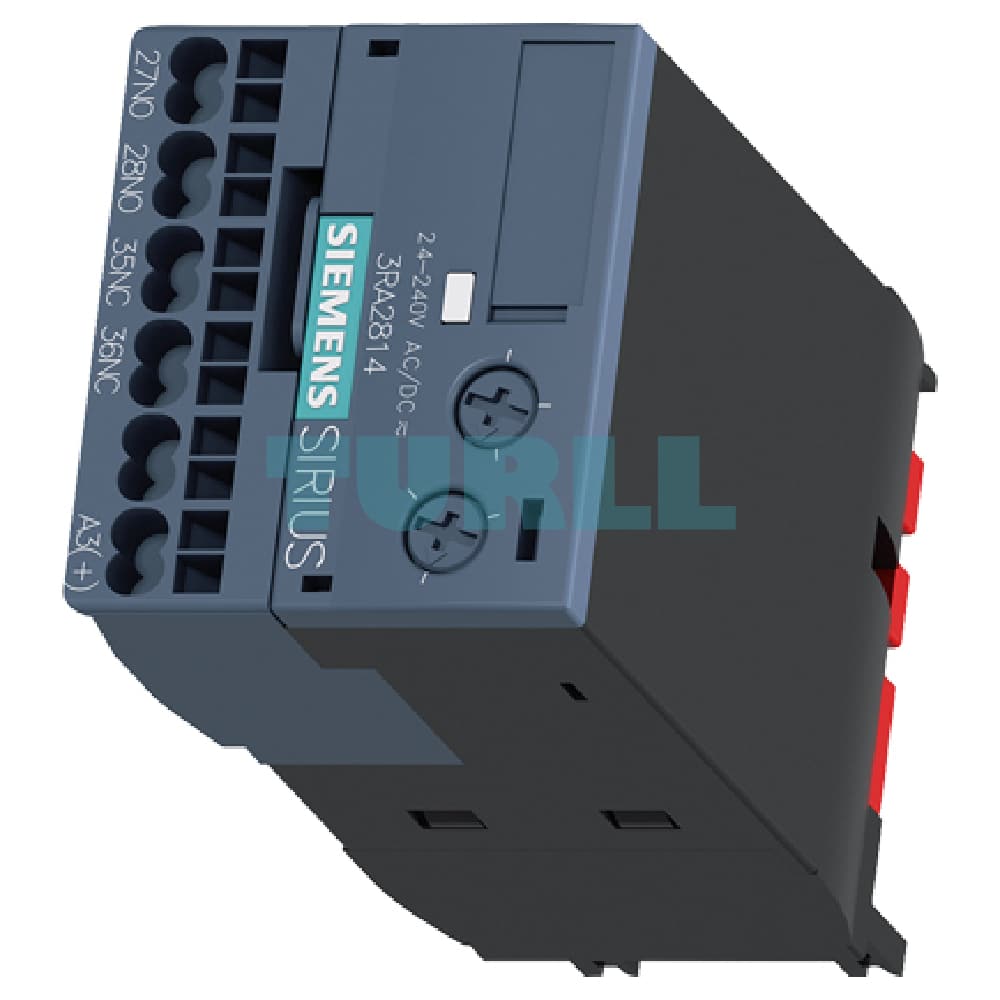

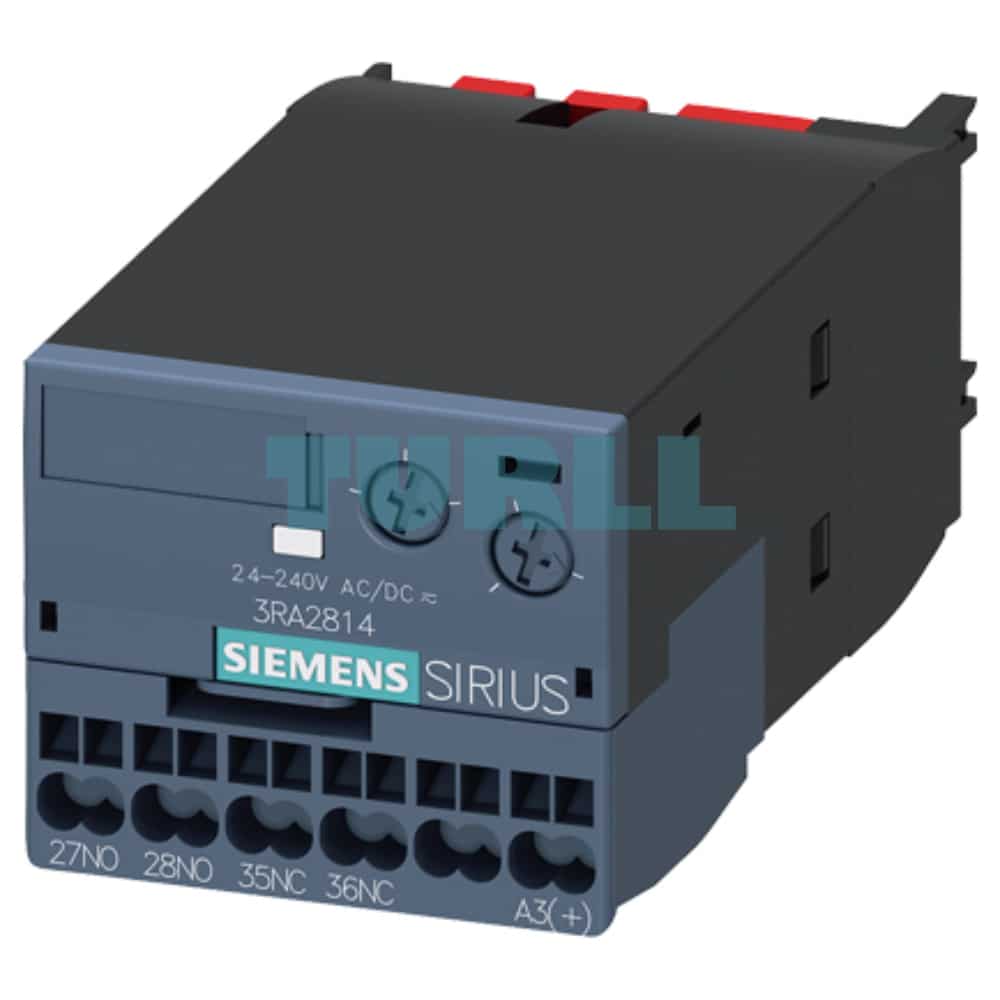

The Siemens 3RA2814-2FW10 is a high-performance solid-state time-delayed auxiliary switch designed for precision and reliability in industrial automation. Featuring off-delay functionality with a control signal, it provides versatile timing options for your electrical circuits. Equipped with 1 NC + 1 NO relay, this device operates across a broad time range of 0.05–100 seconds and supports 24-240 V AC/DC at 50/60 Hz. The integrated varistor efficiently attenuates contactor coil surges, while spring-loaded terminals ensure secure and easy installation. Designed to snap directly onto 3RT20 contactors and 3RH2 contactor relays, this switch is ideal for enhancing the safety and efficiency of your control systems.

Key Features & Benefit

• Solid-State Design: Reliable, maintenance-free operation.

• Off-Delayed Functionality: Ensures precise timing control for diverse applications.

• Wide Time Range: 0.05–100 seconds for maximum flexibility.

• Universal Voltage Compatibility: Operates with 24–240 V AC/DC, 50/60 Hz.

• Integrated Varistor: Protects against voltage spikes from contactor coils.

• Easy Installation: Spring-loaded terminals and front-mountable on 3RT20/3RH2.

• 1 NC + 1 NO Relay Output: Supports multiple control configurations.

Function

• Delays de-energization of circuits to prevent sudden stops or overloads.

• Provides a control signal for integration with automation systems.

• Attenuates voltage spikes to protect connected devices.

Technical Specification

• Model Number: 3RA2814-2FW10

• Type: Solid-state time-delayed auxiliary switch

• Time Range: 0.05–100 seconds

• Relay Output: 1 NC + 1 NO

• Voltage Rating: 24–240 V AC/DC, 50/60 Hz

• Varistor: Integrated for contactor coil attenuation

• Terminals: Spring-loaded

• Mounting: Front snap-on for 3RT20 contactors and 3RH2 relays

Enhance your industrial automation setup with reliable timing solutions. For more high-quality Siemens products, visit Turll.
