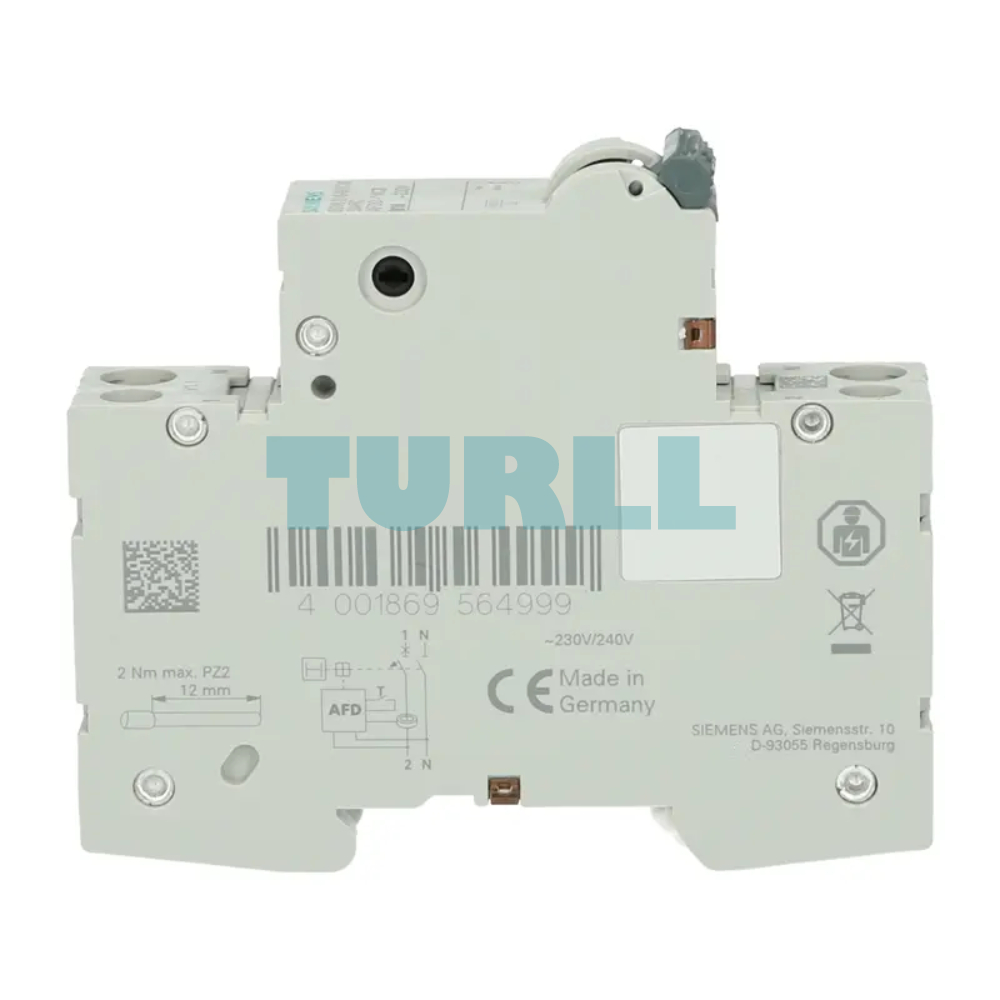

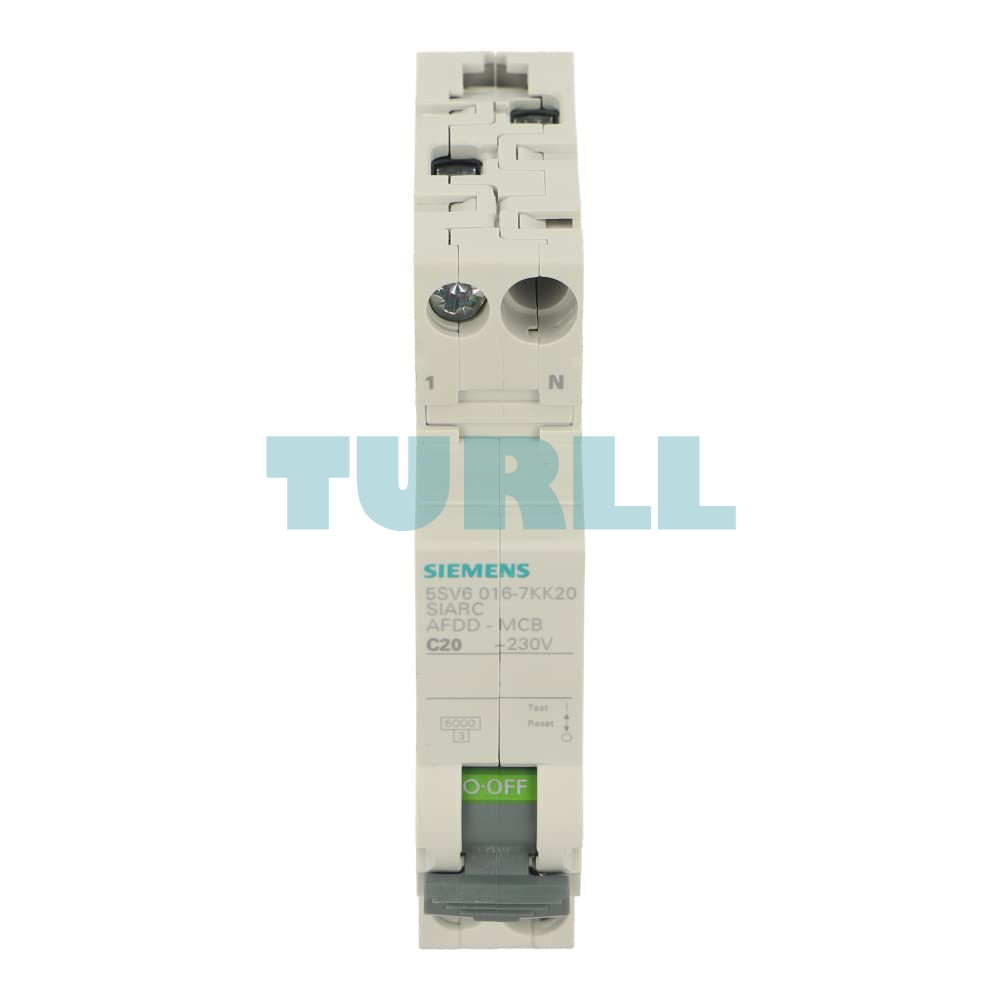

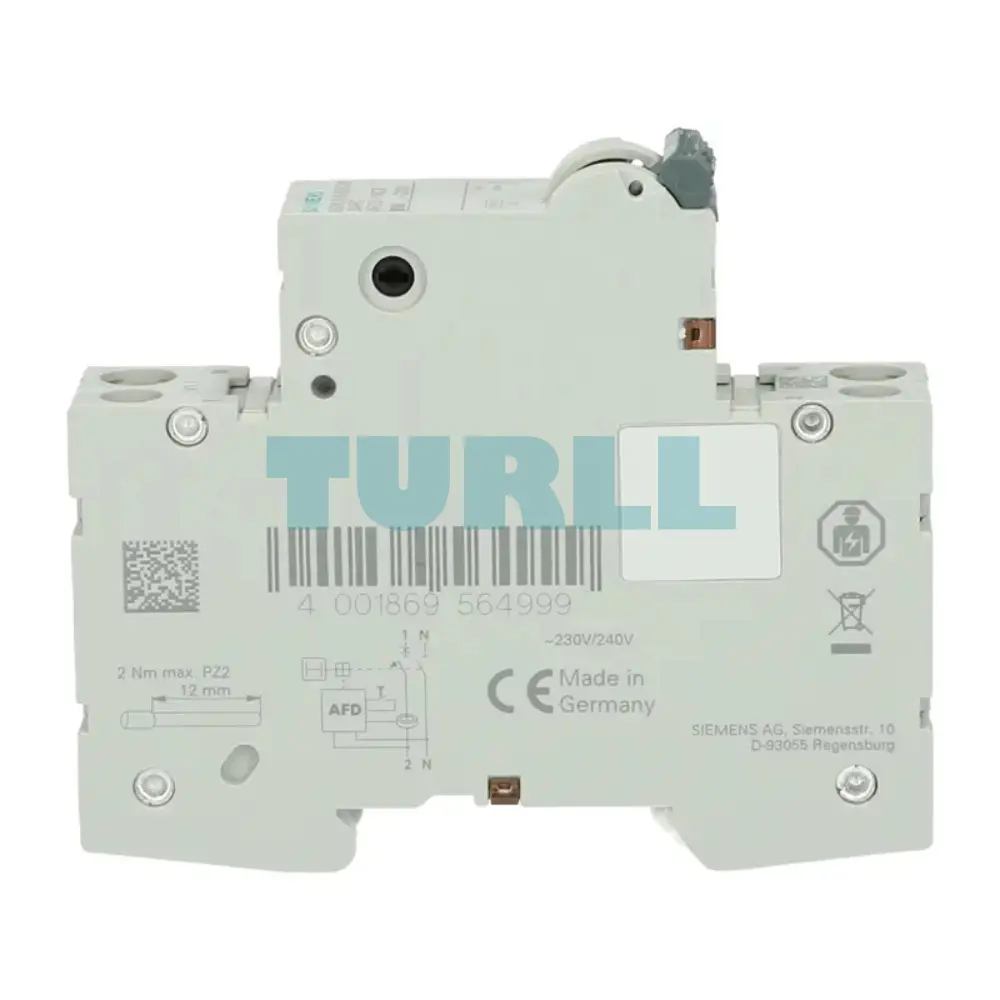

Siemens 5SV6016-7KK20 AFDD-MCB Combination 230V, 6kA, 1+N, C Curve, 20A Compact (1MW) Original Brand New
$125.40
AFDD-MCB-Combination 230V, 6kA, 1+N, C, 20A Compact (1MW). This innovative Siemens SENTRON device provides combined fire protection (AFDD) and circuit protection (MCB) in a single, space-saving 1-modular width unit, ideal for new and retrofit installations.
Availability: In stock
Overview
The Siemens 5SV6016-7KK20 is a high-performance AFDD-MCB combination designed to provide maximum electrical protection in residential, commercial, and industrial installations. Engineered with advanced Arc Fault Detection Device (AFDD) technology, it prevents hazardous electrical arc faults and ensures reliable circuit protection with a built-in Miniature Circuit Breaker (MCB). Offering 6kA breaking capacity, 1+N configuration, and 20A C-curve performance, this compact module delivers enhanced safety and efficiency in the smallest installation space.
Benefit
-
Advanced Arc Fault Protection – Detects and prevents electrical arc faults to reduce the risk of fires.
-
Compact 1MW Design – Saves installation space while offering full functionality.
-
Combined AFDD + MCB – Reduces wiring complexity and increases reliability.
-
High Breaking Capacity (6kA) – Suitable for demanding power environments.
-
Easy Installation – Designed for modern distribution boards with user-friendly terminals.
-
Enhanced Electrical Safety – Complies with latest international standards for arc fault protection.

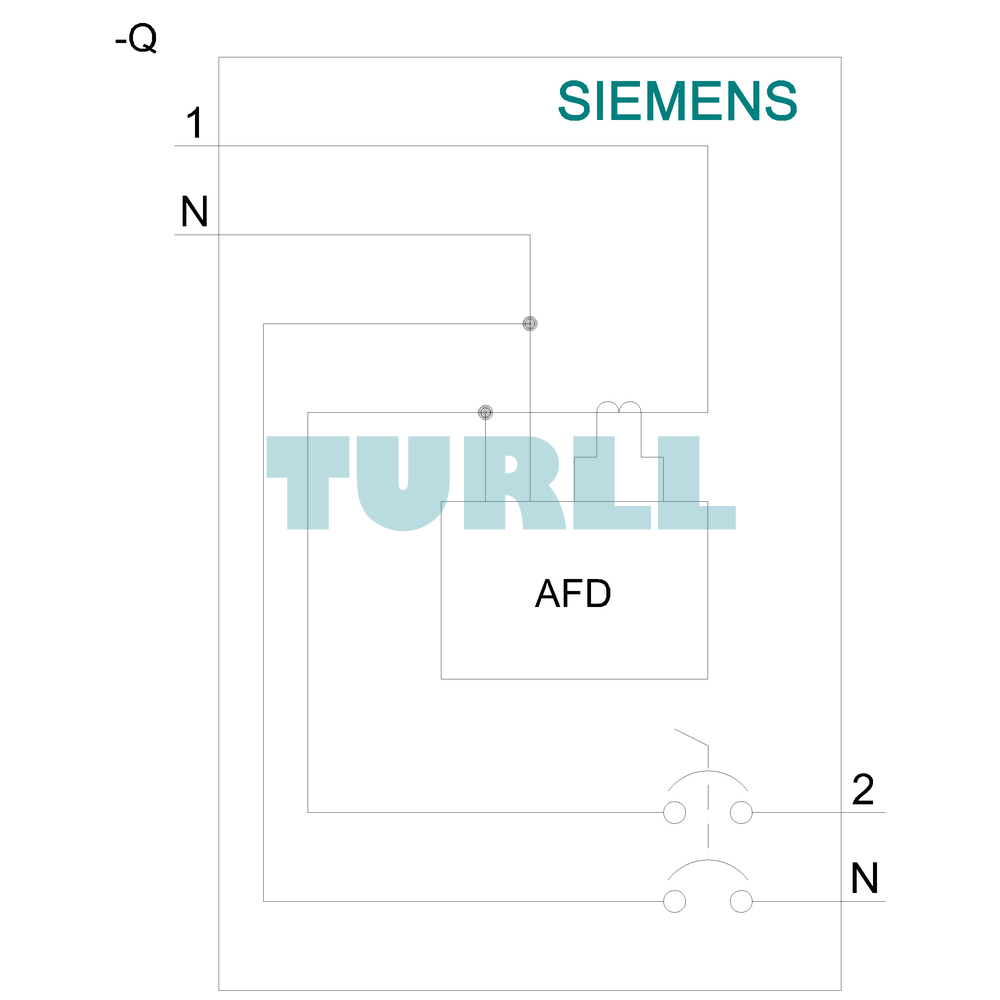

Function
-
Arc Fault Detection: Identifies series and parallel arc faults and instantly disconnects the circuit.
-
Circuit Overload Protection: Prevents excessive current from damaging electrical systems.
-
Short-Circuit Protection: Automatically trips to avoid equipment damage or fire risks.
-
Voltage Monitoring: Ensures stable operation across a 230V power supply.
-
C-Curve Operation: Ideal for general-purpose electrical circuits with moderate inrush currents.
Technical Specification
-
Product Number: Siemens 5SV6016-7KK20
-
Type: AFDD-MCB Combination
-
Voltage: 230V
-
Breaking Capacity: 6kA
-
Poles: 1+N
-
Current Rating: 20A
-
Curve Type: C Curve
-
Design: Compact (1MW)
Visit 5SV6016-7KK20 for more detail info
For more our products visit turll
Download

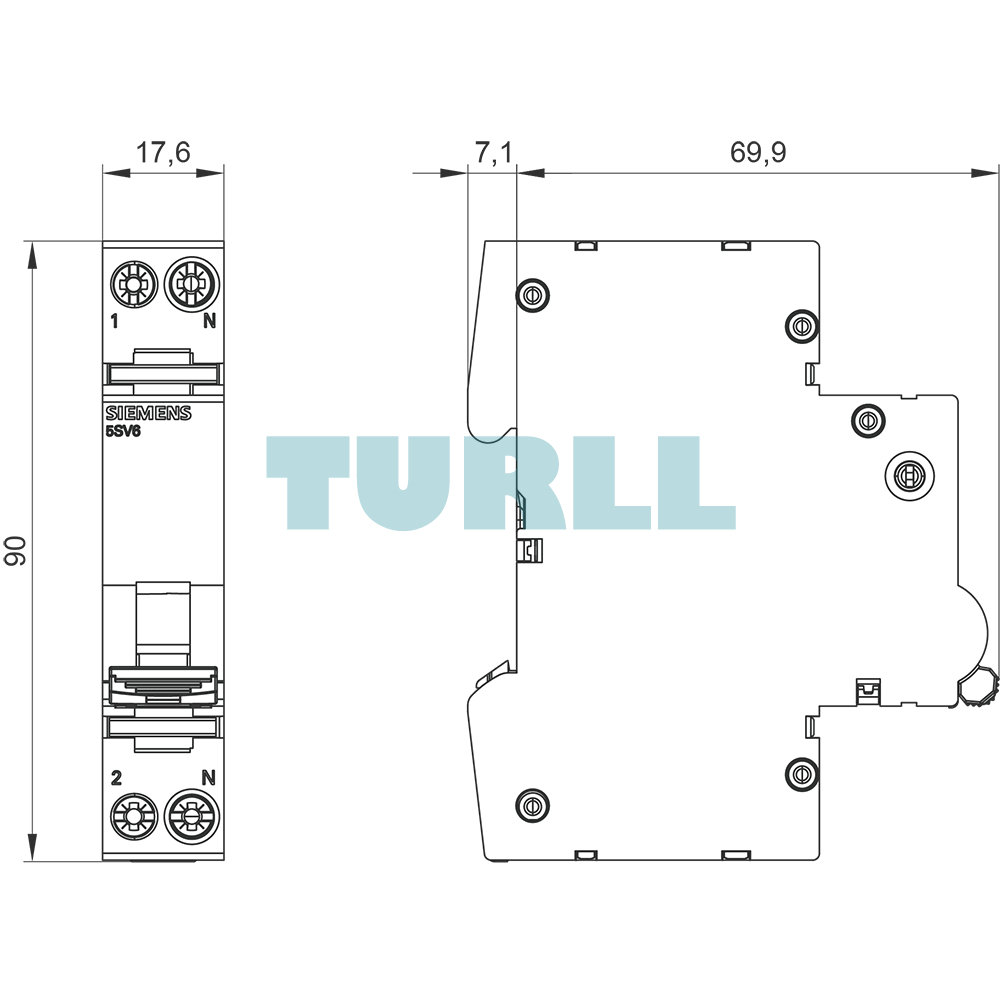

| Weight | 0.133 kg |
|---|---|
| Dimensions | 80.00 × 100.00 × 44.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Arc-fault detection unit MCB |
| design of the product | Compact unit |
| number of poles | 2 |
| design of pole | 1P+N |
| tripping characteristic class | C |
| size of installation devices / acc. to DIN 43880 | 1 |
| touch protection against electrical shock / acc. to EN 50274 | finger and back-of-hand safe |
| mechanical service life (switching cycles) / typical | 10 000 |
| switching function / short-term delayed | No |
| overvoltage category | III |
| degree of pollution | 2 |
| type of voltage / of the operating voltage | AC |
| supply voltage | – |
| ● at AC / rated value | 230 V |
| value range / of the supply voltage frequency | 50Hz |
| protection class IP | IP20, with connected protective device and conductors |
| switching capacity current | – |
| ● according to EN 60898-1 / rated value | 6 000 A |
| ● acc. to IEC 60947-2 / rated value | 6 000 A |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.65 W |
| tripping current | – |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| ● in the event of electrical arcs in series with the load / maximum | 20 A |
| operational current / at AC / rated value | 20 A |
| product feature | – |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| ambient temperature / with relative humidity 95% | 55 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
