Know your model? Find your exact part.
SIEMENS

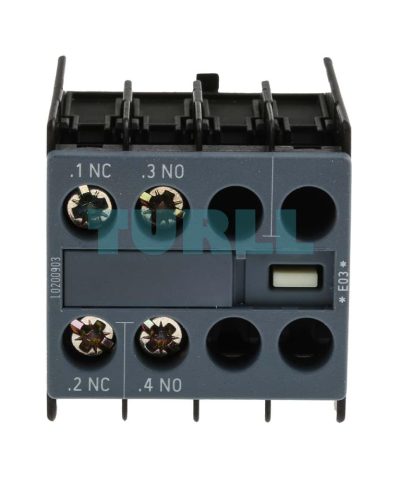

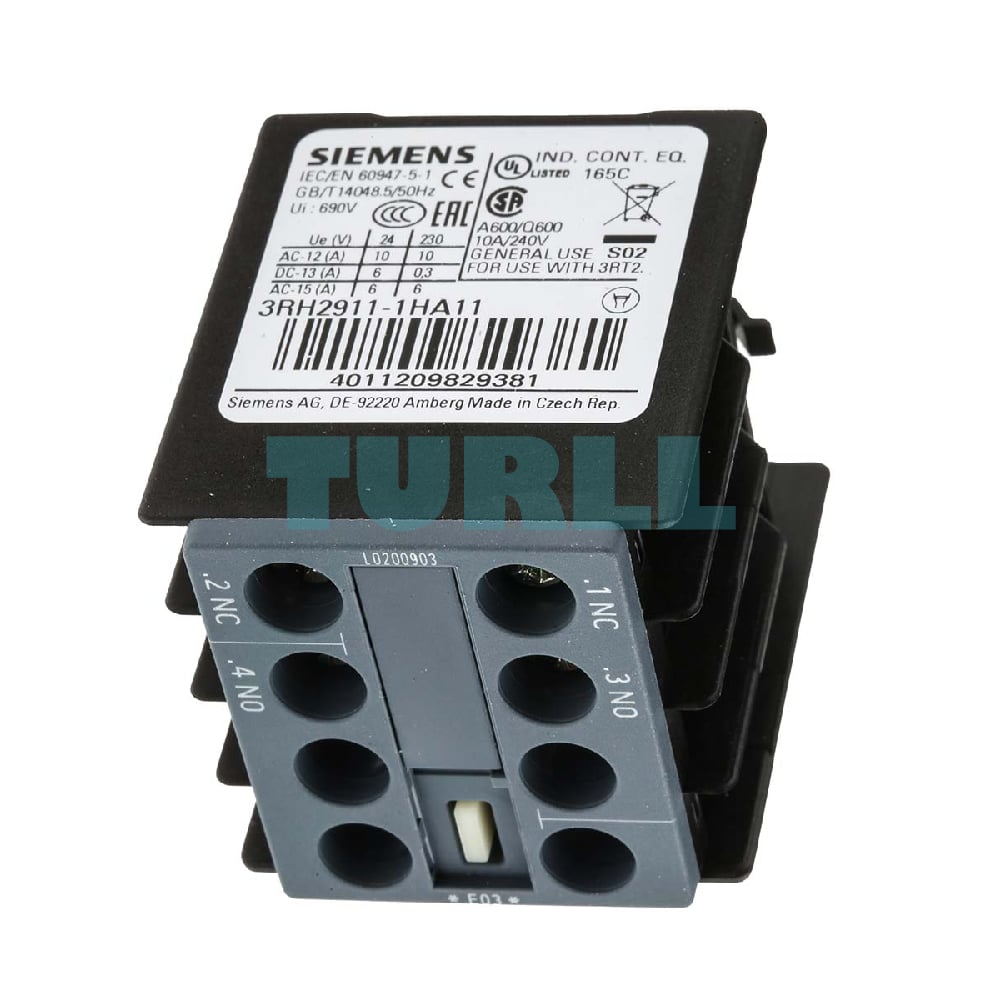

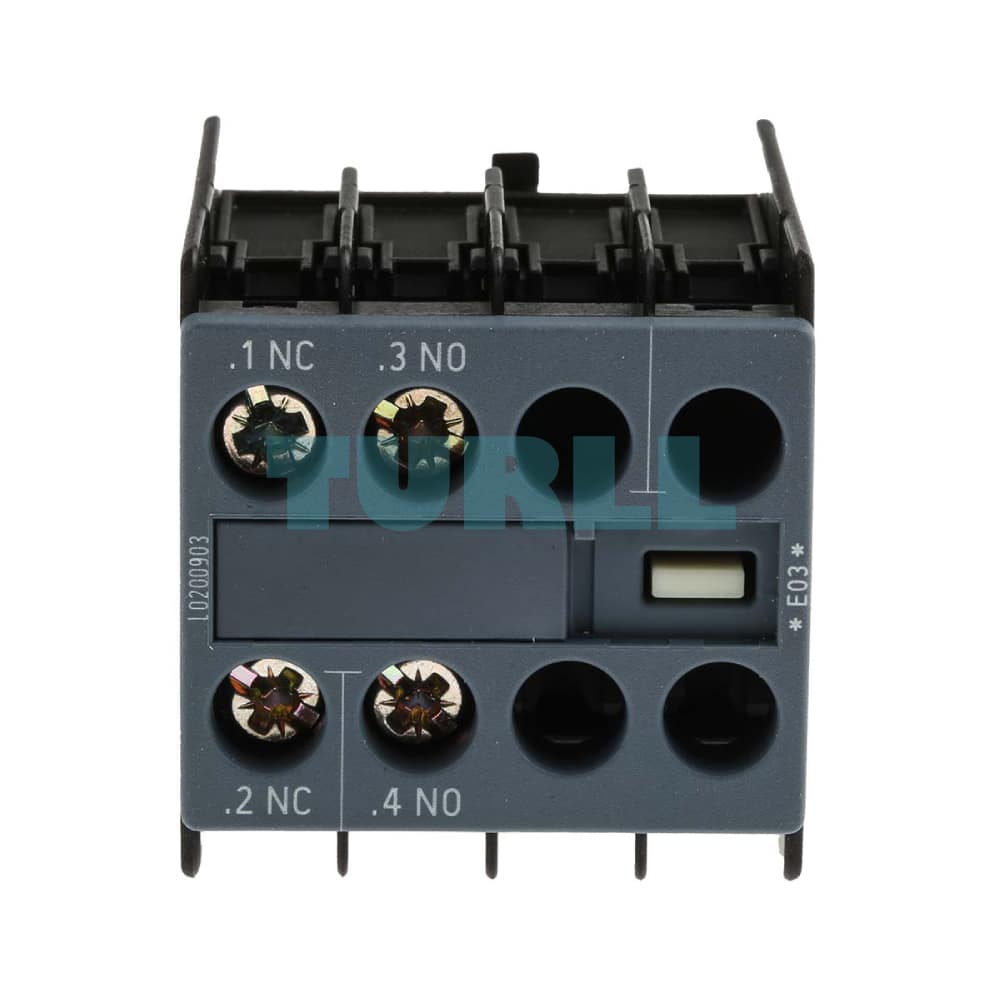

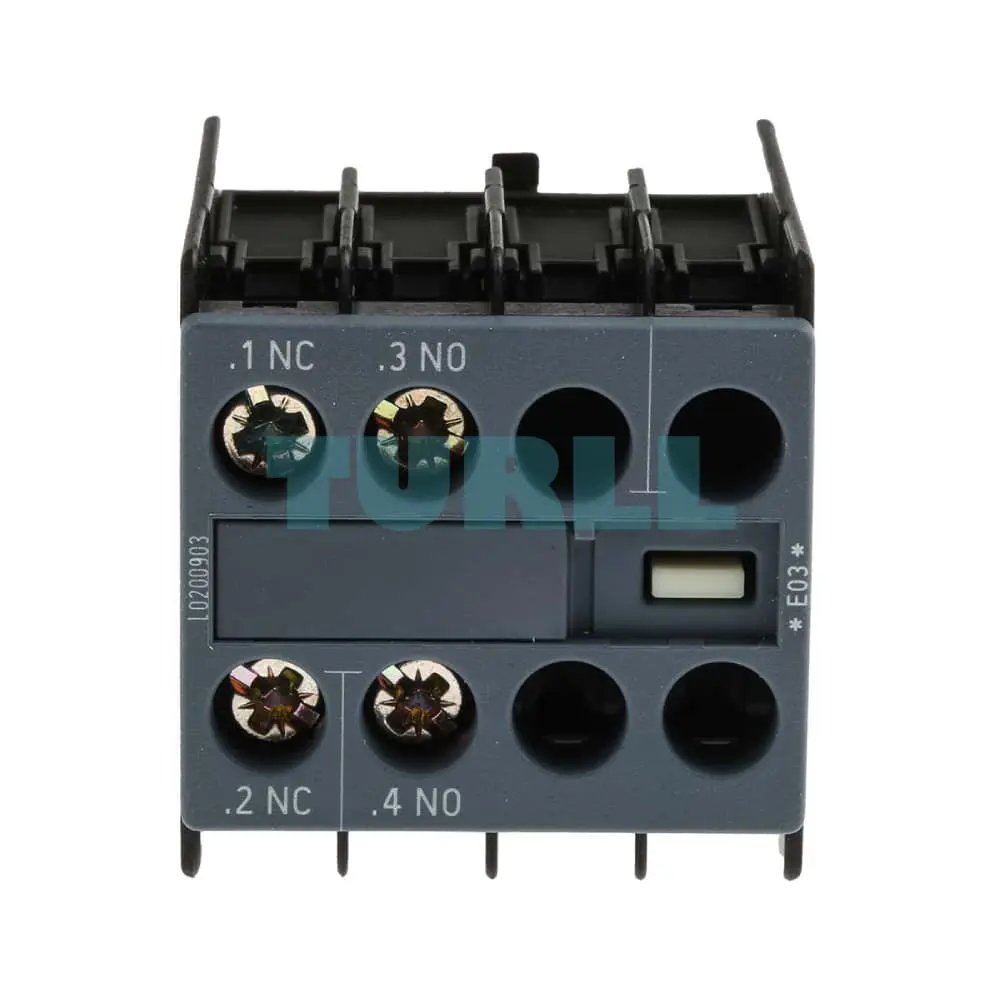

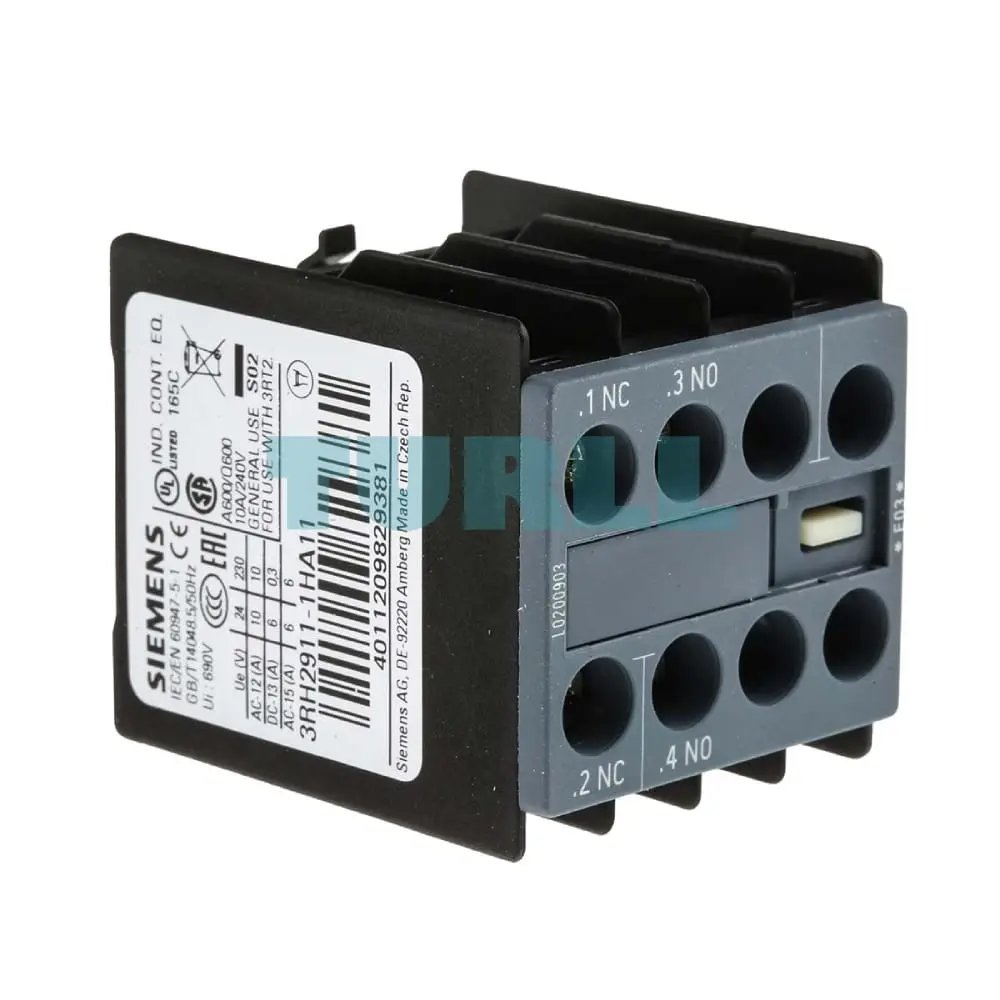

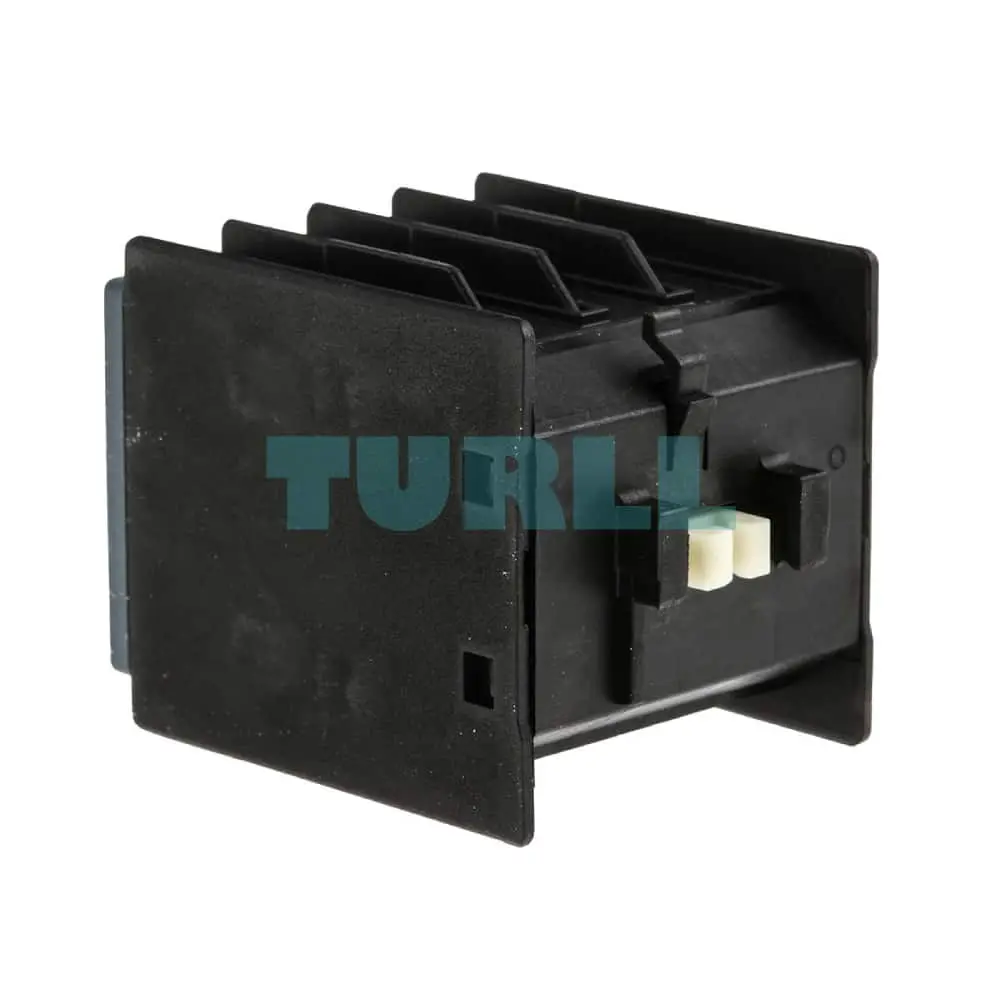

Siemens 3RH2911-1HA11 Auxiliary Contact Block, 1 NO + 1 NC, Front Mount
Original price was: $17.94.$7.00Current price is: $7.00.
USDIn warehouse stock
Dispatches in 1–3 days
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
KEY SPECIFICATIONS
PayPalPRODUCT DATA
Check the full model number and every required specification.
| SKU / model | 3RH2911-1HA11 |
|---|---|
| Brand | SIEMENS |
| Manufacturer part number | 3RH2911-1HA11 |
| Series | SIRIUS 3RH29 |
| Mounting position | Front |
| Contact arrangement | 1 NO + 1 NC |
| Terminal markings | .1/.2, .3/.4, --/--, --/-- |
| Contact sequence | 1 NC, 1 NO, --, -- |
| Terminal type | screw terminal |
| Manufacturer application scope | for contactors 3RT2 and contactor relays 3RH2 |
| Weight for shipping | 0.047 kg |
| Dimensions for shipping | 57 × 50 × 42 mm |
REFERENCE MATERIAL
Check the document’s model and revision before use.
3RH2911-1HA11 is a front-mounted Siemens SIRIUS auxiliary contact block with 1 NO + 1 NC. It uses screw terminal connections. Select the contact logic, mounting arrangement and permitted base device together; contact count alone is insufficient.
The highlighted models address the main selection differences. Each link opens a separate product. Matching one specification does not establish interchangeability; use the complete order number and installation requirements.
3RH2911-1HA11
3RH2911-1XA22-0MA0
3RH2911-1XA40-0MA0
3RH2911-1HA13
For contactors 3RT2 and contactor relays 3RH2. Check the exact base device, other fitted accessories and available mounting space before assembly. The family statement does not mean every possible contact-block combination is permitted.
The manufacturer lists .1/.2, .3/.4, –/–, –/–. Contact sequence: 1 NC, 1 NO, –, –. Match these markings to the control drawing; do not transfer wire positions from a block with the same NO/NC count but different numbering.
This block adds auxiliary switching paths to a suitable base device. It is not a standalone coil-operated relay, a motor power pole or a protective device. Select each switched load using the auxiliary-contact electrical ratings and the required control-circuit duty.
This order number identifies the auxiliary contact block. The base contactor or contactor relay is a separate product; no combined package is established here.
No. This model also requires front mounting, the stated base-device scope, suitable connections and the correct contact numbering.
