Siemens 6ES7135-6GB00-0BA1 SIMATIC ET 200SP, Analog Output Module, AQ 2xI Standard, 16 Bit Original Brand New
$234.91
SIMATIC ET 200SP Analog Output Module, AQ 2xI Standard, 2-channel, 16-bit resolution, suitable for BU A0/A1, color code CC00, with module diagnostics. Pack of 1.
Availability: In stock
Overview

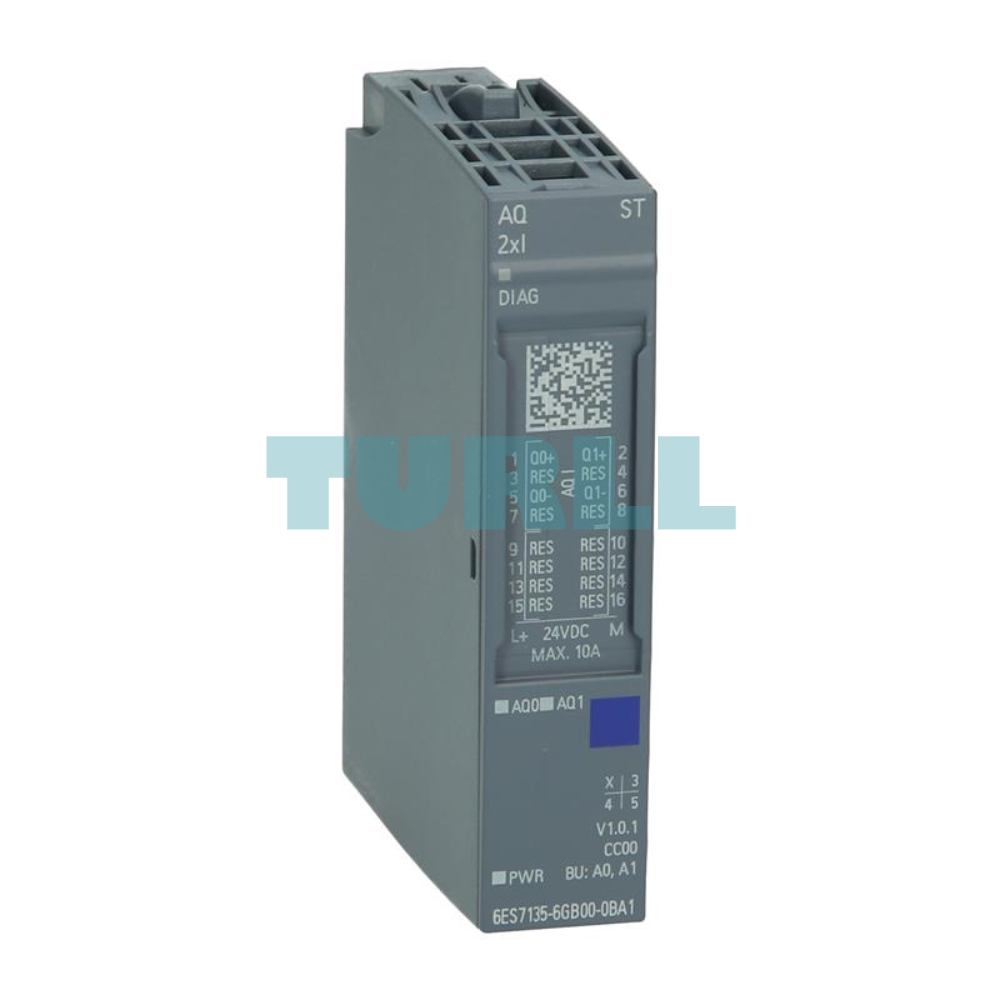

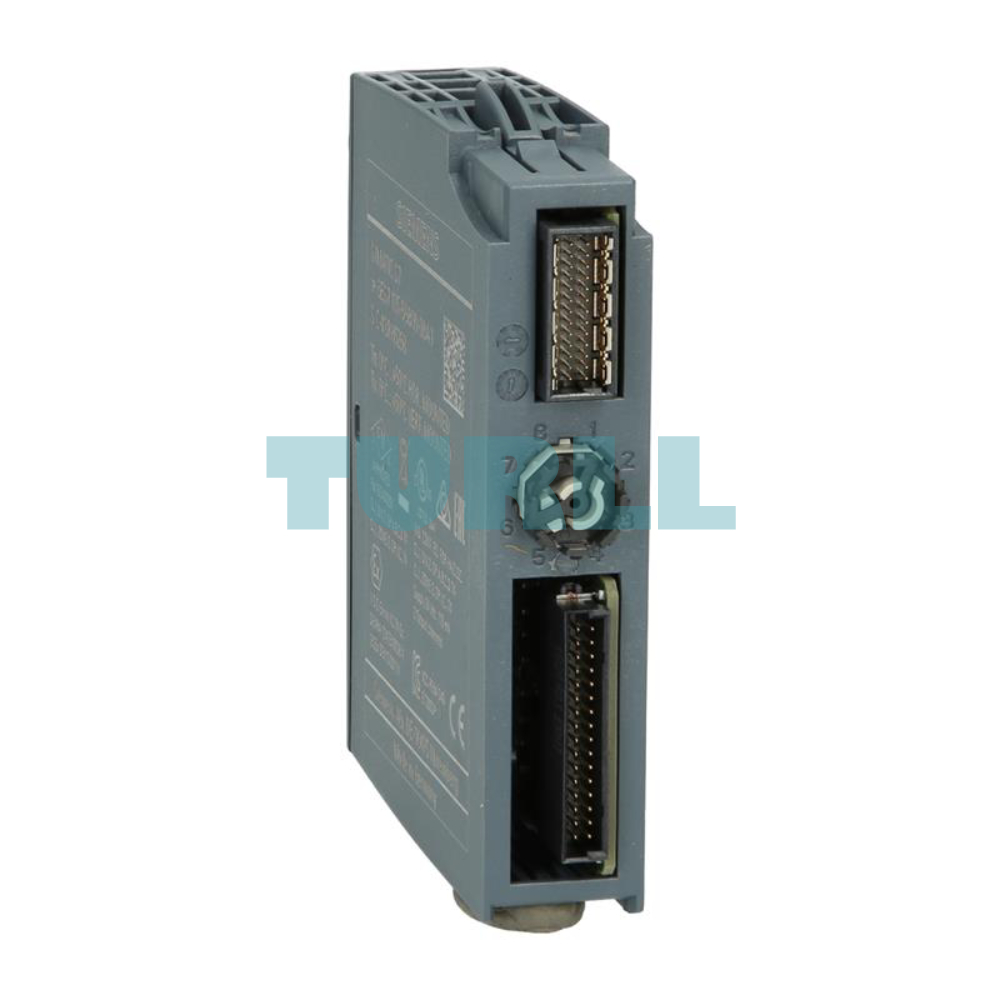

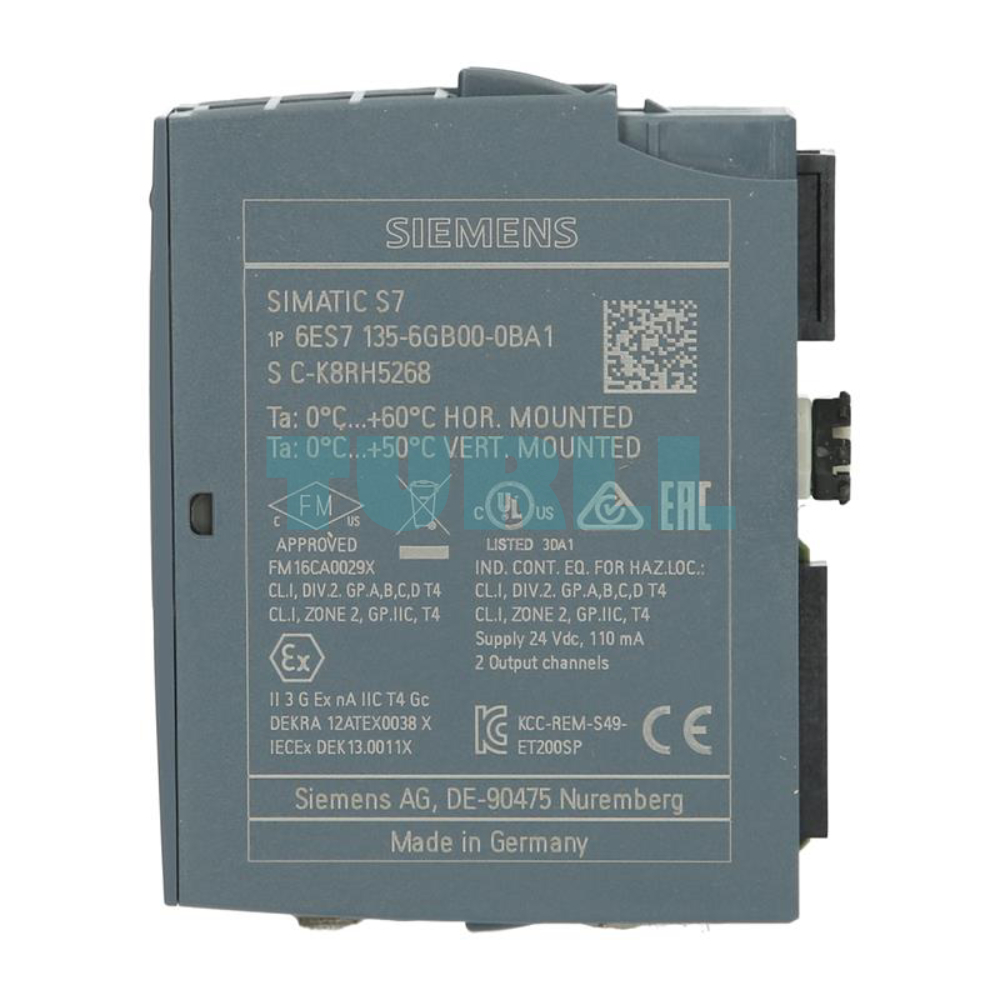

The Siemens 6ES7135-6GB00-0BA1 is a high-performance SIMATIC ET 200SP Analog Output Module designed to deliver precise and reliable analog output signals for industrial automation systems. Featuring 2 current output channels (AQ 2xI Standard) and a 16-bit resolution, this module ensures accurate signal processing for demanding process applications.
Engineered for seamless integration with BU type A0 and A1, the module comes with color code CC00, enabling easy identification and simplified installation. With built-in module diagnostics, users benefit from increased system transparency, reduced downtime, and improved operational efficiency.
This compact, efficient analog module is ideal for distributed I/O setups requiring precision, durability, and scalability.
Key Benefit
-
High Precision Output: 16-bit resolution enables highly accurate analog control.
-
Two Independent Output Channels: Supports versatile signal output with AQ 2xI Standard configuration.
-
Easy Installation: Compatible with BU type A0 and A1, with clear CC00 color coding.
-
Enhanced System Reliability: Integrated module diagnostics help detect faults early.
-
Space-Saving Design: Compact ET 200SP form factor ideal for distributed automation systems.
-
Perfect for Industrial Applications: Supports a wide range of automation and process control environments.
Features / Function
-
2 analog current output channels
-
Standard current output: AQ 2xI
-
High-resolution 16-bit signal processing
-
Module diagnostics for improved fault detection
-
Pack quantity: 1 unit
-
Compatible with SIMATIC ET 200SP distributed I/O system
-
Suitable for base units (BU) A0 and A1
-
Color code: CC00 for quick identification
Download
Visit 6ES7135-6GB00-0BA1 for more detail info
For more our products visit turll

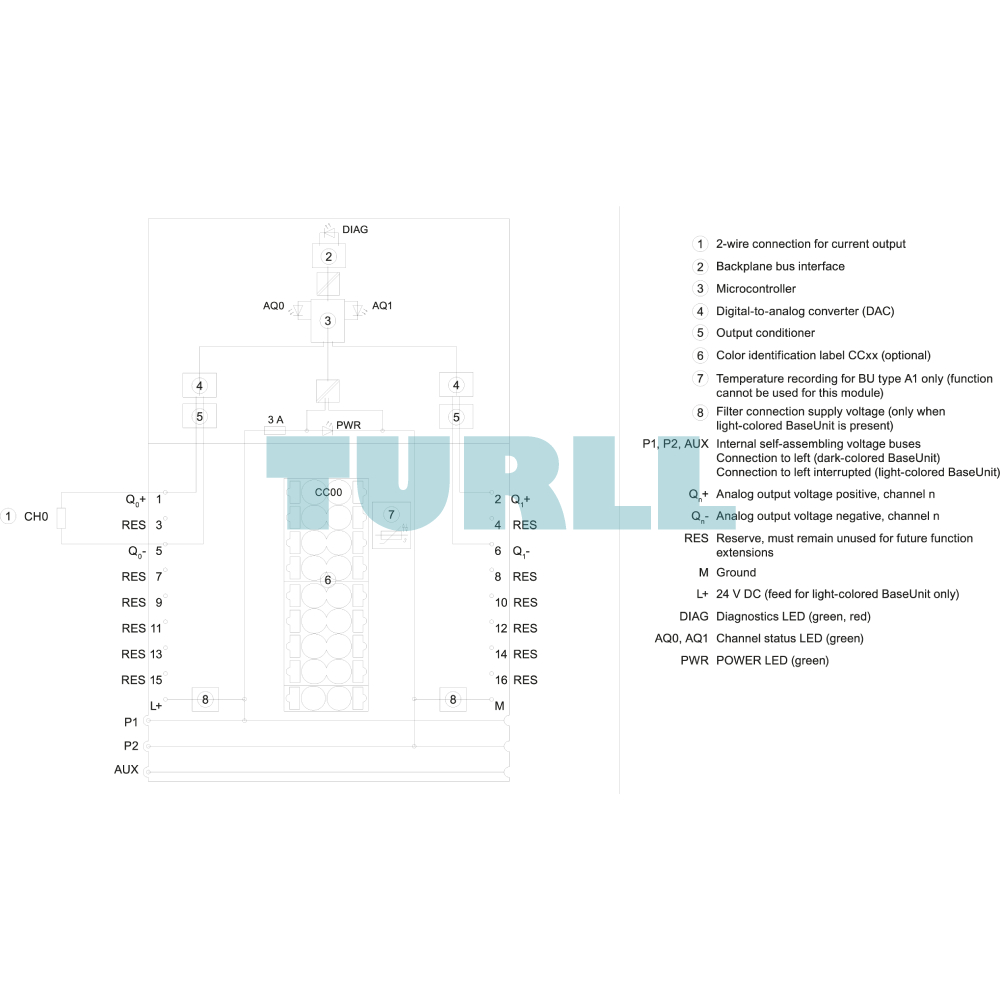

| Weight | 0.039 kg |
|---|---|
| Dimensions | 6.50 × 7.70 × 2.30 mm |
| Brand | SIEMENS |
| Product type designation | AQ 2xI ST |
| HW functional status | From FS03 |
| Firmware version | – |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color identification plate | CC00 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| ● Output range scalable | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / – |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 / – |
| ● PROFIBUS from GSD version/GSD revision | GSD Revision 5 |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| ● Oversampling | No |
| ● MSO | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 110 mA |
| Power loss, typ. | 1.5 W |
| ● Address space per module, max. | 4 byte; + 1 byte for QI information |
| Automatic encoding | – |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| Number of analog outputs | 2 |
| Cycle time (all channels), min. | 1 ms |
| Analog output with oversampling | No |
| ● 0 to 20 mA | Yes; 15 bit |
| ● -20 mA to +20 mA | Yes; 16 bit incl. sign |
| ● 4 mA to 20 mA | Yes; 14 bit |
| ● for current output two-wire connection | Yes |
| ● with current outputs, max. | 500 Ω |
| ● with current outputs, inductive load, max. | 1 mH |
| ● Voltages at the outputs | 30 V |
| ● shielded, max. | 1 000 m |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● for resistive load | 0.1 ms; Typical value |
| ● for inductive load | 0.5 ms |
| Linearity error (relative to output range), (+/-) | 0.03 % |
| Temperature error (relative to output range), (+/-) | 0.005 %/K |
| Crosstalk between the outputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % |
| ● Voltage, relative to output range, (+/-) | 0.3 % |
| ● Current, relative to output range, (+/-) | 0.3 % |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| ● Diagnostic alarm | Yes |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes |
| ● Group error | Yes |
| ● Overflow/underflow | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red DIAG LED |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS03 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS03 |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

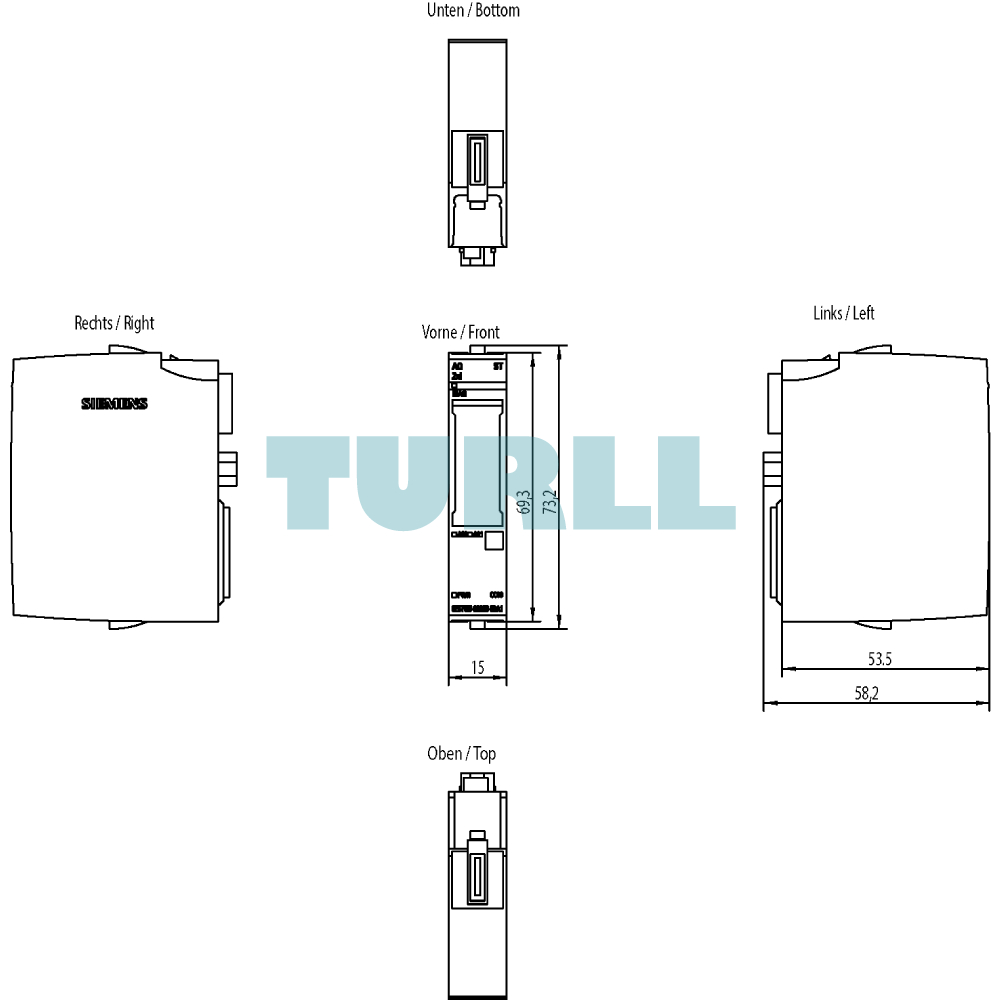

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
| last modified: | 2/1/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
