3RT1065-6XF46-0LA2

Description

Overview

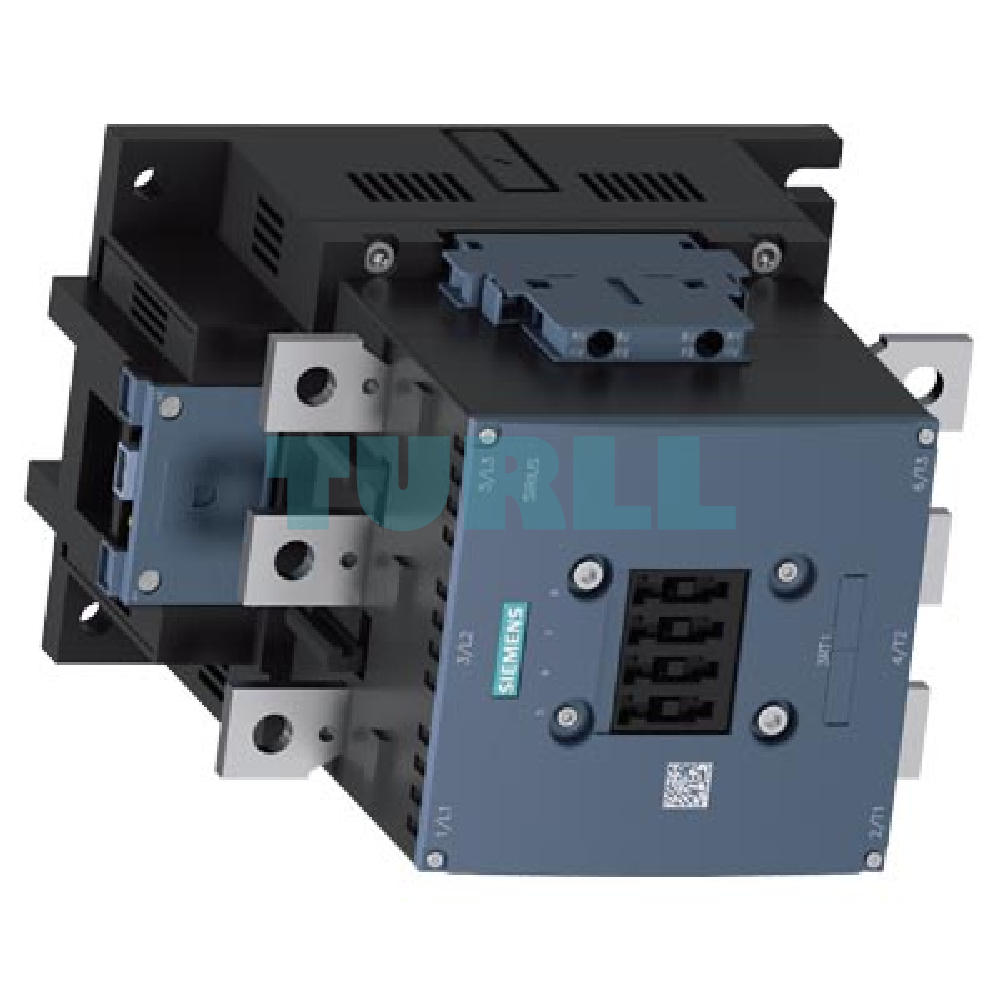

The Siemens 3RT1065-6XF46-0LA2 is a high-performance SIRIUS 3RT1 Series power contactor designed for industrial and specialized applications, particularly in the railway sector (extended rated condition according to IEC 60077). This robust 3-pole contactor is rated for heavy-duty switching of motors up to 265 A (AC-3e/AC-3) and 132 kW at 400 V. It features an advanced electronic 110 V DC coil with an extended operating range and a built-in PLC input (24-110 V DC), ensuring reliable operation and seamless integration into modern control systems. The main circuit uses busbar connections for high current density, while the control and auxiliary circuits utilize secure screw terminals.

Key Features & Function

• Rated Current & Power: AC-3e/AC-3 265 A, 132 kW / 400 V

• Control Voltage: Uc: 110 V DC x (0.7–1.25)

• PLC Input Compatibility: 24–110 V DC for seamless automation integration

• Poles & Auxiliary Contacts: 3-pole main contacts with 2 NO + 2 NC auxiliary contacts

• Drive Type: Electronic for faster, reliable switching

• Main Circuit Connection: Busbar for high-current stability

• Control & Auxiliary Circuit: Screw terminal connections for easy wiring

• Compliance: Extended rated condition certified for railroad use (IEC 60077)

Benefit

• Ensures stable and reliable switching of high-power AC loads

• Compatible with a wide range of PLC systems

• Reduces downtime with robust, industrial-grade construction

• Simplifies wiring and installation with screw terminal and busbar configurations

• Meets stringent railroad standards for safety and durability
