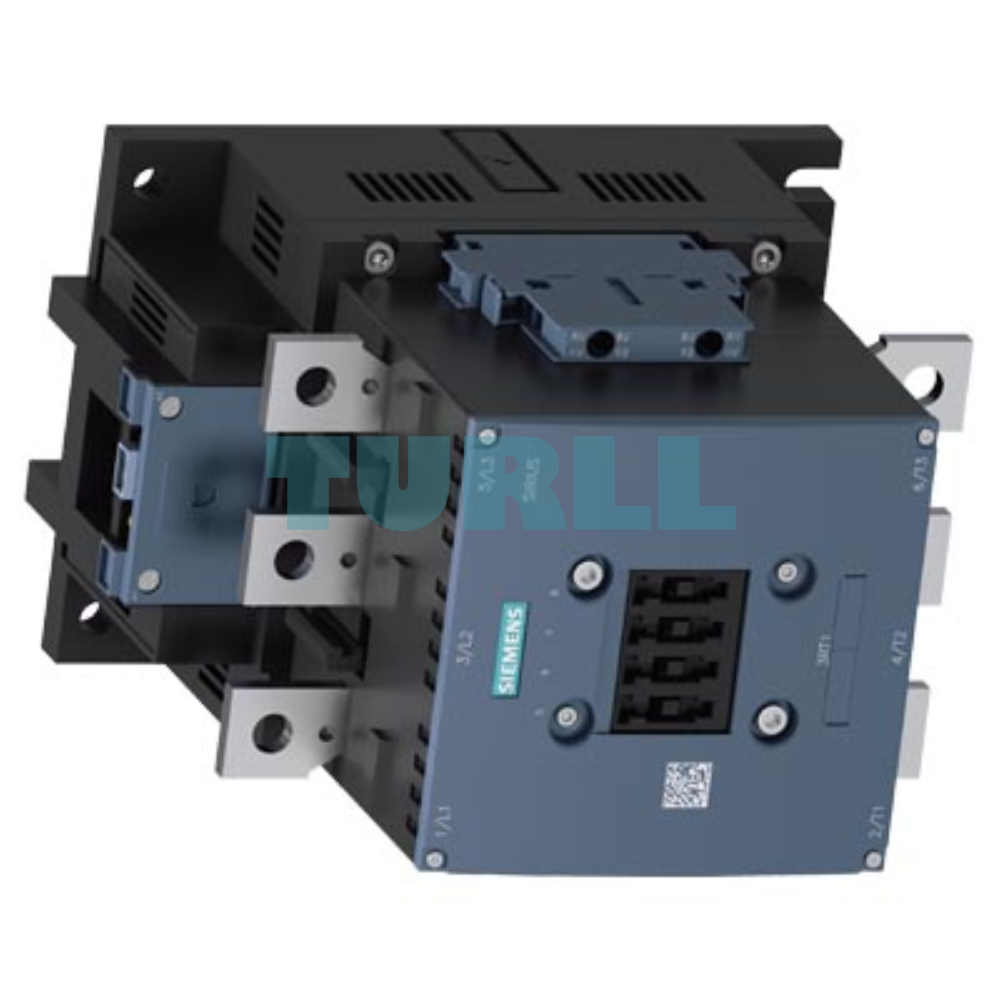

The Siemens 3RT1467-6NP36 is a high-performance industrial power contactor designed for heavy-duty switching applications. Built for exceptional reliability and long operational life, this 3-pole contactor supports AC-1 loads up to 500 A at 690 V and maintains full performance at ambient temperatures up to 40 °C.
Equipped with both AC (200–277 V, 50–60 Hz) and DC control capabilities, this Siemens contactor integrates seamlessly into modern automation systems. The built-in PLC-compatible 24 V DC electronic drive ensures fast, stable switching, while the 2 NO + 2 NC auxiliary contacts provide enhanced monitoring and control flexibility.
Engineered with a busbar main circuit connection and screw terminals for control and auxiliary circuits, the 3RT1467-6NP36 offers simple installation and dependable performance in demanding industrial environments.
High Switching Capacity: Rated for AC-1 500 A at 690 V, ideal for heavy industrial loads.
Flexible Control Options: Works with 200–277 V AC power or DC control, and integrates directly with PLC systems.
Enhanced Safety and Monitoring: Features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
Industrial-Grade Durability: Reliable operation up to 40 °C, minimizing downtime in harsh conditions.
Efficient Installation: Main circuit busbar connection enables fast setup in industrial control panels.
Modern Electronic Drive: Ensures precise control, reduced power consumption, and increased switching life.
Electrical Characteristics
Operational Category: AC-1
Rated Current: 500 A
Rated Voltage: 690 V
Poles: 3-pole contactor
Control Voltage (Uc):
AC: 200–277 V (50–60 Hz)
DC: PLC input, 24 V DC, electronic drive
Auxiliary Contacts
2 NO + 2 NC integrated auxiliary contacts
Connections
Main Circuit: Busbar connection
Control/Auxiliary Circuit: Screw terminals
Environmental Ratings
Ambient Temperature: Up to 40 °C
For more of our products, visit turll.
| SKU / Model | 3RT1467-6NP36 |
|---|---|
| Weight | 6.52 kg |
| Dimensions | 270 × 200 × 240 mm |
