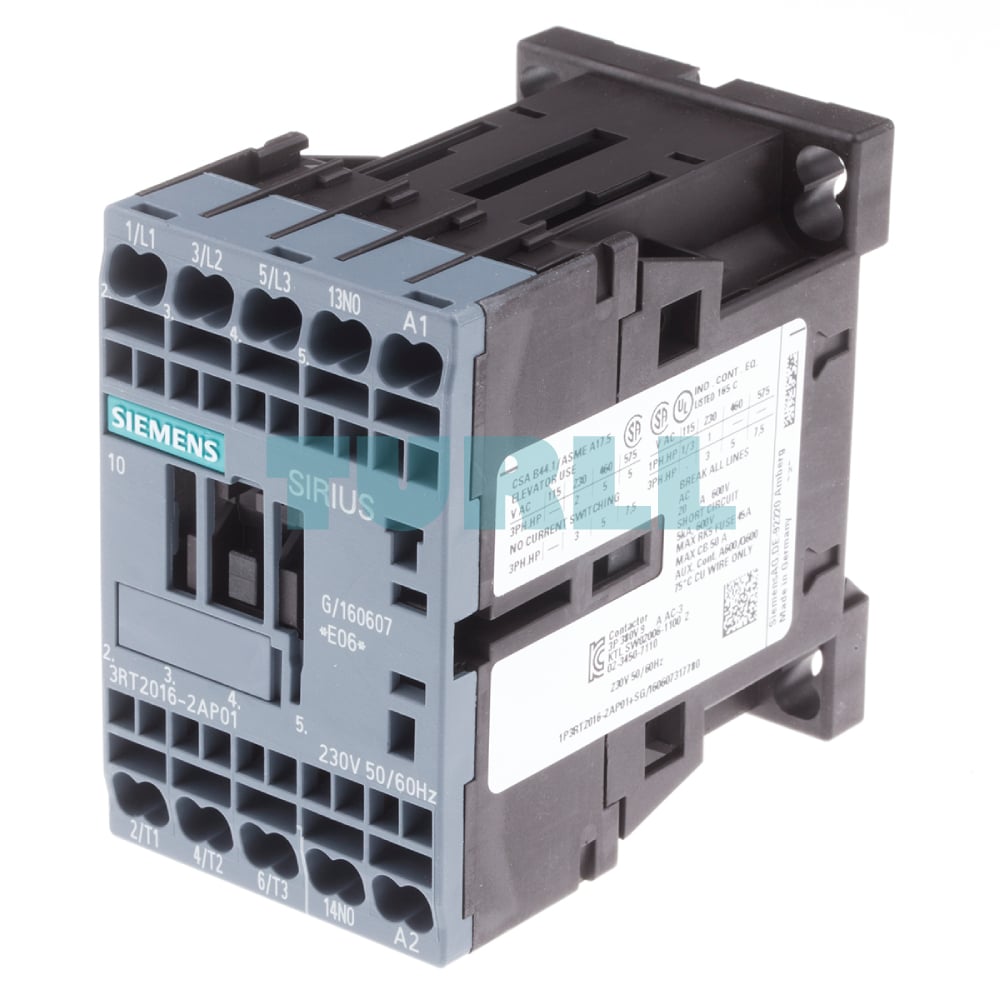

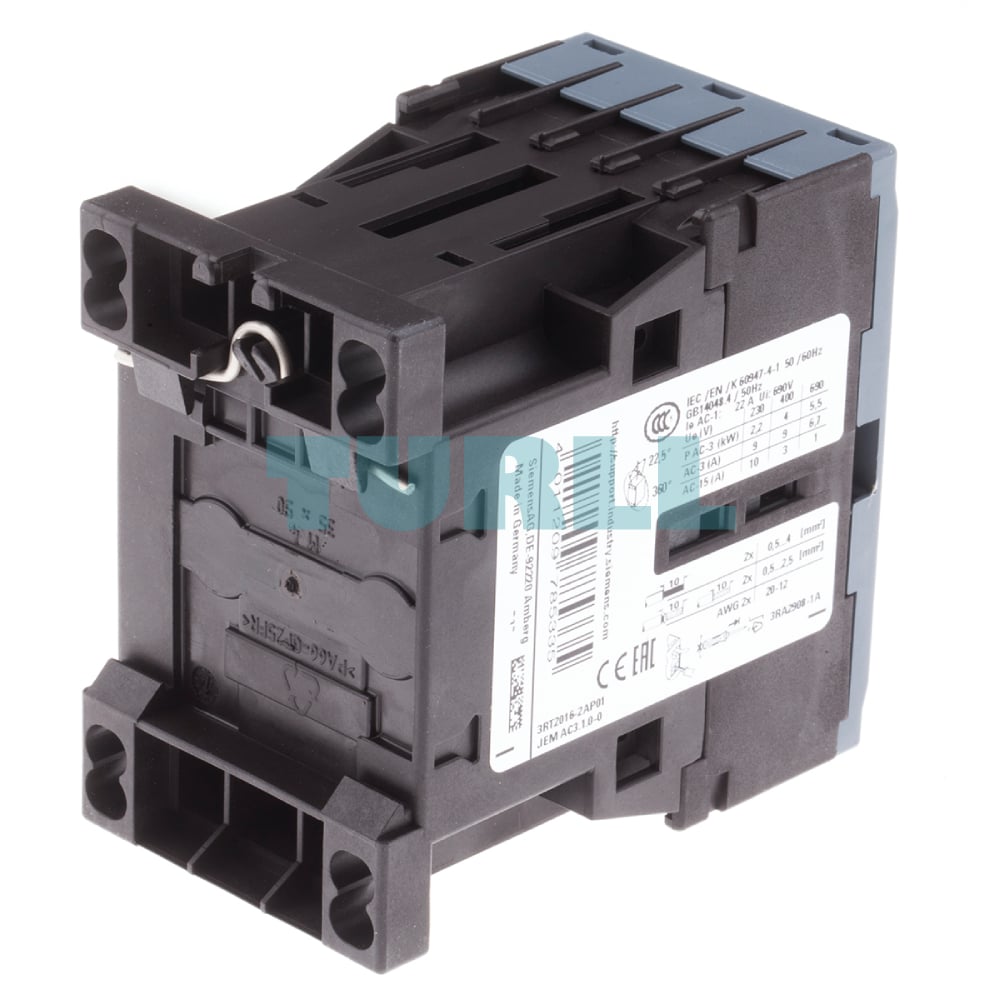

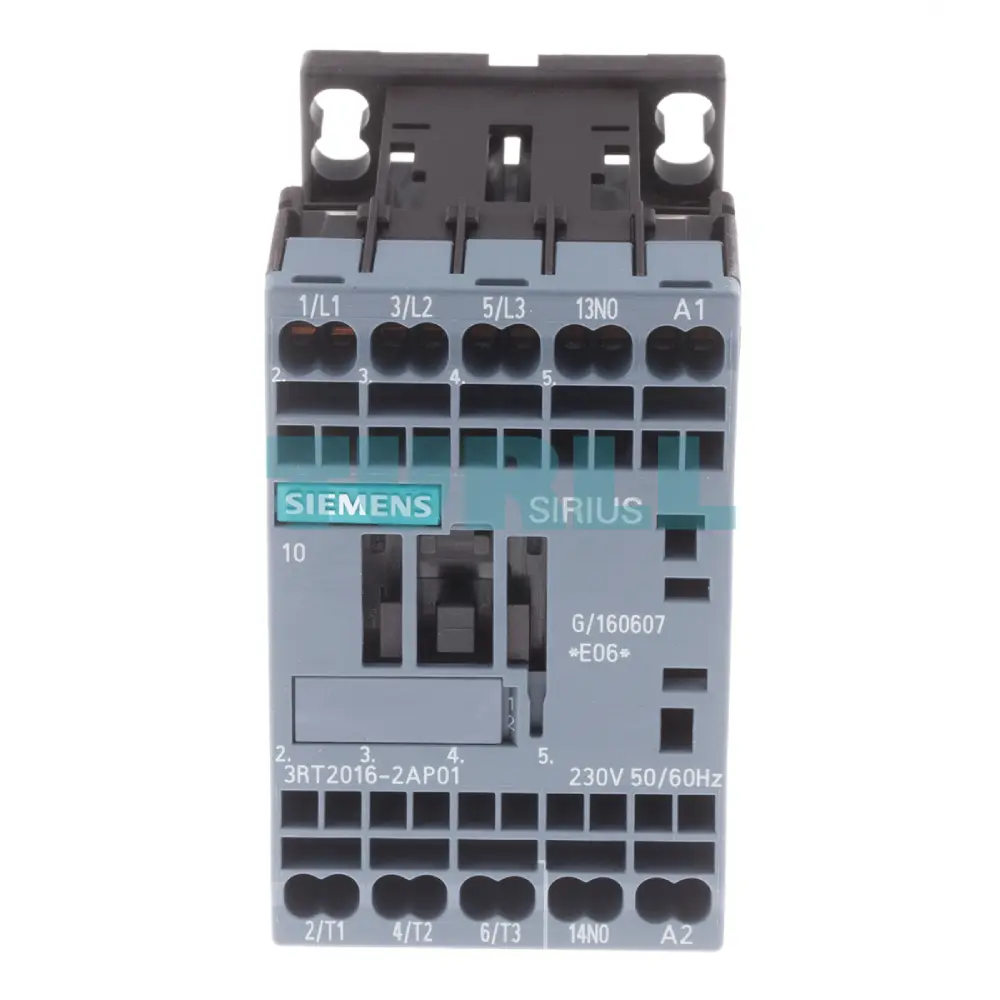

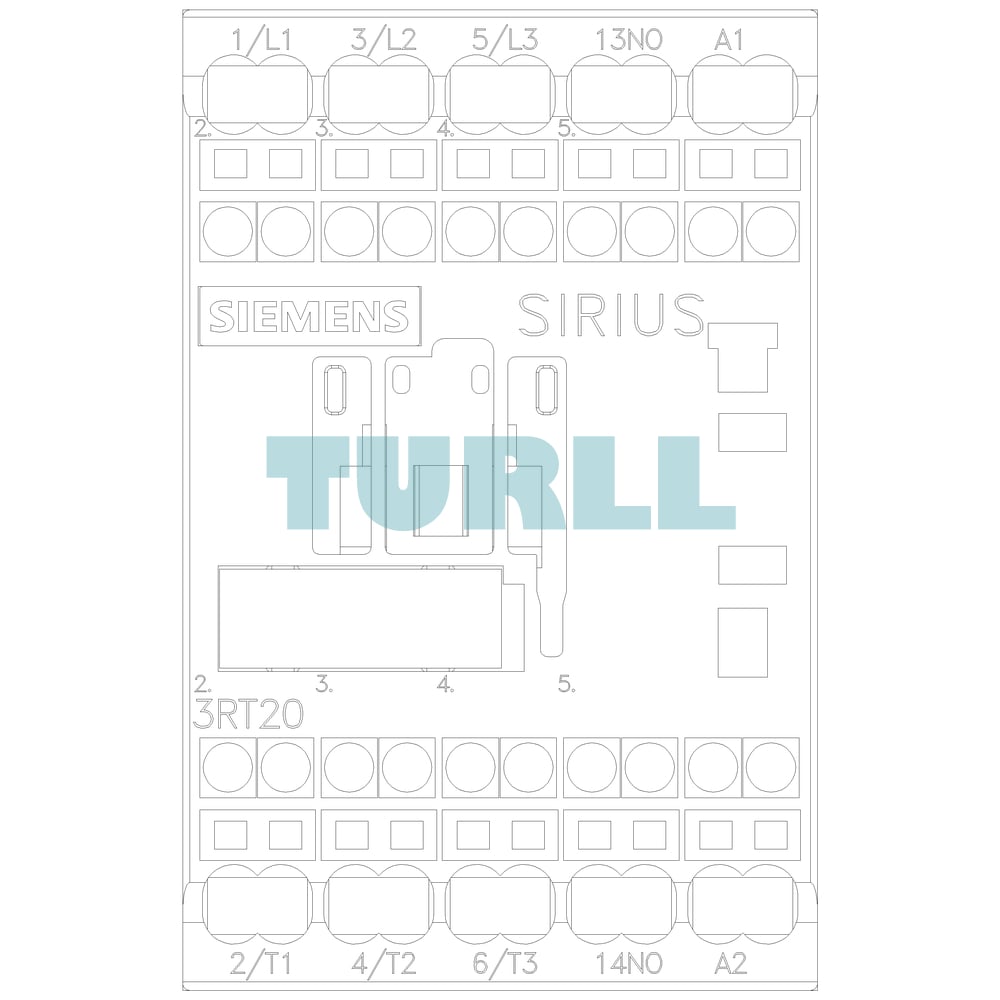

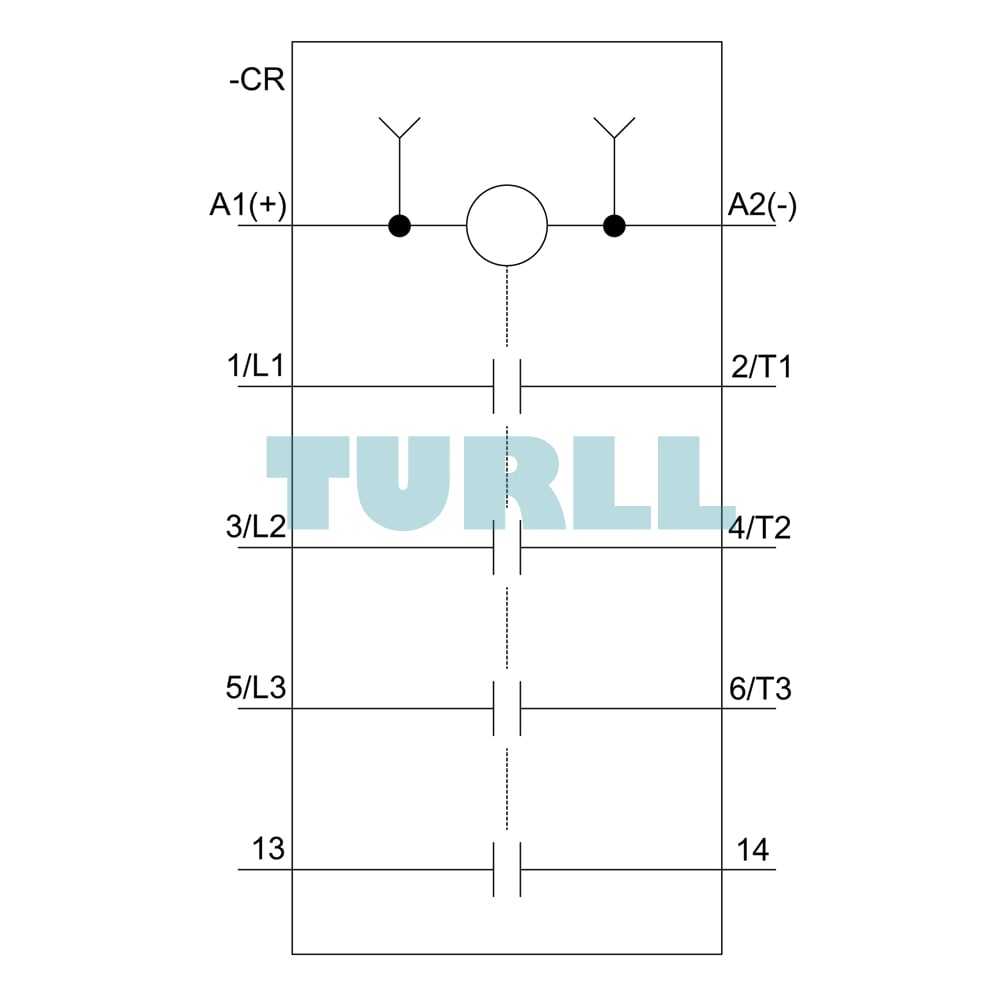

Siemens 3RT2016-2AP01 Power Contactor 9A, AC-3, 4 kW, 3-Pole, 230V AC Coil, S00 Original Brand New
A high-performance SIRIUS Power Contactor designed for reliable motor switching up to 4 kW (at 400V). This compact Size S00 contactor features a coil voltage of 230V AC (50/60 Hz), an operational current of 9 A (AC-3e/AC-3), and includes one integrated Normally Open (1 NO) auxiliary contact.
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 3RT2016-2AP01 is a high-performance power contactor designed for reliable motor switching and control in industrial applications. Engineered for durability and efficiency, it supports AC-3e/AC-3 operations, making it ideal for motor control circuits up to 9 A and 4 kW at 400 V. With a compact S00 size, spring-loaded terminals, and one integrated NO auxiliary contact, this contactor offers reliable performance, easy installation, and long service life.
Key Benefit
-
High switching reliability for AC-3 motor loads
-
Compact S00 size saves panel space
-
Spring-loaded terminals ensure fast, secure wiring
-
Long operational lifespan thanks to Siemens’ advanced engineering
-
Energy-efficient coil design reduces operational cost
-
Integrated 1 NO auxiliary contact for convenient control signaling
Main Features
-
Rated operational current: 9 A (AC-3/AC-3e)
-
Motor power rating: Up to 4 kW at 400 V
-
Poles: 3-pole configuration
-
Control voltage: 230 V AC, 50/60 Hz
-
Terminal type: Spring-loaded terminals for vibration-resistant connections
-
Auxiliary contacts: 1 NO (normally open)
-
Size: S00 compact frame
Function & Application
The 3RT2016-2AP01 primarily serves to switch the main power circuit of a load. Its core functions include:
-
Motor Switching: Safely starting and stopping 3-phase AC motors (up to 4 kW).
-
Load Control: Switching resistive, highly inductive, and capacitive loads.
-
Circuit Integration: The integrated 1 NO auxiliary contact is essential for feedback signals, interlocking circuits, or integrating into larger control systems (e.g., PLC inputs).
Common applications include HVAC systems, conveyor belts, pumps, fans, and general machine building.
Download
Visit 3RT2016-2AP01 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 3RT2016-2AP01 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | Power contactor |
| product type designation | 3RT2 |
| size of contactor | S00 |
| product extension | - |
| ● function module for communication | No |
| ● auxiliary switch | Yes |
| power loss [W] for rated value of the current at AC in hot operating state | 2.1 W |
| ● per pole | 0.7 W |
| power loss [W] for rated value of the current without load current share typical | 4.2 W |
| surge voltage resistance | - |
| ● of main circuit rated value | 6 kV |
| ● of auxiliary circuit rated value | 6 kV |
| maximum permissible voltage for safe isolation between coil and main contacts acc. to EN 60947-1 | 400 V |
| shock resistance at rectangular impulse | - |
| shock resistance with sine pulse | - |
| mechanical service life (switching cycles) | - |
| ● of contactor typical | 30 000 000 |
| ● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | - |
| ● during operation | -25 ... +60 °C |
| ● during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C acc. to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| operating voltage at AC-3 rated value maximum | 690 V |
| operational current | - |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 22 A |
| ● at AC-1 | - |
| — up to 690 V at ambient temperature 40 °C rated value | 22 A |
| — up to 690 V at ambient temperature 60 °C rated value | 20 A |
| ● at AC-4 at 400 V rated value | 8.5 A |
| ● at AC-5a up to 690 V rated value | 19.4 A |
| ● at AC-5b up to 400 V rated value | 7.4 A |
| — up to 230 V for current peak value n=20 rated value | 5.3 A |
| — up to 400 V for current peak value n=20 rated value | 5.3 A |
| — up to 500 V for current peak value n=20 rated value | 5.3 A |
| — up to 690 V for current peak value n=20 rated value | 5 A |
| ● at AC-6a | - |
| — up to 230 V for current peak value n=30 rated value | 3.5 A |
| — up to 400 V for current peak value n=30 rated value | 3.5 A |
| — up to 500 V for current peak value n=30 rated value | 3.6 A |
| — up to 690 V for current peak value n=30 rated value | 3.3 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 4 mm² |
| operational current for approx. 200000 operating cycles at AC-4 | - |
| operating power | - |
| ● at AC-3 | - |
| — at 400 V rated value | 4 kW |
| — at 500 V rated value | 4 kW |
| — at 690 V rated value | 5.5 kW |
| operating power for approx. 200000 operating cycles at AC-4 | - |
| ● up to 230 V for current peak value n=20 rated value | 2 kV·A |
| ● up to 400 V for current peak value n=20 rated value | 3.6 kV·A |
| ● up to 500 V for current peak value n=20 rated value | 4.6 kV·A |
| ● up to 690 V for current peak value n=20 rated value | 5.9 kV·A |
| operating apparent power at AC-6a | - |
| ● up to 230 V for current peak value n=30 rated value | 1.3 kV·A |
| ● up to 400 V for current peak value n=30 rated value | 2.4 kV·A |
| ● up to 500 V for current peak value n=30 rated value | 3.1 kV·A |
| ● up to 690 V for current peak value n=30 rated value | 4 kV·A |
| short-time withstand current in cold operating state up to 40 °C | - |
| ● limited to 1 s switching at zero current maximum | 155 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 111 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 10 s switching at zero current maximum | 86 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 66 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 55 A; Use minimum cross-section acc. to AC-1 rated value |
| no-load switching frequency | - |
| operating frequency | - |
| ● at AC-1 maximum | 1 000 1/h |
| ● at AC-2 maximum | 750 1/h |
| ● at AC-3 maximum | 750 1/h |
| ● at AC-4 maximum | 250 1/h |
| type of voltage of the control supply voltage | AC |
| control supply voltage at AC | - |
| ● at 50 Hz rated value | 230 V |
| ● at 60 Hz rated value | 230 V |
| operating range factor control supply voltage rated value of magnet coil at AC | - |
| apparent pick-up power of magnet coil at AC | - |
| inductive power factor with closing power of the coil | - |
| apparent holding power of magnet coil at AC | - |
| inductive power factor with the holding power of the coil | - |
| ● at 50 Hz | 0.25 |
| ● at 60 Hz | 0.25 |
| closing delay | - |
| opening delay | - |
| ● at AC | 7 ... 13 ms |
| arcing time | 10 ... 15 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| operational current at AC-12 maximum | 10 A |
| operational current at AC-15 | - |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 3 A |
| ● at 500 V rated value | 2 A |
| ● at 690 V rated value | 1 A |
| operational current at DC-12 | - |
| operational current at DC-13 | - |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 2 A |
| ● at 60 V rated value | 2 A |
| ● at 110 V rated value | 1 A |
| ● at 125 V rated value | 0.9 A |
| ● at 220 V rated value | 0.3 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| full-load current (FLA) for 3-phase AC motor | - |
| ● at 480 V rated value | 7.6 A |
| ● at 600 V rated value | 9 A |
| yielded mechanical performance [hp] | - |
| ● for single-phase AC motor | - |
| — at 110/120 V rated value | 0.33 hp |
| — at 230 V rated value | 1 hp |
| ● for 3-phase AC motor | - |
| — at 200/208 V rated value | 2 hp |
| — at 220/230 V rated value | 3 hp |
| — at 460/480 V rated value | 5 hp |
| — at 575/600 V rated value | 7.5 hp |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| design of the fuse link | - |
| ● for short-circuit protection of the main circuit | - |
| — with type of coordination 1 required | gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA) |
| — with type of assignment 2 required | gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA) |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| ● side-by-side mounting | Yes |
| required spacing | - |
| ● with side-by-side mounting | - |
| ● for grounded parts | - |
| ● for live parts | - |
| — forwards | 10 mm |
| — upwards | 10 mm |
| — downwards | 10 mm |
| — at the side | 6 mm |
| type of electrical connection | - |
| ● for main current circuit | spring-loaded terminals |
| ● for auxiliary and control circuit | spring-loaded terminals |
| ● at contactor for auxiliary contacts | Spring-type terminals |
| ● of magnet coil | Spring-type terminals |
| — solid | 2x (0.5 ... 4 mm²) |
| ● at AWG cables for main contacts | 2x (20 ... 12) |
| connectable conductor cross-section for main contacts | - |
| ● solid | 0.5 ... 4 mm² |
| ● stranded | 0.5 ... 4 mm² |
| connectable conductor cross-section for auxiliary contacts | - |
| ● solid or stranded | 0.5 ... 4 mm² |
| ● finely stranded with core end processing | 0.5 ... 2.5 mm² |
| ● finely stranded without core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections | - |
| — solid or stranded | 2x (0,5 ... 4 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 12) |
| AWG number as coded connectable conductor cross section | - |
| ● for main contacts | 20 ... 12 |
| ● for auxiliary contacts | 20 ... 12 |
| B10 value with high demand rate acc. to SN 31920 | 1 000 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 40 % |
| ● with high demand rate acc. to SN 31920 | 73 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| suitability for use | - |
| ● safety-related switching OFF | Yes |
| last modified: | 11/17/2021 |
| Weight | 0.252 kg |
| Dimensions | 50.00 × 73.50 × 77.50 mm |
