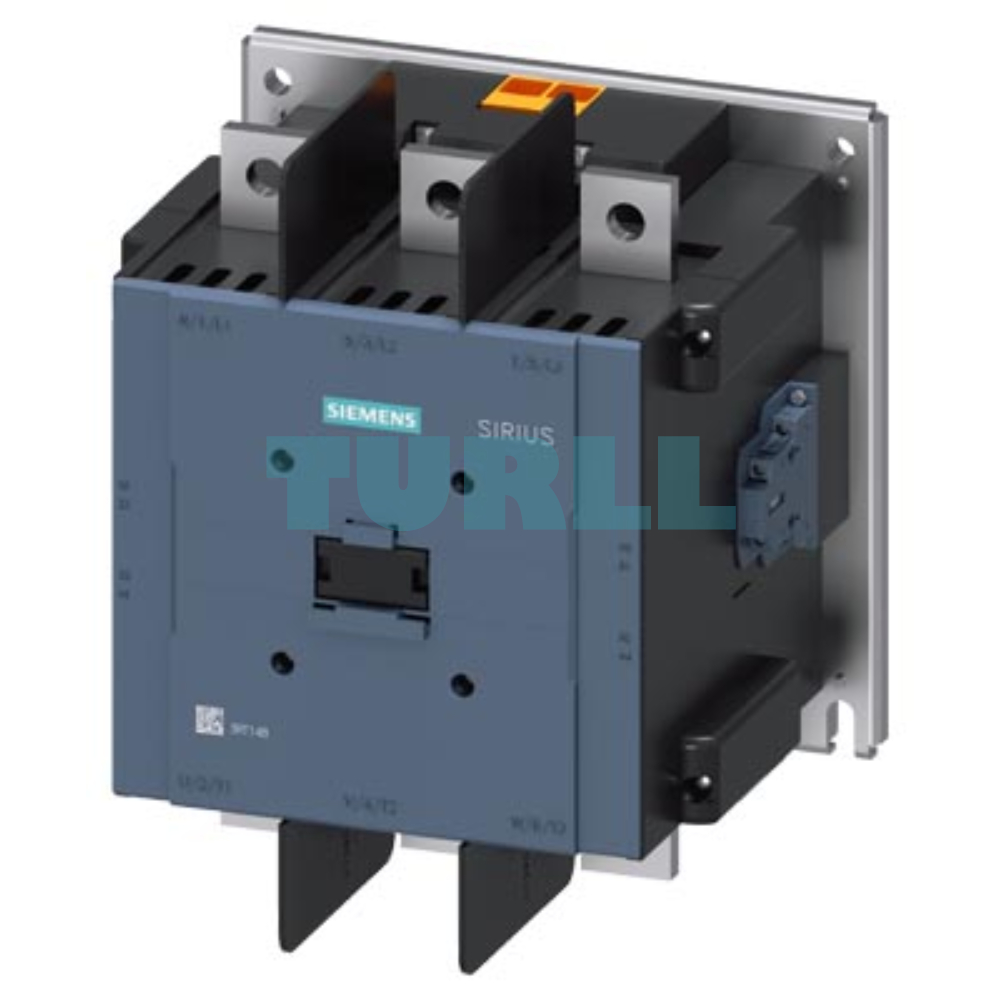

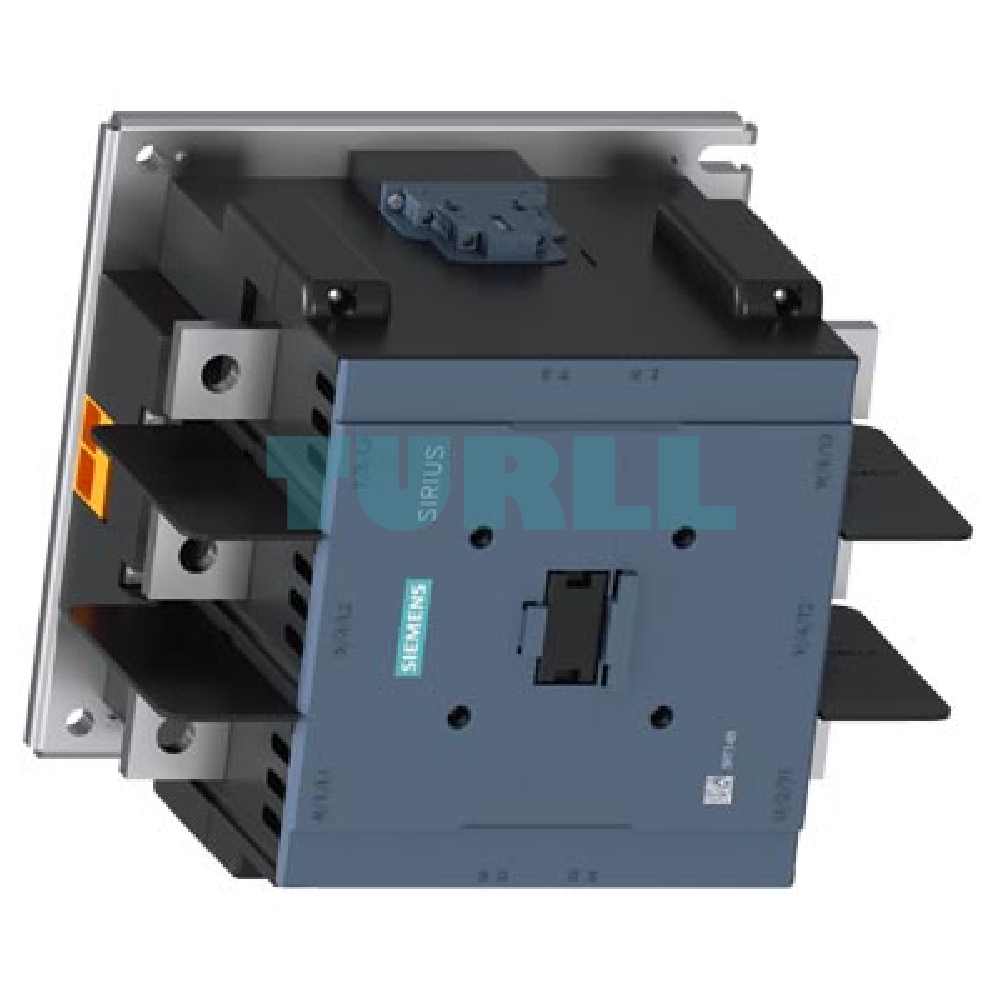

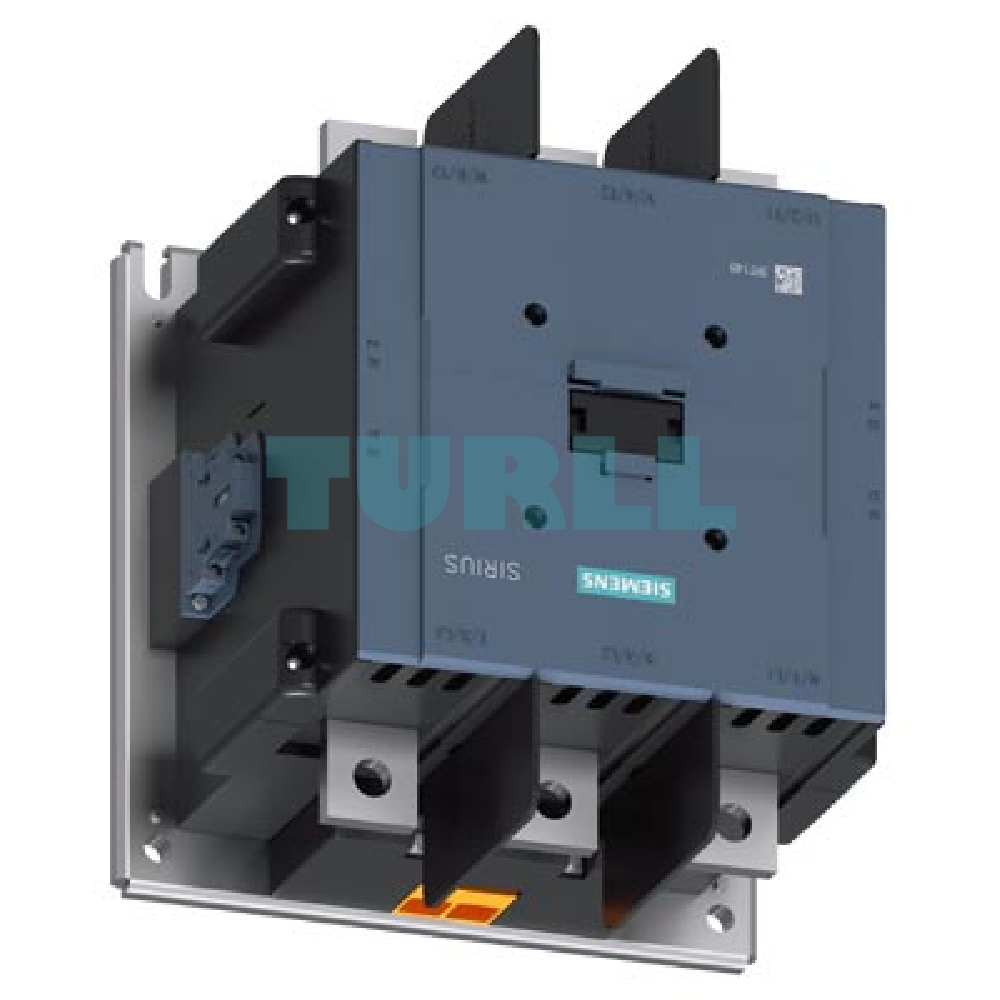

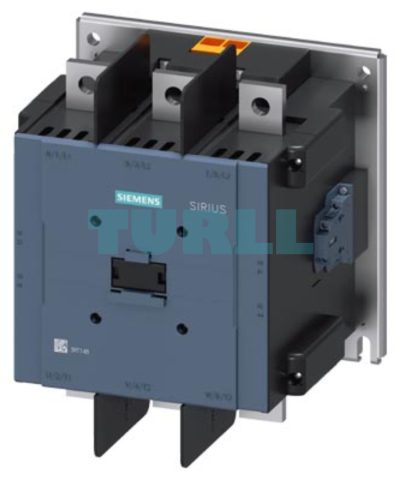

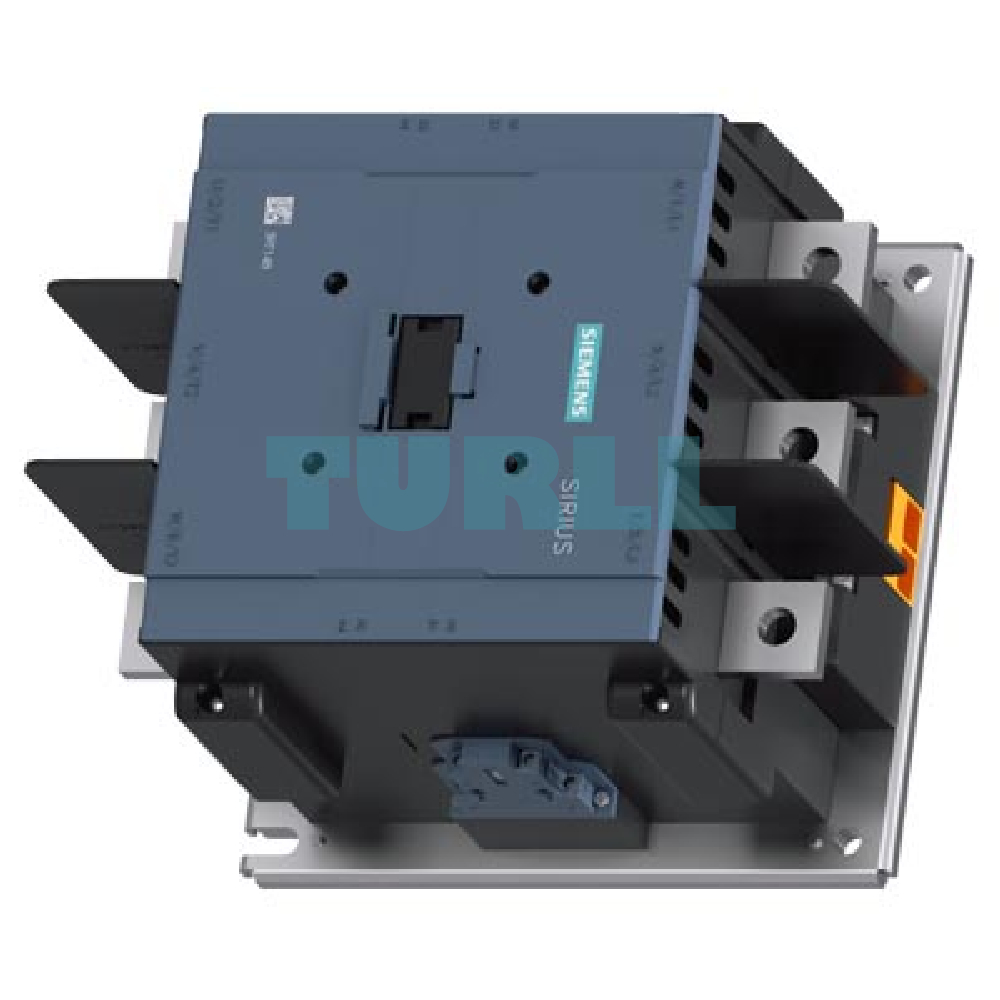

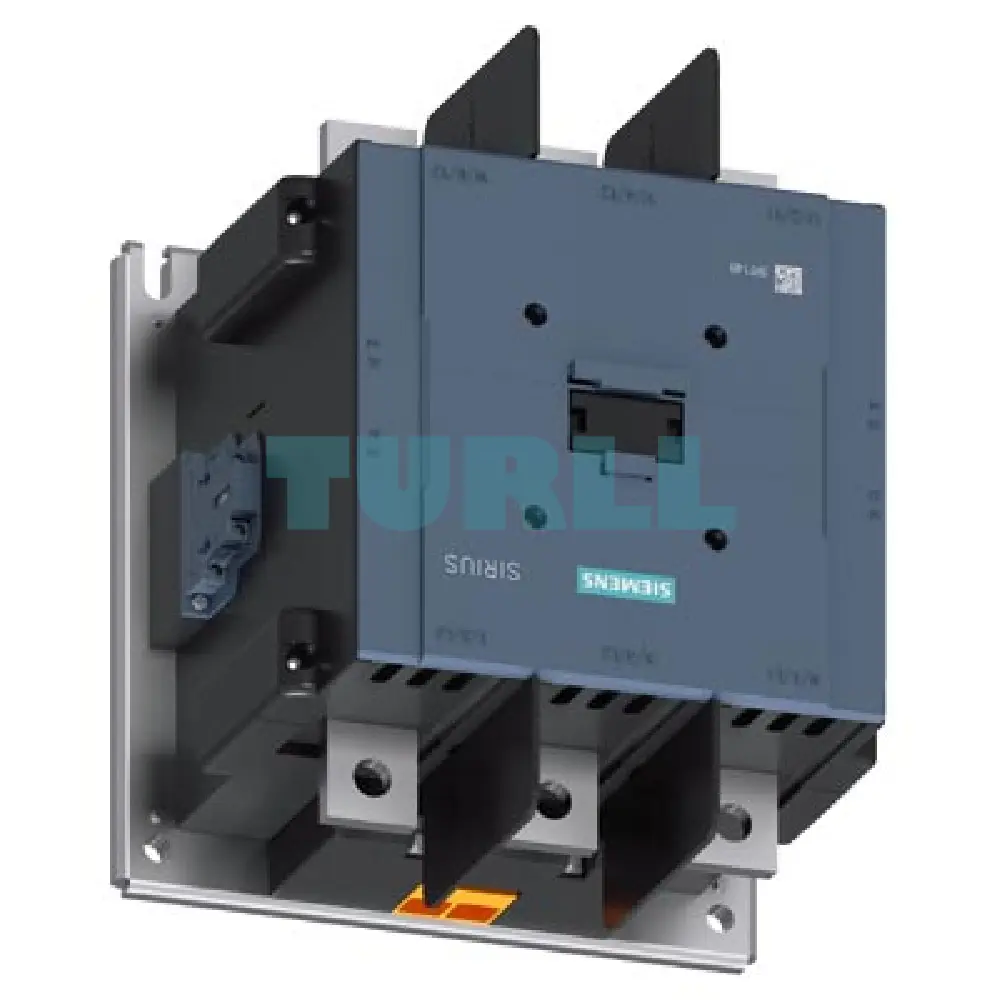

Siemens 3RT1482-6AF36 Power Contactor AC-1, 1050A / 690V, 3-Pole with Auxiliary Contacts Original Brand New

Overview

The Siemens 3RT1482-6AF36 is a high-performance power contactor designed for industrial applications requiring reliable switching of electrical loads. Rated for AC-1 up to 1050 A / 690 V, this 3-pole contactor ensures safe and efficient operation even under demanding conditions. It features a conventional auxiliary contact configuration (2 NO + 2 NC), busbar main circuit connections, and screw terminal control and auxiliary circuits for versatile installation.

Key Features & Benefit

1. High Load Capacity:
Supports up to 1050 A / 690 V AC-1, ideal for heavy-duty industrial equipment.

2. Flexible Control Voltage:
Operates reliably with 110-127 V AC (50-60 Hz) or 100-110 V DC, providing adaptability for various control systems.

3. Robust Design:
Rated for operation at 40 °C, ensuring durability in harsh industrial environments.

4. Efficient Auxiliary Contacts:
Includes 2 NO + 2 NC auxiliary contacts for monitoring and control circuits, enhancing operational safety.

5. Easy Installation:
Busbar connections for the main circuit and screw terminals for control and auxiliary circuits simplify wiring and reduce setup time.

6. Trusted Siemens Quality:
Engineered for reliability, longevity, and low maintenance in demanding industrial settings.

Functionality

• Controls and switches high current loads in industrial applications.

• Integrates seamlessly into motor starters, control panels, and automation systems.

• Provides safety and monitoring capabilities through auxiliary contacts.

Technical Specification

• Type: Power Contactor

• Rated Current (AC-1): 1050 A

• Rated Operational Voltage: 690 V AC

• Poles: 3

• Control Voltage: 110-127 V AC (50-60 Hz) / 100-110 V DC

• Auxiliary Contacts: 2 NO + 2 NC

• Main Circuit Connection: Busbar

• Control & Auxiliary Circuit Connection: Screw terminal

• Operating Temperature: 40 °C
