3RT2016-1AV02

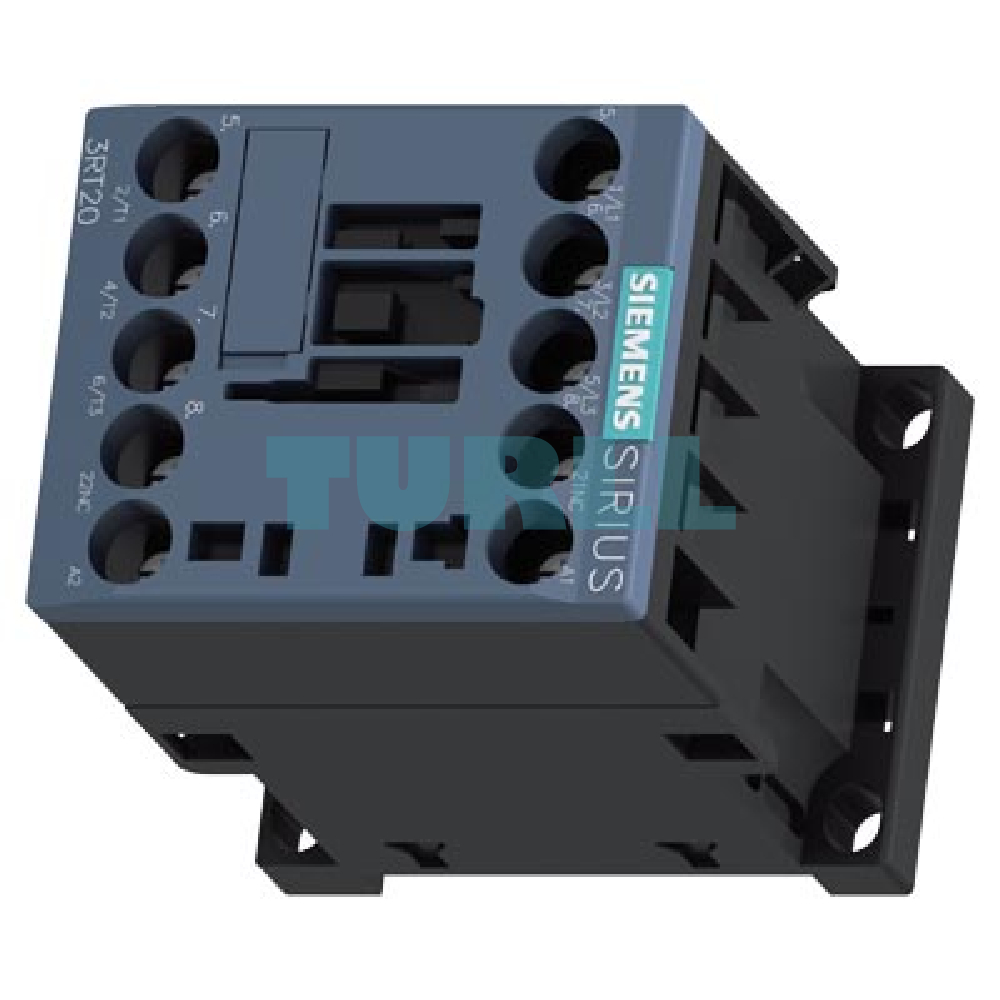

Siemens 3RT2016-1AV02 SIRIUS 3RT2 Power Contactor, 9A, 4kW, 400V AC Coil, 3-Pole, Size S00 Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3RT2016-1AV02 |
|---|---|
| Weight for shipping | 0.23 kg |
| Dimensions for shipping | 61.5 × 50 × 77.5 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens SIRIUS 3RT2016-1AV02 is a compact and high-performance 3-pole power contactor designed for switching motors up to 4 kW at 400 V AC. As a key component of the SIRIUS modular system, this size S00 contactor offers exceptional contact reliability in a small footprint. It is rated for 9 A (AC-3e/AC-3) and features a 400 V AC (50/60 Hz) control voltage coil. The built-in 1 NC (Normally Closed) auxiliary contact and screw terminals simplify wiring and integration into any industrial control panel.
Key Technical Specification
- Product Number: 3RT2016-1AV02
- Series/Brand: Siemens SIRIUS 3RT2
- Contactor Size: S00
- Poles: 3-Pole
- Rated Operational Current (AC-3e/AC-3): 9 A
- Rated Operational Power (AC-3): 4 kW at 400 V
- Control Coil Voltage: 400 V AC, 50/60 Hz
- Auxiliary Contacts: 1 NC (Normally Closed)
- Connection Type: Screw Terminal
- Service Life (Mechanical): Up to 30,000,000 switching cycles (typical)
- Approvals: IEC, UL/CSA, IE3/IE4-ready
Benefit & Features
- Compact Design (Size S00): Optimizes panel space without sacrificing performance.
- High Performance: Capable of reliable switching for motors up to 4 kW.
- Global Standard Compliant: Approved for worldwide use (e.g., IEC and UL/CSA).
- Integrated Auxiliary Contact: Includes one NC contact, reducing the need for external components and simplifying circuit design.
- Easy Wiring: Secure and proven screw terminal connection for the main and auxiliary circuits.
- SIRIUS Modular System: Seamless compatibility with a wide range of Siemens SIRIUS components (e.g., overload relays, auxiliary switches) for simple and effective load feeder construction.
- IE3/IE4-Ready: Suitable for use with modern, high-efficiency motors.
Function & Application
The 3RT2016-1AV02 power contactor is primarily used for Direct On-Line (DOL) starting and switching of standard 3-phase AC motors. Its robust design is suitable for:
- Controlling pumps and fans.
- Switching heating, lighting, and general industrial loads.
- Integration into automated control systems and machinery.
