1FK2104-4AK01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

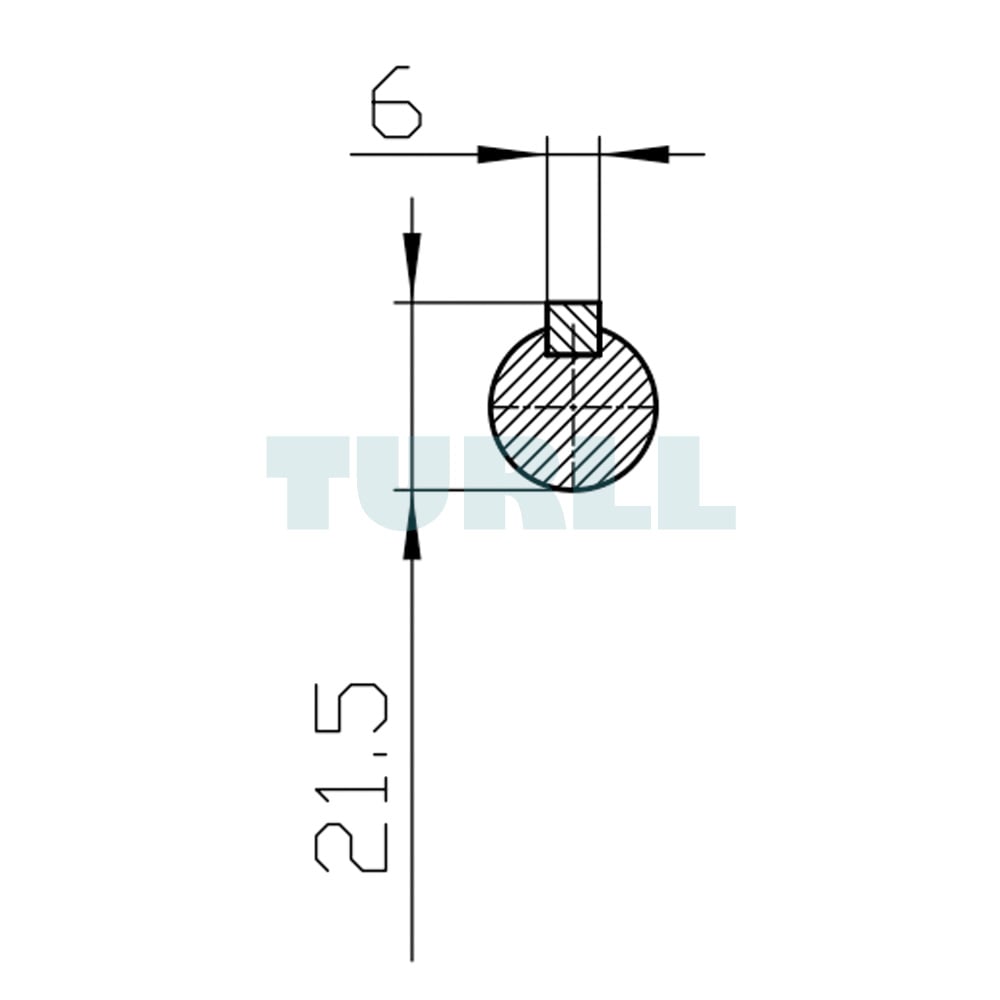

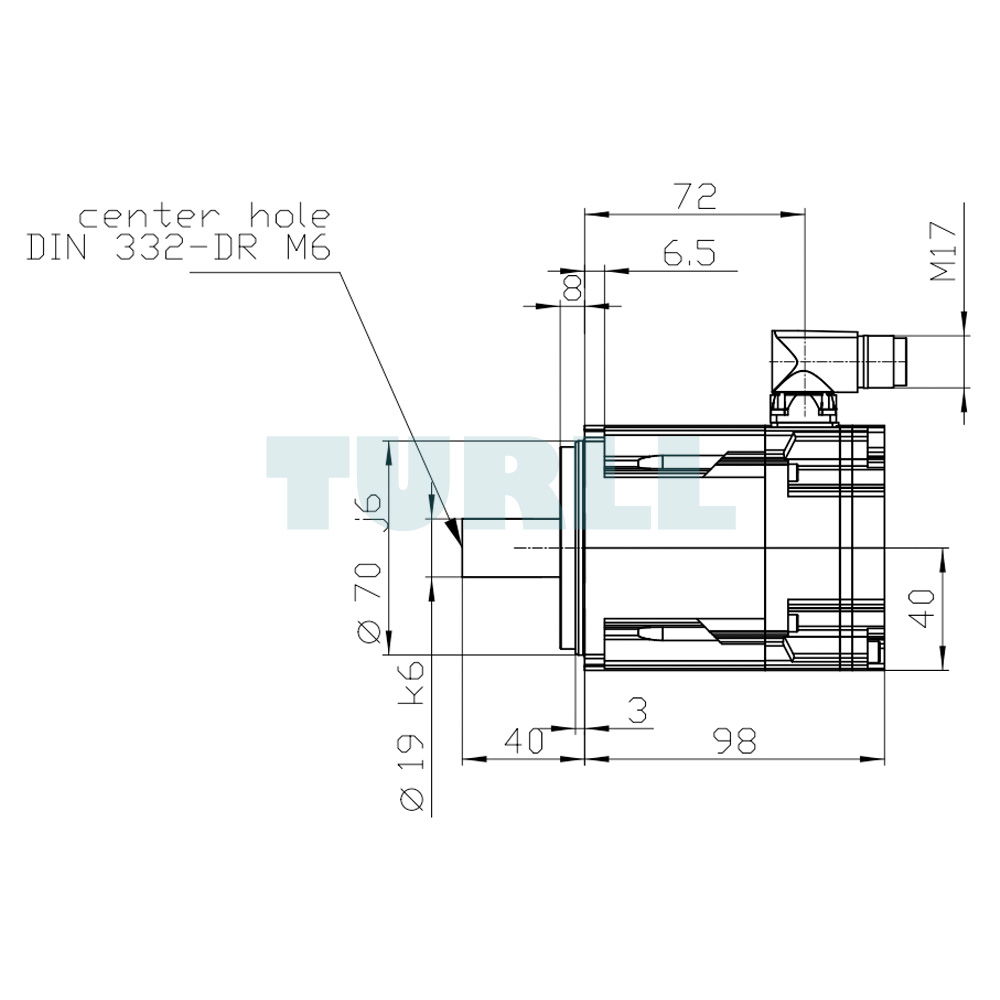

1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 HD servo motor M0=1.27 Nm; PN = 0.6 kW at nN=6000 rpm (380-480 V); PN = 0.4 kW at nN=3000 rpm (200-240 V); degree of protection IP65; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;
1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 HD servo motor M0=1.27 Nm; PN = 0.6 kW at nN=6000 rpm (380-480 V); PN = 0.4 kW at nN=3000 rpm (200-240 V); degree of protection IP65; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;
1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 HD servo motor M0=1.27 Nm; PN = 0.6 kW at nN=6000 rpm (380-480 V); PN = 0.4 kW at nN=3000 rpm (200-240 V); degree of protection IP65; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;
1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 HD servo motor M0=1.27 Nm; PN = 0.6 kW at nN=6000 rpm (380-480 V); PN = 0.4 kW at nN=3000 rpm (200-240 V); degree of protection IP65; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;
1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 HD servo motor M0=1.27 Nm; PN = 0.6 kW at nN=6000 rpm (380-480 V); PN = 0.4 kW at nN=3000 rpm (200-240 V); degree of protection IP65; shaft D19x40 mm with feather key; absolute encoder 22-bit + 12-bit multiturn (encoder AM22DQC); with OCC interface; plug size M17, rotatable;

1FK2104-4AK01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

Model / SKU1FK2104-4AK01-1MA0

SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor with 1.27 Nm torque, IP65 protection, encoder AM22DQC, and OCC interface for reliable automation.

Original price was: $1,797.06.Current price is: $756.10.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

1FK2104-4AK01-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

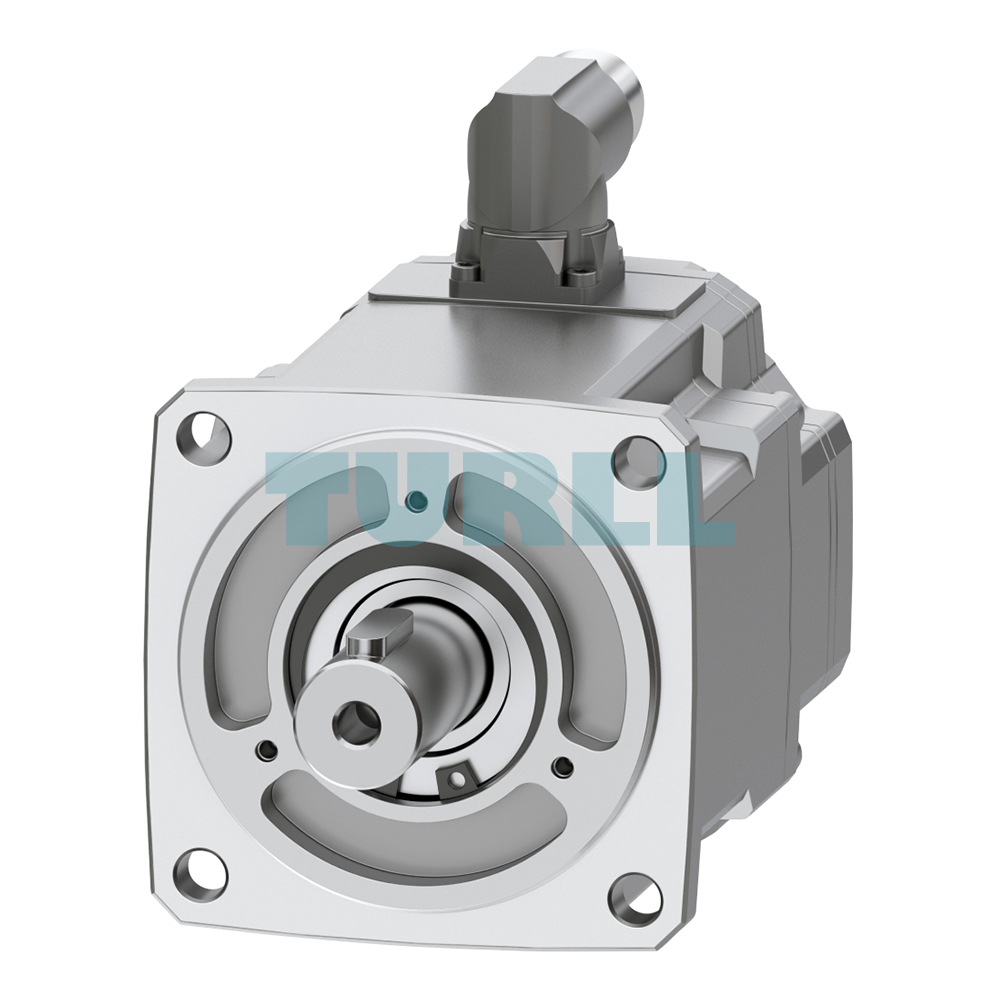

The SIEMENS 1FK2104-4AK01-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a powerful and versatile synchronous motor designed to meet the demanding requirements of modern automation. With a nominal torque of 1.27 Nm and a rated power output of 0.6 kW at 6000 rpm (380–480 V) or 0.4 kW at 3000 rpm (200–240 V), it offers exceptional flexibility for various industrial applications. The motor features a rugged IP65 protection rating, ensuring reliable operation in challenging environments where dust and moisture resistance are essential. A precision shaft with dimensions D19x40 mm and a feather key provides robust mechanical performance, while the integrated absolute encoder AM22DQC with 22-bit + 12-bit multiturn capability guarantees accurate positioning and superior motion control.

Designed with an OCC interface and equipped with a rotatable M17 plug connector, this unit offers convenient installation and integration into automation systems. The SIMOTICS S-1FK2 series is recognized for its compact design, high power density, and outstanding overload capability, making it an excellent choice for industries where precision, speed, and durability are critical factors.

Overview

The SIMOTICS S-1FK2 servomotors represent a new standard in industrial motion technology. These motors are compact, dynamic, and versatile, perfectly suited for a wide range of machine building applications. With low inertia, they deliver fast dynamic response for highly demanding tasks with lightweight loads, while their stable control characteristics make them equally effective for medium or heavier duty applications. As part of the SINAMICS S210 servo drive ecosystem, they ensure seamless integration and optimized performance.

SIMOTICS S-1FK2 Motor Variants

The range includes both High Dynamic and Compact variants. High Dynamic models are optimized for applications requiring rapid acceleration and precision with reduced inertia. Compact versions deliver smooth, stable control with higher load inertia. Together, these variants provide engineers with the flexibility to select the right motor for their specific needs, whether the requirement is for fast cycle operations or robust handling of larger mechanical systems.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AK01-1MA0

More Siemens products at Turll.com

Specifications

SKU / Model1FK2104-4AK01-1MA0
Weight2.05 kg
Dimensions452 × 250 × 267 mm
