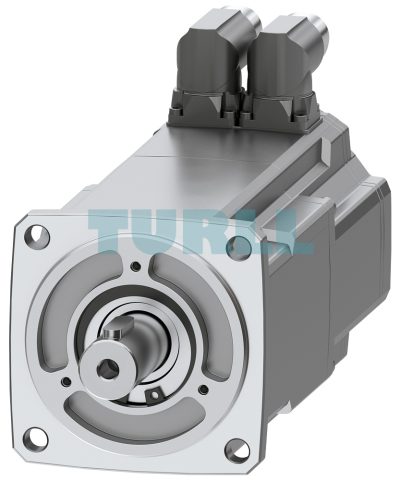

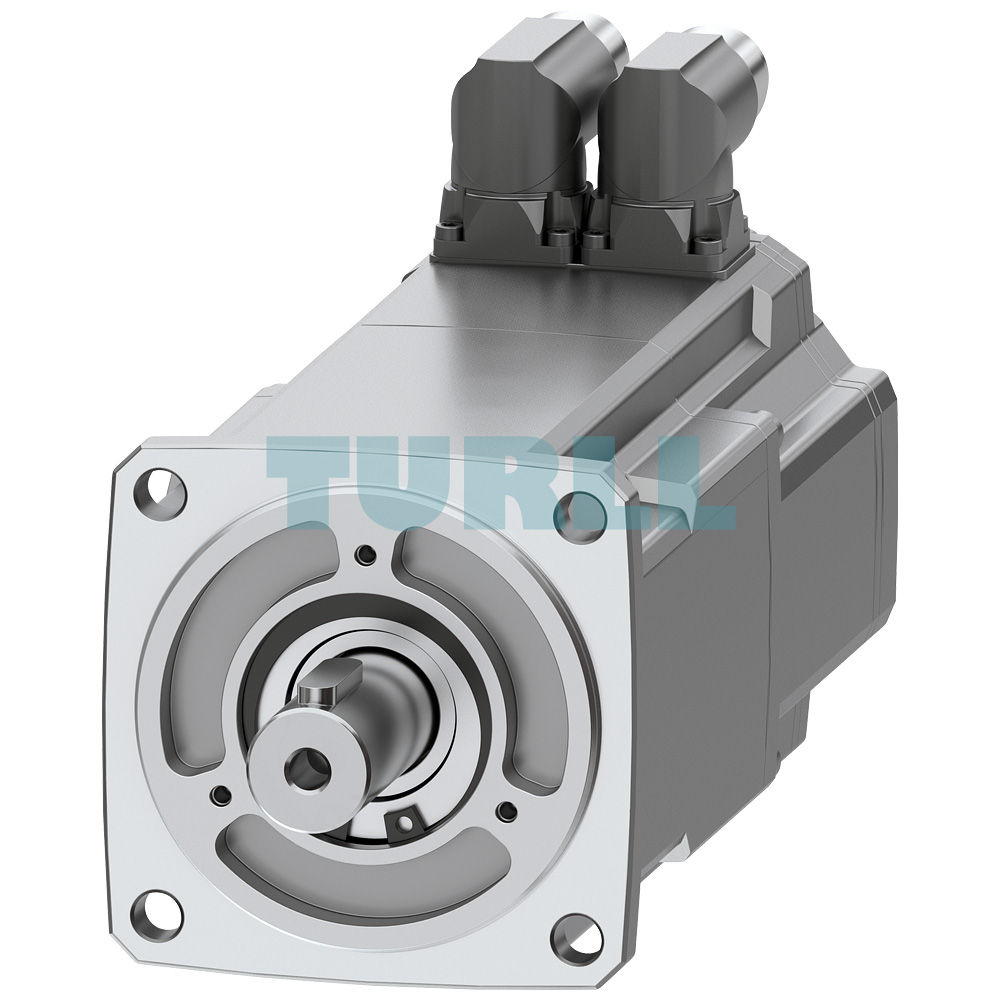

1FK2204-5AF10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AF10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor, product code 1FK2204-5AF10-1SB0, is an advanced synchronous motor built for precision, durability, and efficiency in industrial environments. Offering continuous torque of 2.4 Nm and rated power of 0.75 kW at 3000 rpm (380-480 V) or 0.375 kW at 1500 rpm (200-240 V), this model provides flexible performance for demanding automation systems. With its robust IP64 protection, integrated holding brake, and absolute single-turn encoder with 22-bit resolution, this motor ensures reliable operation even in challenging conditions. The DRIVE-CLiQ interface and M17 power connectors make integration fast and secure within modern drive systems.

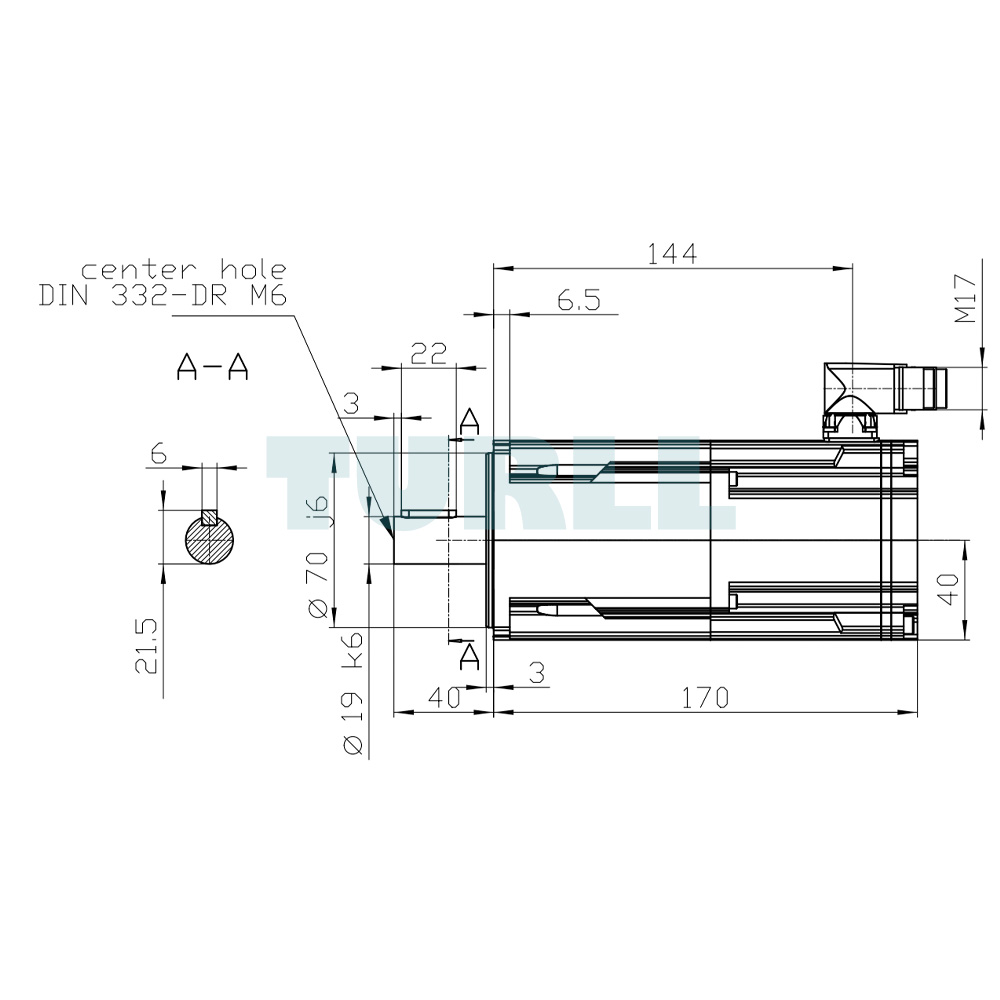

As part of the SIMOTICS S-1FK2 series, the 1FK2204-5AF10-1SB0 stands out with its compact design, high power density, and overload capability. These motors are designed to deliver exceptional performance where precision and responsiveness are critical. The shaft configuration with a 19×40 mm feather key guarantees mechanical stability, while the low inertia design enhances dynamic response. This makes it highly suitable for machinery requiring accurate positioning and smooth motion control.

Overview

The SIMOTICS S-1FK2 servo motors are optimized for a wide variety of industrial applications, from packaging machines to robotics and automated production lines. They form the foundation of the SINAMICS S210 drive system, enabling efficient configuration and reliable operation. The series is divided into two categories: High Dynamic motors for applications requiring maximum acceleration with minimal moved mass, and Compact motors for stable and precise control with medium to high inertia loads. This dual approach ensures adaptability to diverse operational demands.

Complementing the 1FK2 series, the 1FT2 range offers additional torque levels, extended speed options, and enhanced customization for industries with complex drive requirements. Both motor families share a reputation for durability and precise control, meeting the challenges of modern automation with confidence. With the 1FK2204-5AF10-1SB0, operators benefit from seamless integration, reduced downtime, and consistent performance in production processes.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF10-1SB0
