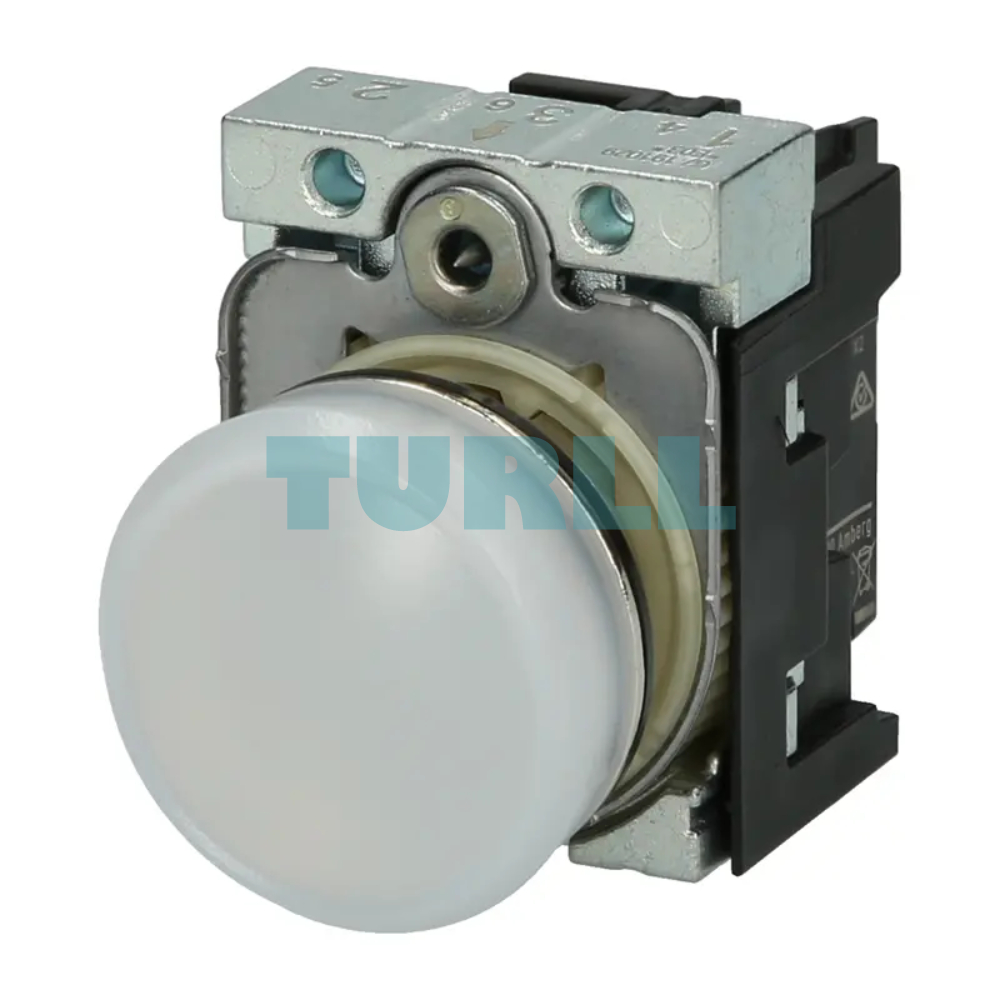

Siemens 3SU1156-6AA60-1AA0 Indicator Light, 22mm, Round, Metal, LED Signal Lamp, White Lens, 230V AC Original Brand New
$17.05
High-quality 22 mm white LED indicator light featuring a round metal body, smooth lens, integrated 230 V AC LED module, holder, and screw terminals for easy installation.
Availability: In stock
Overview
The Siemens 3SU1156-6AA60-1AA0 Indicator Light is a high-quality industrial signaling component designed for reliable visual status indication in control panels and automation systems. Featuring a 22 mm round metal body, smooth white lens, and a durable shiny finish, this LED indicator delivers outstanding visibility and long-term performance. It comes complete with holder and integrated 230 V AC LED module, making installation fast, secure, and efficient.
Key Benefit
-
High visibility thanks to the bright, clear white LED lens
-
Long service life due to Siemens’ advanced LED technology
-
Industrial-grade durability with its robust metal construction
-
Simple installation using reliable screw terminals
-
Energy-efficient LED module with integrated 230 V AC operation
-
Compatible with standard 22 mm panel cutouts, ideal for new builds or replacements
-
Enhanced safety and reliability, suitable for demanding environments
Functions & Features
-
Function: Provides a clear optical signal for operation, status, or fault indication
-
Construction: 22 mm round, metal, shiny design with built-in LED module
-
Lens: Smooth white lens ensuring uniform light output
-

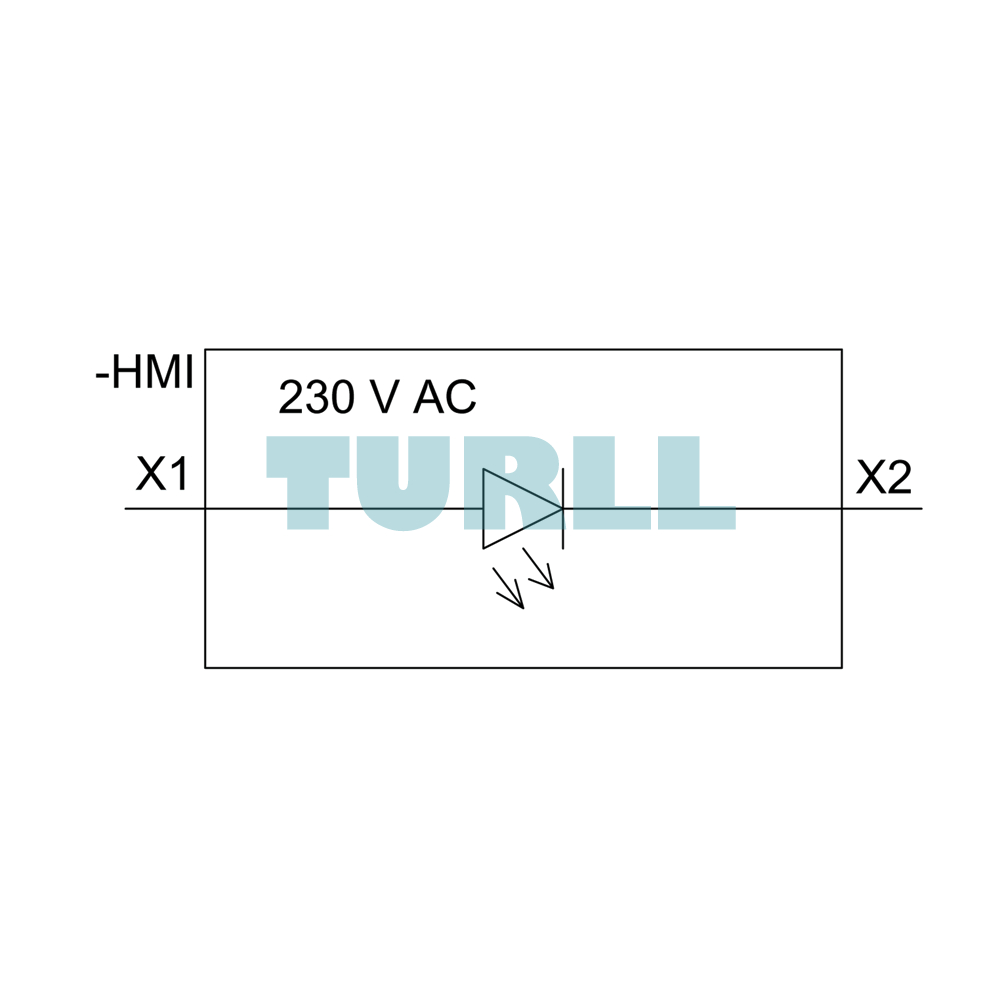

Electrical rating: 230 V AC integrated LED module
-

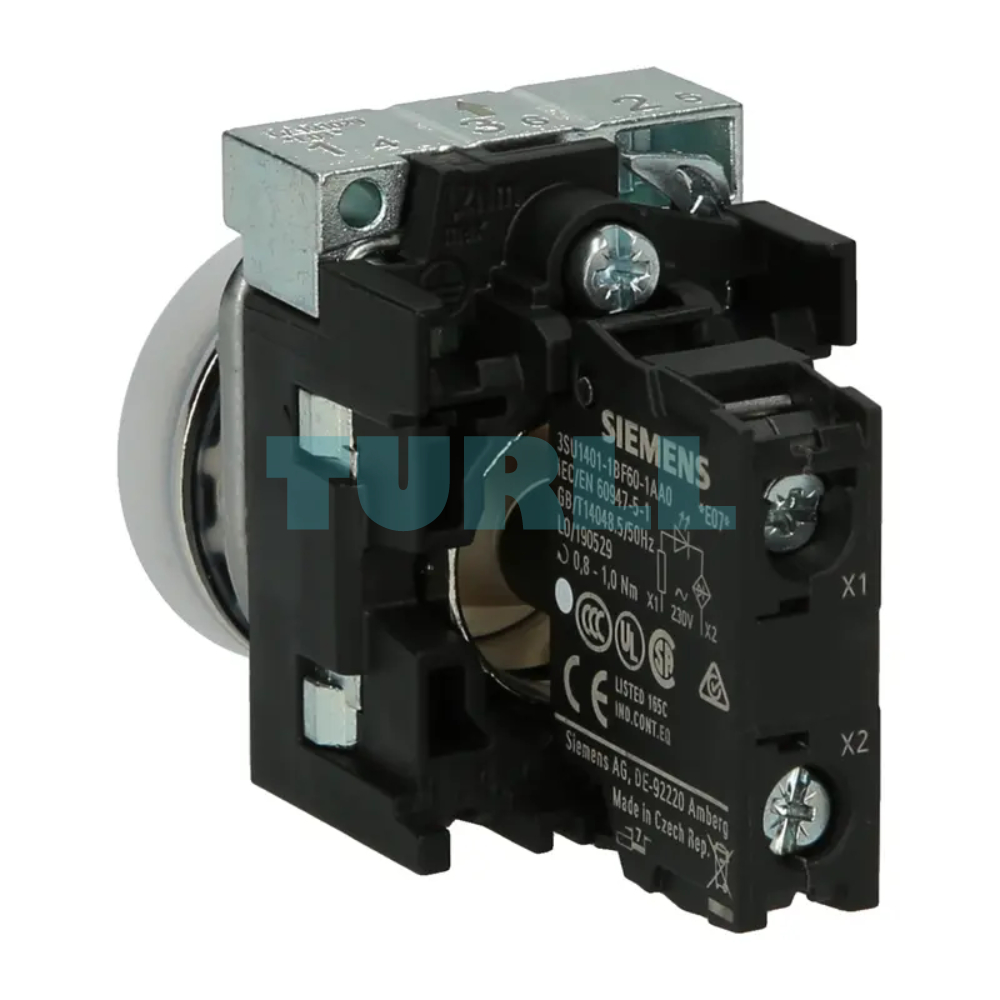

Connection type: Screw terminal for secure wiring
-
Mounting: Delivered with holder for easy panel installation
-
Application areas: Industrial automation, machinery, control cabinets, switchboards, and instrumentation
Visit 3SU1156-6AA60-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.081 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |

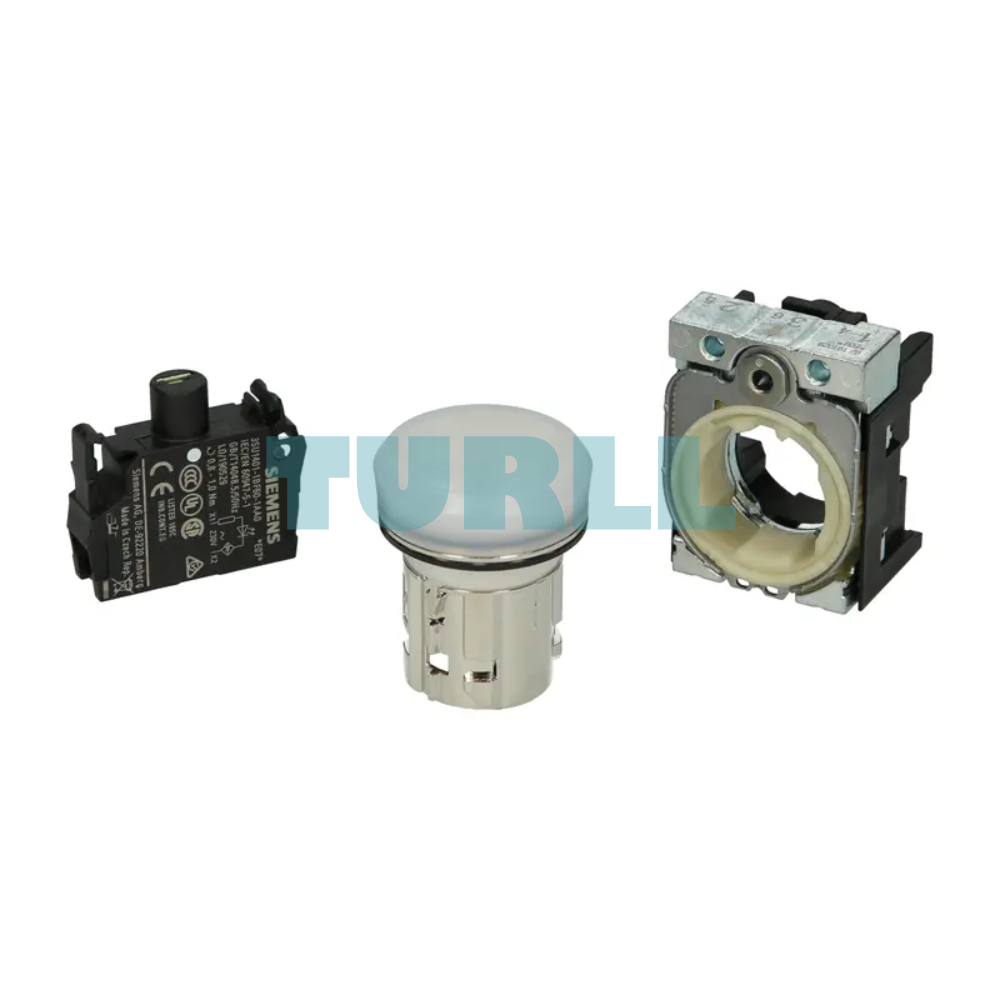

| ● of supplied LED module | 3SU1401-1BF60-1AA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of supplied repeater | 3SU1051-6AA60-0AA0 |
| number of command points | 1 |
| product extension optional light source | Yes |
| color | – |
| ● of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| product component front ring | No |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 230 V |
| ● at 60 Hz rated value | 230 … 230 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | other |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | white |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

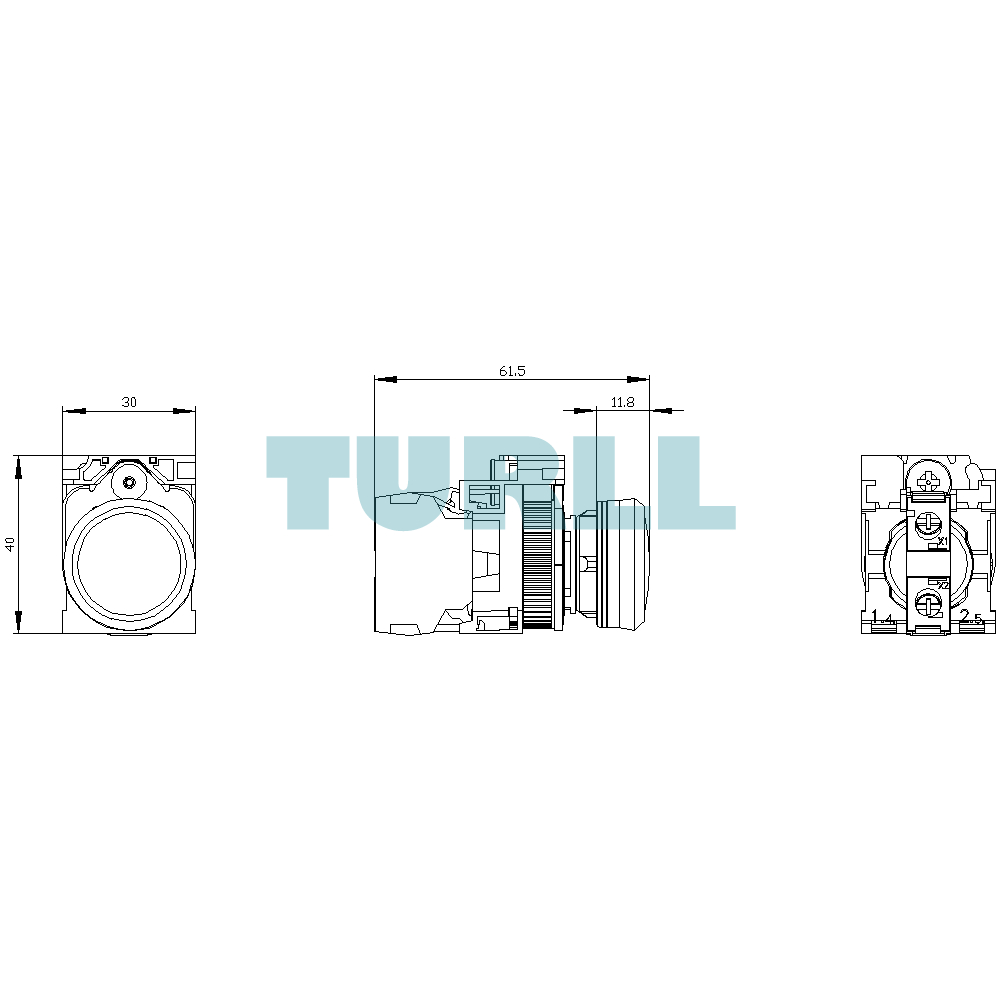

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/27/2021 |
